Dometic Brisk Air 59036506C 15,000 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 2 assemblies · 2 diagram sheets · 109 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 59036506C 15,000 BTU rooftop air conditioner: 2 assemblies (Shroud & Main Components, Optional Cover Assembly) and 109 manufacturer part numbers. 39 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

98 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #DECAL,SHROUD USE 3104238013 15,000 BTU MFR # 3104238005 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Decal Shroud MFR # 3104238013
6. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
9. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
10. #SHROUD KIT CLOSED END SW MFR # 3309364028
11. #SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description
12. #SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description
13. #SHROUD 12' MFR # 3309518003
14. #DECAL, FIELD WIRING MFR # 3104163005
15. #APPLIANCE COMPONENTS RV; Decal MFR # 3100916018
16. #COVER, CONDENSER COIL MFR # 309383000
17. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
19. #INSULATION,EVAPORATOR MFR # 317797001
20. #COVER,EVAPORATOR MFR # 314885001
21. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
22. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
23. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
24. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
25. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
28. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
29. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
30. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
31. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
32. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
33. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
34. #FAN BLADE MFR # 3313107015
35. #SERVICE KIT F/MOTOR MFR # 3310725001
36. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
37. #SUPPORT, MOTOR MFR # 317795002
38. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
39. #MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description
40. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
41. #MOTOR KIT MFR # 3108706916
42. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
43. #BASE PAN MFR # 3100832041
44. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
45. #BLOCKS, FOAM MFR # 3100587009
46. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
47. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
49. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
50. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
51. #INSULATION MFR # 3100833007
52. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
53. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
55. #RING,BLOWER INLET MFR # 39304
56. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
57. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
58. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
59. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
60. #CONDUIT,FLEX 579 MFR # 3100838006
61. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
62. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
63. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
64. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
66. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
67. #COVER CONT MFR # 38146
68. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
69. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
70. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
71. #ROOF A/C GASKET KIT MFR # 3310718006
72. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
73. #A/C SEAL, 14 X 14 WHITE MFR # A101414
74. #GASKET, GREY, 14 X 14 MFR # 6759A3281
75. #BRACKET, BASE PAN SIDE (2 REQ.) MFR # 3103930008
76. #PAN KIT,BASE 12" MFR # 3108700323
77. #BOX,ELECTRICAL MFR # 3100827066
78. #STRAIN RELIEF (2 REQUIRED) MFR # 32994017
79. #Air Conditioner Control Board; Replacement For Duo Therm Air Conditioners; Relay Board; Upper MFR # 3104757004
80. #STRAIN RELIEF MFR # 32994011
81. #PACKAGE ASM., PARTS MFR # 3105059004
82. #BOX,ELECTRICAL MFR # 3104904002
83. #STRAIN RELIEF MFR # 32994006
84. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
85. #GROMMET MFR # 3100238207
86. #NUT,FLANGE USE 306342005 THREE ARE REQUIRED MFR # 36342002 Superseded: see description
87. #NUT,FLANGE MFR # 306342005
88. #T-STAT, WALL HT/COOL BI-METAL ***USE 50-0066*** MFR # 3105058014 Superseded: see description
89. #THERMOSTAT KIT,BIMETAL H/C MFR # 3313107089
90. #T-STAT USE 3108700539 MFR # 3104438001 Superseded: see description
91. #T-STAT KIT USE 3105058014 HEAT/COOL MFR # 3108700539 Superseded: see description
92. #T-STAT USE 3108700539 MFR # 3105058006 Superseded: see description
93. #APPLIANCE COMPONENTS RV; Thermostat Bimetal Ht/Cl MFR # 3313477000
94. #BOLT,MOUNTING USE 3106756012 MFR # 3100375041 Superseded: see description
95. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
96. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
97. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
98. #COVER, JUNCTION BOX MFR # 3101316028

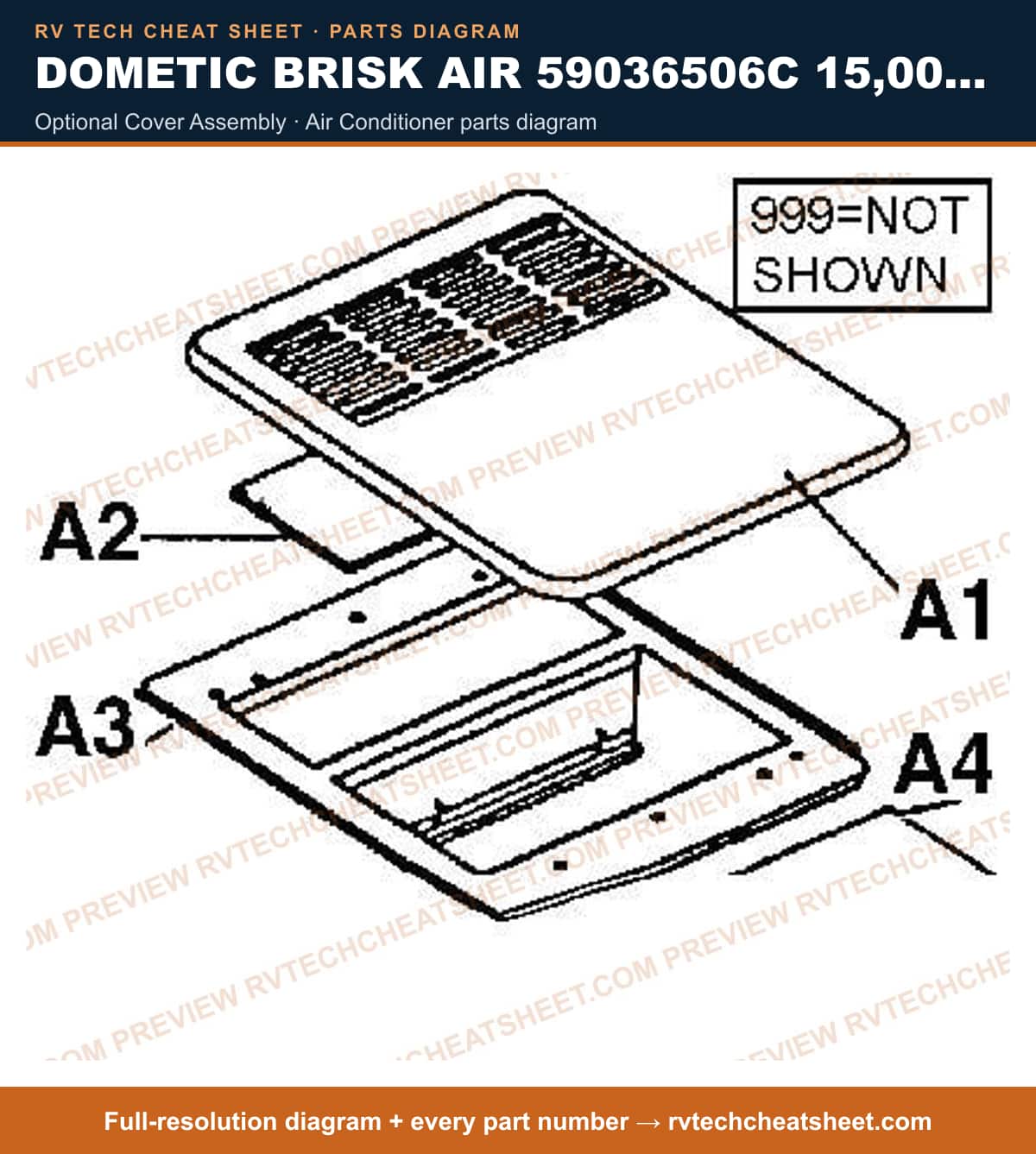

Optional Cover Assembly

Components

11 items

1. #GRILLE ASM,GREY MFR # 3103791038
2. #GRILLE ASM PACKAGE POLAR WHITE MFR # 3103791012
3. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
4. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
5. #FILTER RETURN AIR(UNIVER MFR # 3108015003
6. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
7. #ATTACHMENT TAPE GREY-EACH MFR # 06384
8. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
9. #TEMPLATE,CEILING MFR # 3103772004
10. #Air Conditioner Installation Kit; Use With Dometic Air Conditioners; Foam; Adhesive Back; 18 Inch x 7 Inch x 1/8 Inch MFR # 3105014009 Superseded: see description
11. #INSULATION,FOAM USE 3105014009 5 X 16 X 1/4"THICK MFR # 3103581009 Superseded: see description
