Dometic Brisk Air 59046512 15,000 BTU Parts Diagram · Air Box Assembly

Air Conditioner · 4 assemblies · 4 diagram sheets · 127 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 59046512 15,000 BTU rooftop air conditioner: 4 assemblies (Air Box Assembly, Optional Heater Kit, Electrical Box Assembly, Shroud & Main Components) and 127 manufacturer part numbers. 47 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Air Box Assembly

Components

19 items

1. #DOOR,RETURN AIR SHELL WHITE MFR # 3104071000
2. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
3. #ATTACHMENT TAPE GREY-EACH MFR # 06384
4. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
5. #FILTER RETURN AIR(UNIVER MFR # 3108015003
6. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
7. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
8. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
9. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
10. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
11. #PLATE,COVER RV A/C SHELL WHITE MFR # 316659
12. #Rivet; Replacement For Dometic Brisk Model Air Conditioner; Push/ Pull Rivet MFR # 3108700307
13. #PARTS BAG 679508.403 MFR # 3101148009
14. #SHELL,AIRBOX USE 3104234004 MFR # 3104085 Superseded: see description
15. #APPLIANCE COMPONENTS RV; BOLT KIT, 6" ROOF 8" BOLT MFR # 3100895006
16. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
17. #APPLIANCE COMPONENTS RV; DUCT KIT MFR # 3106775004
18. #EXTENSION KIT USE 3106775004 DUCT MFR # 313606 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000

Optional Heater Kit

Components

10 items

1. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #GUARD, HEAT MFR # 3101143
8. #ELECTRIC BOX MFR # 3101125007
9. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description
10. #STRIP,HEAT USE 3101121030 RV A/C MFR # 3101121014 Superseded: see description

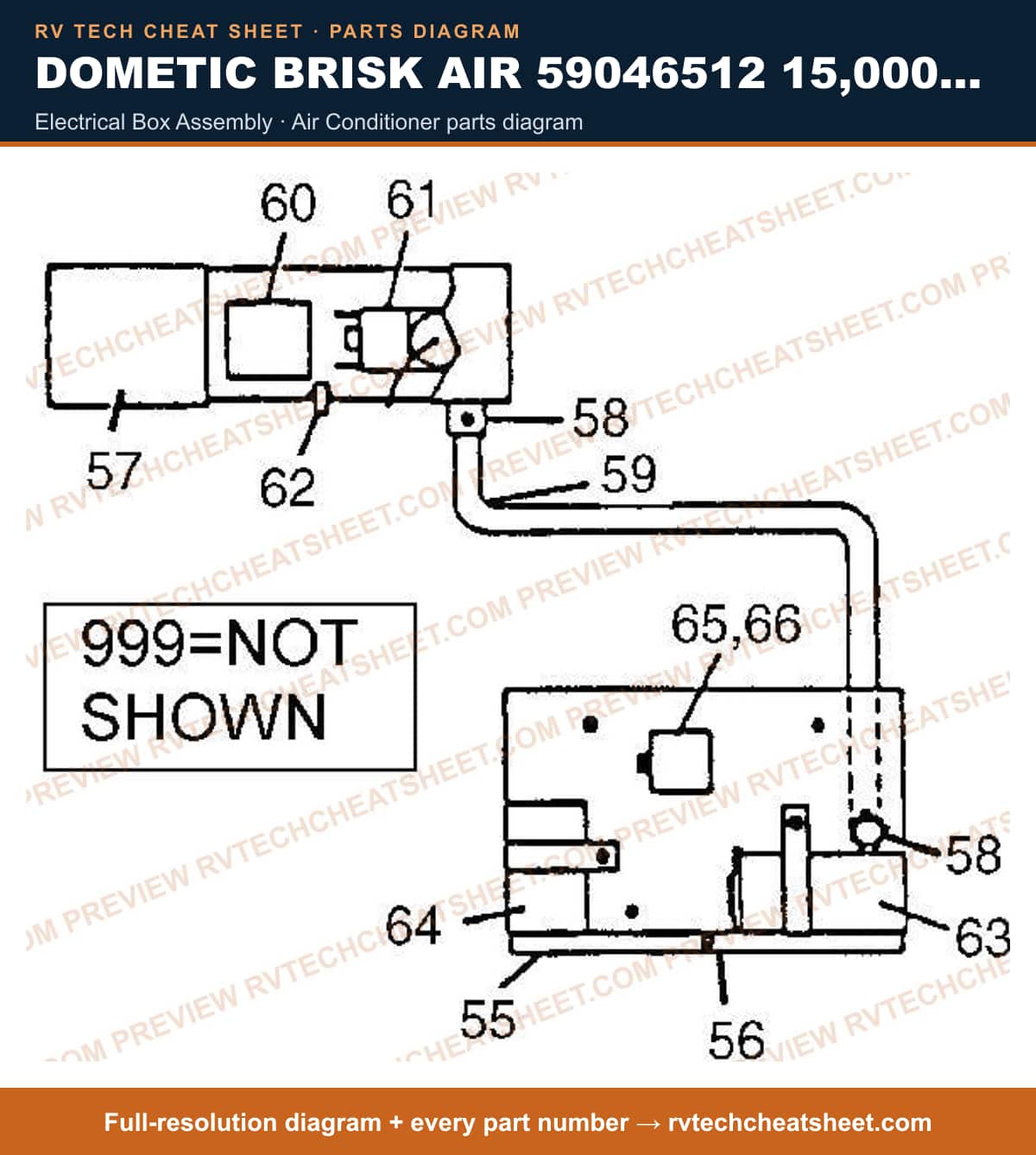

Electrical Box Assembly

Components

20 items

1. #BOX,ELECTRICAL MFR # 3100827066
2. #BOX,CONTROL USE 3100827058 57912-601 MFR # 3100827009 Superseded: see description
3. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
4. #COVER, ELECTRIC BOX MFR # 3100828
5. #COVER CONT MFR # 38146
6. #STRAIN RELIEF, 2 REQUIRED MFR # 32994016
7. #SLEEVING, FIBERGLASS MFR # 3100394208
8. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
9. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
11. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
12. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
13. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
14. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
15. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
16. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
17. #PTCR KIT MFR # 3310731009
18. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
19. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
20. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description

Shroud & Main Components

Components

80 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
3. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Decal Shroud MFR # 3104238013
5. #DECAL,SHROUD USE 3104238013 15,000 BTU MFR # 3104238005 Superseded: see description
6. #SHROUD 12' MFR # 3309518003
7. #SHROUD KIT CLOSED END SW MFR # 3309364028
8. #SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description
9. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
10. #SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description
11. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
13. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
14. #DECAL, FIELD WIRING MFR # 3104163005
15. #APPLIANCE COMPONENTS RV; Decal MFR # 3100916018
16. #COVER, CONDENSER COIL MFR # 309383000
17. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
19. #INSULATION,EVAPORATOR MFR # 317797001
20. #COVER,EVAPORATOR MFR # 314885001
21. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
22. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
23. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
24. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
27. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
28. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
29. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
30. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
31. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
32. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
33. #FAN BLADE MFR # 3313107015
34. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
35. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
36. #SERVICE KIT F/MOTOR MFR # 3310725001
37. #SUPPORT, MOTOR MFR # 317795002
38. #MOTOR KIT MFR # 3108706916
39. #MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description
40. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
41. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
43. #BASE PAN MFR # 3100832041
44. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
45. #BLOCKS, FOAM MFR # 3100587009
46. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
47. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
49. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
51. #INSULATION MFR # 3100833007
52. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
54. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
55. #RING,BLOWER INLET MFR # 39304
56. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
57. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
58. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
59. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
60. #CONDUIT,FLEX 579 MFR # 3100838006
61. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
62. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
63. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
64. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
65. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
66. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
67. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
68. #COVER CONT MFR # 38146
69. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
70. #A/C SEAL, 14 X 14 WHITE MFR # A101414
71. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
72. #ROOF A/C GASKET KIT MFR # 3310718006
73. #GASKET, GREY, 14 X 14 MFR # 6759A3281
74. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
75. #BRACKET, BASE PAN SIDE (2 REQ.) MFR # 3103930008
76. #PAN KIT,BASE 12" MFR # 3108700323
77. #BOX,ELECTRICAL MFR # 3100827066
78. #MOTOR,FAN USE 3108706916 MFR # 3108700505 Superseded: see description
79. #NUT,FLANGE MFR # 306342005
80. #NUT,FLANGE USE 306342005 THREE ARE REQUIRED MFR # 36342002 Superseded: see description
