Dometic Brisk Air 59144501C Cab Comfort 5000 BTU Parts Diagram · Exploded View

Air Conditioner · 4 assemblies · 4 diagram sheets · 130 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 59144501C Cab Comfort 5000 BTU rooftop air conditioner: 4 assemblies (Exploded View, Control Kit, Heater, Airbox Asm) and 130 manufacturer part numbers. 23 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

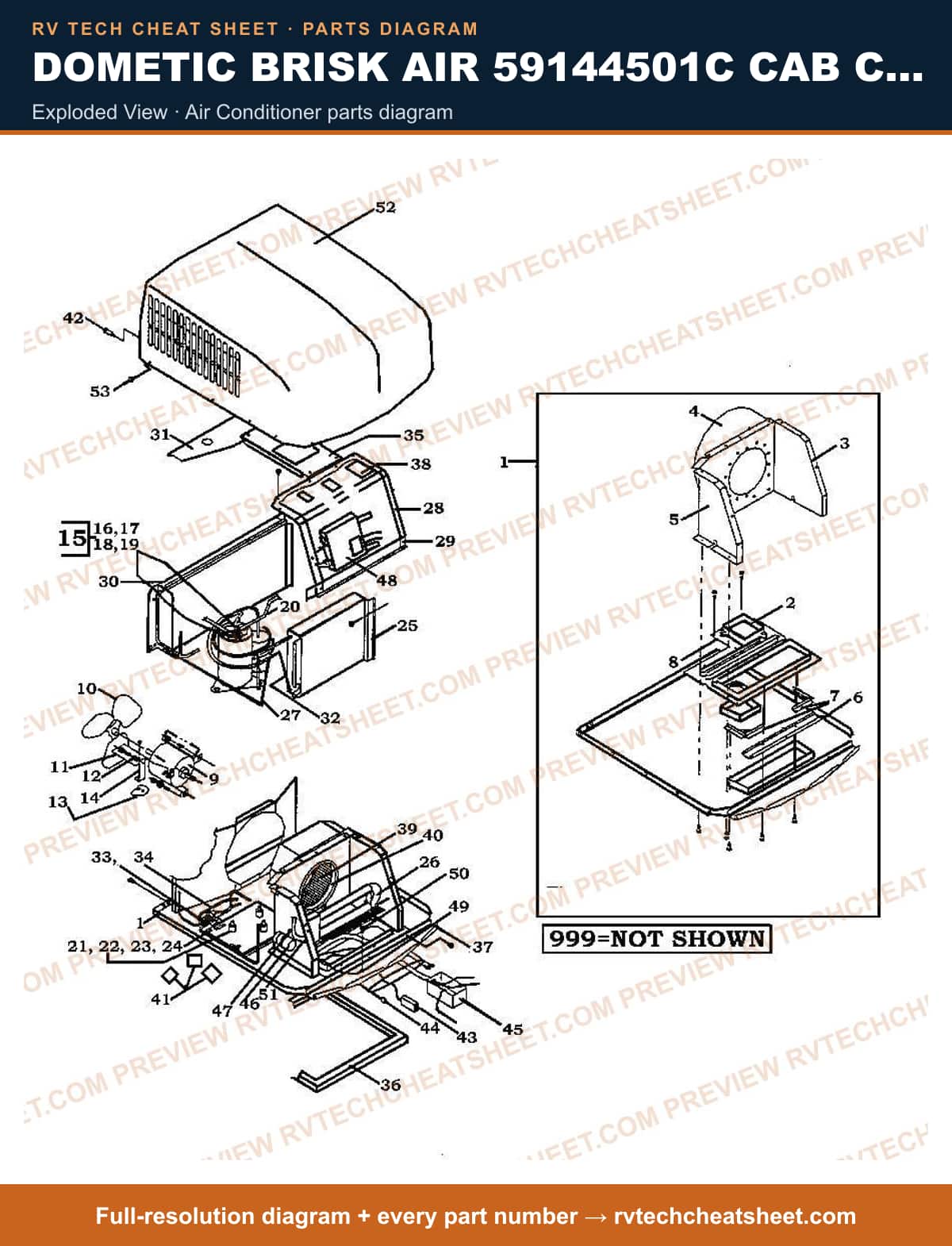

Exploded View

Components

64 items

1. #PAN KIT,BASE 10" MFR # 3108700315
2. #BULKHEAD, EVAPORATOR MFR # 3102772039
3. #HOUSING, BLOWER MFR # 3102782004
4. #MOTOR, FAN MFR # 3107324000
5. #APPLIANCE COMPONENTS RV; Blade Fan MFR # 3102779
6. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
7. #SERVICE KIT F/MOTOR MFR # 3310725001
8. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
9. #NUT, FLANGE ***USE 498471*** MFR # 306342003 Superseded: see description
10. #SUPPORT, MOTOR MFR # 3103844043
11. #COMPRESSOR, ARM MFR # 3107323002
12. #COVER,TERMINAL MFR # 3105581007
13. #Air Conditioner Compressor Terminal Cover; Replacement For 579/ 590/ 591/ 595/ 39025/ 39325/ 39335 Series Air Conditioners MFR # 3102549007
14. #PROTECTOR, OVERLOAD MFR # 3100250350
15. #SPRING, OVERLOAD MFR # 3102552001
16. #BAR, COMPRESSOR SUPPORT MFR # 3107625000
17. #PLATE, COMPRESSOR MOUNTING MFR # 3107481024
18. #GROMMET, COMPRESSOR (3 REQ.) MFR # 3100238215
19. #SLEEVE, COMPRESSOR (3 REQ.) MFR # 3100239155
20. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
21. #COIL, EVAPORATOR MFR # 3107334009
22. #ASM. HEATER MFR # 3107523007
23. #COVER, EVAPORATOR MFR # 3102773011
24. #APPLIANCE COMPONENTS RV; Insulation Foam MFR # 3105014066
25. #COVER, CONDENSER MFR # 3107335006
26. #COVER, CONDENSER MFR # 3109383000
27. #LINE,SUCTION MFR # 3107508008
28. #VALVE, REVERSING MFR # 3107501003
29. #COIL KIT SOLENOID MFR # 3310714005
30. #SOLENOID, USE 3310714005 REVERSING VALVE MFR # 3109864003 Superseded: see description
31. #SOLENOID,VALVE USE 3310714005 REVERSING MFR # 3105504009 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
33. #A/C SEAL, 14 X 14 WHITE MFR # A101414
34. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
35. #ROOF A/C GASKET KIT MFR # 3310718006
36. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
37. #GASKET, GREY, 14 X 14 MFR # 6759A3281
38. #GASKET USE 3100247 MFR # 3100247000 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
40. #DECAL, FEILD WIRING MFR # 3107500013
41. #WHEEL,BLOWER USE 3107779005 MFR # 3102780008 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Wheel Blower MFR # 3107779005
43. #BLOWER INLET RING MFR # 303692000
44. #BLOCKS, FOAM MFR # 3100587009
45. #SCREW,SHOULDER MFR # 3102834003
46. #CABLE ASM., CONTROL MFR # 3106614005
47. #EXTENSION, REMOTE SENSOR MFR # 3106697000
48. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
49. #STRAP, F/CAPACITOR MFR # 317188000
50. #ELECTRONIC KIT CCC MFR # 3109226005
51. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481025 Superseded: see description
52. #SENSOR,AMBIENT USE 3106483021 MFR # 3106483021 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Sensor Ambient Air MFR # 3106483005
54. #APPLIANCE COMPONENTS RV; Sensor Ambient Air MFR # 3310732007
55. #SCREW MFR # 312219004
56. #GROMMET MFR # 20023001
57. #SHROUD,POLAR WH USE 3309517005 MFR # 3103142000 Superseded: see description
58. #APPLIANCE COMPONENTS RV; Shroud 10" Polar White MFR # 3309517005
59. #SHROUD USE 3103142000 POLAR WHITE MFR # 3107842001 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
61. #INSULATION, SET MFR # 316109002
62. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
63. #TUBE,CAPILLARY .600 X 610 MFR # 3100245400
64. #Air Conditioner Control Box Assembly; For Use With Duo-Therm Brisk Air Conditioners MFR # 3101316036 Superseded: see description

Control Kit

Components

18 items

1. #BOX, RELAY MFR # 3106496007
2. #BOX, JUNCTION MFR # 3106497005
3. #DECAL, FIELD WIRING MFR # 3106515004
4. #APPLIANCE COMPONENTS RV; Connector Asm MFR # 3106532009
5. #STRAIN, RELIEF MFR # 302994001
6. #APPLIANCE COMPONENTS RV; Standoff Pc Board MFR # 3101624017
7. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
8. #CONNECTOR ASM. MFR # 3106513017
9. #CONNECTOR ASM. MFR # 3106514015
10. #SUPPORT, PC BOARD (2-3REQ) MFR # 3101623019
11. #BUSHING,SNAP IN MFR # 301028042
12. #SCREW, T 8-32X.38 MFR # 307987007
13. #APPLIANCE COMPONENTS RV; Fuse 3 Amp 32V Blade MFR # 3106592003
14. #COVER, RELAY BOX MFR # 3106499001
15. #APPLIANCE COMPONENTS RV; Sensor Use 3309191009 MFR # 3106480001 Superseded: see description
16. #SENSOR KIT FREEZE CONTROL MFR # 3309191009
17. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
18. #BOARD,A/C USE 3310009000 POWER MODULE MFR # 3106482015 Superseded: see description

Heater

Components

9 items

1. #ELEMENT, HEATER MFR # 3107326005
2. #APPLIANCE COMPONENTS RV; Switch Limit MFR # 3104613009
3. #PLUG, MALE (3-POLE) MFR # 3106625001
4. #COVER, HEATER MFR # 3104569011
5. #SCREW MFR # 312194003
6. #GUARD, HEAT ELEMENT MFR # 3103821001
7. #APPLIANCE COMPONENTS RV; Screw MFR # 312194008
8. #SLEEVING, FIBERGLASS MFR # 3100394117
9. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994012

Airbox Asm

Components

41 items

1. #AIR BOX ASM., COMPLETE MFR # 3107570016
2. #PLATE, INSIDE MFR # 3107730008
3. #AWNING-REPAIR PARTS RV; Extension Lower Duct MFR # 313605003
4. #DECAL FOR AIR BOX CONTROL 39015.601/.602 MFR # 3100384001
5. #PLATE ASM., TOP MFR # 3107730016
6. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
7. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
8. #APPLIANCE COMPONENTS RV; Screw T 10-24X.50Phcr MFR # 312194002
9. #SCREW, 10-16 MFR # 307879004
10. #TAPE, LOOP NYLON MFR # 3104188010
11. #SCREW MFR # 312219001
12. #APPLIANCE COMPONENTS RV; Tape Foam *Order In Inch MFR # 312790000
13. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
14. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Tape Foam *Order In Inch MFR # 312790
16. #BAG ASM., PARTS MFR # 3107194023
17. #Air Conditioner Ceiling Assembly Service Kit; Replacement For Dometic 579/ 590/ 591/ 595/ 600/ 630015 Series Air Conditioners; Press On; Round; Polar White MFR # 3104931013
18. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
19. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
20. #Wall Thermostat; 5 Button; White MFR # 3109228001
21. #BOARD KIT CCC MFR # 3311557000
22. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
23. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
24. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
25. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
26. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
27. #COMFORT CTRL MFR # 3106463007
28. #GRILLE, RETURN USE 3313107034 PLR WHT MFR # 3107053005 Superseded: see description
29. #FILTER RETURN AIR(UNIVER MFR # 3108015003
30. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
31. #ATTACHMENT TAPE GREY-EACH MFR # 06384
32. #APPLIANCE COMPONENTS RV; Shell Airbox Polar White MFR # 3107188033
33. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
34. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
35. #LOUVER ASM MFR # 3107189007
36. #GRILLE RETURN AIR SVC KIT MFR # 3313107034
37. #FILTER,AIR USE 3108015003 MFR # 3107190005 Superseded: see description
38. #PLATE,ESCUTCHEON MFR # 310753004
39. #PIPE, PVC MFR # 3107732004
40. #CABLE, POWER MFR # 3107330023
41. #CABLE ASM MFR # 3106614013
