Dometic Brisk Air 59155602C Cab Comfort Parts Diagram · Control Kit

Air Conditioner · 4 assemblies · 4 diagram sheets · 108 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 59155602C Cab Comfort rooftop air conditioner: 4 assemblies (Control Kit, Airbox Asm, Base Pan Asm, Exploded View) and 108 manufacturer part numbers. 18 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Control Kit

Components

18 items

1. #BOX, RELAY MFR # 3106496007
2. #COVER, RELAY BOX MFR # 3106499001
3. #MOTOR KIT MFR # 3108706916
4. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
5. #APPLIANCE COMPONENTS RV; Connector Asm MFR # 3106532009
6. #STRAIN, RELIEF MFR # 302994001
7. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
8. #APPLIANCE COMPONENTS RV; Standoff Pc Board MFR # 3101624017
9. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
10. #CONNECTOR ASM. MFR # 3106513017
11. #CONNECTOR ASM. MFR # 3106514015
12. #SUPPORT, PC BOARD (2-3REQ) MFR # 3101623019
13. #BUSHING,SNAP IN MFR # 301028042
14. #SCREW, T 8-32X.38 MFR # 307987007
15. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
16. #BOARD KIT CCC MFR # 3311557000
17. #APPLIANCE COMPONENTS RV; Fuse 3 Amp 32V Blade MFR # 3106592003
18. #Refrigerator Thermostat Control Assembly; Replacement For Dometic Refrigerators MFR # 3109271001

Airbox Asm

Components

28 items

1. #AIRBOX ASM COMPLETE W/PLATES MFR # 3107570031
2. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
3. #APPLIANCE COMPONENTS RV; Shell Airbox Polar White MFR # 3107188033
4. #SCREW M 1/4"-20 X 5" MFR # 3106756046
5. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
6. #GRILLE RETURN AIR SVC KIT MFR # 3313107034
7. #GRILLE, RETURN USE 3313107034 PLR WHT MFR # 3107053005 Superseded: see description
8. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
9. #ATTACHMENT TAPE GREY-EACH MFR # 06384
10. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
11. #SCREW 8-18 X .625 MFR # 312096004
12. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
13. #FILTER RETURN AIR(UNIVER MFR # 3108015003
14. #BAG ASM., PARTS MFR # 3107194023
15. #PLATE, INSIDE MFR # 3107730008
16. #APPLIANCE COMPONENTS RV; Screw T 10-24X.50Phcr MFR # 312194002
17. #COVER, JUNCTION BOX MFR # 3101316028
18. #APPLIANCE COMPONENTS RV; Tape Foam *Order In Inch MFR # 312790
19. #Air Conditioner Ceiling Assembly Service Kit; Replacement For Dometic 579/ 590/ 591/ 595/ 600/ 630015 Series Air Conditioners; Press On; Round; Polar White MFR # 3104931013
20. #CABLE ASM MFR # 3106614013
21. #AWNING-REPAIR PARTS RV; Extension Lower Duct MFR # 313605003
22. #SCREW, 10-16 MFR # 307879004
23. #PLATE,ESCUTCHEON MFR # 3107217014
24. #PIPE, PVC MFR # 3107732004
25. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
26. #Wall Thermostat; 5 Button; White MFR # 3109228001
27. #PLATE,OUTSIDE ROOF MFR # 3107731006
28. #GASKET,ROOF MFR # 3107090007

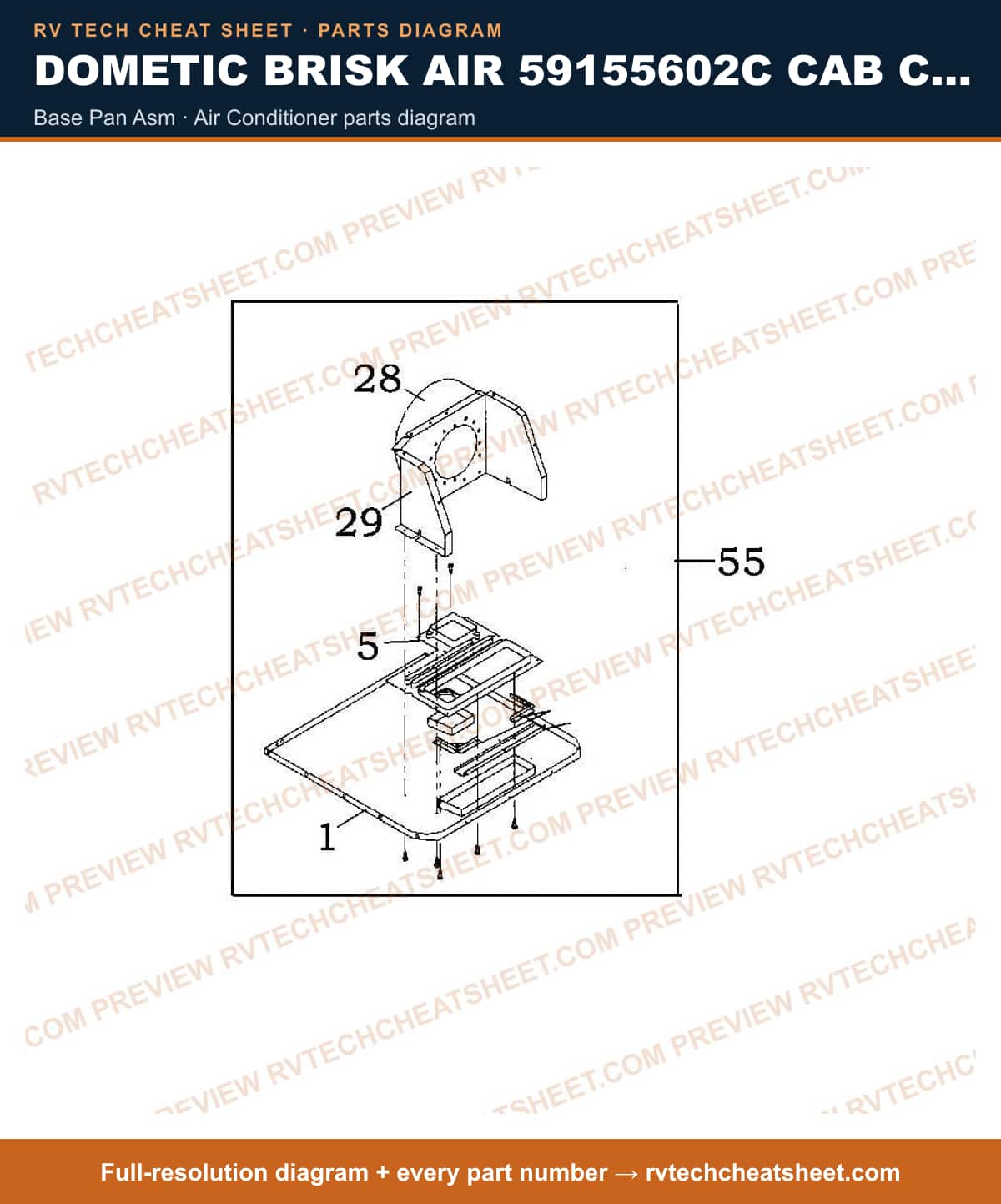

Base Pan Asm

Components

3 items

1. #PAN KIT,BASE 12" MFR # 3108700323
2. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
3. #BULKHEAD,EVAPORATOR MFR # 3100831092

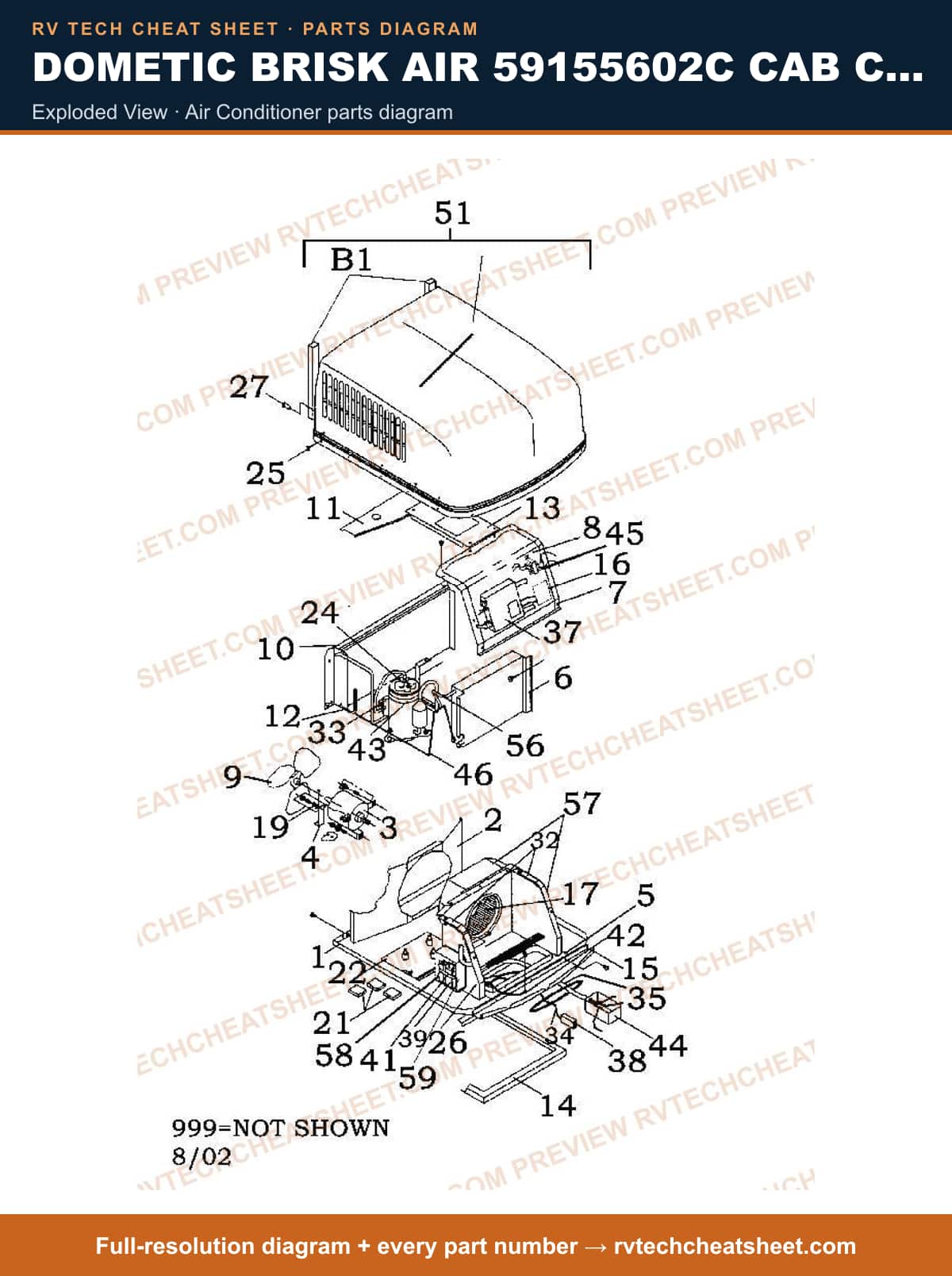

Exploded View

Components

65 items

1. #TAPE,FOAM 1.25" X .75" X 11" 2 REQUIRED MFR # 3102669037
2. #PAN KIT,BASE 12" MFR # 3108700323
3. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
4. #MOTOR KIT MFR # 3108706916
5. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
6. #COIL,EVAPORATOR MFR # 3105520021
7. #COVER,EVAP.USE 3310592000 MFR # 314885002 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Insulation Foam MFR # 3105014066
9. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
10. #FAN BLADE MFR # 3313107015
11. #COIL,CONDENSER MFR # 3105521011
12. #COVER, CONDENSER COIL MFR # 309383000
13. #LINE, PROCESS MFR # 315761082
14. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
15. #GASKET, GREY, 14 X 14 MFR # 6759A3281
16. #A/C SEAL, 14 X 14 WHITE MFR # A101414
17. #ROOF A/C GASKET KIT MFR # 3310718006
18. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
19. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
21. #DECAL,WIRING MFR # 3108176029
22. #WHEEL, BLOWER PLASTIC ***USE 49-9655*** MFR # 3104887009 Superseded: see description
23. #WHEEL BLOWER MFR # 3313107033
24. #SERVICE KIT F/MOTOR MFR # 3310725001
25. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
26. #BLOCKS, FOAM MFR # 3100587009
27. #Air Conditioner Bulkhead Plate; Replacement For Duo-Therm 57908321/ 59016626/ 57915403 Model Air Conditioners MFR # 3107478004
28. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
29. #GASKET,COVER MFR # 3103800003
30. #NUT, FLANGE MFR # 306342004
31. #COMPRESSOR MFR # 3108085014
32. #PROTECTOR, OVERLOAD MFR # 3100250368
33. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3108072004
34. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
35. #GROMMET MFR # 3100238207
36. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
37. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
38. #INSULATION,FOAM MFR # 3108084009
39. #SCREW,SHOULDER MFR # 3102834003
40. #APPLIANCE COMPONENTS RV; Tape Foam *Order In Inch MFR # 312790
41. #SOLENOID, USE 3310714005 REVERSING VALVE MFR # 3109864003 Superseded: see description
42. #SOLENOID,VALVE USE 3310714005 REVERSING MFR # 3105504009 Superseded: see description
43. #COIL KIT SOLENOID MFR # 3310714005
44. #CABLE ASM, 30" REVERSED MFR # 3106614021
45. #SLEEVING, FIBERGLASS MFR # 3100394109
46. #Refrigerator Thermostat Control Assembly; Replacement For Dometic Refrigerators MFR # 3109271001
47. #APPLIANCE COMPONENTS RV; Coupler In-Line (2Req.) MFR # 3106696002
48. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248453
49. #STRAP, F/CAPACITOR MFR # 317188000
50. #SENSOR,AMBIENT USE 3106483021 MFR # 3106483021 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Sensor Ambient Air MFR # 3106483005
52. #APPLIANCE COMPONENTS RV; Sensor Ambient Air MFR # 3310732007
53. #CLAMP, WORM DRIVE MFR # 3107614004
54. #Air Conditioner Control Box Assembly; For Use With Duo-Therm Brisk Air Conditioners MFR # 3101316036 Superseded: see description
55. #TRANSFORMER,120/12V MFR # 3108074000
56. #APPLIANCE COMPONENTS RV; Tube Cap .46 X 42 In MFR # 3100245203
57. #SHROUD 12' MFR # 3309518003
58. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
59. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
60. #WELDMENT,REVERSING VALVE MFR # 3108077011
61. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
62. #STARTER KIT (120) USE 49-8350 MFR # F6866 Superseded: see description
63. #KIT,HARD START USE 3310727007 MFR # 3106732005 Superseded: see description
64. #Air Conditioner Capacitor; Hard Start Capacitor; For 15000 BTU Air Conditioner Units MFR # 3310727007
65. #APPLIANCE COMPONENTS RV; Box Electrical MFR # 3108030002
