Dometic Brisk Air 59516501 15,000 BTU Parts Diagram · Ducted A-c Replacement

Air Conditioner · 3 assemblies · 3 diagram sheets · 99 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 59516501 15,000 BTU rooftop air conditioner: 3 assemblies (Ducted A-c Replacement, Non-ducted A-c Replacement, Shroud & Main Components) and 99 manufacturer part numbers. 28 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Ducted A-c Replacement

Components

11 items

1. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
2. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
3. #AIR CONDITIONER USE 57912F 11,000 BTU CW MFR # 57912N Superseded: see description
4. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
5. #AIR CONDITIONER 11,000 POLAR WHITE MFR # 57912G
6. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
7. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
8. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
9. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
10. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
11. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032

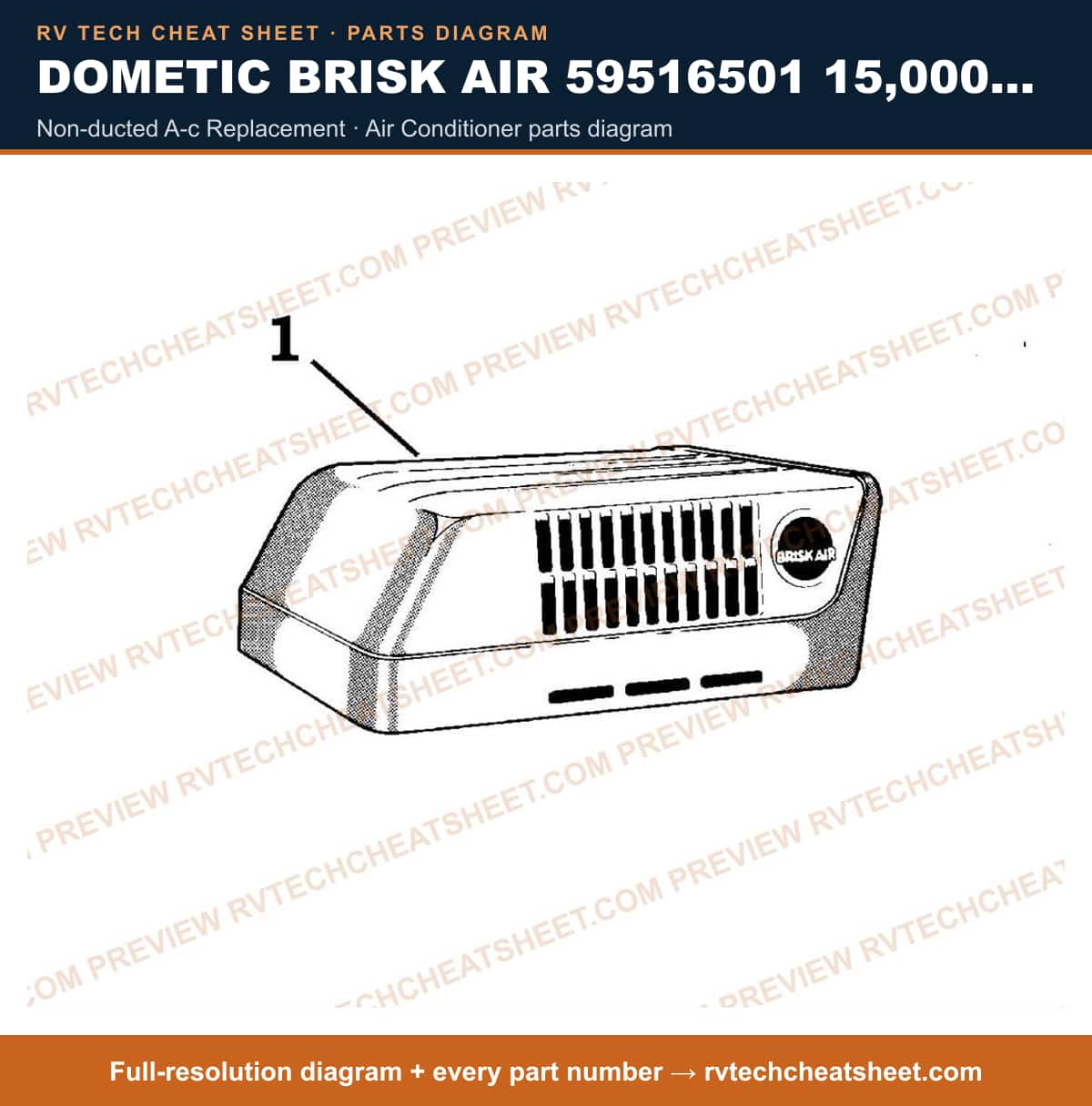

Non-ducted A-c Replacement

Components

11 items

1. #AIR CONDITIONER USE 57912G 11,000 BTU PW MFR # 57912631CN Superseded: see description
2. #AIR CONDITIONER 11,000 POLAR WHITE MFR # 57912G
3. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
4. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
5. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107210001
6. #AIR CONDITIONER 13,500 BTU SHELL WHITE - CLOSED SHROUD MFR # 57915F
7. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
8. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
9. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
10. #APPLIANCE COMPONENTS RV; Airbox Complete Polar Whi MFR # 3107210019
11. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001

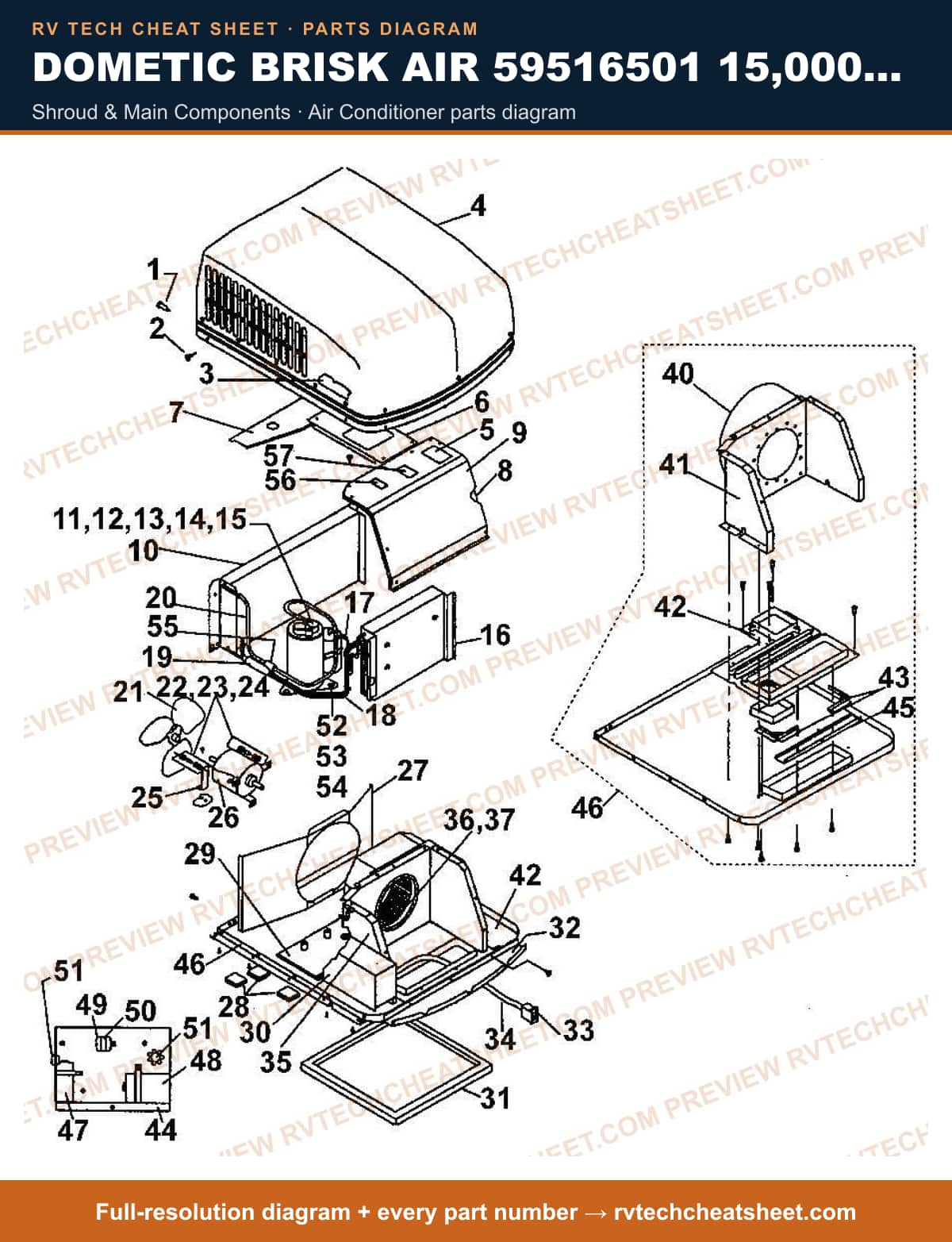

Shroud & Main Components

Components

86 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
4. #DECAL,SHROUD USE 3104238013 15,000 BTU MFR # 3104238005 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Decal Shroud MFR # 3104238013
6. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
7. #SHROUD KIT CLOSED END SW MFR # 3309364028
8. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
9. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
10. #SHROUD 12' MFR # 3309518003
11. #APPLIANCE COMPONENTS RV; Shroud 10" Polar White MFR # 3309517005
12. #APPLIANCE COMPONENTS RV; Shroud Asm Gray Use 33095 MFR # 3103143008 Superseded: see description
13. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
14. #DECAL,FIELD WIRING MFR # 3105052009
15. #APPLIANCE COMPONENTS RV; Decal MFR # 3100916018
16. #COVER, CONDENSER COIL MFR # 309383000
17. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
19. #INSULATION,EVAPORATOR MFR # 317797001
20. #COVER,EVAPORATOR MFR # 314885001
21. #COMPRESSOR 59016.521 MFR # 3104616002
22. #COVER, TERMINAL MFR # 3102548009
23. #Air Conditioner Compressor Terminal Cover; Replacement For 579/ 590/ 591/ 595/ 39025/ 39325/ 39335 Series Air Conditioners MFR # 3102549007
24. #APPLIANCE COMPONENTS RV; Nut Terminal Cover MFR # 3102550005
25. #APPLIANCE COMPONENTS RV; Gasket Nut MFR # 3102551003
26. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
27. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
28. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
29. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
30. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3105422004
31. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
32. #BLADE,FAN USE 317937 317937 MFR # 317937000 Superseded: see description
33. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
34. #FAN BLADE MFR # 3313107015
35. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
36. #SUPPORT, MOTOR MFR # 317795002
37. #MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description
38. #MOTOR KIT MFR # 3108706916
39. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
40. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
42. #BASE PAN MFR # 3100832041
43. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
44. #BLOCKS, FOAM MFR # 3100587009
45. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
46. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
47. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
48. #A/C SEAL, 14 X 14 WHITE MFR # A101414
49. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
50. #ROOF A/C GASKET KIT MFR # 3310718006
51. #GASKET USE 3100247 MFR # 3100247000 Superseded: see description
52. #INSULATION MFR # 3100833007
53. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
55. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
56. #RING,BLOWER INLET MFR # 39304
57. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
58. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
59. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
60. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
61. #CONDUIT,FLEX 579 MFR # 3100838006
62. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
63. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
64. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
65. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
66. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
67. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
68. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
69. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
70. #COVER CONT MFR # 38146
71. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
72. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
73. #GASKET, GREY, 14 X 14 MFR # 6759A3281
74. #BRACKET, BASE PAN SIDE (2 REQ.) MFR # 3103930008
75. #PAN KIT,BASE 12" MFR # 3108700323
76. #PTCR KIT MFR # 3310731009
77. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
78. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
79. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994017
80. #GROMMET MFR # 3100238207
81. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
82. #SLEEVE,COMP.USE 3100239122 MOUNTING MFR # 3100239056 Superseded: see description
83. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
84. #TAPE, MASITC 12" X 1" X 7" MFR # 3105425007
85. #DECAL FOR AIR BOX CONTROL 39015.601/.602 MFR # 3100384001
86. #DECAL,"UAW/DIEL" MFR # 316655000
