Dometic Brisk Air 59516536C1 W-solar Panels Parts Diagram · Shroud & Main Components

Air Conditioner · 2 assemblies · 2 diagram sheets · 61 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 59516536C1 W-solar Panels rooftop air conditioner: 2 assemblies (Shroud & Main Components, Bolt Kits) and 61 manufacturer part numbers. 11 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

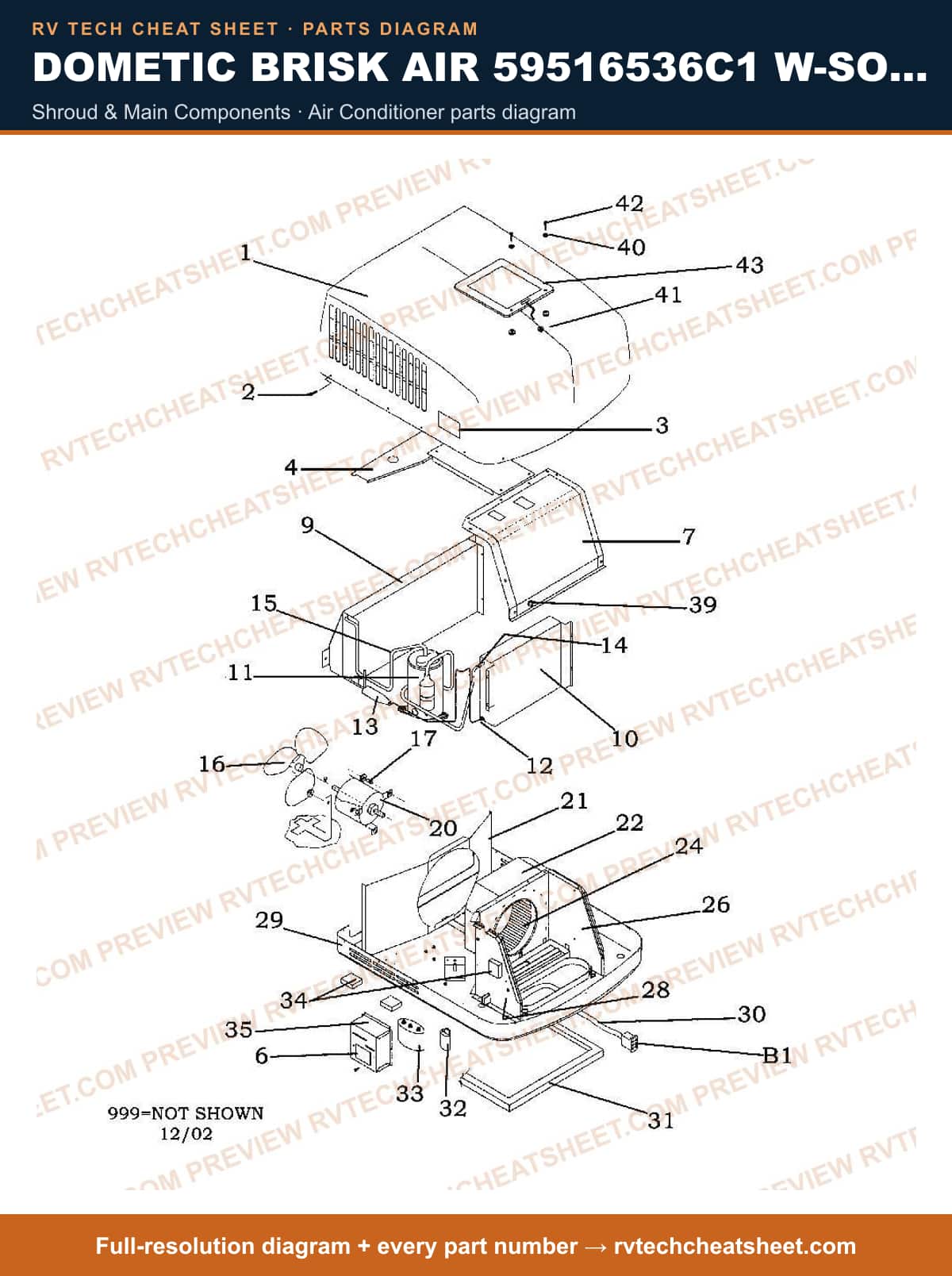

Shroud & Main Components

Components

59 items

1. #APPLIANCE COMPONENTS RV; Shroud W/Solar Panel MFR # 3109897003
2. #Wire Plug Connector; Replacement For Dometic Air Conditioner Compressor; 6 Pole MFR # 3310734003
3. #APPLIANCE COMPONENTS RV; Connector Plug MFR # 3106625019
4. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
6. #APPLIANCE COMPONENTS RV; Decal Shroud MFR # 3104238013
7. #COVER, CONDENSER COIL MFR # 309383000
8. #DECAL, FIELD WIRING MFR # 3105052017
9. #APPLIANCE COMPONENTS RV; Insulation Foam MFR # 3105014066
10. #COVER,EVAP.USE 3310592000 MFR # 314885002 Superseded: see description
11. #COVER, TERMINAL MFR # 3102548009
12. #SLEEVE,COMPRESSOR MFR # 3100239072
13. #COIL,EVAPORATOR MFR # 3105060028
14. #Air Conditioner Compressor Terminal Cover; Replacement For 579/ 590/ 591/ 595/ 39025/ 39325/ 39335 Series Air Conditioners MFR # 3102549007
15. #APPLIANCE COMPONENTS RV; Compressor MFR # 3104616044
16. #COIL,CONDENSER MFR # 3106341021
17. #GROMMET, COMP.USE 3311596000 STAG# 49-9126 MFR # 3100238181 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Nut Terminal Cover MFR # 3102550005
19. #APPLIANCE COMPONENTS RV; Gasket Nut MFR # 3102551003
20. #Air Conditioner Compressor Mounting Hardware; Replacement For Duo-Therm 57915731/ 39335641/ 630515326C1 Air Conditioners; With Compressor Grommets/ Metal Sleeves/ Nuts MFR # 3311596000
21. #SCREW 5/16-18 X 2.5 MFR # 307987021
22. #APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245426
23. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
24. #LINE,DISCHARGE MFR # 3108690003
25. #LINE,SUCTION MFR # 3109811004
26. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
27. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
28. #SERVICE KIT F/MOTOR MFR # 3310725001
29. #FAN BLADE MFR # 3313107015
30. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
31. #NUT, FLANGE ***USE 498471*** MFR # 306342003 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
33. #MOTOR KIT MFR # 3108706916
34. #WHEEL, BLOWER PLASTIC ***USE 49-9655*** MFR # 3104887009 Superseded: see description
35. #INSULATION,BLOWER MFR # 3104153006
36. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
37. #Air Conditioner O-Ring; Replacement For Duo-Therm 39045522/ 57915336/ 39045601 Model Air Conditioners; Fits Air Conditioner Blower Wheel Inlet MFR # 3106415007
38. #WHEEL BLOWER MFR # 3313107033
39. #BULKHEAD, EVAPORATOR MFR # 3100831084
40. #APPLIANCE COMPONENTS RV; Insulation Evaporator Rh MFR # 3108137013
41. #APPLIANCE COMPONENTS RV; Insulation Evap Lh MFR # 3108137005
42. #HARNESS,WIRING MFR # 3108703327
43. #APPLIANCE COMPONENTS RV; Basepan Kit MFR # 3108709928
44. #Air Conditioner Capacitor; Hard Start Capacitor; For 15000 BTU Air Conditioner Units MFR # 3310727007
45. #KIT,HARD START USE 3310727007 MFR # 3106732005 Superseded: see description
46. #ROOF A/C GASKET KIT MFR # 3310718006
47. #GASKET, GREY, 14 X 14 MFR # 6759A3281
48. #APPLIANCE COMPONENTS RV; Capacitor Fan/Run Use 49- MFR # 3100248511 Superseded: see description
49. #CAPACITOR FAN/RUN USE 46-2350 10/60MFD 370VAC MFR # F9740 Superseded: see description
50. #CAPACITOR KIT RUN MFR # 3311541000
51. #STARTER KIT (120) USE 49-8350 MFR # F6866 Superseded: see description
52. #CAPACITOR,FAN/RUN (100) 10/60MFD 370VAC MFR # M26P3760W10
53. #BLOCKS, FOAM MFR # 3100587009
54. #APPLIANCE COMPONENTS RV; Box Electrical MFR # 3108030002
55. #STRAIN RELIEF MFR # 302994019
56. #WASHER MFR # 309513039
57. #GROMMET MFR # 3109283014
58. #Screw; Replacement For Dometic Duo-Therm Penguin Model Refrigerator; #10-12 TPI x 3/4 Inch Diameter MFR # 3105445005
59. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023

Bolt Kits

Components

2 items

1. #APPLIANCE COMPONENTS RV; BOLT,9-1/2" KIT MFR # 3100895014
2. #APPLIANCE COMPONENTS RV; BOLT KIT, 6" ROOF 8" BOLT MFR # 3100895006
