Dometic Brisk Air 59516601 15,000 BTU Parts Diagram · Ducted A-c

Air Conditioner · 3 assemblies · 3 diagram sheets · 107 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 59516601 15,000 BTU rooftop air conditioner: 3 assemblies (Ducted A-c, Non- Ducted A-c Replacement, Shroud & Main Components) and 107 manufacturer part numbers. 36 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Ducted A-c

Components

12 items

1. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
2. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
3. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
4. #Wall Thermostat; 5 Button; White MFR # 3109228001
5. #AIR CONDITIONER USE 59516CN PW 15000BTU MFR # 59516331CN Superseded: see description
6. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
7. #BOARD KIT CCC MFR # 3311557000
8. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
9. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
10. #AIR CONDITIONER USE 59016CN BRISK AIR POLAR WHITE MFR # 59016621CN Superseded: see description
11. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
12. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107210001

Non- Ducted A-c Replacement

Components

12 items

1. #Air Conditioner Ceiling Assembly; For Use With Duo-Therm 57908521 Model Air Conditioner; Manual; Polar White MFR # 3107206017 Superseded: see description
2. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
3. #BOARD KIT CCC MFR # 3311557000
4. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
5. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
6. #COMFORT CTRL MFR # 3106463007
7. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
8. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
9. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
10. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
11. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
12. #AIR CONDITIONER USE 59516CN COL.WHITE MFR # 59516603N Superseded: see description

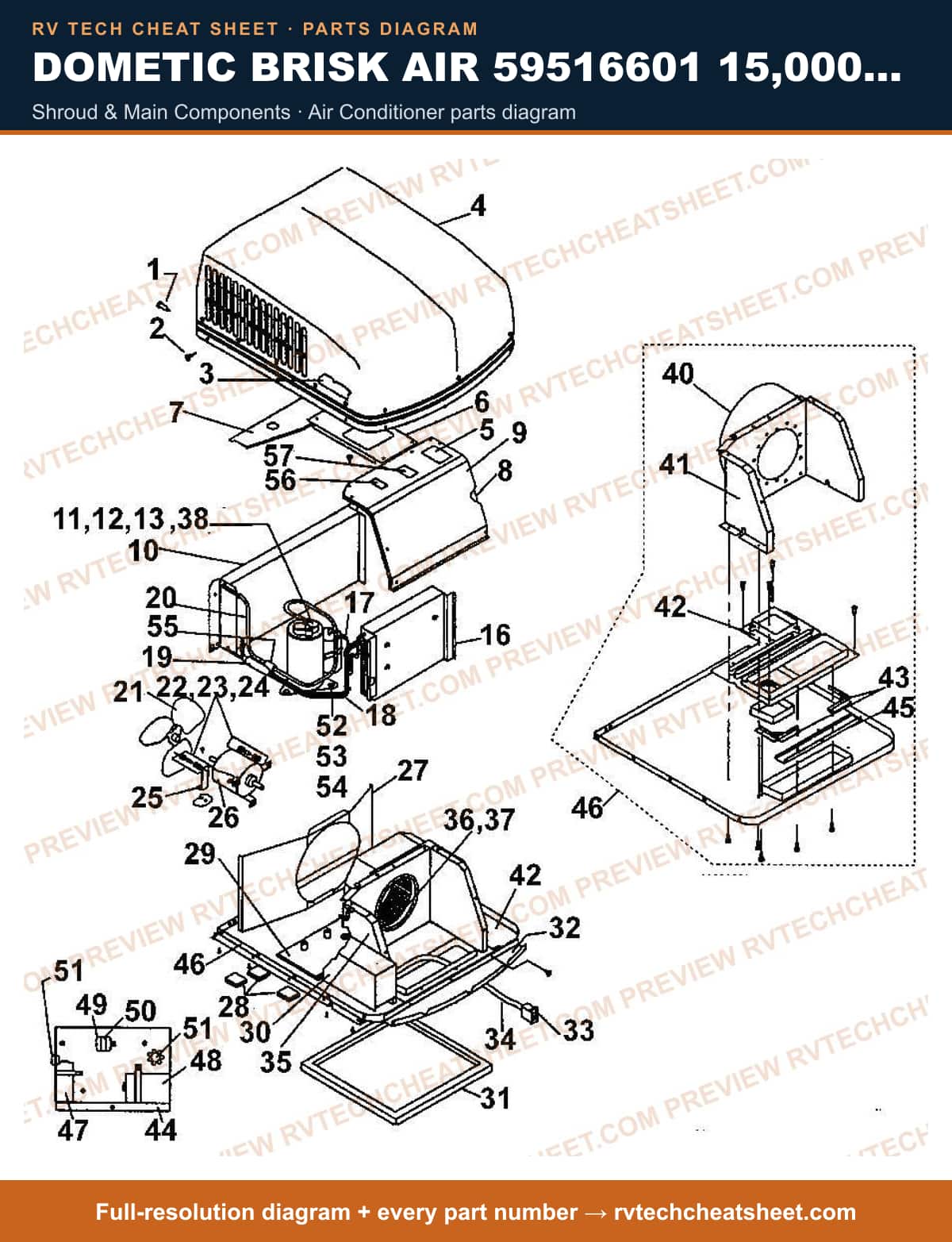

Shroud & Main Components

Components

85 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
3. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Decal Shroud MFR # 3104238013
5. #DECAL,SHROUD USE 3104238013 15,000 BTU MFR # 3104238005 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
7. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
8. #SHROUD 12' MFR # 3309518003
9. #SHROUD KIT CLOSED END SW MFR # 3309364028
10. #APPLIANCE COMPONENTS RV; Shroud Asm Gray Use 33095 MFR # 3103143008 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Shroud 10" Polar White MFR # 3309517005
12. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
14. #DECAL,FIELD WIRING MFR # 3105052009
15. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
16. #COVER, CONDENSER COIL MFR # 309383000
17. #INSULATION,EVAPORATOR MFR # 317797001
18. #COVER,EVAP.USE 3310592000 MFR # 314885002 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Condenser Coil MFR # 3106341013
20. #COIL,CONDENSER USE 3106341013 MD59516.601 MFR # 3106341005 Superseded: see description
21. #COMPRESSOR ASM MFR # 3108147004
22. #COMPRESSOR USE 3108147004 MFR # 3105610004 Superseded: see description
23. #COVER,TERMINAL USE 3108072004 MFR # 3103799007 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3108072004
25. #GASKET,COVER MFR # 3103800003
26. #COIL,EVAPORATOR MFR # 3105060010
27. #LINE,SUCTION MFR # 3105823003
28. #APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245426
29. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
30. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
31. #FAN BLADE MFR # 3313107015
32. #LINE,DISCHARGE MFR # 3105824001
33. #BLADE,FAN USE 317937 317937 MFR # 317937000 Superseded: see description
34. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
35. #SERVICE KIT F/MOTOR MFR # 3310725001
36. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
37. #SPACER,MOTOR USE 308046002 MFR # 308046000 Superseded: see description
38. #NUT, FLANGE ***USE 498471*** MFR # 306342003 Superseded: see description
39. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
40. #SUPPORT KIT USE 3103844027 MOTOR MFR # 3108700067 Superseded: see description
41. #AWNING-REPAIR PARTS RV; Support Motor MFR # 3103844027
42. #MOTOR SERV.KIT USE 3108706916 MFR # 3108702394 Superseded: see description
43. #MOTOR KIT MFR # 3108706916
44. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
45. #BLOCKS, FOAM MFR # 3100587009
46. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
47. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
48. #ROOF A/C GASKET KIT MFR # 3310718006
49. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
50. #A/C SEAL, 14 X 14 WHITE MFR # A101414
51. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
52. #GASKET USE 3100247 MFR # 3100247000 Superseded: see description
53. #GASKET, GREY, 14 X 14 MFR # 6759A3281
54. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
55. #PLUG,CONNECTION MFR # 314470001
56. #APPLIANCE COMPONENTS RV; Sleeve MFR # 318087009
57. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
58. #WHEEL BLOWER MFR # 3313107033
59. #BLOWER, INLET RING MFR # 309304000
60. #WHEEL, BLOWER PLASTIC ***USE 49-9655*** MFR # 3104887009 Superseded: see description
61. #NUT, FLANGE MFR # 306342004
62. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
63. #BULKHEAD, EVAPORATOR MFR # 3100831068
64. #PAN KIT,BASE 12" MFR # 3108700323
65. #BRACKET, (2 REQ.) MFR # 3106290004
66. #BOX,ELECTRICAL MFR # 3100827066
67. #BOX,ELECTRICAL USE 3100827066 MFR # 3100827058 Superseded: see description
68. #BASE PAN MFR # 3108700232
69. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
70. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
71. #CAPACITOR, START MFR # 47C
72. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
73. #CAPACITOR,FAN/RUN 10/40MFD 370VAC MFR # 3100248495
74. #CAPACITOR,FAN/RUN USE 46-2348 10/40MFD 370VAC MFR # F8603 Superseded: see description
75. #PTCR KIT MFR # 3310731009
76. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
77. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
78. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994017
79. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
80. #GROMMET MFR # 3100238207
81. #TAPE, MASITC 12" X 1" X 7" MFR # 3105425007
82. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
83. #SLEEVE,COMP.USE 3100239122 MOUNTING MFR # 3100239056 Superseded: see description
84. #DECAL FOR AIR BOX CONTROL 39015.601/.602 MFR # 3100384001
85. #DECAL,"UAW/DIEL" MFR # 316655000
