Dometic Brisk Air 59529601 Parts Diagram · Shroud & Main Components

Air Conditioner · 2 assemblies · 2 diagram sheets · 97 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 59529601 rooftop air conditioner: 2 assemblies (Shroud & Main Components, Replacement) and 97 manufacturer part numbers. 30 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

93 items

1. #SCREW,SHOULDER MFR # 3102834003
2. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
3. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
5. #SHROUD KIT CLOSED END SW MFR # 3309364028
6. #SHROUD 12' MFR # 3309518003
7. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
8. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
9. #DECAL,SHROUD MFR # 3101380016
10. #SHROUD,12" USE 3103144006 BEIGE MFR # 3103145003 Superseded: see description
11. #SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description
12. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
14. #SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Decal MFR # 3100916018
16. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
17. #COVER, CONDENSER COIL MFR # 309383000
18. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
19. #INSULATION,EVAPORATOR MFR # 317797001
20. #COVER,EVAPORATOR MFR # 314885001
21. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
22. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
23. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
24. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523
27. #COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description
28. #Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003
29. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
30. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
31. #APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001
32. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
33. #FAN BLADE MFR # 3313107015
34. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
35. #SERVICE KIT F/MOTOR MFR # 3310725001
36. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
37. #SUPPORT, MOTOR MFR # 317795002
38. #MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description
39. #MOTOR KIT MFR # 3108706916
40. #MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description
41. #MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
43. #BASE PAN MFR # 3100832041
44. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116
45. #BLOCKS, FOAM MFR # 3100587009
46. #APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000
47. #APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007
49. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
50. #HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description
51. #INSULATION MFR # 3100833007
52. #BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021
54. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
55. #RING,BLOWER INLET MFR # 39304
56. #APPLIANCE COMPONENTS RV; Pan Drain Cond 579 7 8 A MFR # 318008001
57. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100633001
58. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
59. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
60. #CONDUIT,FLEX 579 MFR # 3100838006
61. #APPLIANCE COMPONENTS RV; Channel Front MFR # 3102811001
62. #BOX,JUNCTION USE 3104161009 WELD MFR # 3101610008 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Weldment Junction Box MFR # 3104161009
64. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
65. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
66. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
67. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
68. #COVER CONT MFR # 38146
69. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
70. #A/C SEAL, 14 X 14 WHITE MFR # A101414
71. #ROOF A/C GASKET KIT MFR # 3310718006
72. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
73. #GASKET, GREY, 14 X 14 MFR # 6759A3281
74. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
75. #BRACKET, BASE PAN SIDE (2 REQ.) MFR # 3103930008
76. #PAN KIT,BASE 12" MFR # 3108700323
77. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994017
78. #GROMMET MFR # 3100238207
79. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
80. #SLEEVE,COMP.USE 3100239122 MOUNTING MFR # 3100239056 Superseded: see description
81. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
82. #DECAL FOR AIR BOX CONTROL 39015.601/.602 MFR # 3100384001
83. #DECAL,"UAW/DIEL" MFR # 316655000
84. #Air Conditioner Retrofit Kit; 5 Button Comfort Control Center Upgrade Kit; Polar White; With Control Box/ Operating Instructions MFR # 3310014000
85. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
86. #LINE SUCTION MFR # 3106900008
87. #COMFORT CTRL MFR # 3106463007
88. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
89. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
90. #APPLIANCE COMPONENTS RV; Relay Kit Bimetal T-Stat MFR # 3104998004
91. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
92. #SPACER,MOTOR USE 308046002 MFR # 308046000 Superseded: see description
93. #AIR DISTRIBUTIONS BOX W/ BI-METAL WALL THERMOSTAT MFR # 3105637007

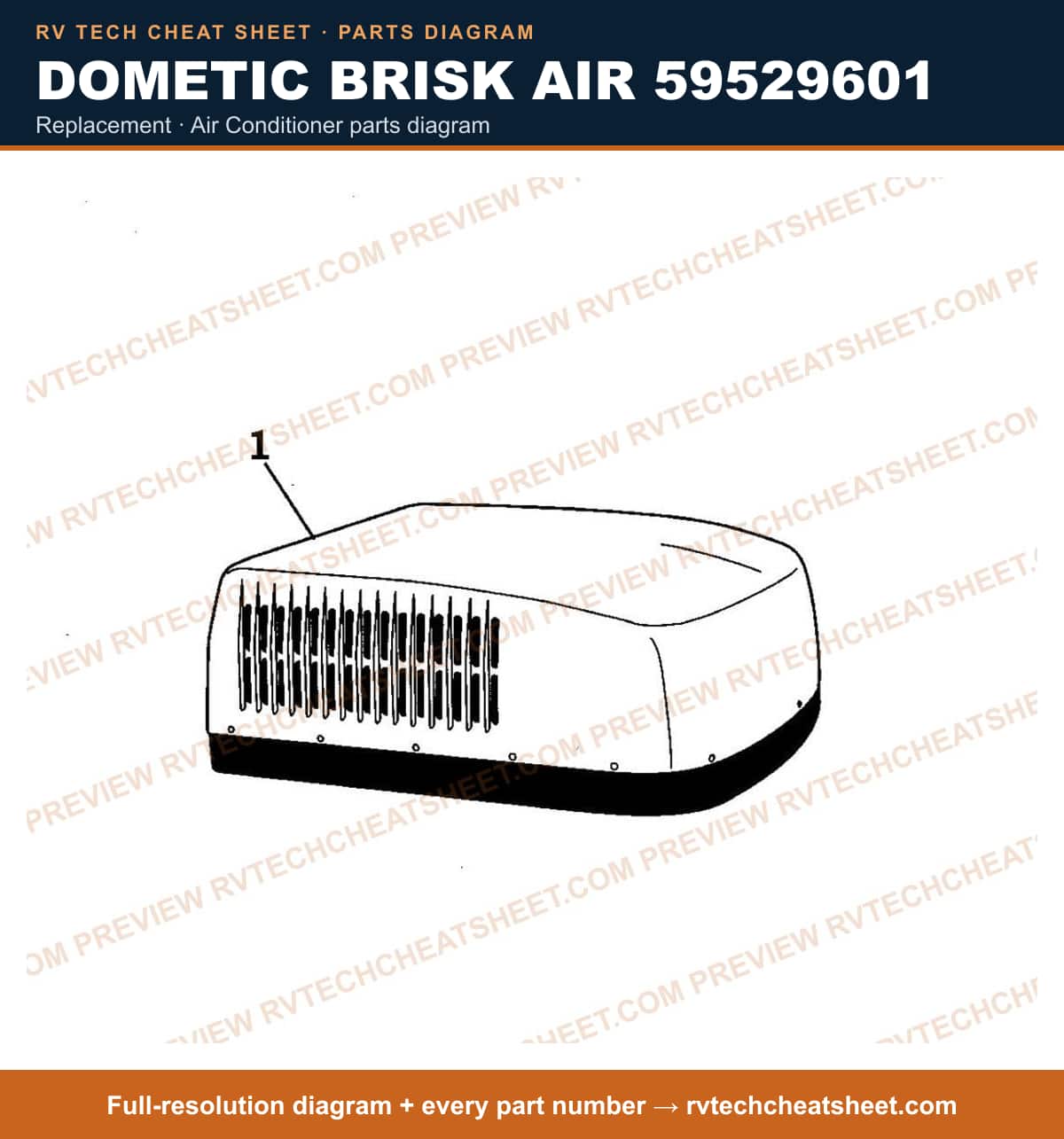

Replacement

Components

4 items

1. #ELECTRONIC CONTROL KIT 59529 - HIGH EFFICIENCY MFR # 3106917002
2. #AIR CONDITIONER USE 59530N BRISKAIR HIGH EFF. SHELL WHITE MFR # 59529601N Superseded: see description
3. #AIRBOX,COMPLETE POLAR WHITE MANUAL CONTROLS MFR # 3107211017
4. #AIRBOX,COMPLETE SHELL WHITE HI-EFFICIENCY MFR # 3107211009
