Dometic Brisk Air 59530532 Parts Diagram

Air Conditioner · 1 diagram sheet · 61 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic Brisk Air 59530532 rooftop air conditioner: 61 manufacturer part numbers. 15 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

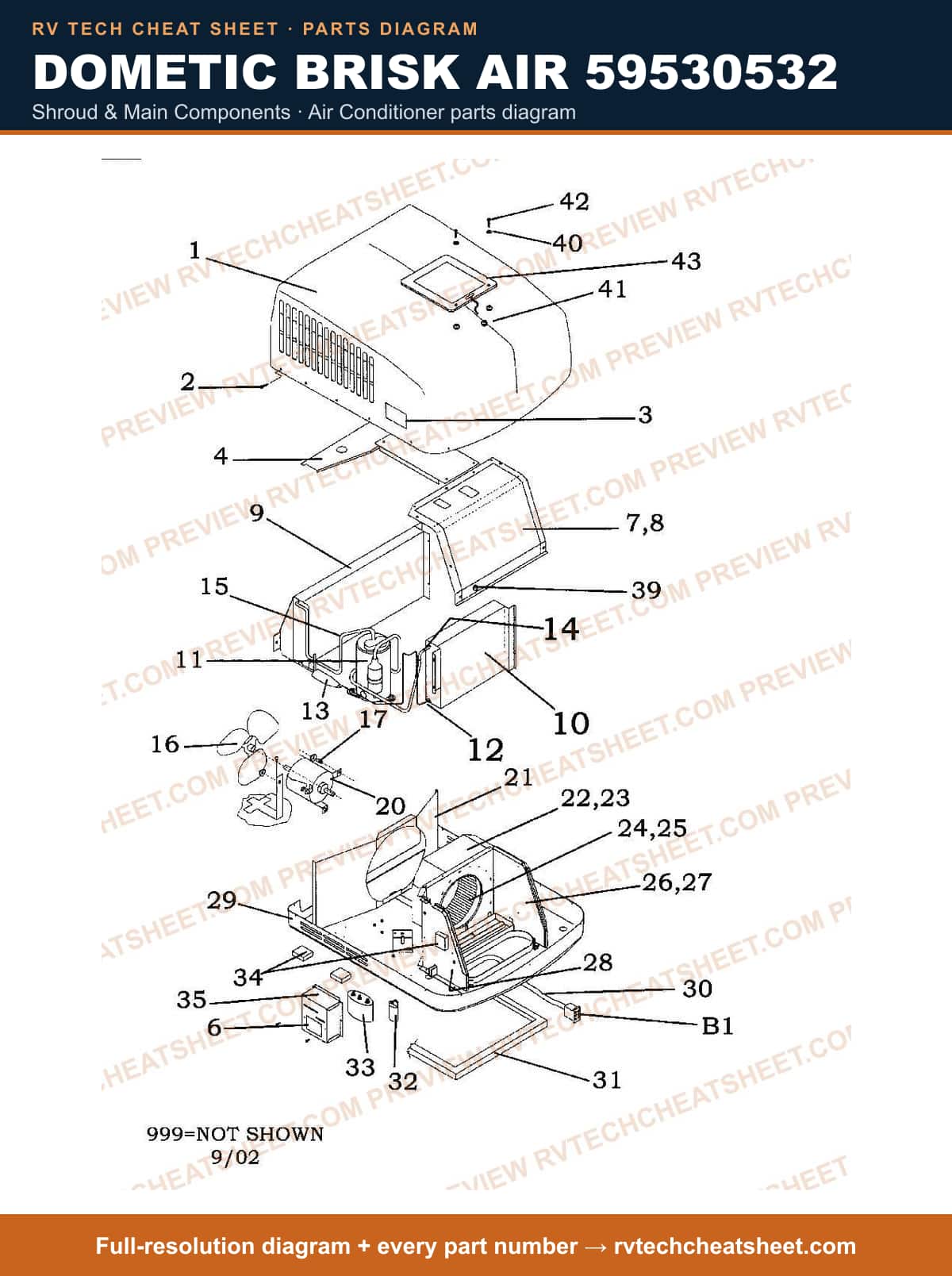

Shroud & Main Components

Components

61 items

1. #SHROUD,AC USE 3103148007 MFR # 3108239025 Superseded: see description
2. #SHROUD,AC USE 3103147009 POLAR WHITE MFR # 3108239017 Superseded: see description
3. #SHROUD 12' MFR # 3309518003
4. #SHROUD KIT CLOSED END SW MFR # 3309364028
5. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
6. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
7. #SHROUD,AC USE 3103144006 SHELL WHITE MFR # 3108239009 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
10. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
11. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
12. #DECAL,SHROUD MFR # 3101380016
13. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
14. #DECAL, FIELD WIRING MFR # 3105052017
15. #COVER, CONDENSER COIL MFR # 309383000
16. #INSULATION,EVAPORATOR MFR # 317797001
17. #COVER,EVAPORATOR MFR # 314885001
18. #GROMMET MFR # 3100238207
19. #COMPRESSOR ASM MFR # 3103830026
20. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250285
21. #SCREW,5/16 - 18 X 1.75 MFR # 307987020
22. #NUT, FLANGE MFR # 306342004
23. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
24. #GASKET,COVER MFR # 3103800003
25. #APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245467
26. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
27. #LINE,SUCTION MFR # 3108831003
28. #LINE,DISCHARGE MFR # 3108688007
29. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
30. #FAN BLADE MFR # 3313107015
31. #MOTOR KIT MFR # 3108706916
32. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
33. #NUT, FLANGE ***USE 498471*** MFR # 306342003 Superseded: see description
34. #SERVICE KIT F/MOTOR MFR # 3310725001
35. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
37. #INSULATION,RH SIDE MFR # 3103898007
38. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
39. #INSULATION,LH SIDE MFR # 3103897009
40. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
41. #INSULATION,BLOWER MFR # 3104153006
42. #WHEEL, BLOWER PLASTIC ***USE 49-9655*** MFR # 3104887009 Superseded: see description
43. #WHEEL BLOWER MFR # 3313107033
44. #Air Conditioner O-Ring; Replacement For Duo-Therm 39045522/ 57915336/ 39045601 Model Air Conditioners; Fits Air Conditioner Blower Wheel Inlet MFR # 3106415007
45. #APPLIANCE COMPONENTS RV; Insulation Evaporator Rh MFR # 3108137013
46. #APPLIANCE COMPONENTS RV; Insulation Evap Lh MFR # 3108137005
47. #BULKHEAD, EVAPORATOR MFR # 3100831084
48. #APPLIANCE COMPONENTS RV; Basepan Kit MFR # 3108709928
49. #GASKET, GREY, 14 X 14 MFR # 6759A3281
50. #ROOF A/C GASKET KIT MFR # 3310718006
51. #HARNESS,WIRING MFR # 3108703327
52. #Air Conditioner Capacitor; Hard Start Capacitor; For 15000 BTU Air Conditioner Units MFR # 3310727007
53. #KIT,HARD START USE 3310727007 MFR # 3106732005 Superseded: see description
54. #STARTER KIT (120) USE 49-8350 MFR # F6866 Superseded: see description
55. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248453
56. #BLOCKS, FOAM MFR # 3100587009
57. #APPLIANCE COMPONENTS RV; Box Electrical MFR # 3108030002
58. #SLEEVE,COMPRESSOR MFR # 3100239072
59. #GROMMET, COMP.USE 3311596000 STAG# 49-9126 MFR # 3100238181 Superseded: see description
60. #Air Conditioner Compressor Mounting Hardware; Replacement For Duo-Therm 57915731/ 39335641/ 630515326C1 Air Conditioners; With Compressor Grommets/ Metal Sleeves/ Nuts MFR # 3311596000
61. #SCREW 5/16-18 X 2.5 MFR # 307987021
