Dometic Brisk Air 59530631 Parts Diagram · 9 1-2 / Bolt Kit

Air Conditioner · 3 assemblies · 3 diagram sheets · 61 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 59530631 rooftop air conditioner: 3 assemblies (9 1-2 / Bolt Kit, Shroud & Main Components, 6 / Bolt Kit) and 61 manufacturer part numbers. 14 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

9 1-2 / Bolt Kit

Components

1 item

1. #APPLIANCE COMPONENTS RV; BOLT,9-1/2" KIT MFR # 3100895014

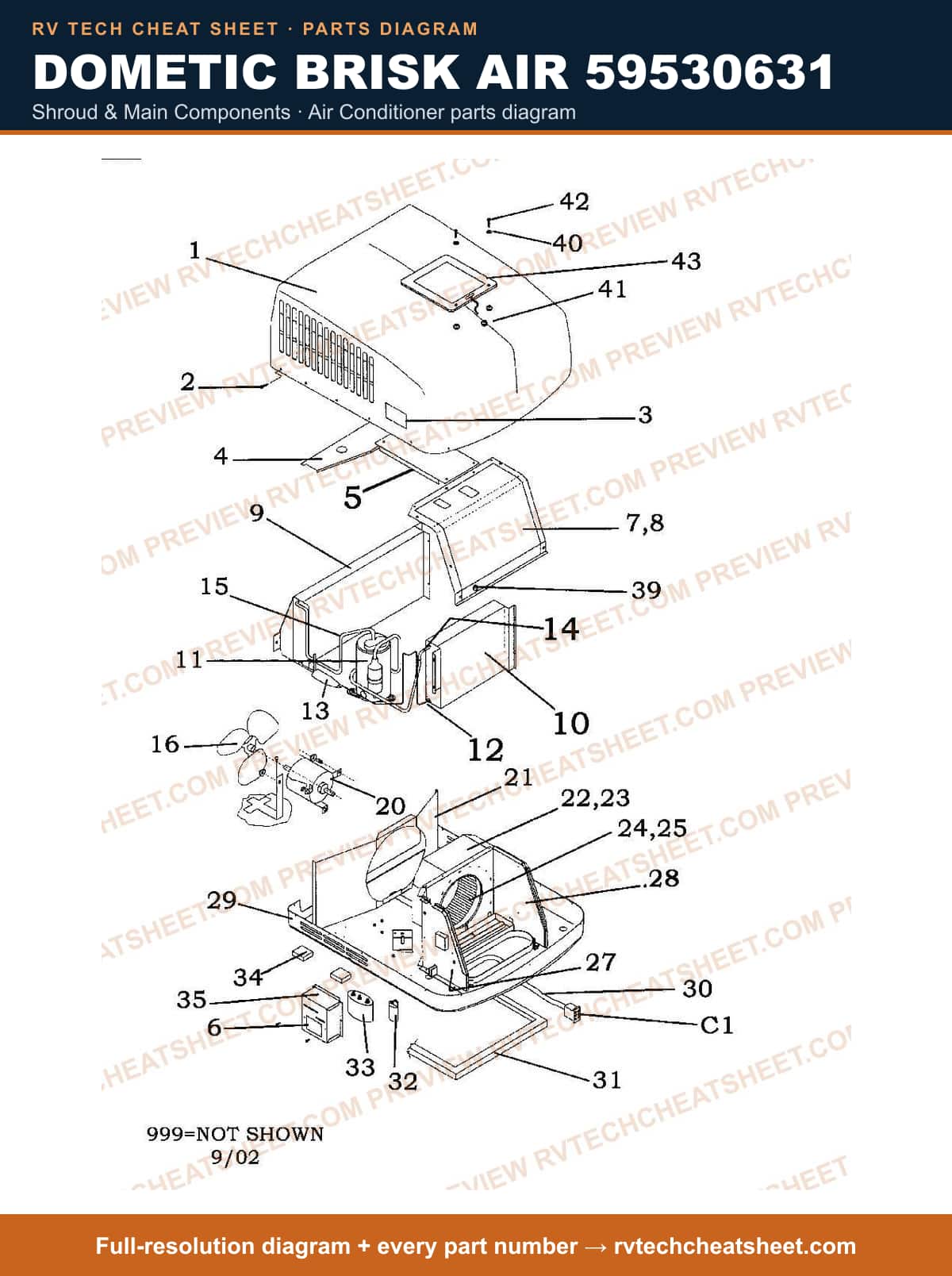

Shroud & Main Components

Components

59 items

1. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
2. #SHROUD 12' MFR # 3309518003
3. #SHROUD,AC USE 3103148007 MFR # 3108239025 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Connector Plug MFR # 3106625019
5. #SHROUD KIT CLOSED END SW MFR # 3309364028
6. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
7. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
8. #Wire Plug Connector; Replacement For Dometic Air Conditioner Compressor; 6 Pole MFR # 3310734003
9. #SHROUD,AC USE 3103144006 SHELL WHITE MFR # 3108239009 Superseded: see description
10. #SHROUD,AC USE 3103147009 POLAR WHITE MFR # 3108239017 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
12. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
13. #DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description
14. #DECAL,SHROUD MFR # 3101380016
15. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
16. #DECAL, FIELD WIRING MFR # 3105052017
17. #COVER, CONDENSER COIL MFR # 309383000
18. #INSULATION,EVAPORATOR MFR # 317797001
19. #COVER,EVAPORATOR MFR # 314885001
20. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250285
21. #GROMMET MFR # 3100238207
22. #COMPRESSOR ASM MFR # 3103830026
23. #SCREW,5/16 - 18 X 1.75 MFR # 307987020
24. #GASKET,COVER MFR # 3103800003
25. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
26. #NUT, FLANGE MFR # 306342004
27. #APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245467
28. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
29. #LINE,SUCTION MFR # 3108831003
30. #LINE,DISCHARGE MFR # 3108688007
31. #FAN BLADE MFR # 3313107015
32. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
33. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
34. #MOTOR KIT MFR # 3108706916
35. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
36. #SERVICE KIT F/MOTOR MFR # 3310725001
37. #NUT, FLANGE ***USE 498471*** MFR # 306342003 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001
39. #INSULATION,LH SIDE MFR # 3103897009
40. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
41. #APPLIANCE COMPONENTS RV; Insulation Kit MFR # 3104152008
42. #INSULATION,BLOWER MFR # 3104153006
43. #INSULATION,RH SIDE MFR # 3103898007
44. #WHEEL BLOWER MFR # 3313107033
45. #WHEEL, BLOWER PLASTIC ***USE 49-9655*** MFR # 3104887009 Superseded: see description
46. #Air Conditioner O-Ring; Replacement For Duo-Therm 39045522/ 57915336/ 39045601 Model Air Conditioners; Fits Air Conditioner Blower Wheel Inlet MFR # 3106415007
47. #APPLIANCE COMPONENTS RV; Insulation Evaporator Rh MFR # 3108137013
48. #APPLIANCE COMPONENTS RV; Insulation Evap Lh MFR # 3108137005
49. #BULKHEAD, EVAPORATOR MFR # 3100831084
50. #APPLIANCE COMPONENTS RV; Basepan Kit MFR # 3108709928
51. #HARNESS,WIRING MFR # 3108703327
52. #GASKET, GREY, 14 X 14 MFR # 6759A3281
53. #ROOF A/C GASKET KIT MFR # 3310718006
54. #STARTER KIT (120) USE 49-8350 MFR # F6866 Superseded: see description
55. #KIT,HARD START USE 3310727007 MFR # 3106732005 Superseded: see description
56. #Air Conditioner Capacitor; Hard Start Capacitor; For 15000 BTU Air Conditioner Units MFR # 3310727007
57. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248453
58. #BLOCKS, FOAM MFR # 3100587009
59. #APPLIANCE COMPONENTS RV; Box Electrical MFR # 3108030002

6 / Bolt Kit

Components

1 item

1. #APPLIANCE COMPONENTS RV; BOLT KIT, 6" ROOF 8" BOLT MFR # 3100895006
