Dometic Brisk Air 59530632 Parts Diagram

Air Conditioner · 1 diagram sheet · 44 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic Brisk Air 59530632 rooftop air conditioner: 44 manufacturer part numbers. 8 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

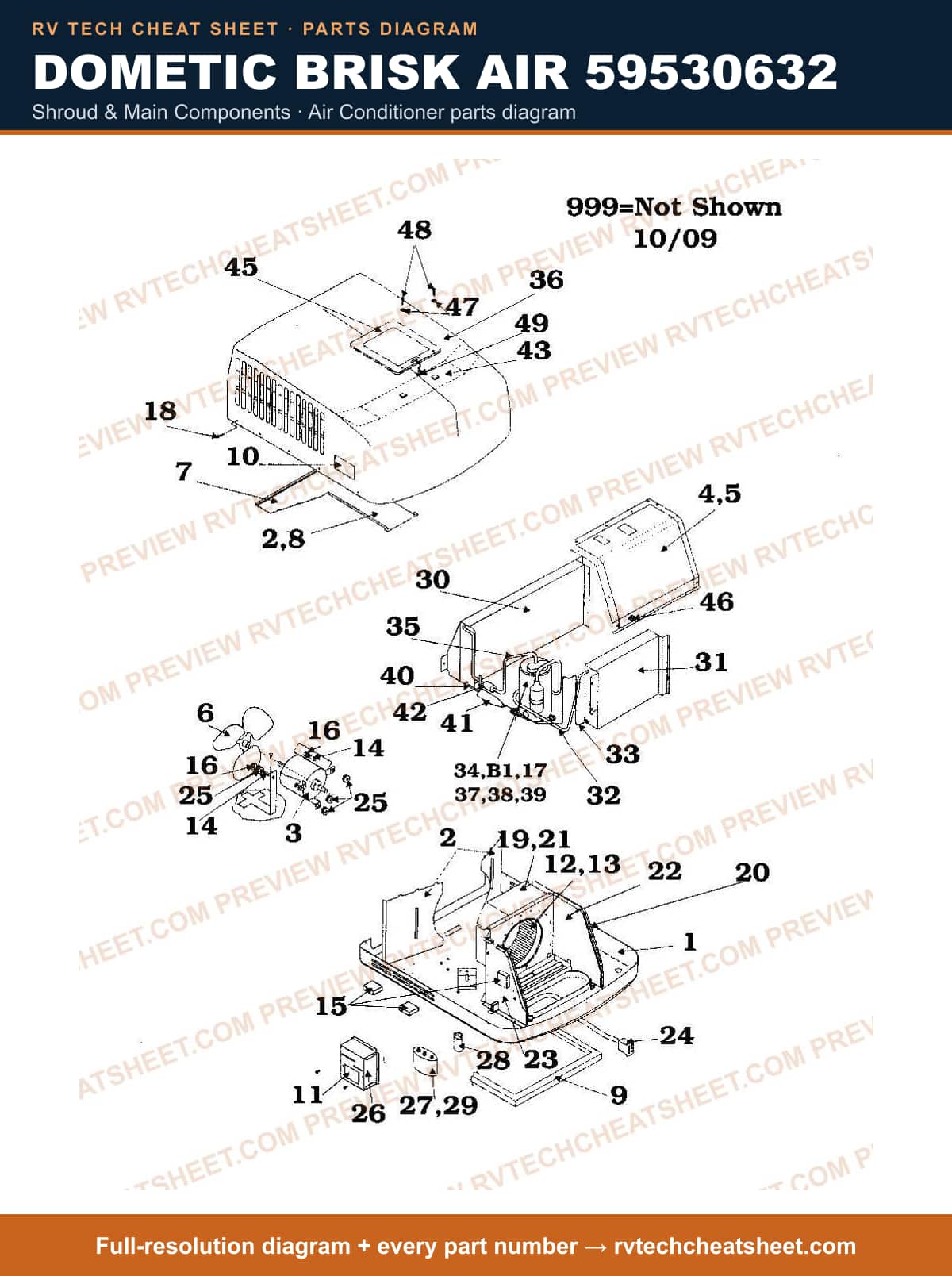

Shroud & Main Components

Components

44 items

1. #APPLIANCE COMPONENTS RV; Basepan Kit MFR # 3108709928
2. #3308459001 MFR # 3308459001
3. #MOTOR KIT MFR # 3108706916
4. #APPLIANCE COMPONENTS RV; Insulation Foam MFR # 3105014066
5. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
6. #FAN BLADE MFR # 3313107015
7. #COVER, CONDENSER COIL MFR # 309383000
8. #APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023
9. #ROOF A/C GASKET KIT MFR # 3310718006
10. #GASKET, GREY, 14 X 14 MFR # 6759A3281
11. #APPLIANCE COMPONENTS RV; Decal Shroud MFR # 3104238013
12. #WHEEL, BLOWER PLASTIC ***USE 49-9655*** MFR # 3104887009 Superseded: see description
13. #WHEEL BLOWER MFR # 3313107033
14. #Air Conditioner O-Ring; Replacement For Duo-Therm 39045522/ 57915336/ 39045601 Model Air Conditioners; Fits Air Conditioner Blower Wheel Inlet MFR # 3106415007
15. #SERVICE KIT F/MOTOR MFR # 3310725001
16. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
17. #NUT, FLANGE ***USE 498471*** MFR # 306342003 Superseded: see description
18. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
19. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
21. #APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033
22. #BULKHEAD, EVAPORATOR MFR # 3100831084
23. #INSULATION,BLOWER HOUSING MFR # 3104153014
24. #APPLIANCE COMPONENTS RV; Insulation Evaporator Rh MFR # 3108137013
25. #APPLIANCE COMPONENTS RV; Insulation Evap Lh MFR # 3108137005
26. #Wire Plug Connector; Replacement For Dometic Air Conditioner Compressor; 6 Pole MFR # 3310734003
27. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Box Electrical MFR # 3108030002
29. #STRAP, F/CAPACITOR MFR # 317188000
30. #KIT,HARD START USE 3310727007 MFR # 3106732005 Superseded: see description
31. #Air Conditioner Capacitor; Hard Start Capacitor; For 15000 BTU Air Conditioner Units MFR # 3310727007
32. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
33. #COIL,CONDENSER MFR # 3100817034
34. #COIL,EVAPORATOR MFR # 3107338026
35. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250400
36. #APPLIANCE COMPONENTS RV; Shroud 10" Closed End MFR # 3308783004
37. #SHROUD 12' MFR # 3309518003
38. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
39. #SHROUD KIT CLOSED END SW MFR # 3309364028
40. #SHROUD AC CLOSED END POL WHT ***USE 49-9076*** MFR # 3308782006 Superseded: see description
41. #SHROUD CLOSED END PW MFR # 3309364002
42. #SHROUD CLOSED END BLACK MFR # 3309364010
43. #GROMMET MFR # 3100238207
44. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
