Dometic Brisk Air B57915.711 13,500 BTU Parts Diagram
Air Conditioner · 1 diagram sheet · 18 parts · by Andrew Strick, mobile RV technician

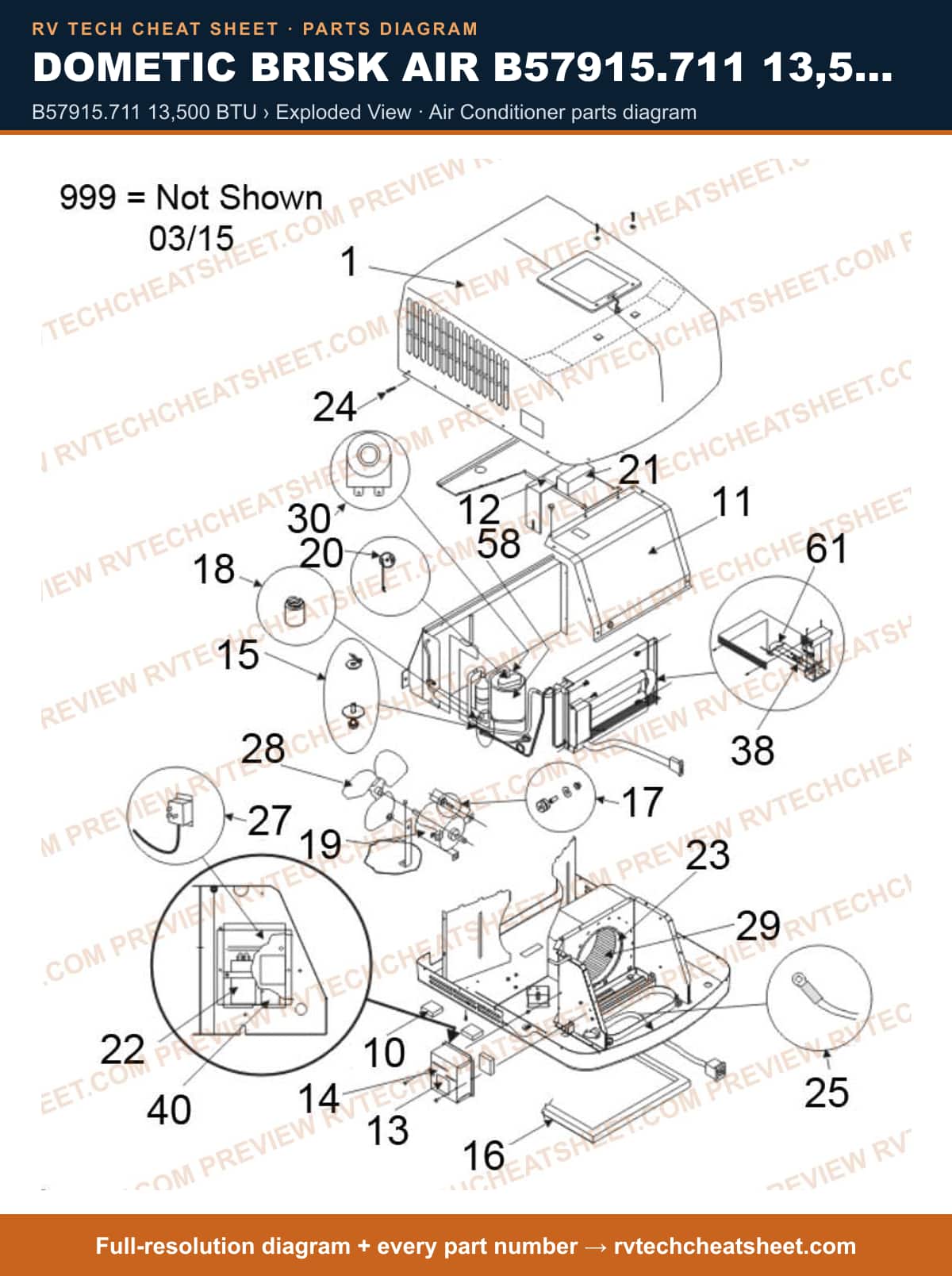

OEM exploded parts diagram for the Dometic Brisk Air B57915.711 13,500 BTU rooftop air conditioner: 18 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.
On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.
