Dometic Penguin 00312001 12,000 BTU Parts Diagram · Non-ducted A-c Replacement

Air Conditioner · 5 assemblies · 5 diagram sheets · 168 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 00312001 12,000 BTU rooftop air conditioner: 5 assemblies (Non-ducted A-c Replacement, Replacement Installation Parts, Optional Electric Heat Kit, Heat Kit Shroud & Main Components, Ducted A-c) and 168 manufacturer part numbers. 53 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Non-ducted A-c Replacement

Components

12 items

1. #BOARD KIT CCC MFR # 3311557000
2. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description
3. #AIR CONDITIONER 11000 BTU COLONIAL WHITE PENGUIN MFR # 600312N
4. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
5. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
6. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
7. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
8. #AIRBOX,COMPLT USE 3106615010 PW REQUIRES CCC OR WALL T-STAT MFR # 3107561015 Superseded: see description
9. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
10. #COMFORT CTRL MFR # 3106463007
11. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
12. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description

Replacement Installation Parts

Components

39 items

1. #DUCT,RETURN AIR RVA ALL MFR # 318938
2. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
3. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
4. #CEILING TEMPLATE MFR # 3100265002
5. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
6. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
7. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
8. #CONDUIT W/WIRES RVA 60 MFR # 3100302003
9. #STRAIN RELIEF MFR # 32994001
10. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
11. #COVER,JUNCTION USE 3100278013 BOX MFR # 3100278005 Superseded: see description
12. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
13. #BOX, BACK LH MFR # 3100299001
14. #APPLIANCE COMPONENTS RV; Box Back Rh MFR # 3100279003
15. #BOX FRONT MFR # 3100276009
16. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
17. #PLUG,FEMALE 9 POLE MFR # 314471003
18. #Air Conditioner Ceiling Assembly Rotary Switch; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner; 10 Position MFR # 3100291016
19. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
20. #T-STAT USE 313620001 MFR # 3100240039 Superseded: see description
21. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
22. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
23. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
24. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
25. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
26. #DECAL, LH AIR BOX MFR # 318525000
27. #DECAL,AIRBOX MFR # 318526
28. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
29. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
31. #KNOB, 3/4" BLACK MFR # 3106121001
32. #KNOB,BLACK USE 3106121001 RVA 60 MFR # 3100290 Superseded: see description
33. #PARTS BAG USE 3101582009 MFR # 3100221013 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Parts Bag Asm MFR # 3101582009
35. #APPLIANCE COMPONENTS RV; Airbox Complete Plug MFR # 318542003
36. #NUT, WIRE LARGE MFR # 20009002
37. #WIRING DECAL MFR # 3100304009
38. #APPLIANCE COMPONENTS RV; Shroud Ceiling MFR # 318523002
39. #TEMPLATE,COMPLETE CEILING 6002 ,3 NEW PLUG MFR # 318735002

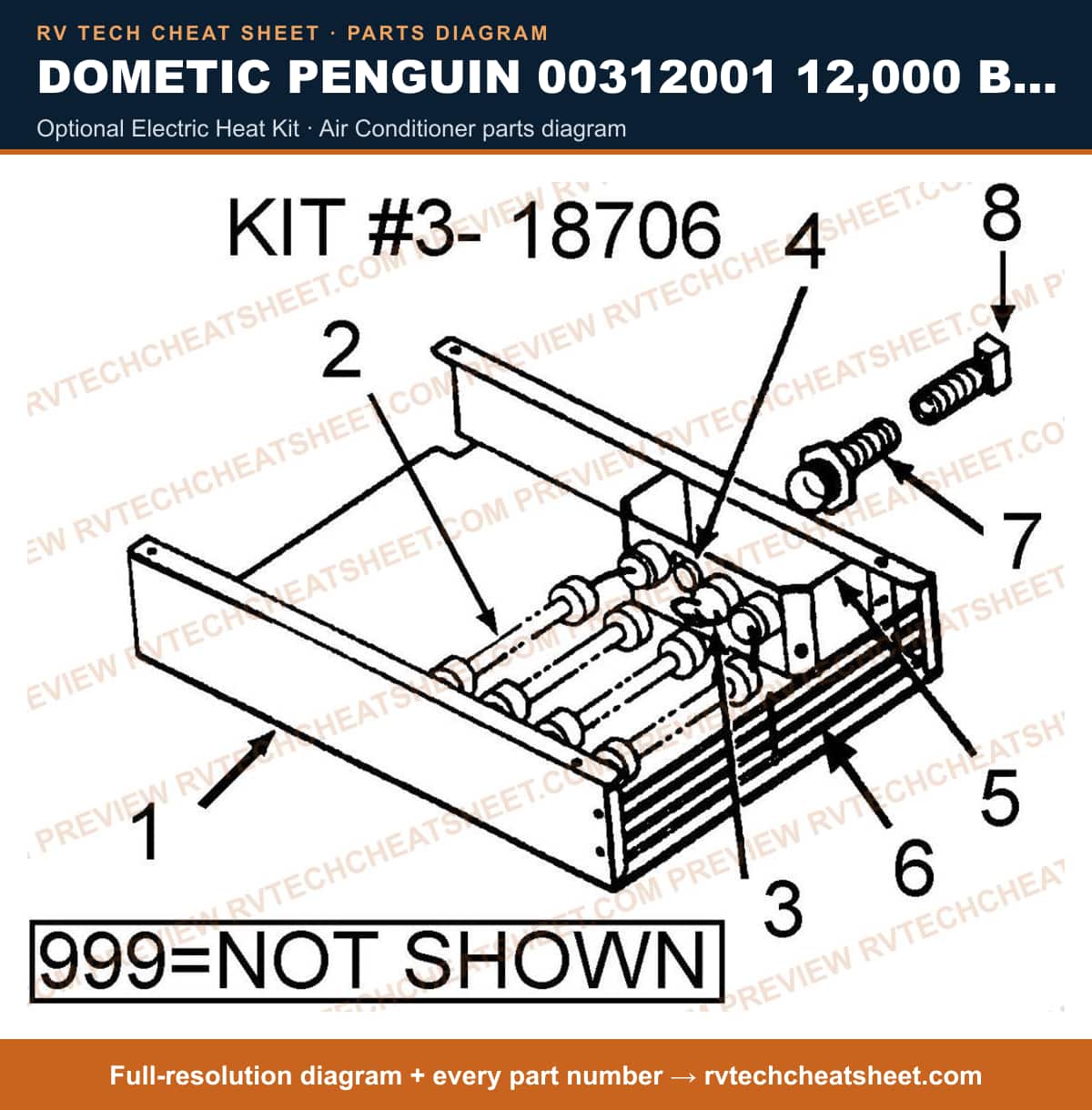

Optional Electric Heat Kit

Components

10 items

1. #APPLIANCE COMPONENTS RV; Heatshield/60 61 Heat Kit MFR # 3100264005
2. #HEAT STRIP,NON-DUCTED MFR # 3101121030
3. #ELEMENT,HEATING USE 3101121030 MFR # 318467 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
5. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
6. #APPLIANCE COMPONENTS RV; Bracket Element Mounting MFR # 3100263007
7. #GRILLE,HEATING ELEMENT CAE1 35001 RVA 60/E1 MFR # 3100269004
8. #CONDUIT MFR # 3100293012
9. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
10. #WIRE SET, WITH PLUG MFR # 3100220148

Heat Kit Shroud & Main Components

Components

95 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #DECAL RH SHROUD USE 3102888009 MFR # 318503002 Superseded: see description
3. #DECAL USE 3102888009 DECAL LH SHROUD 5/89 RVA MFR # 318503001 Superseded: see description
4. #SHROUD,OUTER USE 3100252000 CAE11O 135 MFR # 3100252 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
6. #SHROUD USE 3102515008 MFR # 3100252000 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
8. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
9. #SHROUD SHELL WHITE <S MFR # 3308046006
10. #APPLIANCE COMPONENTS RV; Shroud Inner Rva 60 All MFR # 3101886004
11. #SHROUD,INNER USE 3101886004 MFR # 3100251010 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Cover Evaporator Rva MFR # 3100268006
13. #COMPRESSOR MFR # 1318435
14. #ADAPTER KIT,COMPRESSOR MFR # 3104306
15. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102984006
16. #PROTECTOR USE 3100250038 OVERLOAD MFR # 317001003 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250038
18. #GROMMET MFR # 3100238132
19. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
20. #SLEEVE,COMP.USE 3100239122 MOUNTING MFR # 3100239056 Superseded: see description
21. #PLATE,COMPRESSOR MOUNTING MFR # 3100296007
22. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
23. #SERVICE KIT F/MOTOR MFR # 3310725001
24. #RETAINER STRAP MFR # 3100295009
25. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
26. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
28. #CAPACITOR GRD MFR # 3100248230
29. #CAPACITOR, USE 46-2332 FAN 7.5M 330V MFR # F7902 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Capacitor Fan 7.5M 330V MFR # 3100248222
31. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3100255011
32. #APPLIANCE COMPONENTS RV; Block Hd Insulation MFR # 3100266
33. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 3100272008
34. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
35. #INLET RING MFR # 3100257009
36. #WHEEL,EVAPORATR USE 3310378000 MFR # 3100273006 Superseded: see description
37. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
38. #Air Conditioner Blower Wheel; Replacement For Dometic 630516331/ 651516301/ 630516341/ 600015001/ CAW135001/ 620426331 Series Air Conditioner Heat Pump; 7-1/8 Inch Diameter x 3-1/16 Inch Thickness; Metal MFR # 3310378000
39. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
40. #APPLIANCE COMPONENTS RV; Pan Drain MFR # 3100267008
41. #APPLIANCE COMPONENTS RV; Pan Base Use 3100267008 MFR # 3100222011 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
43. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
44. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
45. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
46. #APPLIANCE COMPONENTS RV; Connector Straight MFR # 3100249014
47. #CONDUIT CLAMP MFR # 318682001
48. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
49. #CONDUIT,FLEX MFR # 3100293020
50. #WIRE SET W/PLUG PENQUIN 6100 MFR # 3100220130
51. #HARNESS,WIRE MFR # 3100220122
52. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
53. #PLUG 4 POLE MFR # 314470005
54. #BULKHEAD,ELECTRICAL BOX MFR # 3100253008
55. #BULKHEAD, EVAPORATOR MFR # 3100254006
56. #STRAIN RELIEF MFR # 32994014
57. #APPLIANCE COMPONENTS RV; Panel Electrical MFR # 3100282007
58. #APPLIANCE COMPONENTS RV; Relay Time Delay MFR # 318566
59. #APPLIANCE COMPONENTS RV; Relay Compressor MFR # 318569
60. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
61. #APPLIANCE COMPONENTS RV; Relay Start MFR # 3100235245
62. #RELAY,START USE 46-2266 OR 3100235245 MFR # 3100235237 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
64. #CAPACITOR, START MFR # 47C
65. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
66. #APPLIANCE COMPONENTS RV; Board Module MFR # 3101597007
67. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
68. #MODULE,CONTROL MFR # 318594
69. #MOTOR,BLOWER USE 3100392004 MFR # 318492 Superseded: see description
70. #MOTOR,BLOWER USE 3100393002 MFR # 318679 Superseded: see description
71. #MOTOR,FAN USE 3100392004 MFR # 3100393002 Superseded: see description
72. #APPLIANCE COMPONENTS RV; Motor Blower MFR # 3100392004
73. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
74. #BLOWER, SIDE/REAR MFR # 3100261001
75. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
76. #BLOWER,SCROLL MFR # 3100260003
77. #WHEEL,BLOWER, USE 3310180.000 OR 46-6755 MFR # 3100274004 Superseded: see description
78. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
79. #COIL,CONDENSER USE 3101467003 RVA 60-61 MFR # 3100271919 Superseded: see description
80. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3101467003
81. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
82. #LINE,DISCHARGE USE 3101468001 MFR # 3100285901 Superseded: see description
83. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3101468001
84. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3100284904
85. #A/C SEAL, 14 X 14 WHITE MFR # A101414
86. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
87. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
88. #GASKET, GREY, 14 X 14 MFR # 6759A3281
89. #ROOF A/C GASKET KIT MFR # 3310718006
90. #GASKET,ROOF USE 3100286032 MFR # 3100286024 Superseded: see description
91. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
92. #PROTECTOR USE 3100250277 OVERLOAD MFR # 3100250012 Superseded: see description
93. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
94. #APPLIANCE COMPONENTS RV; Insulation Housing Top MFR # 317001001
95. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description

Ducted A-c

Components

12 items

1. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
2. #AIR CONDITIONER 11000BTU POLAR WHITE PENGUIN MFR # 600312CN
3. #AIR CONDITIONER 13,500 BTU POLAR WHITE PENGUIN MFR # 600315CN
4. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
5. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
6. #ELECTRONIC KIT CCC MFR # 3109226005
7. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
8. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
9. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
10. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
11. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
12. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
