Dometic Penguin 600308002 Parts Diagram · Heat Kit Shroud & Main Components

Air Conditioner · 3 assemblies · 6 diagram sheets · 125 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 600308002 rooftop air conditioner: 3 assemblies (Heat Kit Shroud & Main Components, Installation Parts, Optional Electric Heat Kit) and 125 manufacturer part numbers. 34 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

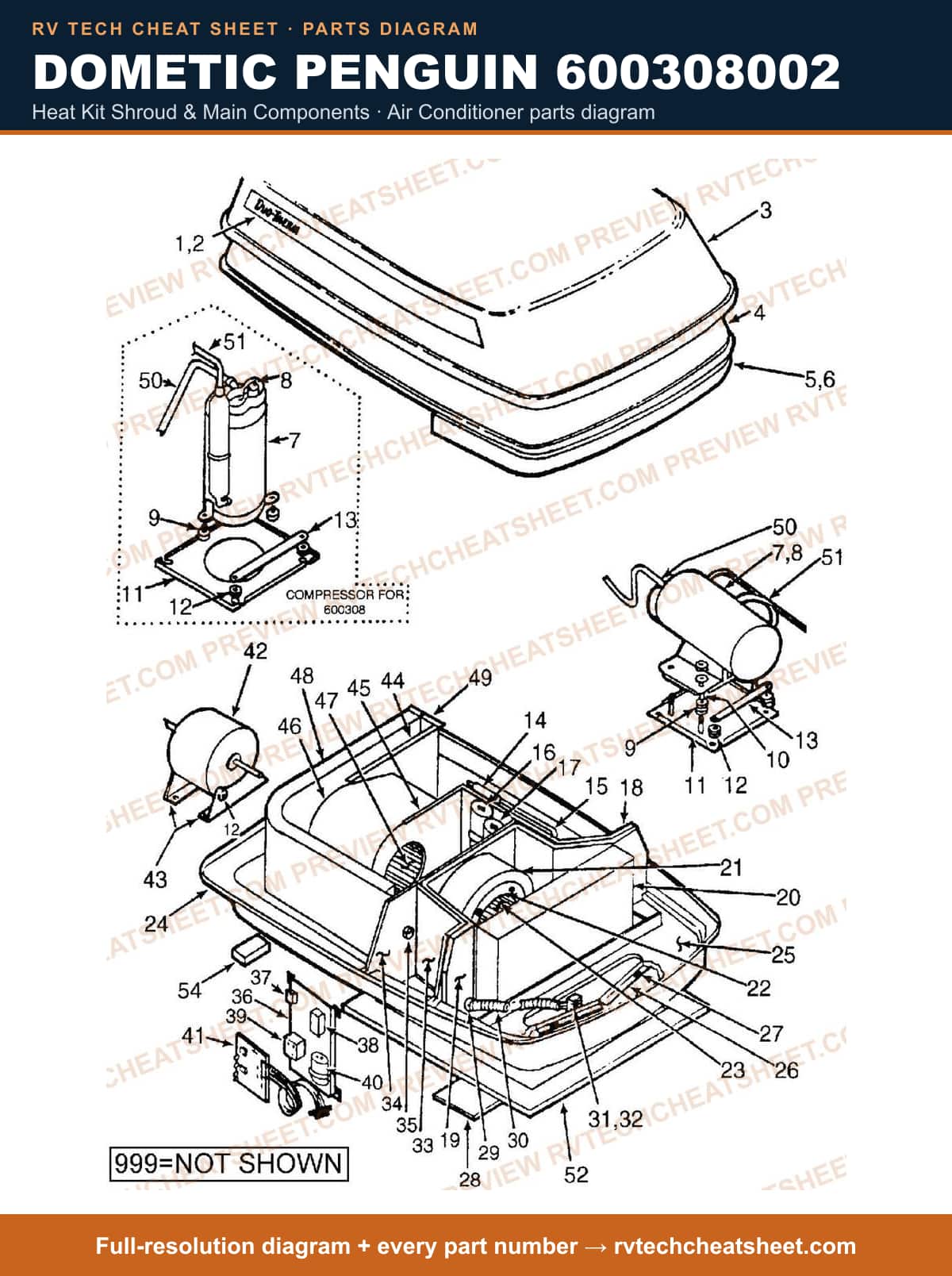

Heat Kit Shroud & Main Components

Components

74 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #DECAL RH SHROUD USE 3102888009 MFR # 318503002 Superseded: see description
3. #DECAL USE 3102888009 DECAL LH SHROUD 5/89 RVA MFR # 318503001 Superseded: see description
4. #SHROUD,OUTER USE 3100252000 CAE11O 135 MFR # 3100252 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
6. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
7. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
8. #SHROUD SHELL WHITE <S MFR # 3308046006
9. #SHROUD USE 3102515008 MFR # 3100252000 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Shroud Inner Rva 60 All MFR # 3101886004
11. #SHROUD,INNER USE 3101886004 MFR # 3100251010 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Cover Evaporator Rva MFR # 3100268006
13. #APPLIANCE COMPONENTS RV; Insulation Housing Top MFR # 3100373004
14. #COMPRESSOR USE 316443001 ROTORX MFR # 1316443 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Compressor MFR # 316443001
16. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250038
17. #PROTECTOR USE 3100250038 OVERLOAD MFR # 317001003 Superseded: see description
18. #BUSHING,GROMMET RVA 60 8M MFR # 3100238140
19. #PLATE,COMPLETE MFR # 318916
20. #SERVICE KIT F/MOTOR MFR # 3310725001
21. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
22. #RETAINER STRAP MFR # 3100295009
23. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
24. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
26. #CAPACITOR GRD MFR # 3100248230
27. #CAPACITOR, BLOWER MFR # 315010022
28. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3100255011
29. #APPLIANCE COMPONENTS RV; Block Hd Insulation MFR # 3100266
30. #COIL, EVAPORATOR MFR # 3100303001
31. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
32. #INLET RING MFR # 3100257009
33. #WHEEL,BLOWER EVAP RVA 60 8M MFR # 318900
34. #APPLIANCE COMPONENTS RV; Pan Drain MFR # 3100267008
35. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
36. #APPLIANCE COMPONENTS RV; Pan Base Use 3100267008 MFR # 3100222011 Superseded: see description
37. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
38. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
39. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
40. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
41. #APPLIANCE COMPONENTS RV; Connector Straight MFR # 3100249014
42. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
43. #HARNESS,WIRE MFR # 3100220122
44. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
45. #BULKHEAD,ELECTRICAL BOX MFR # 3100253008
46. #BULKHEAD, EVAPORATOR MFR # 3100254006
47. #STRAIN RELIEF MFR # 32994014
48. #APPLIANCE COMPONENTS RV; Panel Electrical MFR # 3100282007
49. #APPLIANCE COMPONENTS RV; Relay Time Delay MFR # 318566
50. #APPLIANCE COMPONENTS RV; Relay Compressor MFR # 318569
51. #RELAY,START USE 46-2266 OR 3100235245 MFR # 3100235237 Superseded: see description
52. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Relay Start MFR # 3100235245
54. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
55. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
56. #CAPACITOR, START MFR # 47C
57. #BLOWER MOTOR (6000,6003 ONLY) MFR # 318917
58. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
59. #BLOWER, SIDE/REAR MFR # 3100261001
60. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
61. #BLOWER,SCROLL MFR # 3100260003
62. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
63. #WHEEL,BLOWER, USE 3310180.000 OR 46-6755 MFR # 3100274004 Superseded: see description
64. #COIL,CONDENSER MFR # 318923901
65. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
66. #APPLIANCE COMPONENTS RV; Tube Copper MFR # 318924900
67. #LINE,DISCHARGE MFR # 318925900
68. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
69. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
70. #A/C SEAL, 14 X 14 WHITE MFR # A101414
71. #GASKET, GREY, 14 X 14 MFR # 6759A3281
72. #ROOF A/C GASKET KIT MFR # 3310718006
73. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
74. #GASKET,ROOF USE 3100286032 MFR # 3100286024 Superseded: see description

Installation Parts

Components

41 items

1. #DUCT,RETURN AIR RVA ALL MFR # 318938
2. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
3. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
4. #CEILING TEMPLATE MFR # 3100265002
5. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
6. #INSULATION,CEILING TEMPLATE MFR # 3107133005
7. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
8. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
9. #CONDUIT W/WIRES RVA 60 MFR # 3100302003
10. #STRAIN RELIEF MFR # 32994001
11. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
12. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
13. #COVER,JUNCTION USE 3100278013 BOX MFR # 3100278005 Superseded: see description
14. #BOX, BACK LH MFR # 3100299001
15. #APPLIANCE COMPONENTS RV; Box Back Rh MFR # 3100279003
16. #BOX FRONT MFR # 3100276009
17. #BOX FRONT RH MFR # 3100277007
18. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
19. #PLUG,FEMALE 9 POLE MFR # 314471003
20. #Air Conditioner Ceiling Assembly Rotary Switch; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner; 10 Position MFR # 3100291016
21. #NO GENERIC NAME;;T-Stat Heat &amp; Cool ***Us MFR # A22115435
22. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
23. #T-STAT USE 313620001 MFR # 3100240039 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
25. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
26. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
27. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
28. #DECAL, LH AIR BOX MFR # 318525000
29. #DECAL,AIRBOX MFR # 318526
30. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
31. #BOLT,MOUNTING USE 3106756012 6.25&quot; LONG MFR # 3100375025 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
33. #KNOB,BLACK USE 3106121001 RVA 60 MFR # 3100290 Superseded: see description
34. #KNOB, 3/4&quot; BLACK MFR # 3106121001
35. #APPLIANCE COMPONENTS RV; Airbox Complete Plug MFR # 318542003
36. #TEMPLATE,COMPLETE CEILING 6002 ,3 NEW PLUG MFR # 318735002
37. #WIRING DECAL MFR # 3100304009
38. #APPLIANCE COMPONENTS RV; Shroud Ceiling MFR # 318523002
39. #APPLIANCE COMPONENTS RV; Parts Bag Asm MFR # 3101582009
40. #NUT, WIRE LARGE MFR # 20009002
41. #PARTS BAG USE 3101582009 MFR # 3100221013 Superseded: see description

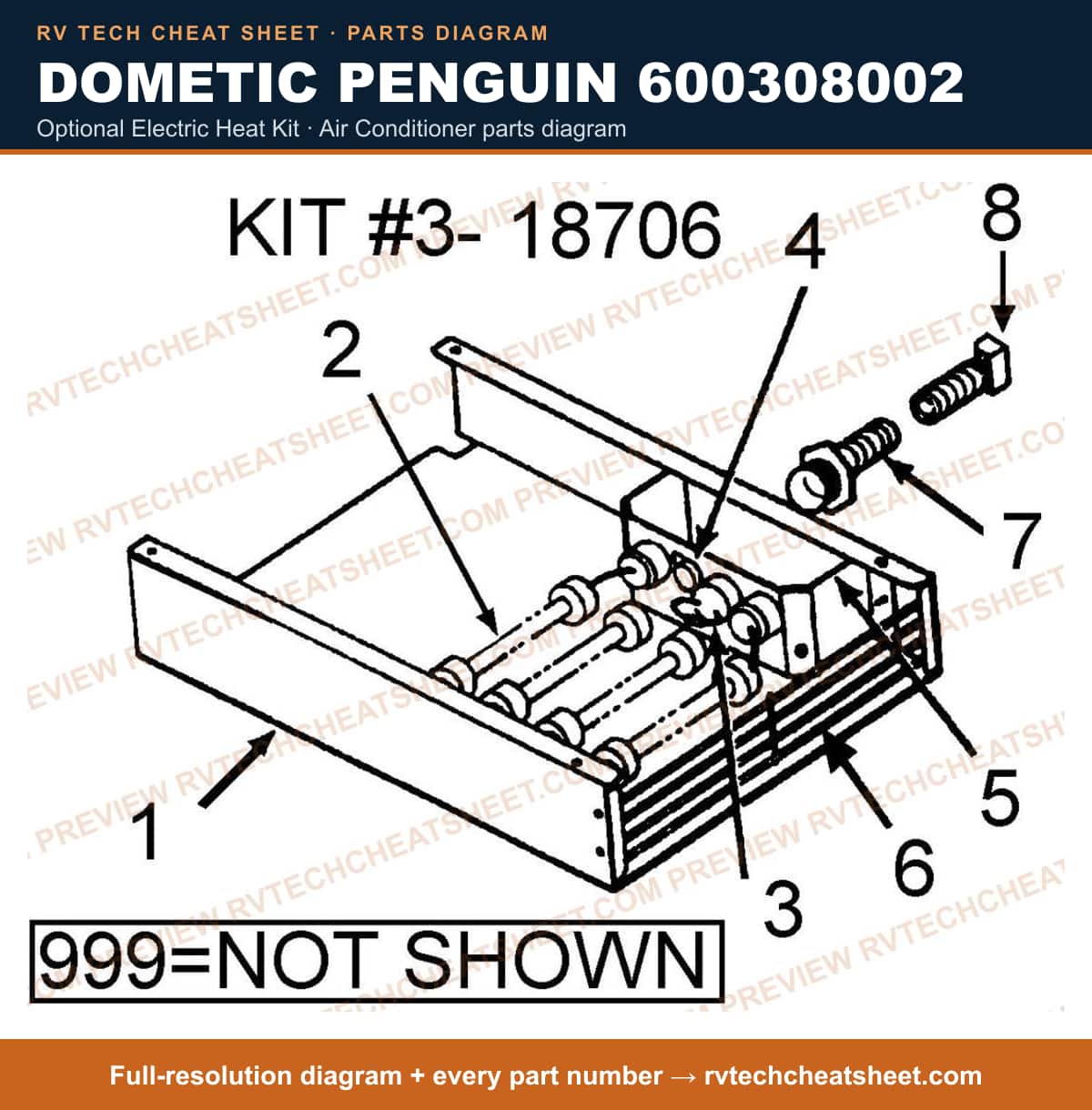

Optional Electric Heat Kit

Components

10 items

1. #APPLIANCE COMPONENTS RV; Heatshield/60 61 Heat Kit MFR # 3100264005
2. #ELEMENT,HEATING USE 3101121030 MFR # 318467 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
5. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
6. #APPLIANCE COMPONENTS RV; Bracket Element Mounting MFR # 3100263007
7. #GRILLE,HEATING ELEMENT CAE1 35001 RVA 60/E1 MFR # 3100269004
8. #CONDUIT MFR # 3100293012
9. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
10. #WIRE SET, WITH PLUG MFR # 3100220148
