Dometic Penguin 600312304B 12,000 BTU Parts Diagram

Air Conditioner · 1 diagram sheet · 12 parts · by Andrew Strick, mobile RV technician

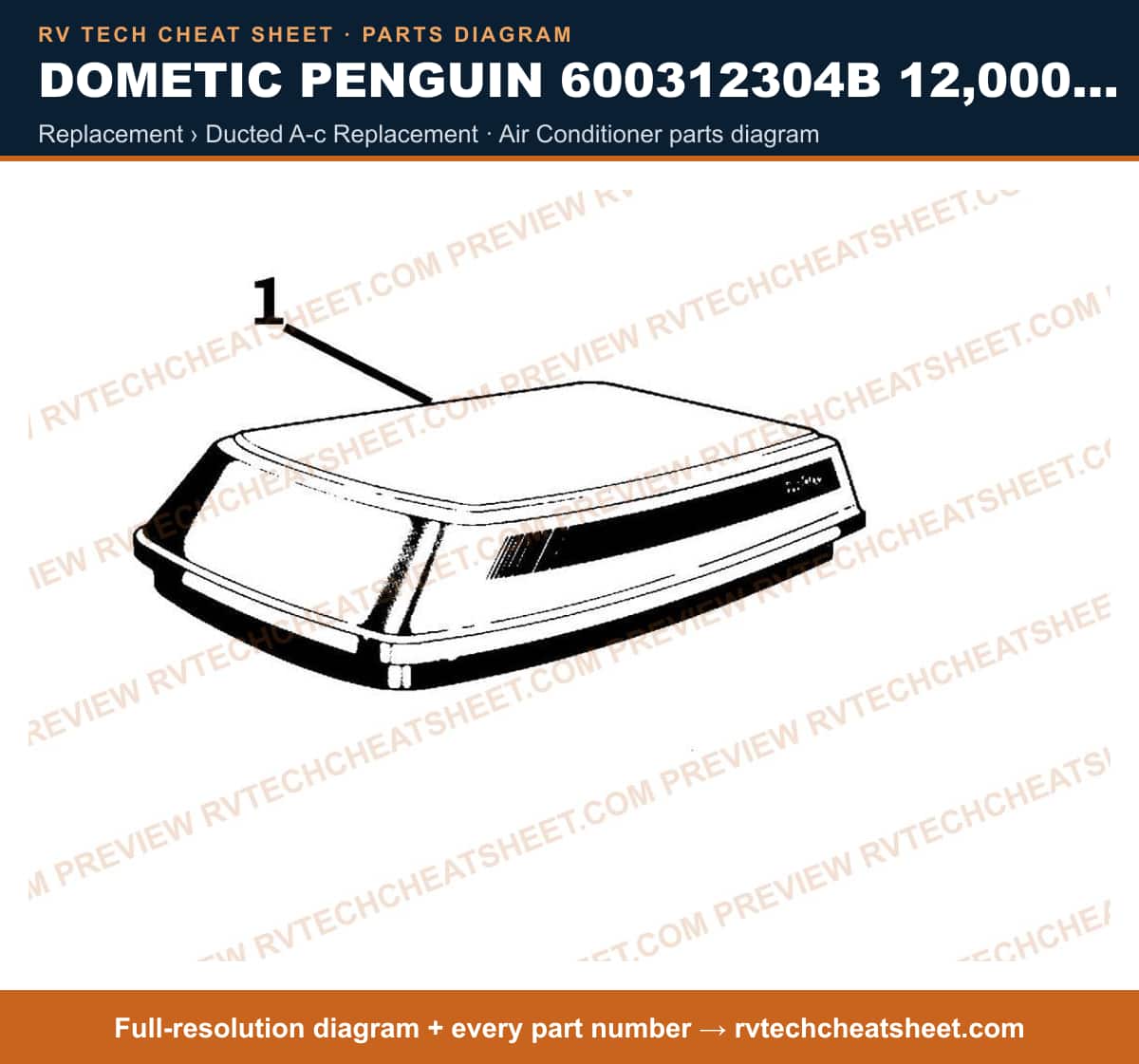

OEM exploded parts diagram for the Dometic Penguin 600312304B 12,000 BTU rooftop air conditioner: 12 manufacturer part numbers. 5 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Replacement › Ducted A-c Replacement

Components

12 items

1. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
2. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
3. #ELECTRONIC KIT CCC MFR # 3109226005
4. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
5. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
6. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512
7. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description
8. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
9. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
10. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
11. #A/C COMPONENTS RV; RETURN AIR ASM SW +GRILL/LOGO,W/LOG MFR # 3105935039
12. #Wall Thermostat; 5 Button; White MFR # 3109228001
