Dometic Penguin 600312304D 12,000 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 3 assemblies · 3 diagram sheets · 127 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 600312304D 12,000 BTU rooftop air conditioner: 3 assemblies (Shroud & Main Components, Installation Parts, Opt. Elec. Heat Kit Assy) and 127 manufacturer part numbers. 37 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

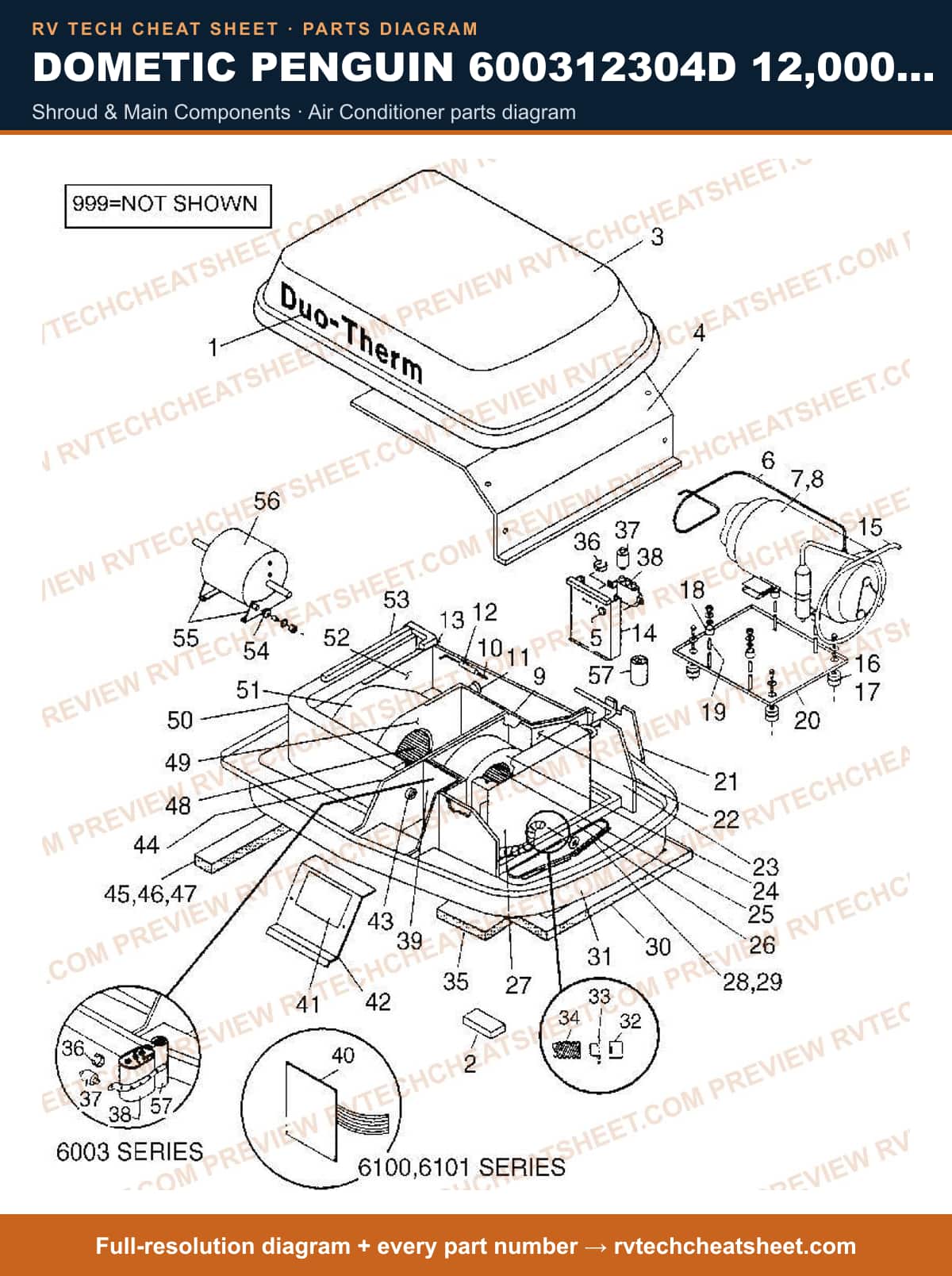

Shroud & Main Components

Components

80 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #BLOCKS, FOAM MFR # 3100587009
3. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
6. #SHROUD SHELL WHITE <S MFR # 3308046006
7. #COVER,EVAPORATOR MFR # 3102514803
8. #STRAIN RELIEF MFR # 31028025
9. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102985003
10. #APPLIANCE COMPONENTS RV; Compressor MFR # 3103402024
11. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250210
12. #BULKHEAD, COMPRESSOR MFR # 3102511015
13. #TUBE,CAPILLARY MFR # 3100245392
14. #BUSHING, SNAP-IN MFR # 31028041
15. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
16. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
17. #PANEL, CAPACITOR (*,**) MFR # 3101627028
18. #LINE,SUCTION MFR # 3102986001
19. #GROMMET 3REQUIRED MFR # 3102324005
20. #SLEEVE,COMPT MOUNTING MFR # 3100239080
21. #GROMMET, COMPRESSOR, 4 REQUIRED MFR # 31W238181
22. #SLEEVE,COMPRESSOR MFR # 3100239072
23. #SLEEVE,CMPRSR USE 3100239072 MFR # 3100239114 Superseded: see description
24. #WELDMENT,COMP. USE 3102590035 PLATE MDL600315.304 MFR # 3102987009 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590035
26. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
27. #INSULATION,EVAP.USE 3102516022 MFR # 3102516006 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
29. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
30. #PLATE, EVAPORATOR, CLOSE OFF (SPLIT) MFR # 310251005
31. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
32. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
33. #PAN,DRAIN FOAM MFR # 3102513003
34. #COIL,EVAPORATOR MFR # 3102677006
35. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
36. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
37. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
38. #GASKET, GREY, 14 X 14 MFR # 6759A3281
39. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
40. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
41. #A/C SEAL, 14 X 14 WHITE MFR # A101414
42. #ROOF A/C GASKET KIT MFR # 3310718006
43. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
44. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
45. #ANTI SHORT DEVICE MFR # 37760002
46. #CONDUIT,FLEX 579 MFR # 3100838006
47. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
48. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
49. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
50. #PTCR KIT MFR # 3310731009
51. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
52. #RELAY,START USE 3100876006 MFR # 3100878002 Superseded: see description
53. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
54. #APPLIANCE COMPONENTS RV; Bulkhead Electrical Box MFR # 3102532029
55. #APPLIANCE COMPONENTS RV; Decal Field Wiring MFR # 3102899006
56. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
57. #STRAIN RELIEF MFR # 32994014
58. #BULKHEAD, EVAP. MFR # 3100254022
59. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
60. #GASKET, 16&quot; X 1.5&quot; MFR # 316462000
61. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
62. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
63. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
64. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
65. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3101467003
66. #BLOWER,SCROLL MFR # 3100260003
67. #BLOWER, SIDE/REAR MFR # 3100261001
68. #TAPE FOR SEAL USE 3102669052 69 INCHES MFR # 3102669045 Superseded: see description
69. #TAPE, FOAM USE 3102669052 SOLD IN 63&quot; PIECE MFR # 3102669029 Superseded: see description
70. #TAPE, FOAM SOLD IN 63&quot; PIECE MFR # 3102669052
71. #TAPE USE 3102669029 MFR # 3102669011 Superseded: see description
72. #TAPE,FOAM USE 3102669045 SOLD BY THE INCH MFR # 3102669003 Superseded: see description
73. #SERVICE KIT F/MOTOR MFR # 3310725001
74. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
75. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
76. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
77. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
78. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
79. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
80. #GASKET USE 3100286016 MFR # 316462 Superseded: see description

Installation Parts

Components

37 items

1. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
2. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
3. #3100262017 MFR # 3100262017
4. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
5. #INSULATION,CEILING TEMPLATE MFR # 3107133005
6. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
7. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
8. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
9. #CONDUIT MFR # 318522
10. #STRAIN RELIEF MFR # 32994001
11. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
12. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
13. #BOX, BACK LH MFR # 3100299001
14. #APPLIANCE COMPONENTS RV; Box Back Rh MFR # 3100279003
15. #BOX FRONT MFR # 3100276009
16. #APPLIANCE COMPONENTS RV; Box Front Rh MFR # 3100277031
17. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
18. #PLUG, FEMALE, 9-HOLE MFR # 311471003
19. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
20. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
21. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
22. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
23. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
24. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
25. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
26. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
27. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
28. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
29. #DECAL, LEFT SIDE SWITCH MFR # 3101392003
30. #DECAL, RIGHT SIDE SWITCH MFR # 3101394009
31. #KNOB,BLACK USE 3106121001 RVA 60 MFR # 3100290 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Parts Bag Asm MFR # 3101582009
33. #APPLIANCE COMPONENTS RV; Decal Field Wiring MFR # 3102899006
34. #AIRBOX ASM MFR # 318542012
35. #APPLIANCE COMPONENTS RV; Shell Airbox Shell White MFR # 3101390049
36. #COMPLETE CEILING TEMPLATE MFR # 318716800
37. #SHELL, AIRBOX USE 3101390049 SHELL WHITE MFR # 3101390007 Superseded: see description

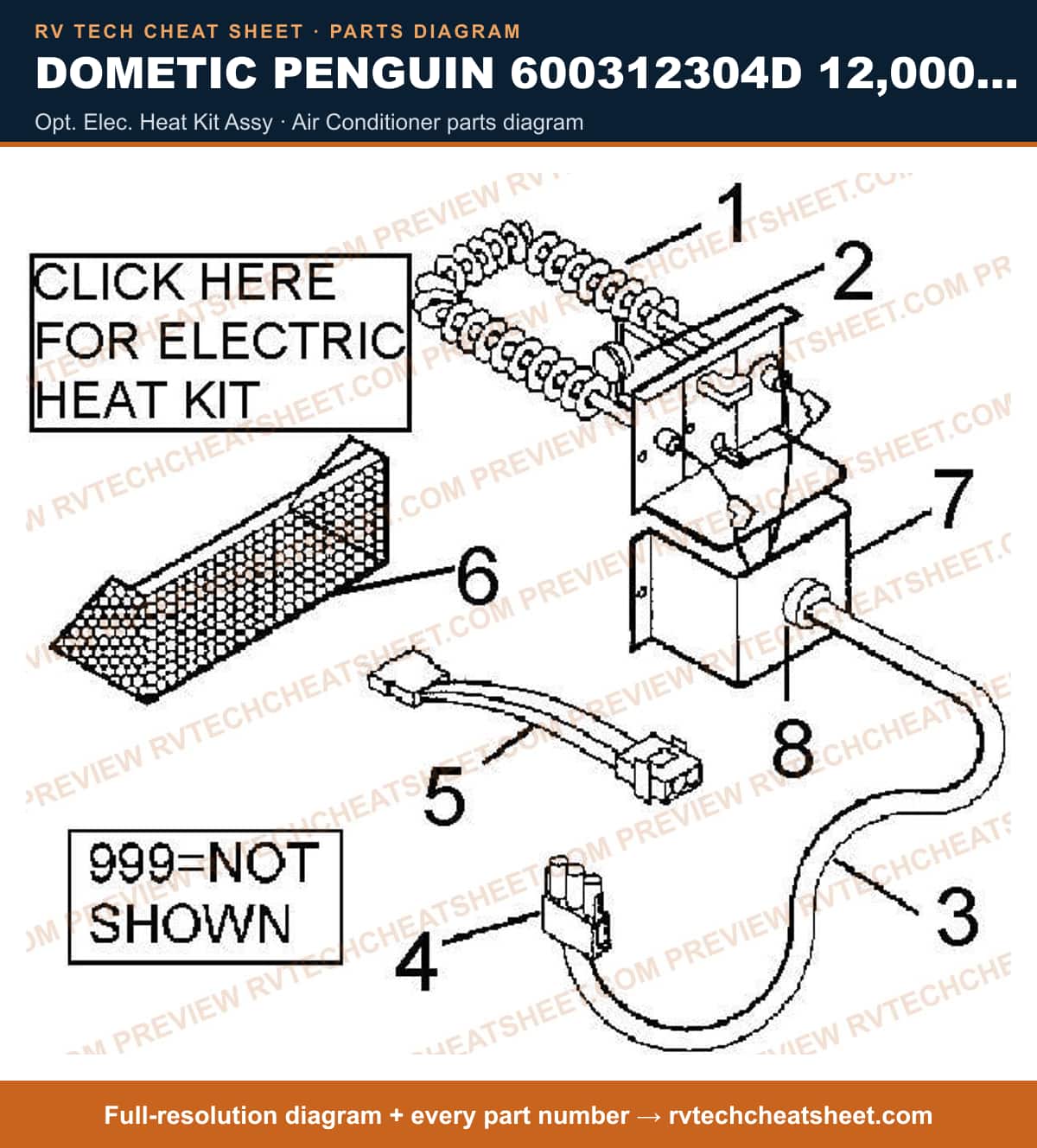

Opt. Elec. Heat Kit Assy

Components

11 items

1. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
8. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
9. #GUARD, HEAT MFR # 3101143
10. #ELECTRIC BOX MFR # 3101125007
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description
