Dometic Penguin 600312331 11,000 BTU Parts Diagram

Air Conditioner · 1 diagram sheet · 42 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic Penguin 600312331 11,000 BTU rooftop air conditioner: 42 manufacturer part numbers. 8 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

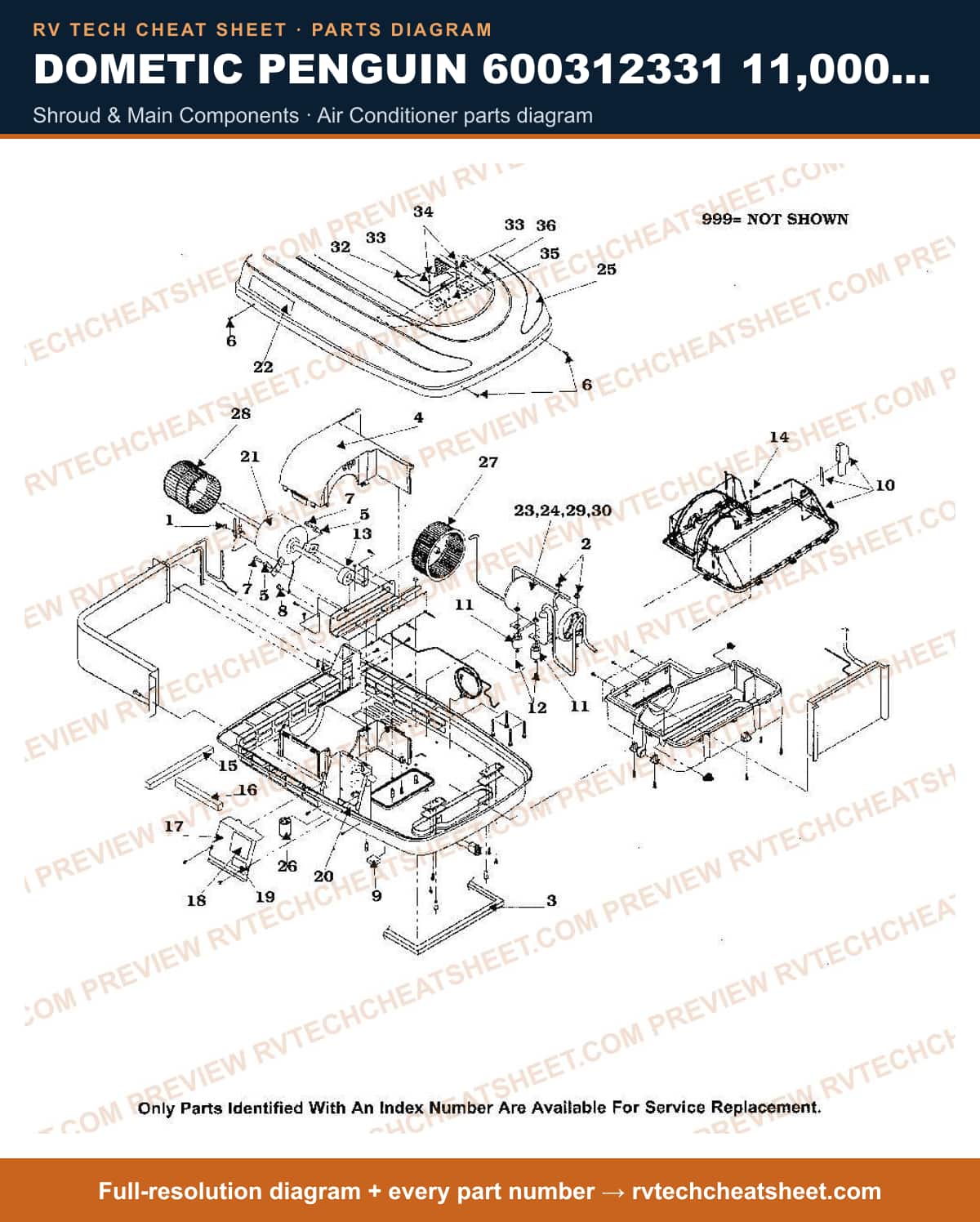

Shroud & Main Components

Components

42 items

1. #NUT, FLANGE ***USE 498471*** MFR # 306342003 Superseded: see description
2. #SERVICE KIT F/MOTOR MFR # 3310725001
3. #NUT,FLANGE 5/16"-18 X 1.75 MFR # 306342002
4. #GASKET USE 3100247 MFR # 3100247000 Superseded: see description
5. #GASKET, GREY, 14 X 14 MFR # 6759A3281
6. #ROOF A/C GASKET KIT MFR # 3310718006
7. #APPLIANCE COMPONENTS RV; Housing Condenser Upper MFR # 3310304000
8. #HOUSING,CONDENSOR USE 3310304000 MFR # 3308017015 Superseded: see description
9. #NUT MFR # 3308101001
10. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
12. #SCREW MFR # 312110030
13. #SCREW MFR # 312237002
14. #BLOCKS, FOAM MFR # 3100587009
15. #APPLIANCE COMPONENTS RV; Kit Upper Evaporator Hsg MFR # 3309332009
16. #GROMMET, COMP.USE 3311596000 STAG# 49-9126 MFR # 3100238181 Superseded: see description
17. #Air Conditioner Compressor Mounting Hardware; Replacement For Duo-Therm 57915731/ 39335641/ 630515326C1 Air Conditioners; With Compressor Grommets/ Metal Sleeves/ Nuts MFR # 3311596000
18. #SLEEVE,COMPRESSOR MFR # 3100239072
19. #FOAM,COLLAR MFR # 3307807002
20. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
21. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
22. #COVER,ELECTRIC BOX MFR # 3308105000
23. #DECAL,FIELD WIRING MFR # 3308032008
24. #DECAL,WARNING MFR # 3100384019
25. #START,CMPSR KIT USE 3312302007 OR 49-8476 MFR # 3106732013 Superseded: see description
26. #Air Conditioner Capacitor; Hard Start Capacitor; For 110000 BTU Air Conditioner Units MFR # 3312302007
27. #FAN MOTOR KIT MFR # 3309333007
28. #DECAL, SHROUD MFR # 3109274005
29. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250210
30. #NUT,FLANGE MFR # 306342005
31. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
32. #SHROUD BLACK MFR # 3308046030
33. #Air Conditioner Shroud; Replacement Shroud For Dometic Air Conditioners; Penguin Style; Grey MFR # 3308046022
34. #SHROUD SHELL WHITE <S MFR # 3308046006
35. #SHROUD POLAR WHITE <S MFR # 3308046014
36. #Dometic 3310711001 RM2652 Refrigerator Door Panel Assembly MFR # 3310711001
37. #CAPACITOR, RUN ***USE 49-8100*** MFR # 3100248503 Superseded: see description
38. #WHEEL,EVAPORATOR MFR # 3308392004
39. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
40. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3102321001
42. #APPLIANCE COMPONENTS RV; Gasket Terminal MFR # 3102320003
