Dometic Penguin 600312404B 12,000 BTU Parts Diagram · Installation Parts

Air Conditioner · 5 assemblies · 5 diagram sheets · 138 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 600312404B 12,000 BTU rooftop air conditioner: 5 assemblies (Installation Parts, Shroud & Main Components, Ducted A-c Replacement, Optional Heat Kit, Non-ducted A-c Replacement) and 138 manufacturer part numbers. 41 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

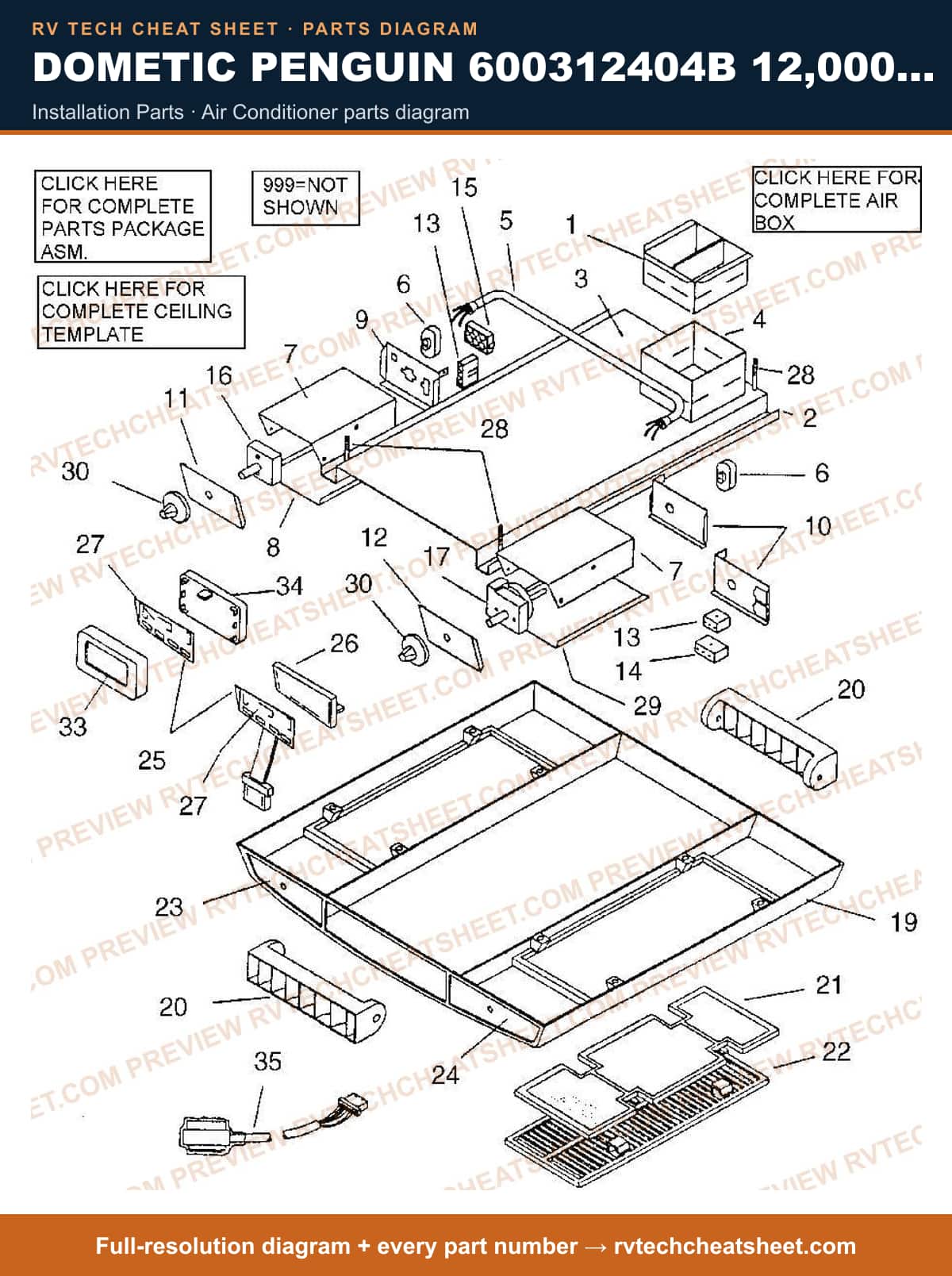

Installation Parts

Components

41 items

1. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
2. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
3. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
4. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
5. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
6. #INSULATION,CEILING TEMPLATE MFR # 3107133005
7. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
8. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
9. #CONDUIT MFR # 318522
10. #STRAIN RELIEF MFR # 32994001
11. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
12. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
13. #BOX, BACK LH MFR # 3100299001
14. #APPLIANCE COMPONENTS RV; Box Back Rh MFR # 3100279003
15. #BOX FRONT MFR # 3100276009
16. #APPLIANCE COMPONENTS RV; Box Front Rh MFR # 3100277031
17. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
18. #PLUG, FEMALE, 9-HOLE MFR # 311471003
19. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
20. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
22. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
23. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
24. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
26. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
27. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
28. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
29. #DECAL, LEFT SIDE SWITCH MFR # 3101392003
30. #DECAL, RIGHT SIDE SWITCH MFR # 3101394009
31. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
33. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
34. #KNOB, 3/4" BLACK MFR # 3106121001
35. #KNOB,BLACK USE 3106121001 RVA 60 MFR # 3100290 Superseded: see description
36. #DECAL, FIELD WIRING MFR # 3101894008
37. #APPLIANCE COMPONENTS RV; Parts Bag Asm MFR # 3101582009
38. #APPLIANCE COMPONENTS RV; Shell Airbox Shell White MFR # 3101390049
39. #COMPLETE CEILING TEMPLATE MFR # 318716800
40. #SHELL, AIRBOX USE 3101390049 SHELL WHITE MFR # 3101390007 Superseded: see description
41. #AIRBOX ASM MFR # 318542012

Shroud & Main Components

Components

73 items

1. #APPLIANCE COMPONENTS RV; Decal Shroud Rh MFR # 3101396020
2. #DECAL SHROUD LH MFR # 3101396012
3. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
4. #SHROUD GREY MFR # 3100252042
5. #SHROUD,WHITE 9" POLAR WHITE MFR # 3100252034
6. #SHROUD SHELL WHITE <S MFR # 3308046006
7. #SHROUD,OUTER USE 3102661 SHELL WHITE MFR # 3100252026 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
9. #SHROUD,OUTER USE 3107746004 SHELL WHITE MFR # 3102661 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Shroud Inner Rva 60 All MFR # 3101886004
11. #APPLIANCE COMPONENTS RV; Cover Evaporator Rva MFR # 3100268006
12. #APPLIANCE COMPONENTS RV; Insulation Housing Top MFR # 3100373004
13. #INSUL, BLWR HSNG (FIBERGLASS NOT SHOWN) MFR # 3100287014
14. #COMPRESSOR 6100 15-203 MFR # 3101966020
15. #APPLIANCE COMPONENTS RV; Switch Overload MFR # 3100250178
16. #DISCHARGE LINE MFR # 3102444001
17. #DAMPENER,A/C NOISE MFR # 3102315003
18. #DISCHARGE LINE MFR # 3102445008
19. #SUCTION LINE MFR # 3102447004
20. #GROMMET 3REQUIRED MFR # 3102324005
21. #PLATE, COMPRESSOR MOUNTING MFR # 3102448002
22. #Air Conditioner Compressor Mounting Hardware; For Duo-Therm Air Conditioner Penguin Model 620525421; Compressor Mounting Sleeve MFR # 3100239098
23. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
24. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
25. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
26. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
28. #SERVICE KIT F/MOTOR MFR # 3310725001
29. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3102449000 Superseded: see description
31. #BLOWER,SCROLL MFR # 3100260003
32. #BLOWER, SIDE/REAR MFR # 3100261001
33. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
34. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
35. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
36. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
37. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3101863003
38. #APPLIANCE COMPONENTS RV; Tube Cap .46 X 42 In MFR # 3100245203
39. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3100255011
40. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
41. #COIL, EVAPORATOR RVA60/61 11M MFR # 318667
42. #PAN, BASE MFR # 3101885006
43. #APPLIANCE COMPONENTS RV; Pan Drain MFR # 3100267008
44. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
45. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
46. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
47. #A/C SEAL, 14 X 14 WHITE MFR # A101414
48. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
49. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
50. #GASKET, GREY, 14 X 14 MFR # 6759A3281
51. #ROOF A/C GASKET KIT MFR # 3310718006
52. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
53. #ANTI SHORT DEVICE MFR # 37760002
54. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
55. #APPLIANCE COMPONENTS RV; Block Hd Insulation MFR # 3100266
56. #BULKHEAD, ELECTRIC BOX MFR # 3100253024
57. #STRAIN RELIEF MFR # 32994014
58. #BULKHEAD, EVAP. MFR # 3100254022
59. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
61. #GASKET USE 3100286016 MFR # 316462 Superseded: see description
62. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
63. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
64. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
65. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
66. #PTCR KIT MFR # 3310731009
67. #APPLIANCE COMPONENTS RV; Relay MFR # 3100876022
68. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
69. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
70. #TAPE,FOAM USE 3102669045 SOLD BY THE INCH MFR # 3102669003 Superseded: see description
71. #TAPE, FOAM SOLD IN 63&quot; PIECE MFR # 3102669052
72. #TAPE FOR SEAL USE 3102669052 69 INCHES MFR # 3102669045 Superseded: see description
73. #SPRING MFR # 3102594003

Ducted A-c Replacement

Components

12 items

1. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
2. #BOARD KIT CCC MFR # 3311557000
3. #COMFORT CTRL MFR # 3106463007
4. #AIRBOX,COMPLT USE 3106615010 PW REQUIRES CCC OR WALL T-STAT MFR # 3107561015 Superseded: see description
5. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
6. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
7. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
8. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
9. #Wall Thermostat; 5 Button; White MFR # 3109228001
10. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
11. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
12. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description

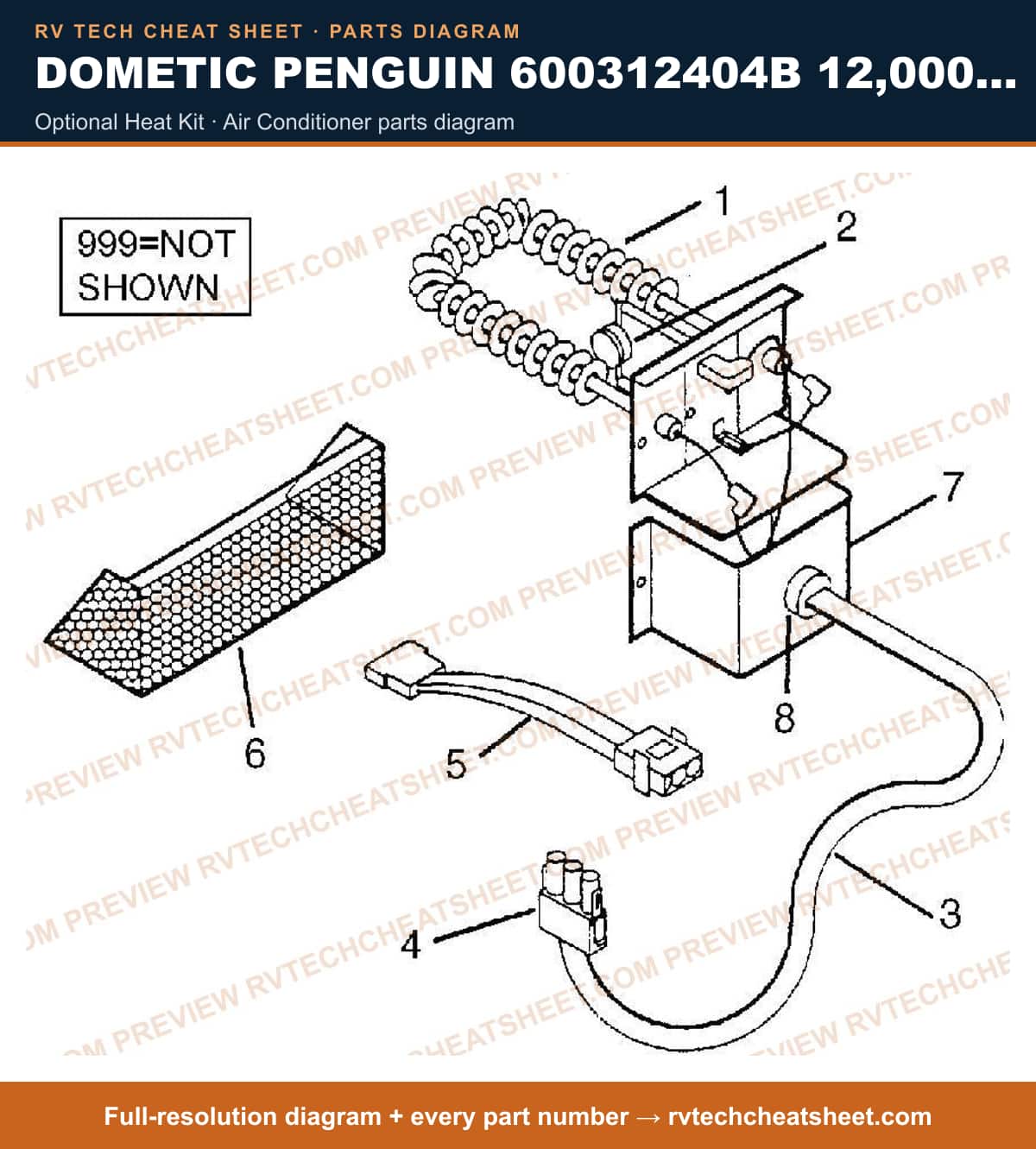

Optional Heat Kit

Components

11 items

1. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
8. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
9. #GUARD, HEAT MFR # 3101143
10. #ELECTRIC BOX MFR # 3101125007
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

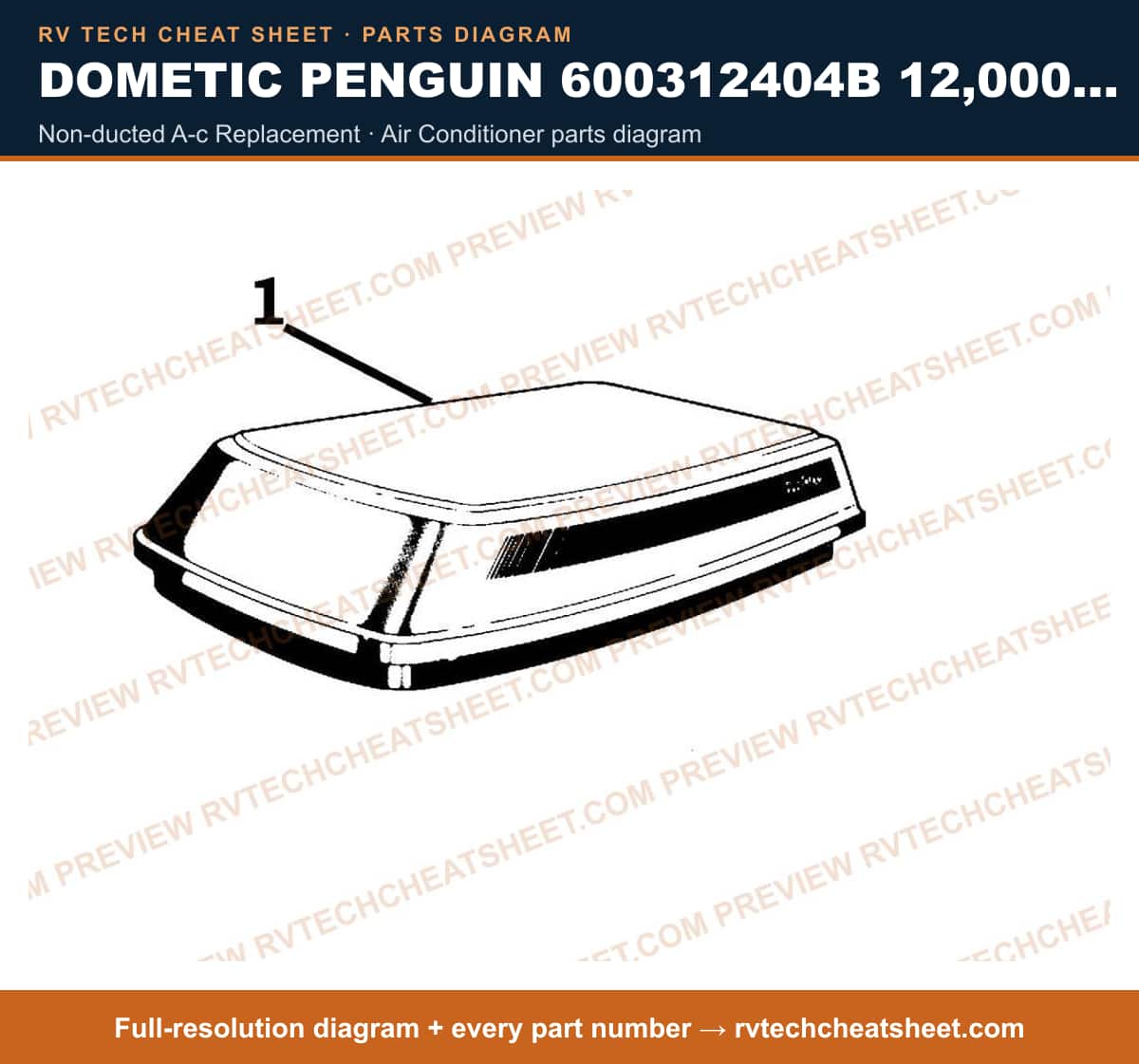

Non-ducted A-c Replacement

Components

12 items

1. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description
2. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
3. #BOARD KIT CCC MFR # 3311557000
4. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
5. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
6. #COMFORT CTRL MFR # 3106463007
7. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
8. #AIRBOX,COMPLT USE 3106615010 PW REQUIRES CCC OR WALL T-STAT MFR # 3107561015 Superseded: see description
9. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
10. #Wall Thermostat; 5 Button; White MFR # 3109228001
11. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
12. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
