Dometic Penguin 600312404C 12,000 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 5 assemblies · 5 diagram sheets · 149 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 600312404C 12,000 BTU rooftop air conditioner: 5 assemblies (Shroud & Main Components, Ducted A-c Replacement, Optional Heat Kit, Installation Parts, Non-ducted A-c Replacement) and 149 manufacturer part numbers. 51 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

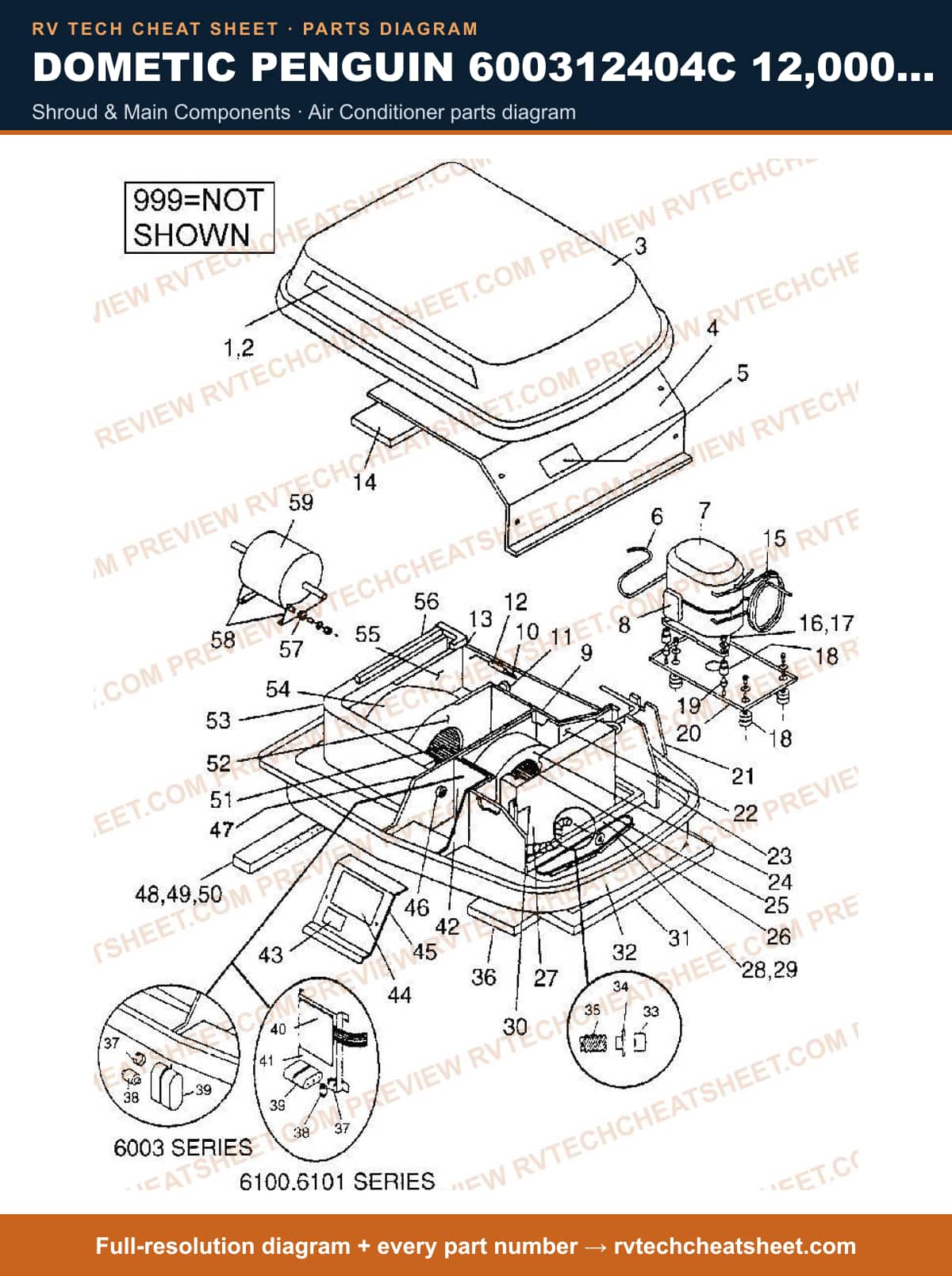

Shroud & Main Components

Components

83 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
3. #SHROUD,GRAY USE 3107746020 610015-405D MFR # 3102515032 Superseded: see description
4. #SHROUD SHELL WHITE <S MFR # 3308046006
5. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
6. #Air Conditioner Shroud; Replacement Shroud For Dometic Air Conditioners; Penguin Style; Grey MFR # 3308046022
7. #SHROUD ASM USE 3308046022 GRAY MFR # 3107746020 Superseded: see description
8. #SHROUD,OUTER USE 3102515032 610015-405 MFR # 3102515016 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
10. #COVER,EVAPORATOR MFR # 3102514803
11. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
12. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102564014
14. #COMPRESSOR USE 3102864 MFR # 3102678012 Superseded: see description
15. #SWITCH,OVERLOAD MFR # 3100250244
16. #SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3102511007
18. #TUBE,CAPILLARY .600 X 610 MFR # 3100245400
19. #USHING, SNAP-IN MFR # 31028037
20. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3101863003
21. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
22. #PANEL, CAPACITOR (*,**) MFR # 3101627028
23. #LINE,SUCTION MFR # 3102986001
24. #GROMMET 3REQUIRED MFR # 3102324005
25. #SLEEVE,COMPT MOUNTING MFR # 3100239080
26. #GROMMET, COMPRESSOR, 4 REQUIRED MFR # 31W238181
27. #SLEEVE,COMPRESSOR MFR # 3100239072
28. #SLEEVE,CMPRSR USE 3100239072 MFR # 3100239114 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590035
30. #WELDMENT,COMP. USE 3102590035 PLATE MDL600315.304 MFR # 3102987009 Superseded: see description
31. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
32. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
33. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
34. #INSULATION,EVAP.USE 3102516022 MFR # 3102516006 Superseded: see description
35. #PLATE, EVAPORATOR, CLOSE OFF (SPLIT) MFR # 310251005
36. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
37. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
38. #PAN,DRAIN FOAM MFR # 3102513003
39. #COIL,EVAPORATOR MFR # 3102677006
40. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
42. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
43. #ROOF A/C GASKET KIT MFR # 3310718006
44. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
45. #GASKET, GREY, 14 X 14 MFR # 6759A3281
46. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
47. #A/C SEAL, 14 X 14 WHITE MFR # A101414
48. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
49. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
50. #ANTI SHORT DEVICE MFR # 37760002
51. #CONDUIT,FLEX 579 MFR # 3100838006
52. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
53. #PTCR KIT MFR # 3310731009
54. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
55. #RELAY,START USE 3100876006 MFR # 3100878002 Superseded: see description
56. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
57. #APPLIANCE COMPONENTS RV; Bulkhead Electrical Box MFR # 3102532029
58. #APPLIANCE COMPONENTS RV; Decal Field Wiring MFR # 3102899006
59. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
60. #STRAIN RELIEF MFR # 32994014
61. #BULKHEAD, EVAP. MFR # 3100254022
62. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
63. #GASKET, 16&quot; X 1.5&quot; MFR # 316462000
64. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
65. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
66. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
67. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
68. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3101467003
69. #BLOWER,SCROLL MFR # 3100260003
70. #BLOWER, SIDE/REAR MFR # 3100261001
71. #TAPE, FOAM SOLD IN 63&quot; PIECE MFR # 3102669052
72. #TAPE FOR SEAL USE 3102669052 69 INCHES MFR # 3102669045 Superseded: see description
73. #TAPE,FOAM USE 3102669045 SOLD BY THE INCH MFR # 3102669003 Superseded: see description
74. #TAPE USE 3102669029 MFR # 3102669011 Superseded: see description
75. #TAPE, FOAM USE 3102669052 SOLD IN 63&quot; PIECE MFR # 3102669029 Superseded: see description
76. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
77. #SERVICE KIT F/MOTOR MFR # 3310725001
78. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
79. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
80. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
81. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
82. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
83. #SPRING MFR # 3102594003

Ducted A-c Replacement

Components

12 items

1. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
2. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
3. #AIRBOX,COMPLT USE 3106615010 PW REQUIRES CCC OR WALL T-STAT MFR # 3107561015 Superseded: see description
4. #Wall Thermostat; 5 Button; White MFR # 3109228001
5. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description
6. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
7. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
8. #COMFORT CTRL MFR # 3106463007
9. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
10. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
11. #BOARD KIT CCC MFR # 3311557000
12. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003

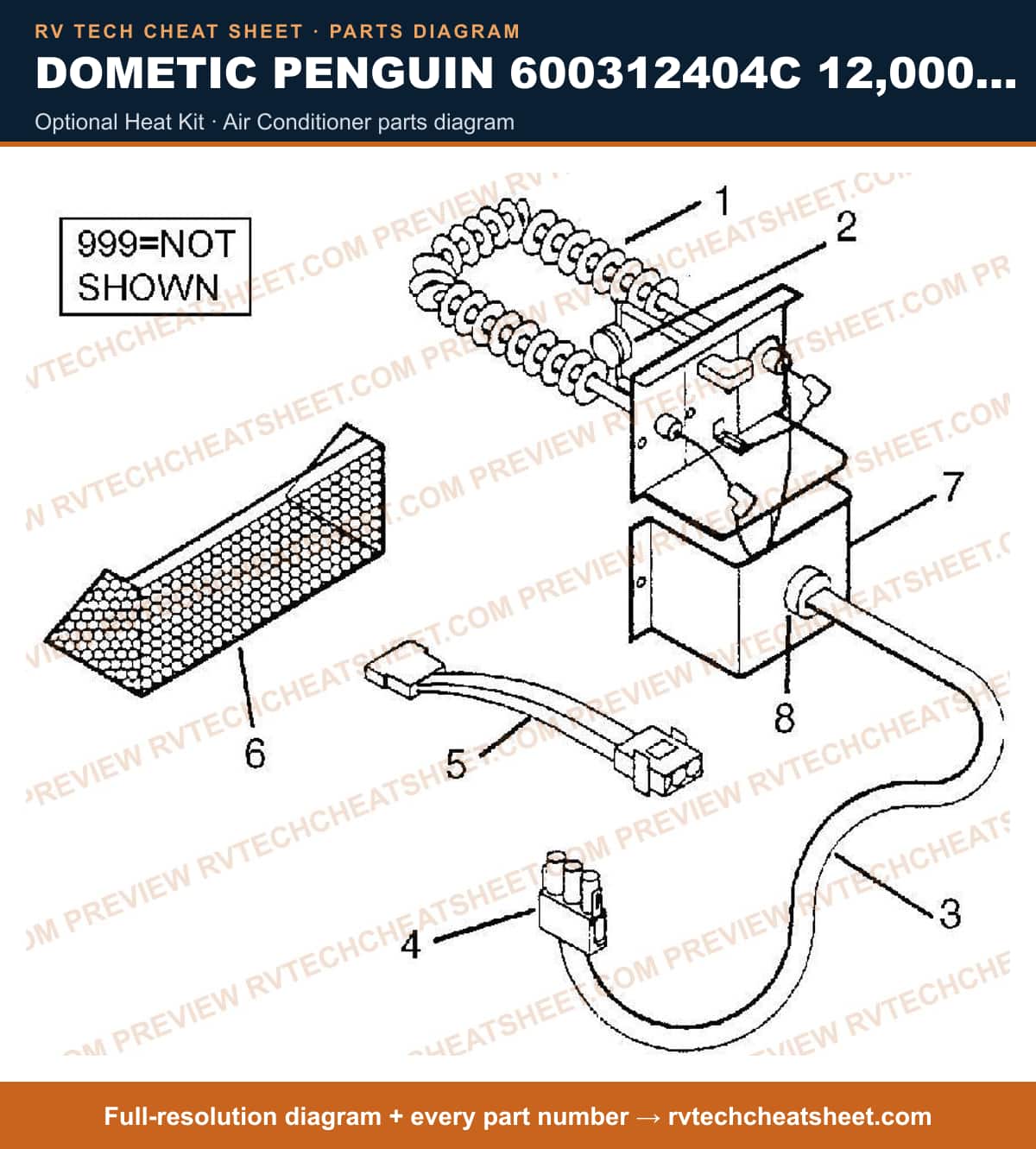

Optional Heat Kit

Components

11 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
8. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
9. #GUARD, HEAT MFR # 3101143
10. #ELECTRIC BOX MFR # 3101125007
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

Installation Parts

Components

41 items

1. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
2. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
3. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
5. #INSULATION,CEILING TEMPLATE MFR # 3107133005
6. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
7. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
8. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
9. #CONDUIT MFR # 318522
10. #STRAIN RELIEF MFR # 32994001
11. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
12. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
13. #BOX, BACK LH MFR # 3100299001
14. #APPLIANCE COMPONENTS RV; Box Back Rh MFR # 3100279003
15. #BOX FRONT MFR # 3100276009
16. #APPLIANCE COMPONENTS RV; Box Front Rh MFR # 3100277031
17. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
18. #PLUG, FEMALE, 9-HOLE MFR # 311471003
19. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
20. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
21. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
22. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
23. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
24. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
26. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
27. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
28. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
29. #DECAL, LEFT SIDE SWITCH MFR # 3101392003
30. #DECAL, RIGHT SIDE SWITCH MFR # 3101394009
31. #BOLT,MOUNTING USE 3106756012 6.25&quot; LONG MFR # 3100375025 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
33. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
34. #KNOB,BLACK USE 3106121001 RVA 60 MFR # 3100290 Superseded: see description
35. #KNOB, 3/4&quot; BLACK MFR # 3106121001
36. #COMPLETE CEILING TEMPLATE MFR # 318716800
37. #APPLIANCE COMPONENTS RV; Shell Airbox Shell White MFR # 3101390049
38. #AIRBOX ASM MFR # 318542012
39. #DECAL, FIELD WIRING MFR # 3101894008
40. #SHELL, AIRBOX USE 3101390049 SHELL WHITE MFR # 3101390007 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Parts Bag Asm MFR # 3101582009

Non-ducted A-c Replacement

Components

12 items

1. #Wall Thermostat; 5 Button; White MFR # 3109228001
2. #CONTROL,COLD USE3312303005 STAG# 49-8912 MFR # 3109409001
3. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
4. #COMFORT CTRL MFR # 3106463007
5. #Wall Thermostat; Single Zone; Cool/ Furnace; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board; Also Use New Number 3316230.700 MFR # 3316230000 Superseded: see description
6. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
7. #AIRBOX,COMPLT USE 3106615010 PW REQUIRES CCC OR WALL T-STAT MFR # 3107561015 Superseded: see description
8. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
9. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description
10. #BOARD KIT CCC MFR # 3311557000
11. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
12. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
