Dometic Penguin 600312421 12,000 BTU Parts Diagram · Non-ducted A-c Replacement

Air Conditioner · 3 assemblies · 3 diagram sheets · 106 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 600312421 12,000 BTU rooftop air conditioner: 3 assemblies (Non-ducted A-c Replacement, Ducted A-c Replacement, Shroud & Main Components) and 106 manufacturer part numbers. 27 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Non-ducted A-c Replacement

Components

12 items

1. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000
2. #Air Conditioner Control Box Assembly; For Dometic Duo-Therm Air Conditioner; With Heat/ Cool Wall Thermostat MFR # 3107541009
3. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
4. #AIR CONDITIONER 11000 BTU COLONIAL WHITE PENGUIN MFR # 600312N
5. #Wall Thermostat; 5 Button; White MFR # 3109228001
6. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
7. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
8. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
9. #AIRBOX,COMPLETE POL WHT MFR # 3106615010
10. #AIRBOX,COMPLETE POLAR WHITE MFR # 3105457018
11. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
12. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000

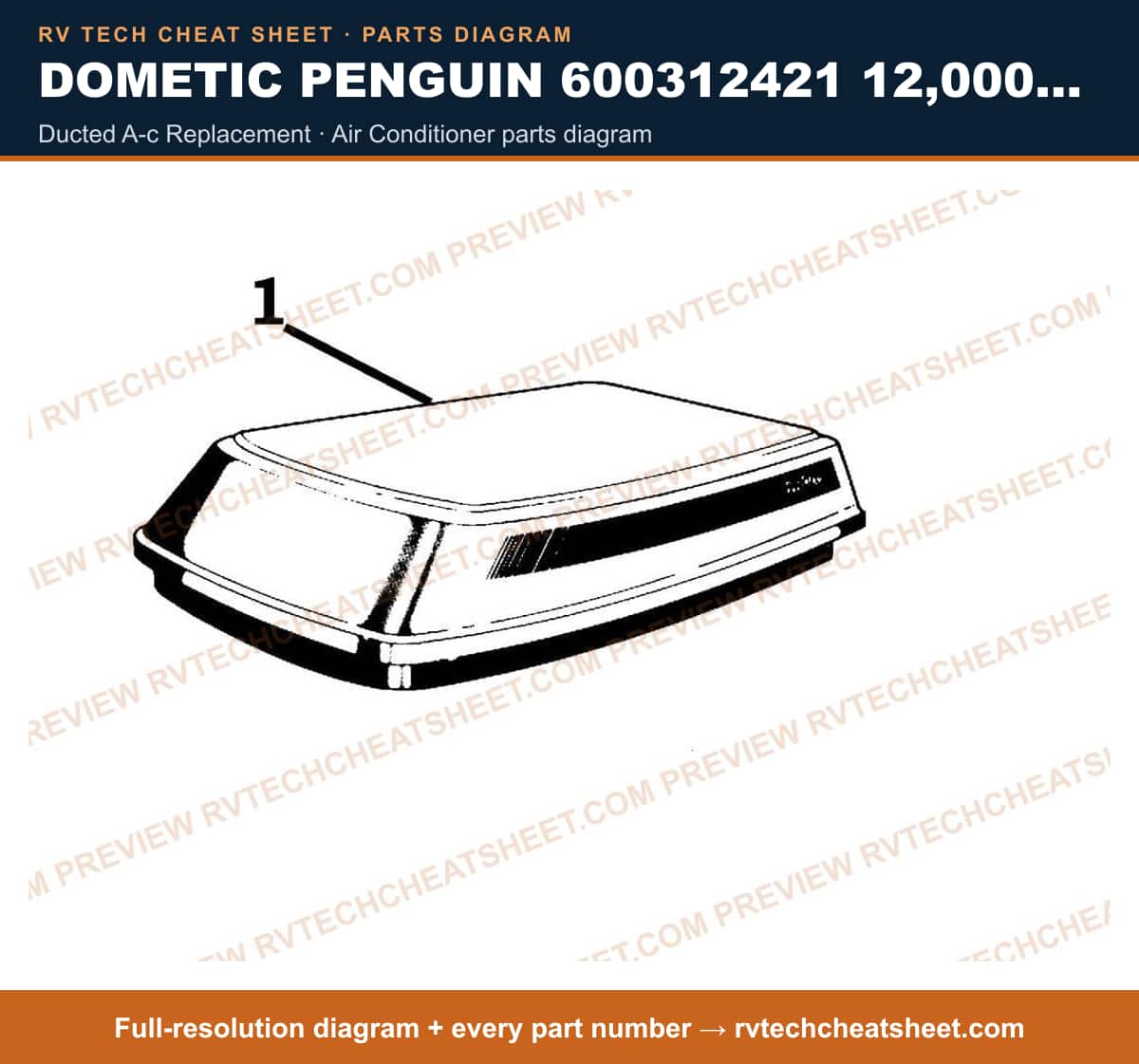

Ducted A-c Replacement

Components

12 items

1. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
2. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
3. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description
4. #AIR CONDITIONER 11000 BTU COLONIAL WHITE PENGUIN MFR # 600312N
5. #Wall Thermostat; 5 Button; White MFR # 3109228001
6. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
7. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
8. #ELECTRONIC KIT CCC MFR # 3109226005
9. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
10. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
11. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
12. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005

Shroud & Main Components

Components

90 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #BLOCKS, FOAM MFR # 3100587009
3. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
4. #SHROUD SHELL WHITE <S MFR # 3308046006
5. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
7. #COVER,EVAPORATOR MFR # 3102514803
8. #STRAIN RELIEF MFR # 31028025
9. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102985003
10. #APPLIANCE COMPONENTS RV; Compressor MFR # 3103402024
11. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250210
12. #BULKHEAD, COMPRESSOR MFR # 3102511015
13. #TUBE,CAPILLARY MFR # 3100245392
14. #BUSHING, SNAP-IN MFR # 31028041
15. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
16. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
17. #PANEL, CAPACITOR (*,**) MFR # 3101627028
18. #LINE,SUCTION MFR # 3102986001
19. #GROMMET 3REQUIRED MFR # 3102324005
20. #SLEEVE,COMPT MOUNTING MFR # 3100239080
21. #GROMMET, COMPRESSOR, 4 REQUIRED MFR # 31W238181
22. #SLEEVE,COMPRESSOR MFR # 3100239072
23. #SLEEVE,CMPRSR USE 3100239072 MFR # 3100239114 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590035
25. #WELDMENT,COMP. USE 3102590035 PLATE MDL600315.304 MFR # 3102987009 Superseded: see description
26. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
27. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
28. #INSULATION,EVAP.USE 3102516022 MFR # 3102516006 Superseded: see description
29. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
30. #PLATE, EVAPORATOR, CLOSE OFF (SPLIT) MFR # 310251005
31. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
32. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
33. #PAN,DRAIN FOAM MFR # 3102513003
34. #COIL,EVAPORATOR MFR # 3102677006
35. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
37. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
38. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
39. #GASKET, GREY, 14 X 14 MFR # 6759A3281
40. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
41. #ROOF A/C GASKET KIT MFR # 3310718006
42. #A/C SEAL, 14 X 14 WHITE MFR # A101414
43. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
44. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
45. #ANTI SHORT DEVICE MFR # 37760002
46. #CONDUIT,FLEX 579 MFR # 3100838006
47. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
48. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
49. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
50. #PTCR KIT MFR # 3310731009
51. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
52. #RELAY,START USE 3100876006 MFR # 3100878002 Superseded: see description
53. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
54. #APPLIANCE COMPONENTS RV; Bulkhead Electrical Box MFR # 3102532029
55. #APPLIANCE COMPONENTS RV; Decal Field Wiring MFR # 3102899006
56. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
57. #STRAIN RELIEF MFR # 32994014
58. #BULKHEAD, EVAP. MFR # 3100254022
59. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
60. #GASKET, 16&quot; X 1.5&quot; MFR # 316462000
61. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
62. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
63. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
64. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
65. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3101467003
66. #BLOWER,SCROLL MFR # 3100260003
67. #BLOWER, SIDE/REAR MFR # 3100261001
68. #TAPE, FOAM SOLD IN 63&quot; PIECE MFR # 3102669052
69. #TAPE FOR SEAL USE 3102669052 69 INCHES MFR # 3102669045 Superseded: see description
70. #TAPE USE 3102669029 MFR # 3102669011 Superseded: see description
71. #TAPE,FOAM USE 3102669045 SOLD BY THE INCH MFR # 3102669003 Superseded: see description
72. #TAPE, FOAM USE 3102669052 SOLD IN 63&quot; PIECE MFR # 3102669029 Superseded: see description
73. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
74. #SERVICE KIT F/MOTOR MFR # 3310725001
75. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
76. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
77. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
78. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
79. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
80. #AIRBOX,COMPLETE SHELL WHIT MFR # 3107561007
81. #AIRBOX,COMPLETE USE 3107561007 SHELL WHITE MFR # 3105460004 Superseded: see description
82. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
83. #APPLIANCE COMPONENTS RV; Relay Kit Bimetal T-Stat MFR # 3104998004
84. #ELECTRONIC KIT W/OU T GAS HT MFR # 3104999010
85. #AIRBOX,COMPLETE SHELL WHITE HEAT/COOL MFR # 3105457000
86. #STRAP, F/CAPACITOR MFR # 317188000
87. #ELECTRONIC KIT CCC MFR # 3109226005
88. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
89. #BOX,ELECTRICAL BIMETAL WALL MFR # 3104999002
90. #COMFORT CTRL MFR # 3106463007
