Dometic Penguin 600315103B 13,500 BTU Parts Diagram · Non-ducted A-c Replacement

Air Conditioner · 2 assemblies · 2 diagram sheets · 93 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 600315103B 13,500 BTU rooftop air conditioner: 2 assemblies (Non-ducted A-c Replacement, Shroud & Main Components) and 93 manufacturer part numbers. 28 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Non-ducted A-c Replacement

Components

12 items

1. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
2. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
3. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
4. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
5. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
6. #AIRBOX,COMPLETE SHELL WHIT MFR # 3107561007
7. #AIRBOX,COMPLT USE 3106615010 PW REQUIRES CCC OR WALL T-STAT MFR # 3107561015 Superseded: see description
8. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
9. #BOARD KIT CCC MFR # 3311557000
10. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
11. #Wall Thermostat; 5 Button; White MFR # 3109228001
12. #AIRBOX,COMPLETE SHELL WHITE HEAT/COOL MFR # 3105457000

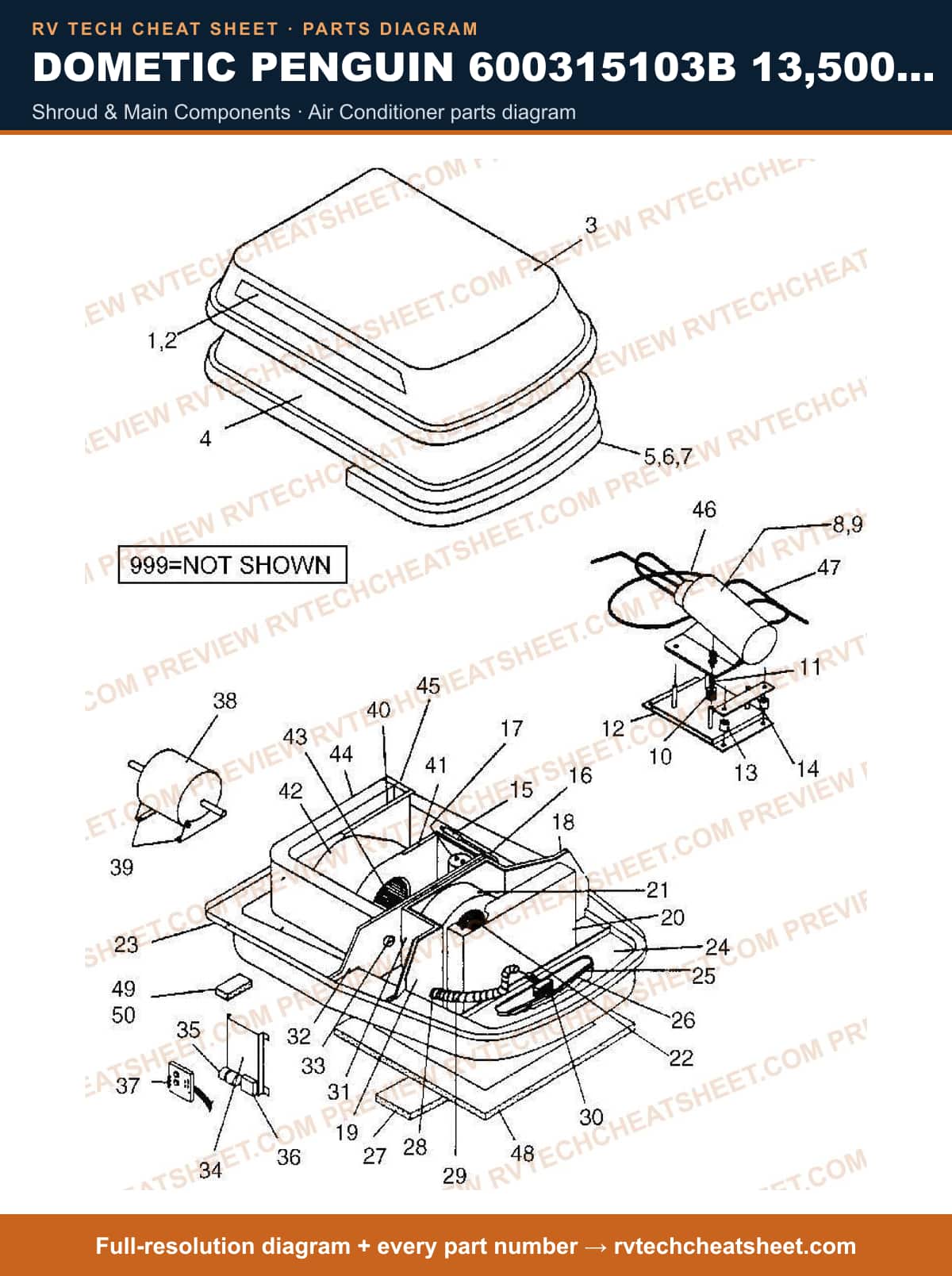

Shroud & Main Components

Components

81 items

1. #SHROUD,OUTER USE 3100252000 CAE11O 135 MFR # 3100252 Superseded: see description
2. #SHROUD SHELL WHITE <S MFR # 3308046006
3. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
4. #SHROUD,OUTER USE 3102661 MFR # 3101319006 Superseded: see description
5. #SHROUD,OUTER USE 3107746004 SHELL WHITE MFR # 3102661 Superseded: see description
6. #SHROUD USE 3102515008 MFR # 3100252000 Superseded: see description
7. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
9. #SHROUD,INNER USE 3101886004 MFR # 3100251010 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Shroud Inner Rva 60 All MFR # 3101886004
11. #APPLIANCE COMPONENTS RV; Cover Evaporator Rva MFR # 3100268006
12. #ADAPTER KIT,COMPRESSOR MFR # 3104306
13. #COMPRESSOR MFR # 1318435
14. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102984006
15. #GROMMET MFR # 3100238132
16. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
17. #SLEEVE,COMP.USE 3100239122 MOUNTING MFR # 3100239056 Superseded: see description
18. #PLATE,COMPRESSOR MOUNTING MFR # 3100296007
19. #PLATE USE 3100296007 COMPRESSOR MOUNTING MFR # 318577 Superseded: see description
20. #SERVICE KIT F/MOTOR MFR # 3310725001
21. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
22. #RETAINER STRAP MFR # 3100295009
23. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
24. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
25. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
26. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
27. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3100255011
28. #APPLIANCE COMPONENTS RV; Block Hd Insulation MFR # 3100266
29. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 3100272008
30. #N/A HOUSING,BLOWER MFR # 318321
31. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
32. #PAN,BASE MFR # 318299002
33. #APPLIANCE COMPONENTS RV; Pan Drain MFR # 3100267008
34. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
35. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
37. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
38. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
39. #CONDUIT,FLEX 579 MFR # 3100838006
40. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
41. #BULKHEAD,ELECTRICAL BOX MFR # 3100253008
42. #BULKHEAD, EVAPORATOR MFR # 3100254006
43. #STRAIN RELIEF MFR # 32994014
44. #APPLIANCE COMPONENTS RV; Panel Electric MFR # 3100282015
45. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
46. #APPLIANCE COMPONENTS RV; Relay Start MFR # 3100235245
47. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
48. #CAPACITOR, START MFR # 47C
49. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Board Module MFR # 3101597007
51. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
52. #MODULE,CONTROL MFR # 318594
53. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
54. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
55. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
56. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
57. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
58. #BLOWER, SIDE/REAR MFR # 3100261001
59. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
60. #BLOWER,SCROLL MFR # 3100260003
61. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
62. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3101467003
64. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
65. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3101468001
66. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3101469009
67. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
68. #ROOF A/C GASKET KIT MFR # 3310718006
69. #GASKET, GREY, 14 X 14 MFR # 6759A3281
70. #A/C SEAL, 14 X 14 WHITE MFR # A101414
71. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
72. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
73. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
74. #GASKET,ROOF USE 3100286032 MFR # 3100286024 Superseded: see description
75. #PROTECTOR USE 3100250277 OVERLOAD MFR # 3100250012 Superseded: see description
76. #APPLIANCE COMPONENTS RV; Insulation Housing Top MFR # 317001001
77. #INSUL, BLWR HSNG (FIBERGLASS NOT SHOWN) MFR # 3100287014
78. #DECAL USE 3102888009 DECAL LH SHROUD 5/89 RVA MFR # 318503001 Superseded: see description
79. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
80. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
81. #APPLIANCE COMPONENTS RV; Insulation Housing Top MFR # 3100373004
