Dometic Penguin 600315203C 13,500 BTU Parts Diagram · Installation Parts

Air Conditioner · 5 assemblies · 5 diagram sheets · 165 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 600315203C 13,500 BTU rooftop air conditioner: 5 assemblies (Installation Parts, Non-ducted A-c Replacement, Shroud & Main Components, Opt. El. Ht Kt 3-101121-014, Ducted A-c Replacement) and 165 manufacturer part numbers. 49 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Installation Parts

Components

57 items

1. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
2. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
3. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
4. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
5. #INSULATION,CEILING TEMPLATE MFR # 3107133005
6. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
7. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
8. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
9. #CONDUIT MFR # 318522
10. #STRAIN RELIEF MFR # 32994001
11. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
12. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
13. #BOX, BACK LH MFR # 3100299001
14. #APPLIANCE COMPONENTS RV; Box Back Rh MFR # 3100279003
15. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
16. #BOX FRONT MFR # 3100276009
17. #BOX FRONT RH MFR # 3100277007
18. #BOX FRONT, RH MFR # 3100277015
19. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
20. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
21. #PLUG,FEMALE 9 POLE MFR # 314471003
22. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
24. #SWITCH,SELECTOR USE 20250 8 POS CAM MFR # 20250001 Superseded: see description
25. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
26. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
27. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
28. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
29. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
30. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
31. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
32. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
33. #DECAL, LEFT SIDE SWITCH MFR # 3100999006
34. #DECAL,AIRBOX MFR # 318526
35. #APPLIANCE COMPONENTS RV; Conversion Kit Use 330771 MFR # 3102957002 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
37. #PAD,TOUCH CTRL USE 3102957002 MFR # 3100390008 Superseded: see description
38. #PAD,TOUCH USE 3100390008 MFR # 318595 Superseded: see description
39. #BOX,TOUCH PAD MTG RVA 6100 MFR # 318675
40. #TSTAT W/RIBBON CABLE MFR # 20251D
41. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
43. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
44. #COVER,JUNCTION USE 3100278013 BOX MFR # 3100278005 Superseded: see description
45. #KNOB, 3/4" BLACK MFR # 3106121001
46. #KNOB,BLACK USE 3106121001 RVA 60 MFR # 3100290 Superseded: see description
47. #5/16 INCH BUTTON HEAD SCREW - 18 X 1 1/2 INCH MFR # 318721
48. #BASE,T-STAT MFR # 318751
49. #CABLE FOR A/C 25' MFR # 318811002
50. #CABLE,30' MFR # 318811003
51. #WIRE CONNECTOR 15 FT. (MUST HAVE 11 PINS) MFR # 318811001
52. #COMPLETE CEILING TEMPLATE ASM. MFR # 3101520009
53. #WIRING DECAL 610- MFR # 3100998008
54. #CEILING ASM USE 3101390049 MFR # 318523005 Superseded: see description
55. #WIRING DECAL MFR # 3100997
56. #COMPLETE PARTS PACKAGE 600- MFR # 318542006
57. #APPLIANCE COMPONENTS RV; Shell Airbox Shell White MFR # 3101390049

Non-ducted A-c Replacement

Components

12 items

1. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
2. #AIRBOX,COMPLT USE 3106615010 PW REQUIRES CCC OR WALL T-STAT MFR # 3107561015 Superseded: see description
3. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
4. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
5. #AIRBOX,COMPLETE SHELL WHIT MFR # 3107561007
6. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
7. #BOARD KIT CCC MFR # 3311557000
8. #Wall Thermostat; 5 Button; White MFR # 3109228001
9. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
10. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
11. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
12. #AIRBOX,COMPLETE SHELL WHITE HEAT/COOL MFR # 3105457000

Shroud & Main Components

Components

75 items

1. #APPLIANCE COMPONENTS RV; Decal Shroud Rh MFR # 3101396020
2. #DECAL SHROUD LH MFR # 3101396012
3. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
4. #SHROUD GREY MFR # 3100252042
5. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
6. #SHROUD,OUTER USE 3107746004 SHELL WHITE MFR # 3102661 Superseded: see description
7. #SHROUD,OUTER USE 3102661 SHELL WHITE MFR # 3100252026 Superseded: see description
8. #SHROUD,WHITE 9" POLAR WHITE MFR # 3100252034
9. #SHROUD SHELL WHITE <S MFR # 3308046006
10. #APPLIANCE COMPONENTS RV; Shroud Inner Rva 60 All MFR # 3101886004
11. #APPLIANCE COMPONENTS RV; Cover Evaporator Rva MFR # 3100268006
12. #APPLIANCE COMPONENTS RV; Compressor W/Overload6100 MFR # 3102446006
13. #APPLIANCE COMPONENTS RV; Switch Overload MFR # 3100250178
14. #DISCHARGE LINE MFR # 3102445008
15. #DAMPENER,A/C NOISE MFR # 3102315003
16. #DISCHARGE LINE MFR # 3102444001
17. #SUCTION LINE MFR # 3102447004
18. #GROMMET 3REQUIRED MFR # 3102324005
19. #PLATE, COMPRESSOR MOUNTING MFR # 3102448002
20. #Air Conditioner Compressor Mounting Hardware; For Duo-Therm Air Conditioner Penguin Model 620525421; Compressor Mounting Sleeve MFR # 3100239098
21. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
22. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
23. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
24. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
26. #SERVICE KIT F/MOTOR MFR # 3310725001
27. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3102449000 Superseded: see description
29. #BLOWER,SCROLL MFR # 3100260003
30. #BLOWER, SIDE/REAR MFR # 3100261001
31. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
32. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
33. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
34. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
35. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3101863003
36. #APPLIANCE COMPONENTS RV; Tube Cap .46 X 42 In MFR # 3100245203
37. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3100255011
38. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
39. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 3100272008
40. #PAN, BASE MFR # 3101885006
41. #APPLIANCE COMPONENTS RV; Pan Drain MFR # 3100267008
42. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
43. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
44. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
45. #GASKET, GREY, 14 X 14 MFR # 6759A3281
46. #ROOF A/C GASKET KIT MFR # 3310718006
47. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
48. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
49. #A/C SEAL, 14 X 14 WHITE MFR # A101414
50. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
51. #ANTI SHORT DEVICE MFR # 37760002
52. #CONDUIT,FLEX 579 MFR # 3100838006
53. #CLAMP MFR # 318723
54. #APPLIANCE COMPONENTS RV; Block Hd Insulation MFR # 3100266
55. #BULKHEAD, ELECTRIC BOX MFR # 3100253024
56. #STRAIN RELIEF MFR # 32994014
57. #BULKHEAD, EVAP. MFR # 3100254022
58. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
59. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
60. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
61. #PTCR KIT MFR # 3310731009
62. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
63. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
64. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Relay MFR # 3100876022
66. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
67. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
68. #PANEL, ELECTRIC MFR # 3100282023
69. #MODULE,CONTROL MFR # 318594
70. #APPLIANCE COMPONENTS RV; Insulation Housing Top MFR # 3100373004
71. #GASKET USE 3100286016 MFR # 316462 Superseded: see description
72. #APPLIANCE COMPONENTS RV; Quick Start Kit MFR # 3102903006
73. #INSUL, BLWR HSNG (FIBERGLASS NOT SHOWN) MFR # 3100287014
74. #QUICK START USE 3102903006 MFR # 3102903014 Superseded: see description
75. #DECAL, FIELD WIRING MFR # 3101894008

Opt. El. Ht Kt 3-101121-014

Components

11 items

1. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
2. #HEAT STRIP,NON-DUCTED MFR # 3101121030
3. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
8. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
9. #GUARD, HEAT MFR # 3101143
10. #ELECTRIC BOX MFR # 3101125007
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

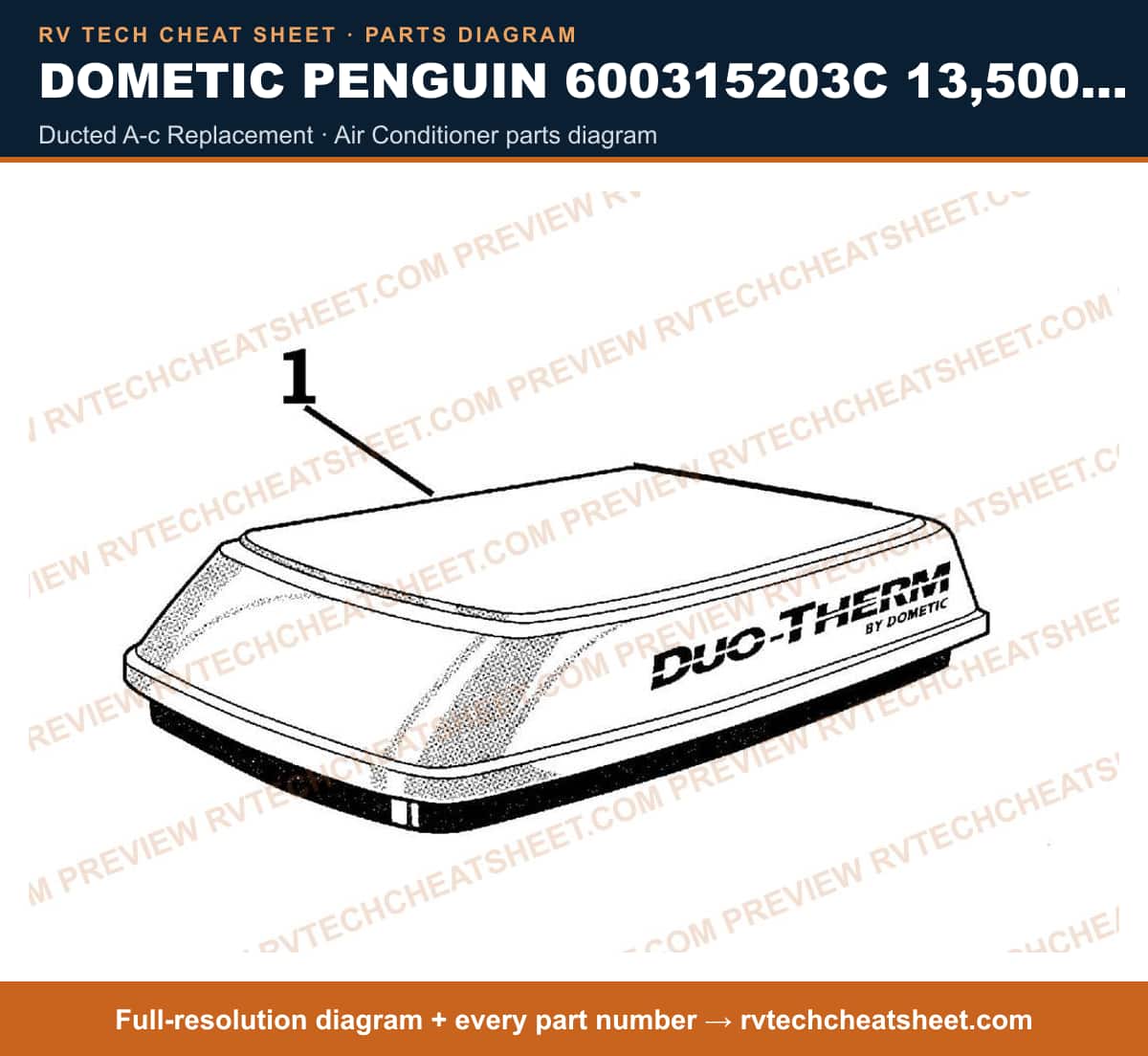

Ducted A-c Replacement

Components

12 items

1. #AIR CONDITIONER 11000 BTU COLONIAL WHITE PENGUIN MFR # 600312N
2. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
3. #Wall Thermostat; 5 Button; White MFR # 3109228001
4. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
5. #GRILLE,RETURN AIR GENESIS SHELL WHITE MFR # 3308120504
6. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
7. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
8. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512
9. #ELECTRONIC KIT,USE 3109226005 MFR # 3106481009 Superseded: see description
10. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
11. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
12. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
