Dometic Penguin 600315404 13,500 BTU Parts Diagram · Opt. El. Ht Kt 3-101121-014

Air Conditioner · 5 assemblies · 5 diagram sheets · 173 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 600315404 13,500 BTU rooftop air conditioner: 5 assemblies (Opt. El. Ht Kt 3-101121-014, Non-ducted A-c Replacement, Installation Parts, Ducted A-c Replacement, Shroud & Main Components) and 173 manufacturer part numbers. 52 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Opt. El. Ht Kt 3-101121-014

Components

11 items

1. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
2. #HEAT STRIP,NON-DUCTED MFR # 3101121030
3. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
8. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
9. #GUARD, HEAT MFR # 3101143
10. #ELECTRIC BOX MFR # 3101125007
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

Non-ducted A-c Replacement

Components

12 items

1. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
2. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
3. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
4. #AIRBOX,COMPLT USE 3106615010 PW REQUIRES CCC OR WALL T-STAT MFR # 3107561015 Superseded: see description
5. #BOARD KIT CCC MFR # 3311557000
6. #Wall Thermostat; 5 Button; White MFR # 3109228001
7. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
8. #AIRBOX,COMPLETE SHELL WHITE HEAT/COOL MFR # 3105457000
9. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
10. #AIRBOX,COMPLETE SHELL WHIT MFR # 3107561007
11. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
12. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019

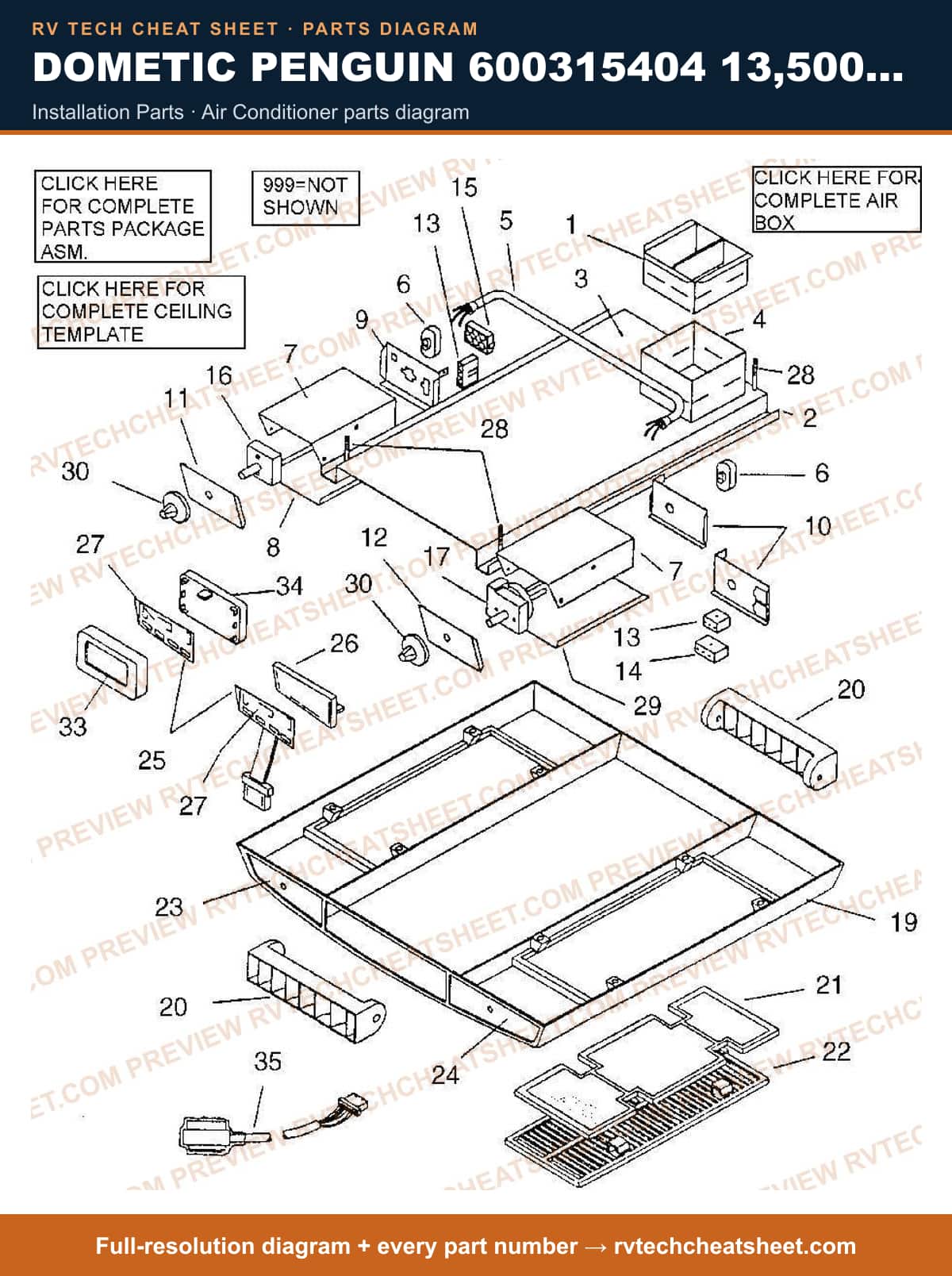

Installation Parts

Components

57 items

1. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
2. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
3. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
5. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
6. #INSULATION,CEILING TEMPLATE MFR # 3107133005
7. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
8. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
9. #CONDUIT MFR # 318522
10. #STRAIN RELIEF MFR # 32994001
11. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
12. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
13. #BOX, BACK LH MFR # 3100299001
14. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
15. #APPLIANCE COMPONENTS RV; Box Back Rh MFR # 3100279003
16. #BOX FRONT MFR # 3100276009
17. #BOX FRONT RH MFR # 3100277007
18. #BOX FRONT, RH MFR # 3100277015
19. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
20. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
21. #PLUG,FEMALE 9 POLE MFR # 314471003
22. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
24. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
25. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
26. #SWITCH,SELECTOR USE 20250 8 POS CAM MFR # 20250001 Superseded: see description
27. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
28. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
29. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
30. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
31. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
32. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
33. #DECAL, LEFT SIDE SWITCH MFR # 3100999006
34. #DECAL,AIRBOX MFR # 318526
35. #PAD,TOUCH USE 3100390008 MFR # 318595 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Conversion Kit Use 330771 MFR # 3102957002 Superseded: see description
37. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
38. #PAD,TOUCH CTRL USE 3102957002 MFR # 3100390008 Superseded: see description
39. #BOX,TOUCH PAD MTG RVA 6100 MFR # 318675
40. #TSTAT W/RIBBON CABLE MFR # 20251D
41. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
42. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
43. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
44. #COVER,JUNCTION USE 3100278013 BOX MFR # 3100278005 Superseded: see description
45. #KNOB, 3/4" BLACK MFR # 3106121001
46. #KNOB,BLACK USE 3106121001 RVA 60 MFR # 3100290 Superseded: see description
47. #5/16 INCH BUTTON HEAD SCREW - 18 X 1 1/2 INCH MFR # 318721
48. #BASE,T-STAT MFR # 318751
49. #WIRE CONNECTOR 15 FT. (MUST HAVE 11 PINS) MFR # 318811001
50. #CABLE FOR A/C 25' MFR # 318811002
51. #CABLE,30' MFR # 318811003
52. #APPLIANCE COMPONENTS RV; Shell Airbox Shell White MFR # 3101390049
53. #COMPLETE PARTS PACKAGE 600- MFR # 318542006
54. #WIRING DECAL 610- MFR # 3100998008
55. #CEILING ASM USE 3101390049 MFR # 318523005 Superseded: see description
56. #WIRING DECAL MFR # 3100997
57. #COMPLETE CEILING TEMPLATE ASM. MFR # 3101520009

Ducted A-c Replacement

Components

12 items

1. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
2. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
3. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
4. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
5. #BOARD KIT CCC MFR # 3311557000
6. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
7. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
8. #Wall Thermostat; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case; WIth Control Box MFR # 3313189000
9. #Air Conditioner Retrofit Kit; 4 To 5 Button Comfort Control Center Conversion Kit; Polar White; With Power Module Board/ Thermostat/ Freeze Sensor MFR # 3310009000
10. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
11. #ELECTRONIC KIT CCC MFR # 3109226005
12. #Wall Thermostat; Single Zone; For Cool/ Furnace Control; Programmable; LCD Readout; 12 Volt DC; With High/ Low/ Auto Fan Speed Control; White Case MFR # 3313192000

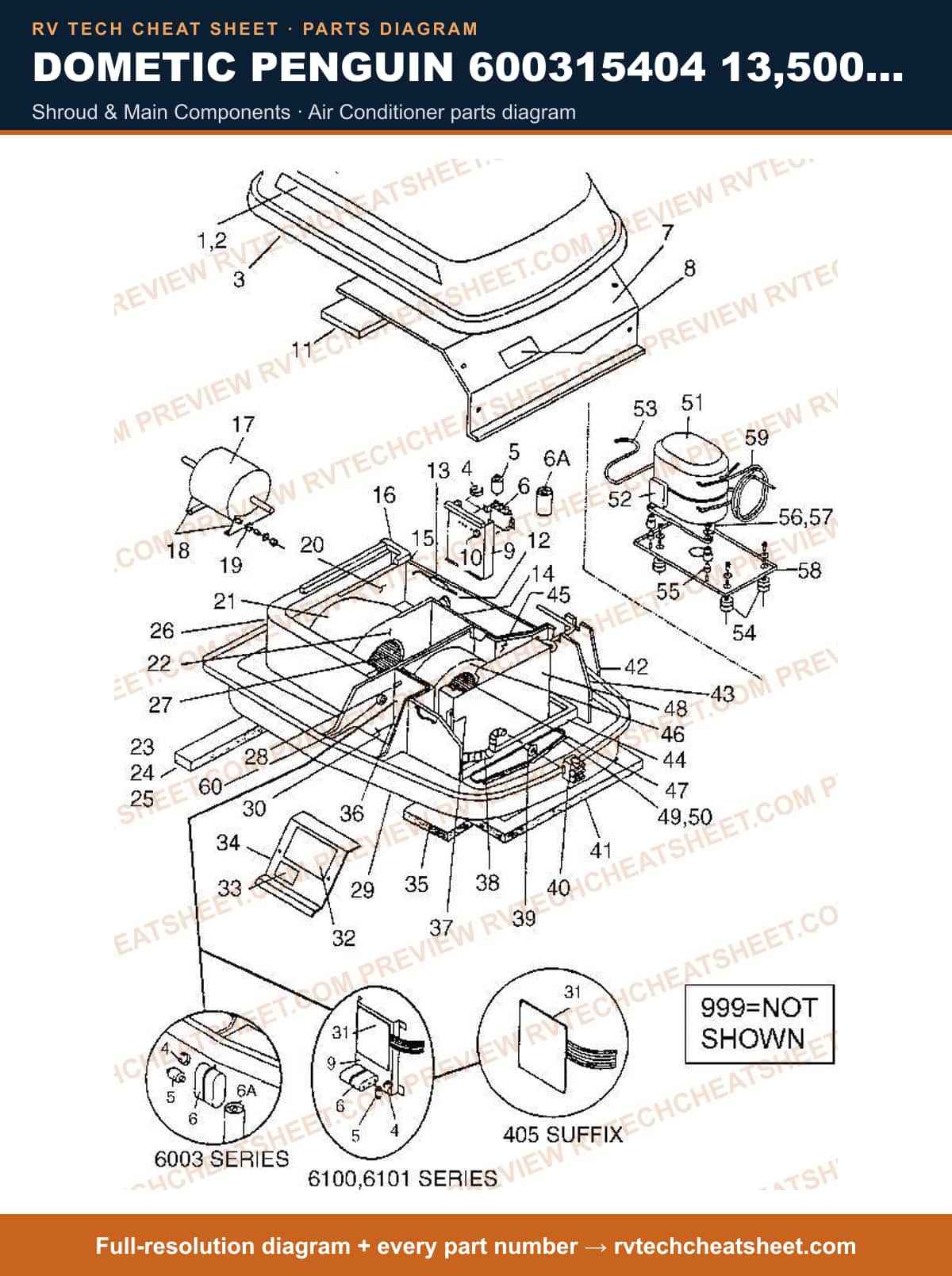

Shroud & Main Components

Components

86 items

1. #SHROUD SHELL WHITE <S MFR # 3308046006
2. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
5. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
6. #PTCR KIT MFR # 3310731009
7. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
8. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
9. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
10. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
11. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
12. #COVER,EVAPORATOR MFR # 3102514803
13. #DECAL MFR # 316655
14. #PANEL, ELECTRIC MFR # 3100282023
15. #TUBE,CAPILLARY .600 X 610 MFR # 3100245400
16. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3101863003
17. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3102511007
18. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
19. #TAPE FOR SEAL USE 3102669052 69 INCHES MFR # 3102669045 Superseded: see description
20. #TAPE,FOAM USE 3102669045 SOLD BY THE INCH MFR # 3102669003 Superseded: see description
21. #TAPE, FOAM SOLD IN 63&quot; PIECE MFR # 3102669052
22. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
23. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
24. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
25. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
26. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
27. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
28. #SERVICE KIT F/MOTOR MFR # 3310725001
29. #BLOWER, SIDE/REAR MFR # 3100261001
30. #BLOWER,SCROLL MFR # 3100260003
31. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
32. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
33. #GASKET USE 3100286016 MFR # 316462 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
35. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3102449000 Superseded: see description
36. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
37. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
39. #PAN,BASE USE 3103179002 MFR # 3101885030 Superseded: see description
40. #BULKHEAD, EVAPORATOR MFR # 3100254030
41. #DECAL, WIRING MFR # 3101894016
42. #APPLIANCE COMPONENTS RV; Decal Field Wiring MFR # 3102899006
43. #DECAL FOR AIR BOX CONTROL 39015.601/.602 MFR # 3100384001
44. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
45. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
46. #APPLIANCE COMPONENTS RV; Bulkhead Electrical Box MFR # 3102532029
47. #CLAMP MFR # 318723
48. #CONDUIT,FLEX 579 MFR # 3100838006
49. #ANTI SHORT DEVICE MFR # 37760002
50. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
51. #GASKET, GREY, 14 X 14 MFR # 6759A3281
52. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
53. #ROOF A/C GASKET KIT MFR # 3310718006
54. #A/C SEAL, 14 X 14 WHITE MFR # A101414
55. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
56. #PAN,DRAIN FOAM MFR # 3102513003
57. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3102512005
58. #3102962001 MFR # 3102962001
59. #PLATE EVAP CLOSE- MFR # 3102512013
60. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
61. #GASKET,INSULATION EVAP MFR # 3102527011
62. #PAN,DRAIN MFR # 3102967001
63. #INSULATION,EVAP.USE 3102516022 MFR # 3102516006 Superseded: see description
64. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
66. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
67. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
68. #COIL,EVAP.USE 3104573005 620015.308 MFR # 3102533001 Superseded: see description
69. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 3104573005
70. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
71. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
72. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
73. #COMPRESSOR MFR # 3106430006
74. #COMPRESSOR USE 3106430006 MFR # 3102863002 Superseded: see description
75. #COMPRESSOR *N* MFR # 31064630006
76. #SWITCH,OVERLOAD MFR # 3100250244
77. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102564014
78. #GROMMET 3REQUIRED MFR # 3102324005
79. #Air Conditioner Compressor Mounting Hardware; For Duo-Therm Air Conditioner Penguin Model 620525421; Compressor Mounting Sleeve MFR # 3100239098
80. #PLATE, COMPRESSOR, MTG. MFR # 3102593005
81. #SPRING MFR # 3102594003
82. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590019
83. #APPLIANCE COMPONENTS RV; Tube Copper MFR # 3102563016
84. #STRAIN RELIEF MFR # 32994014
85. #APPLIANCE COMPONENTS RV; Quick Start Kit MFR # 3102903006
86. #QUICK START USE 3102903006 MFR # 3102903014 Superseded: see description
