Dometic Penguin 600315404B 13,500 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 4 assemblies · 4 diagram sheets · 107 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 600315404B 13,500 BTU rooftop air conditioner: 4 assemblies (Shroud & Main Components, Non-ducted A-c Replacement, Opt. El. Ht Kt 3-101121-014, Ducted A-c Replacement) and 107 manufacturer part numbers. 29 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

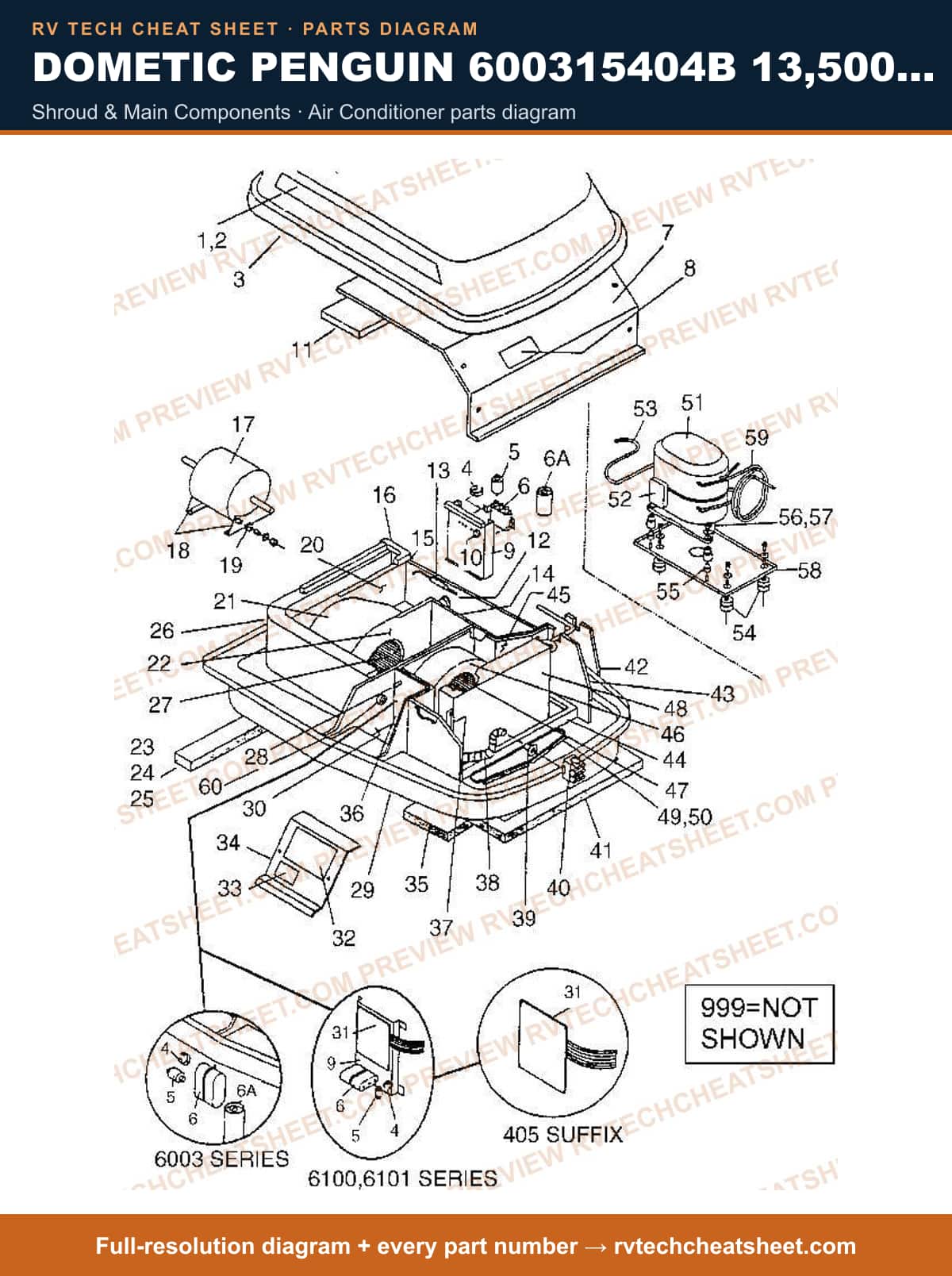

Shroud & Main Components

Components

84 items

1. #SHROUD SHELL WHITE <S MFR # 3308046006
2. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
5. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
6. #PTCR KIT MFR # 3310731009
7. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
8. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
9. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
10. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
11. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
12. #COVER,EVAPORATOR MFR # 3102514803
13. #DECAL MFR # 316655
14. #PANEL, ELECTRIC MFR # 3100282023
15. #TUBE,CAPILLARY .600 X 610 MFR # 3100245400
16. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3101863003
17. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3102511007
18. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
19. #TAPE,FOAM USE 3102669045 SOLD BY THE INCH MFR # 3102669003 Superseded: see description
20. #TAPE, FOAM SOLD IN 63&quot; PIECE MFR # 3102669052
21. #TAPE FOR SEAL USE 3102669052 69 INCHES MFR # 3102669045 Superseded: see description
22. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
23. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
24. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
25. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
27. #SERVICE KIT F/MOTOR MFR # 3310725001
28. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
29. #BLOWER, SIDE/REAR MFR # 3100261001
30. #BLOWER,SCROLL MFR # 3100260003
31. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
32. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
33. #GASKET USE 3100286016 MFR # 316462 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
35. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3102449000 Superseded: see description
36. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
37. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
38. #PAN,BASE USE 3103179002 MFR # 3101885030 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
40. #BULKHEAD, EVAPORATOR MFR # 3100254030
41. #DECAL, WIRING MFR # 3101894016
42. #APPLIANCE COMPONENTS RV; Decal Field Wiring MFR # 3102899006
43. #DECAL FOR AIR BOX CONTROL 39015.601/.602 MFR # 3100384001
44. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
45. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
46. #APPLIANCE COMPONENTS RV; Bulkhead Electrical Box MFR # 3102532029
47. #CLAMP MFR # 318723
48. #CONDUIT,FLEX 579 MFR # 3100838006
49. #ANTI SHORT DEVICE MFR # 37760002
50. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
51. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
52. #GASKET, GREY, 14 X 14 MFR # 6759A3281
53. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
54. #A/C SEAL, 14 X 14 WHITE MFR # A101414
55. #ROOF A/C GASKET KIT MFR # 3310718006
56. #3102962001 MFR # 3102962001
57. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3102512005
58. #PLATE EVAP CLOSE- MFR # 3102512013
59. #PAN,DRAIN FOAM MFR # 3102513003
60. #GASKET,INSULATION EVAP MFR # 3102527011
61. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
62. #PAN,DRAIN MFR # 3102967001
63. #INSULATION,EVAP.USE 3102516022 MFR # 3102516006 Superseded: see description
64. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
66. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
67. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
68. #COIL,EVAP.USE 3104573005 620015.308 MFR # 3102533001 Superseded: see description
69. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 3104573005
70. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
71. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
72. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
73. #COMPRESSOR *N* MFR # 31064630006
74. #COMPRESSOR USE 3106430006 MFR # 3102863002 Superseded: see description
75. #COMPRESSOR MFR # 3106430006
76. #SWITCH,OVERLOAD MFR # 3100250244
77. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102564014
78. #GROMMET 3REQUIRED MFR # 3102324005
79. #Air Conditioner Compressor Mounting Hardware; For Duo-Therm Air Conditioner Penguin Model 620525421; Compressor Mounting Sleeve MFR # 3100239098
80. #PLATE, COMPRESSOR, MTG. MFR # 3102593005
81. #SPRING MFR # 3102594003
82. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590019
83. #APPLIANCE COMPONENTS RV; Tube Copper MFR # 3102563016
84. #STRAIN RELIEF MFR # 32994014

Non-ducted A-c Replacement

Components

12 items

1. #AIRBOX,COMPLETE SHELL WHIT MFR # 3107561007
2. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
3. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
4. #Wall Thermostat; 5 Button; White MFR # 3109228001
5. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
6. #BOARD KIT CCC MFR # 3311557000
7. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
8. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
9. #AIRBOX,COMPLT USE 3106615010 PW REQUIRES CCC OR WALL T-STAT MFR # 3107561015 Superseded: see description
10. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
11. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
12. #AIRBOX,COMPLETE SHELL WHITE HEAT/COOL MFR # 3105457000

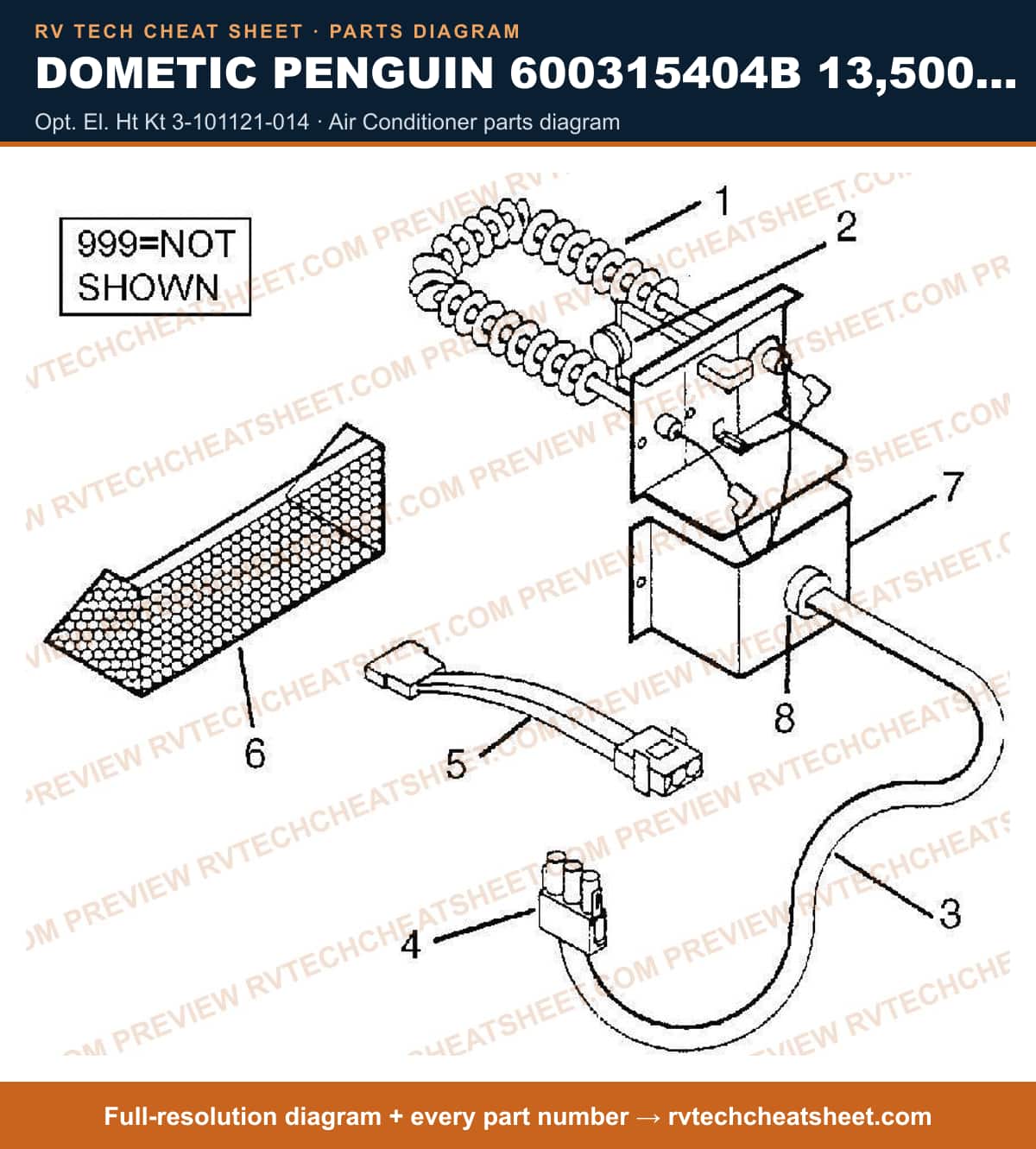

Opt. El. Ht Kt 3-101121-014

Components

11 items

1. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
8. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
9. #GUARD, HEAT MFR # 3101143
10. #ELECTRIC BOX MFR # 3101125007
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

Ducted A-c Replacement

Components

12 items

1. #AIRBOX,COMPLETE SHELL WHITE HEAT/COOL MFR # 3105457000
2. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
3. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
4. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
5. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
6. #AIRBOX,COMPLETE SHELL WHIT MFR # 3107561007
7. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
8. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
9. #AIRBOX,COMPLT USE 3106615010 PW REQUIRES CCC OR WALL T-STAT MFR # 3107561015 Superseded: see description
10. #BOARD KIT CCC MFR # 3311557000
11. #Wall Thermostat; 5 Button; White MFR # 3109228001
12. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
