Dometic Penguin 600315421 13,500 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 3 assemblies · 3 diagram sheets · 120 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 600315421 13,500 BTU rooftop air conditioner: 3 assemblies (Shroud & Main Components, Non-ducted A-c Replacement, Ducted A-c Replacement) and 120 manufacturer part numbers. 41 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

101 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #SHROUD SHELL WHITE <S MFR # 3308046006
3. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
4. #SHROUD ASM USE 3308046014 POLAR WHITE MFR # 3107746012 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
6. #SHROUD POLAR WHITE <S MFR # 3308046014
7. #Air Conditioner Shroud; Replacement Shroud For Dometic Air Conditioners; Penguin Style; Grey MFR # 3308046022
8. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
9. #SHROUD,GRAY USE 3107746020 610015-405D MFR # 3102515032 Superseded: see description
10. #SHROUD USE 3107746012 POLAR WHITE MFR # 3102515024 Superseded: see description
11. #SHROUD ASM USE 3308046022 GRAY MFR # 3107746020 Superseded: see description
12. #COVER,EVAPORATOR MFR # 3102514803
13. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102985003
14. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102984006
15. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3102321001
16. #APPLIANCE COMPONENTS RV; Gasket Terminal MFR # 3102320003
17. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
18. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
19. #NUT,FLANGE MFR # 306342005
20. #LINE,SUCTION MFR # 3102986001
21. #GROMMET 3REQUIRED MFR # 3102324005
22. #APPLIANCE COMPONENTS RV; Washer Flat Steel .188X.6 MFR # 309513015
23. #Air Conditioner Compressor Mounting Hardware; Replacement For Duo-Therm 57915731/ 39335641/ 630515326C1 Air Conditioners; With Compressor Grommets/ Metal Sleeves/ Nuts MFR # 3311596000
24. #GROMMET, COMP.USE 3311596000 STAG# 49-9126 MFR # 3100238181 Superseded: see description
25. #SLEEVE,COMPRESSOR MFR # 3100239072
26. #SLEEVE,CMPRSR USE 3100239072 MFR # 3100239114 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590035
28. #BULKHEAD,COMPRESSOR MFR # 3102511049
29. #BULKHEAD,COMP. USE 3102511049 MFR # 3102511031 Superseded: see description
30. #ADAPTER KIT,COMPRESSOR MFR # 3104306
31. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245418
32. #BUSHING, SNAP-IN MFR # 301028037
33. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
34. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
35. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
37. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
39. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
40. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102512021
41. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
42. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
44. #COIL,EVAPORATOR MFR # 3102677006
45. #BRACKET, FRONT USE 3105495018 MOUNTING MFR # 3105495000 Superseded: see description
46. #APPLIANCE COMPONENTS RV; Bracket Weld Front Mounti MFR # 3105495018
47. #DECAL,FIELD WIRING MFR # 3105052009
48. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
49. #GASKET, GREY, 14 X 14 MFR # 6759A3281
50. #ROOF A/C GASKET KIT MFR # 3310718006
51. #A/C SEAL, 14 X 14 WHITE MFR # A101414
52. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
53. #PAN,BASE MFR # 3103179010
54. #NUT, FLANGE ***USE 498471*** MFR # 306342003 Superseded: see description
55. #SERVICE KIT F/MOTOR MFR # 3310725001
56. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994011
57. #APPLIANCE COMPONENTS RV; Sleeve MFR # 318087009
58. #BLOCKS, FOAM MFR # 3100587009
59. #APPLIANCE COMPONENTS RV; Bulkhead Electrical Box MFR # 3102532029
60. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994017
61. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248073
62. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
63. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
64. #PTCR KIT MFR # 3310731009
65. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
66. #NUT,FLANGE 5/16&quot;-18 X 1.75 MFR # 306342002
67. #TAPE, FOAM USE 3102669052 SOLD IN 63&quot; PIECE MFR # 3102669029 Superseded: see description
68. #TAPE USE 3102669029 MFR # 3102669011 Superseded: see description
69. #TAPE, FOAM SOLD IN 63&quot; PIECE MFR # 3102669052
70. #SPACER,MOTOR USE 308046002 MFR # 308046000 Superseded: see description
71. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
72. #PLUG,CONNECTION MFR # 314470001
73. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
74. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
75. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
76. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
77. #BULKHEAD,EVAP. USE 3100254055 MFR # 3100254048 Superseded: see description
78. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3100254055
79. #BLOWER,SCROLL MFR # 3100260003
80. #BLOWER, SIDE/REAR MFR # 3100261001
81. #TAPE,FOAM USE 3102669045 SOLD BY THE INCH MFR # 3102669003 Superseded: see description
82. #TAPE FOR SEAL USE 3102669052 69 INCHES MFR # 3102669045 Superseded: see description
83. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
84. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
85. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
86. #MOTOR USE 3108702372 MFR # 3105417004 Superseded: see description
87. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
88. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3101467003
89. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
90. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
91. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
92. #BOX ASM. COMP (ELEC. WALL T-STAT WITH ELEC. & MFR # 3105459006
93. #BOX,ELECTRICAL BIMETAL WALL MFR # 3104999002
94. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
95. #STRAP, F/CAPACITOR MFR # 317188000
96. #Wall Thermostat; 5 Button; White MFR # 3109228001
97. #APPLIANCE COMPONENTS RV; Relay Kit Bimetal T-Stat MFR # 3104998004
98. #RELAY KIT,BIMETAL THERMOSTAT MFR # 3104998020
99. #Air Conditioner Wiring Harness; For Use With Duo Therm 600315321/ 600312321/ 600312421 Air Conditioners MFR # 3106986007 Superseded: see description
100. #HARNESS KIT (50) USE 46-4803 WIRE AGS MFR # F9127 Superseded: see description
101. #Air Conditioner Control Box Assembly; Replacement For Dometic 579/ 590/ 595/ 600 Series Roof Top Air Conditioners MFR # Air Conditioner Control Box Assembly; Replacement For Dometic 579/ 590/ 595/ 600 Series Roof Top Air Conditioners

Non-ducted A-c Replacement

Components

12 items

1. #AIRBOX,COMPLETE SHELL WHITE HEAT/COOL MFR # 3105457000
2. #Wall Thermostat; 5 Button; White MFR # 3109228001
3. #BOARD,A/C POWER USE 3311557000 OR 49-8697 MFR # 3109229009 Superseded: see description
4. #CONTROL KIT,ANALOG USE 46-4225 (10) HEAT/COOL MFR # F7431 Superseded: see description
5. #AIRBOX,COMPLT USE 3106615010 PW REQUIRES CCC OR WALL T-STAT MFR # 3107561015 Superseded: see description
6. #T-STAT,H/C USE 46-4105 MFR # F7251 Superseded: see description
7. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
8. #BOARD KIT CCC MFR # 3311557000
9. #Air Conditioner Retrofit Kit; Conversion Of 4-Button To 5-Button Comfort Control Center Conversion Kit MFR # 3310017003
10. #Wall Thermostat; Heat/ Cool Modes; Analog Type MFR # 3106995032
11. #APPLIANCE COMPONENTS RV;;Control Kit Lcd Cool/Fu MFR # 3313189049
12. #AIRBOX,COMPLETE SHELL WHIT MFR # 3107561007

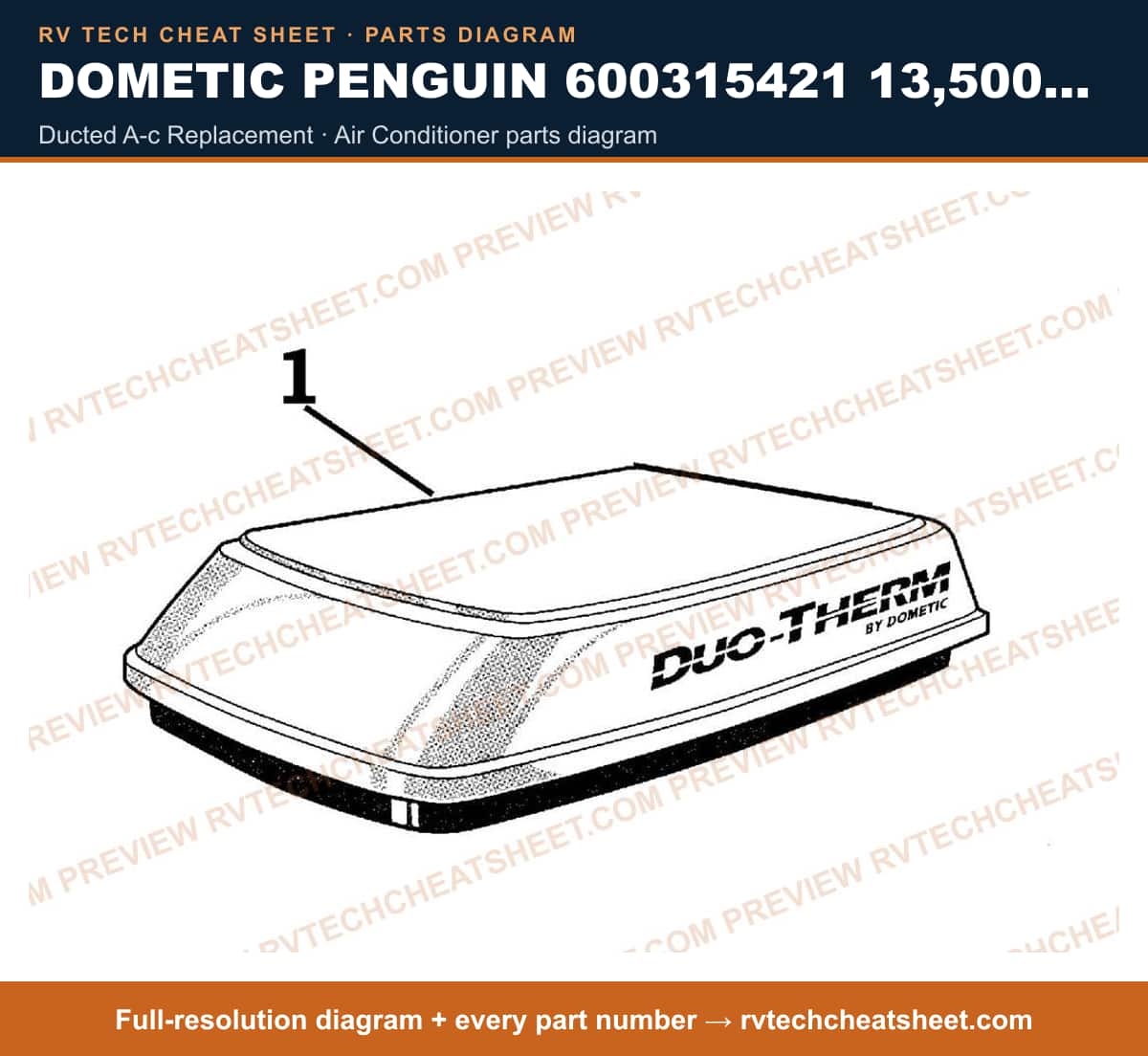

Ducted A-c Replacement

Components

12 items

1. #GRILLE USE 3105935047 QUICK-COOL POLAR WHITE MFR # 3105935013 Superseded: see description
2. #A/C COMPONENTS RV; RETURN AIR ASM SW +GRILL/LOGO,W/LOG MFR # 3105935039
3. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
4. #APPLIANCE COMPONENTS RV; CENTER,COMFORT CONTROL BL MFR # 3109228019
5. #AIR CONDITIONER USE 600315CN POLAR WHITE PENGUIN MFR # 600315321CN Superseded: see description
6. #Wall Thermostat; Single Zone; Cool/ Furnace/ Heat Strip; Programmable; LCD Display; 12 Volt DC; With Low/ High/ Auto Fan Speed Control; With Auto/ On Mode Fan Control; Polar White; With Control Board MFR # 3316232000
7. #GRILLE,RETURN AIR GENESIS POLAR WHITE MFR # 3308120512
8. #CONTROL KIT,(10)USE 46-4226 ANALOG HEAT/COOL/HS MFR # F7239 Superseded: see description
9. #CONTROL KIT,ANALOG HT/COOL/HS ***USE 50-0775*** MFR # 3107541017 Superseded: see description
10. #Wall Thermostat; 5 Button; White MFR # 3109228001
11. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
12. #APPLIANCE COMPONENTS RV; HARNESS KIT,WIRE AGS MFR # 3109311005
