Dometic Penguin 610012103 12,000 BTU Parts Diagram · Opt. Elecr.heat Kit 3-18706

Air Conditioner · 4 assemblies · 4 diagram sheets · 151 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 610012103 12,000 BTU rooftop air conditioner: 4 assemblies (Opt. Elecr.heat Kit 3-18706, Conversion Kit No. 3102956004, Shroud & Main Components, Installation Parts) and 151 manufacturer part numbers. 46 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

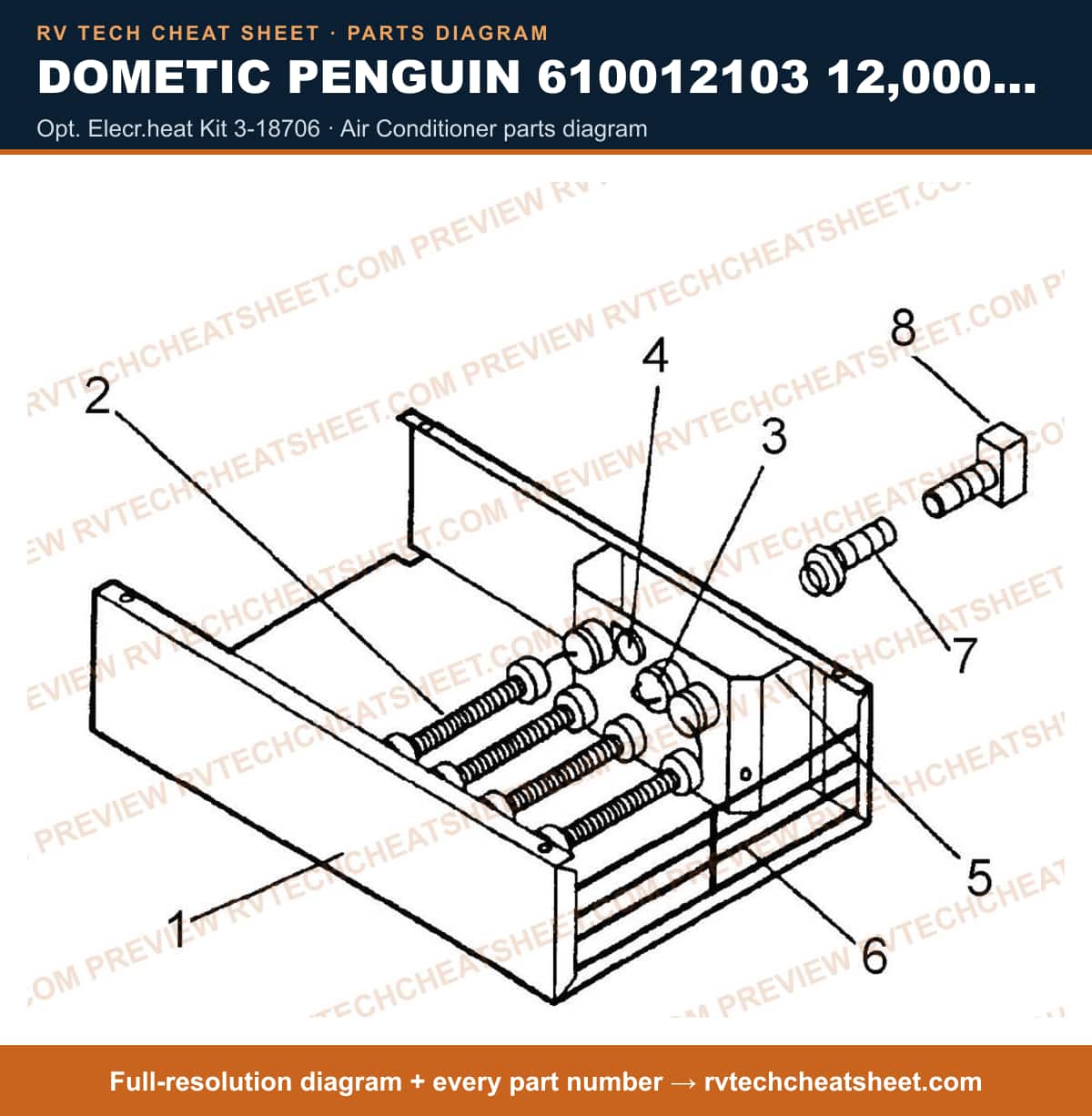

Opt. Elecr.heat Kit 3-18706

Components

11 items

1. #HEAT SHIELD MFR # 318344
2. #ELEMENT,HEATING USE 3101121030 MFR # 318467 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #LINK,FUSE USE 3100244007 MFR # 315068 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
6. #SWITCH,LIMIT USE 3100241011 MFR # 313629001 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
8. #MOUNTING BRACKET (2 REQUIRED) MFR # 318343
9. #GRILL MFR # 318371
10. #CONDUIT MFR # 318548001
11. #PLUG,MALE 3 POLE RVA 60 MFR # 314470

Conversion Kit No. 3102956004

Components

12 items

1. #WIRE, GREEN MFR # 306761169
2. #APPLIANCE COMPONENTS RV; Conversion Kit Use 330771 MFR # 3102956004 Superseded: see description
3. #SHELL, AIRBOX USE 3101390064 SHELL WHITE MFR # 3101390031 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Post For Pc Board 589 MFR # 3101322000
5. #BOARD, CIRCUIT USE 3307713010 MFR # 3104233006 Superseded: see description
6. #SCREW 4-24 X .38 HCR MFR # 310296016
7. #BOARD,MODULE USE 3104233006 MFR # 3101626004 Superseded: see description
8. #DECAL,LEFT SIDE 6003 61 MFR # 3102334004
9. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
10. #HOLDER,CONTROL PANEL 6001 5-305 MFR # 3102331000
11. #BOARD,PC MAIN USE 3104233006 MFR # 3104232008 Superseded: see description
12. #INSTALLATION & OPERATING INSTRUCTIONS MFR # 3102865007

Shroud & Main Components

Components

77 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Decal Shroud Rh MFR # 3101396020
3. #DECAL USE 3102888009 DECAL LH SHROUD 5/89 RVA MFR # 318503001 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
5. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
6. #SHROUD USE 3102515008 MFR # 3100252000 Superseded: see description
7. #SHROUD SHELL WHITE <S MFR # 3308046006
8. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
9. #SHROUD,INNER USE 3101886004 MFR # 3100251010 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Shroud Inner Rva 60 All MFR # 3101886004
11. #APPLIANCE COMPONENTS RV; Cover Evaporator Rva MFR # 3100268006
12. #APPLIANCE COMPONENTS RV; Insulation Housing Top MFR # 3100373004
13. #INSUL, BLWR HSNG (FIBERGLASS NOT SHOWN) MFR # 3100287014
14. #COMPRESSOR - NLA FITS 600/601 DUOTHERM AC MFR # 1318670
15. #COMPRESSOR ROTORX MFR # 318670001
16. #PROTECTOR,OVERLOAD MFR # 3100250020
17. #PROTECTOR USE 3100250020 OVERLOAD MFR # 317001002 Superseded: see description
18. #GROMMET MFR # 3100238132
19. #SLEEVE,COMP.USE 3100239122 MOUNTING MFR # 3100239056 Superseded: see description
20. #PLATE USE 3100296007 COMPRESSOR MOUNTING MFR # 318577 Superseded: see description
21. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
22. #PLATE,COMPRESSOR MOUNTING MFR # 3100296007
23. #SERVICE KIT F/MOTOR MFR # 3310725001
24. #RETAINER STRAP MFR # 310295009
25. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
26. #TUBE, CAP .049X44 IN 599,599,560 MFR # 3100245020
27. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
28. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
29. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3100255011
30. #COIL, EVAPORATOR RVA60/61 11M MFR # 318667
31. #APPLIANCE COMPONENTS RV; Block Hd Insulation MFR # 3100266
32. #N/A HOUSING,BLOWER MFR # 318321
33. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
34. #PAN,BASE MFR # 318299002
35. #APPLIANCE COMPONENTS RV; Pan Drain MFR # 3100267008
36. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
37. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
39. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
40. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
41. #CONDUIT,FLEX 579 MFR # 3100838006
42. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
43. #BULKHEAD,ELECTRICAL BOX MFR # 3100253008
44. #BULKHEAD, EVAPORATOR MFR # 3100254006
45. #STRAIN RELIEF MFR # 32994014
46. #APPLIANCE COMPONENTS RV; Panel Electric MFR # 3100282015
47. #APPLIANCE COMPONENTS RV; Relay Start MFR # 3100235245
48. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
49. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
50. #CAPACITOR, START MFR # 47C
51. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
52. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
53. #APPLIANCE COMPONENTS RV; Board Module MFR # 3101597007
54. #MODULE,CONTROL MFR # 318594
55. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
56. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
57. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
58. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
59. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
60. #BLOWER, SIDE/REAR MFR # 3100261001
61. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
62. #BLOWER,SCROLL MFR # 3100260003
63. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
64. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3101467003
66. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
67. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3101468001
68. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3101469009
69. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
70. #A/C SEAL, 14 X 14 WHITE MFR # A101414
71. #ROOF A/C GASKET KIT MFR # 3310718006
72. #GASKET, GREY, 14 X 14 MFR # 6759A3281
73. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
74. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
75. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
76. #GASKET,ROOF USE 3100286032 MFR # 3100286024 Superseded: see description
77. #DECAL SHROUD LH MFR # 3101396012

Installation Parts

Components

52 items

1. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
2. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
4. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
5. #INSULATION,CEILING TEMPLATE MFR # 3107133005
6. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
7. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
8. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
9. #CONDUIT MFR # 318522
10. #STRAIN RELIEF MFR # 32994001
11. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
12. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
13. #BOX, BACK LH MFR # 3100299001
14. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
15. #APPLIANCE COMPONENTS RV; Box Back Rh MFR # 3100279003
16. #BOX FRONT MFR # 3100276009
17. #BOX FRONT RH MFR # 3100277007
18. #BOX FRONT, RH MFR # 3100277015
19. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
20. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
21. #PLUG,FEMALE 9 POLE MFR # 314471003
22. #T-STAT USE 3313107000 MFR # 3100781008 Superseded: see description
23. #Air Conditioner Ceiling Assembly Thermostat; Replacement For Dometic Duo-Therm Manual Air Conditioner Ceiling Assembly MFR # 3313107000
24. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
25. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
26. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
28. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
29. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
30. #DECAL, LEFT SIDE SWITCH MFR # 3100999006
31. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
32. #DECAL,AIRBOX MFR # 318526
33. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
34. #PAD,TOUCH USE 3100390008 MFR # 318595 Superseded: see description
35. #TSTAT W/RIBBON CABLE MFR # 20251D
36. #APPLIANCE COMPONENTS RV; Conversion Kit Use 330771 MFR # 3102957002 Superseded: see description
37. #BOX,TOUCH PAD MTG RVA 6100 MFR # 318675
38. #PAD,TOUCH CTRL USE 3102957002 MFR # 3100390008 Superseded: see description
39. #BOLT,MOUNTING USE 3106756012 6.25&quot; LONG MFR # 3100375025 Superseded: see description
40. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
41. #KNOB,BLACK USE 3106121001 RVA 60 MFR # 3100290 Superseded: see description
42. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
43. #KNOB, 3/4&quot; BLACK MFR # 3106121001
44. #5/16 INCH BUTTON HEAD SCREW - 18 X 1 1/2 INCH MFR # 318721
45. #BASE,T-STAT MFR # 318751
46. #WIRE CONNECTOR 15 FT. (MUST HAVE 11 PINS) MFR # 318811001
47. #CABLE FOR A/C 25&#x27; MFR # 318811002
48. #COMPLETE CEILING TEMPLATE ASM. MFR # 3101520009
49. #CABLE,30&#x27; MFR # 318811003
50. #WIRING DECAL MFR # 3100997018
51. #COMPLETE PARTS PACKAGE 600- MFR # 318542006
52. #CEILING ASM USE 3101390049 MFR # 318523005 Superseded: see description
