Dometic Penguin 610012404 12,000 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 5 assemblies · 5 diagram sheets · 163 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 610012404 12,000 BTU rooftop air conditioner: 5 assemblies (Shroud & Main Components, Conversion Kit No. 3102956004, Inst.pts W-elec Mech Ctl A.b, Installation Parts, Opt. El. Ht Kt 3-101121-014) and 163 manufacturer part numbers. 48 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

87 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
4. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
5. #SHROUD SHELL WHITE <S MFR # 3308046006
6. #PTCR KIT MFR # 3310731009
7. #RELAY, START USE 3310731009 PTCR MFR # 310087600 Superseded: see description
8. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
9. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
10. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
11. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
12. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
13. #COVER,EVAPORATOR MFR # 3102514803
14. #DECAL MFR # 316655
15. #PANEL, ELECTRIC MFR # 3100282023
16. #TUBE,CAPILLARY .600 X 610 MFR # 3100245400
17. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3101863003
18. #TAPE, FOAM SOLD IN 63&quot; PIECE MFR # 3102669052
19. #TAPE,FOAM USE 3102669045 SOLD BY THE INCH MFR # 3102669003 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
21. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3102511007
22. #TAPE FOR SEAL USE 3102669052 69 INCHES MFR # 3102669045 Superseded: see description
23. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
24. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
25. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
26. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
28. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
29. #SERVICE KIT F/MOTOR MFR # 3310725001
30. #BLOWER,SCROLL MFR # 3100260003
31. #BLOWER, SIDE/REAR MFR # 3100261001
32. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
33. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
34. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3102449000 Superseded: see description
35. #GASKET, 16&quot; X 1.5&quot; MFR # 316462000
36. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
37. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
38. #PAN,BASE USE 3103179002 MFR # 3101885030 Superseded: see description
39. #BULKHEAD, EVAPORATOR MFR # 3100254030
40. #NO PART # GIVEN BY VENDOR MFR # NPG
41. #BULKHEAD, ELECTRIC BOX MFR # 3102532003
42. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
43. #APPLIANCE COMPONENTS RV; Decal Field Wiring MFR # 3102899006
44. #DECAL, WIRING MFR # 3101894016
45. #DECAL, WIRING MFR # 3102900002
46. #WIRING DECAL MFR # 3101968
47. #DECAL, WIRING MFR # 3102719006
48. #DECAL FOR AIR BOX CONTROL 39015.601/.602 MFR # 3100384001
49. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
50. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
51. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
52. #APPLIANCE COMPONENTS RV; Bulkhead Electrical Box MFR # 3102532029
53. #PLUG 4 POLE MFR # 314470005
54. #CLAMP MFR # 318723
55. #ANTI SHORT DEVICE MFR # 37760002
56. #ROOF A/C GASKET KIT MFR # 3310718006
57. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
58. #A/C SEAL, 14 X 14 WHITE MFR # A101414
59. #GASKET, GREY, 14 X 14 MFR # 6759A3281
60. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
61. #GASKET,INSULATION EVAP MFR # 3102527011
62. #PAN,DRAIN FOAM MFR # 3102513003
63. #PLATE EVAP CLOSE- MFR # 3102512013
64. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3102512005
65. #PAN,DRAIN MFR # 3102967001
66. #INSULATION,EVAP.USE 3102516022 MFR # 3102516006 Superseded: see description
67. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
68. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
69. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
70. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
71. #COIL,EVAPORATOR MFR # 3102677006
72. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
73. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
74. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
75. #APPLIANCE COMPONENTS RV; Compressor Asm 600315 MFR # 3102864
76. #SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description
77. #SWITCH,OVERLOAD MFR # 3100250244
78. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102564014
79. #GROMMET 3REQUIRED MFR # 3102324005
80. #Air Conditioner Compressor Mounting Hardware; For Duo-Therm Air Conditioner Penguin Model 620525421; Compressor Mounting Sleeve MFR # 3100239098
81. #STRAIN RELIEF MFR # 32994014
82. #PLATE, COMPRESSOR, MTG. MFR # 3102593005
83. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590019
84. #SPRING MFR # 3102594003
85. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
86. #Toilet; Aqua-Magic ® V; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; One Handle Flush Control; Full Bowl Flush; White; 17- 13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 31646
87. #APPLIANCE COMPONENTS RV; Tube Copper MFR # 3102563016

Conversion Kit No. 3102956004

Components

12 items

1. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
2. #SHELL, AIRBOX USE 3101390064 SHELL WHITE MFR # 3101390031 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390064
4. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
5. #BOARD, CIRCUIT USE 3307713010 MFR # 3104233006 Superseded: see description
6. #INSTALLATION & OPERATING INSTRUCTIONS MFR # 3102865007
7. #WIRE, GREEN MFR # 306761169
8. #MOUNTING PLATE MFR # 3102955006
9. #WIRE, WHITE MFR # 304750228
10. #SCREW 4-24 X .38 HCR MFR # 310296016
11. #APPLIANCE COMPONENTS RV; Post For Pc Board 589 MFR # 3101322000
12. #BOARD,PC MAIN USE 3104233006 MFR # 3104232008 Superseded: see description

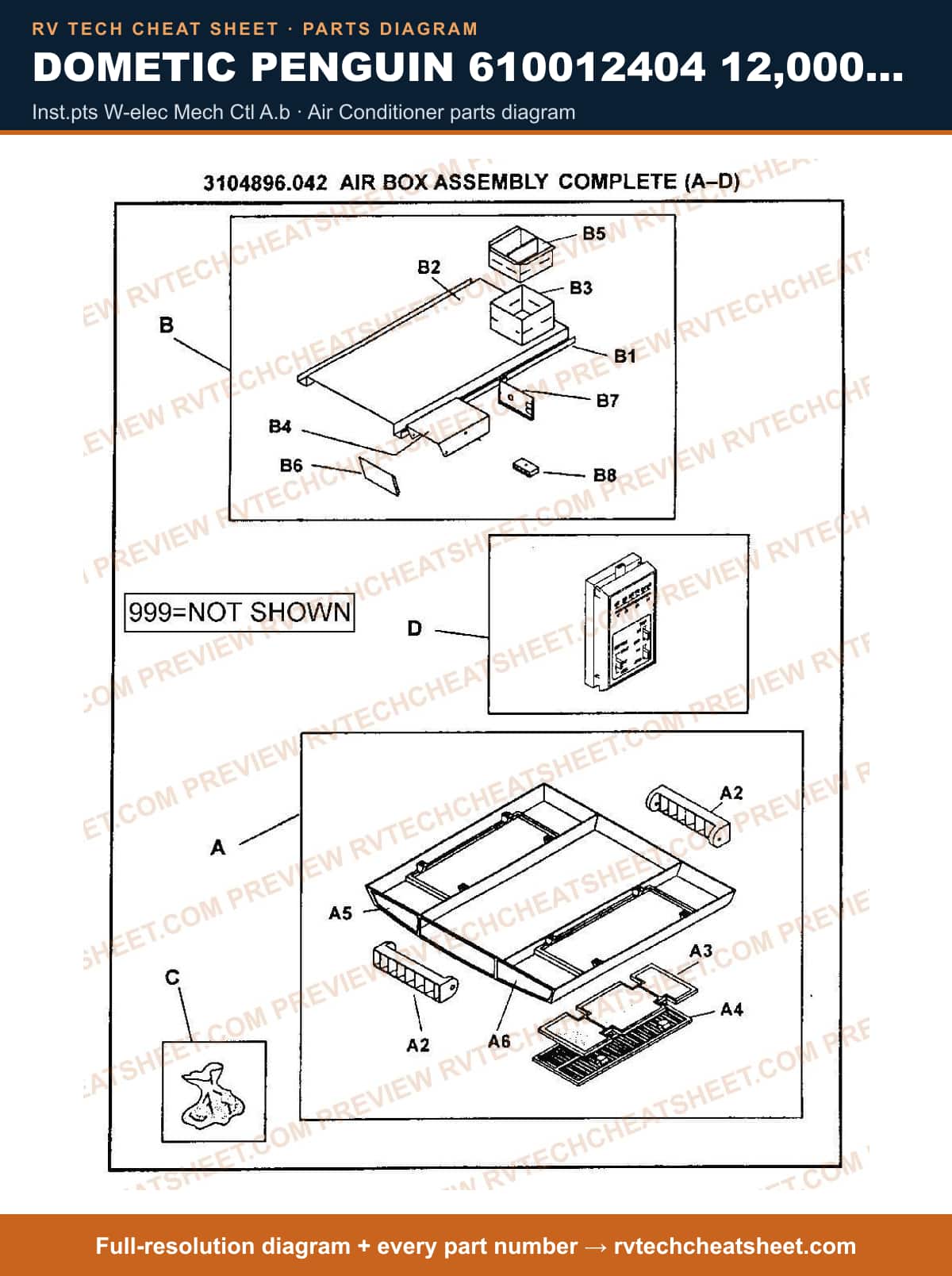

Inst.pts W-elec Mech Ctl A.b

Components

38 items

1. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
3. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
4. #INSULATION,CEILING TEMPLATE MFR # 3107133005
5. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
6. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
8. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
9. #BOX FRONT, RH MFR # 3100277015
10. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
11. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
12. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
13. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
14. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
15. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
16. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
17. #DECAL,LEFT SIDE 6003 61 MFR # 3102334004
18. #DECAL MFR # 3101393001
19. #HOLDER,CONTROL PANEL 6001 5-305 MFR # 3102331000
20. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
21. #BOARD,CONTROL USE 3101625014 MFR # 3101625006 Superseded: see description
22. #BOARD, CONTROL USE 3307713010 MFR # 3101625014 Superseded: see description
23. #DECAL,T-STAT USE 3101838039 MFR # 3101838013 Superseded: see description
24. #DECAL,T-STAT MFR # 3101838005
25. #DECAL,T-STAT NO HEAT 5891 5.602/603 MFR # 3101838021
26. #DECAL,T-STAT HEAT/COOL MFR # 3101838039
27. #COVER,T-STAT MFR # 3103809004
28. #COVER USE 3103809004 AND 3103808006 THERMOSTAT 610 MFR # 3101620007 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Base T-Stat 610 62001 MFR # 3103808006
30. #BASE USE 3103809004 AND 3103808006 THERMOSTAT 610 MFR # 3101621005 Superseded: see description
31. #BOLT,MOUNTING USE 3106756012 6.25&quot; LONG MFR # 3100375025 Superseded: see description
32. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Template MFR # 318681801
35. #SHELL, AIRBOX USE 3101390064 SHELL WHITE MFR # 3101390031 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390064
37. #APPLIANCE COMPONENTS RV; Parts Bag Asm MFR # 3101582009
38. #DECAL, WIRING MFR # 3102719006

Installation Parts

Components

40 items

1. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
2. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
4. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
5. #INSULATION,CEILING TEMPLATE MFR # 3107133005
6. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
7. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
8. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
10. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
11. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
12. #BOX FRONT, RH MFR # 3100277015
13. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
14. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390064
15. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
16. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
18. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390023
19. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
20. #DECAL, RIGHT SIDE SWITCH MFR # 3101394009
21. #DECAL, LEFT SIDE SWITCH MFR # 3101395006
22. #PAD,TOUCH USE 3100390008 MFR # 318595 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Conversion Kit Use 330771 MFR # 3102957002 Superseded: see description
24. #PAD,TOUCH CTRL USE 3102957002 MFR # 3100390008 Superseded: see description
25. #TSTAT W/RIBBON CABLE MFR # 20251D
26. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
27. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
28. #BOLT,MOUNTING USE 3106756012 6.25&quot; LONG MFR # 3100375025 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
30. #5/16 INCH BUTTON HEAD SCREW - 18 X 1 1/2 INCH MFR # 318721
31. #BASE,T-STAT MFR # 318751
32. #CABLE FOR A/C 25&#x27; MFR # 318811002
33. #CABLE,30&#x27; MFR # 318811003
34. #WIRING DECAL MFR # 3101968
35. #WIRE CONNECTOR 15 FT. (MUST HAVE 11 PINS) MFR # 318811001
36. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
37. #AIRBOX MDL# 610115.103 MFR # 318542009
38. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description
39. #AIRBOX ASM USE 318542009 MFR # 318542013 Superseded: see description
40. #TEMPLATE USE 3105023000 MFR # 318681800 Superseded: see description

Opt. El. Ht Kt 3-101121-014

Components

11 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
3. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
8. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
9. #GUARD, HEAT MFR # 3101143
10. #ELECTRIC BOX MFR # 3101125007
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description
