Dometic Penguin 610015103 13,500 BTU Parts Diagram · Opt. Elecr.heat Kit 3-18706

Air Conditioner · 5 assemblies · 5 diagram sheets · 154 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 610015103 13,500 BTU rooftop air conditioner: 5 assemblies (Opt. Elecr.heat Kit 3-18706, Opt.el. Heat Kit 3-101121-006, Shroud & Main Components, Conversion Kit No. 3102956004, Installation Parts) and 154 manufacturer part numbers. 46 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Opt. Elecr.heat Kit 3-18706

Components

11 items

1. #HEAT SHIELD MFR # 318344
2. #HEAT STRIP,NON-DUCTED MFR # 3101121030
3. #ELEMENT,HEATING USE 3101121030 MFR # 318467 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
5. #LINK,FUSE USE 3100244007 MFR # 315068 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
7. #SWITCH,LIMIT USE 3100241011 MFR # 313629001 Superseded: see description
8. #MOUNTING BRACKET (2 REQUIRED) MFR # 318343
9. #GRILL MFR # 318371
10. #CONDUIT MFR # 318548001
11. #PLUG,MALE 3 POLE RVA 60 MFR # 314470

Opt.el. Heat Kit 3-101121-006

Components

8 items

1. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
4. #HEAT STRIP,NON-DUCTED MFR # 3101121030
5. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
6. #GUARD, HEAT MFR # 3101143
7. #ELECTRIC BOX MFR # 3101125007
8. #CONDUIT MFR # 3100394075

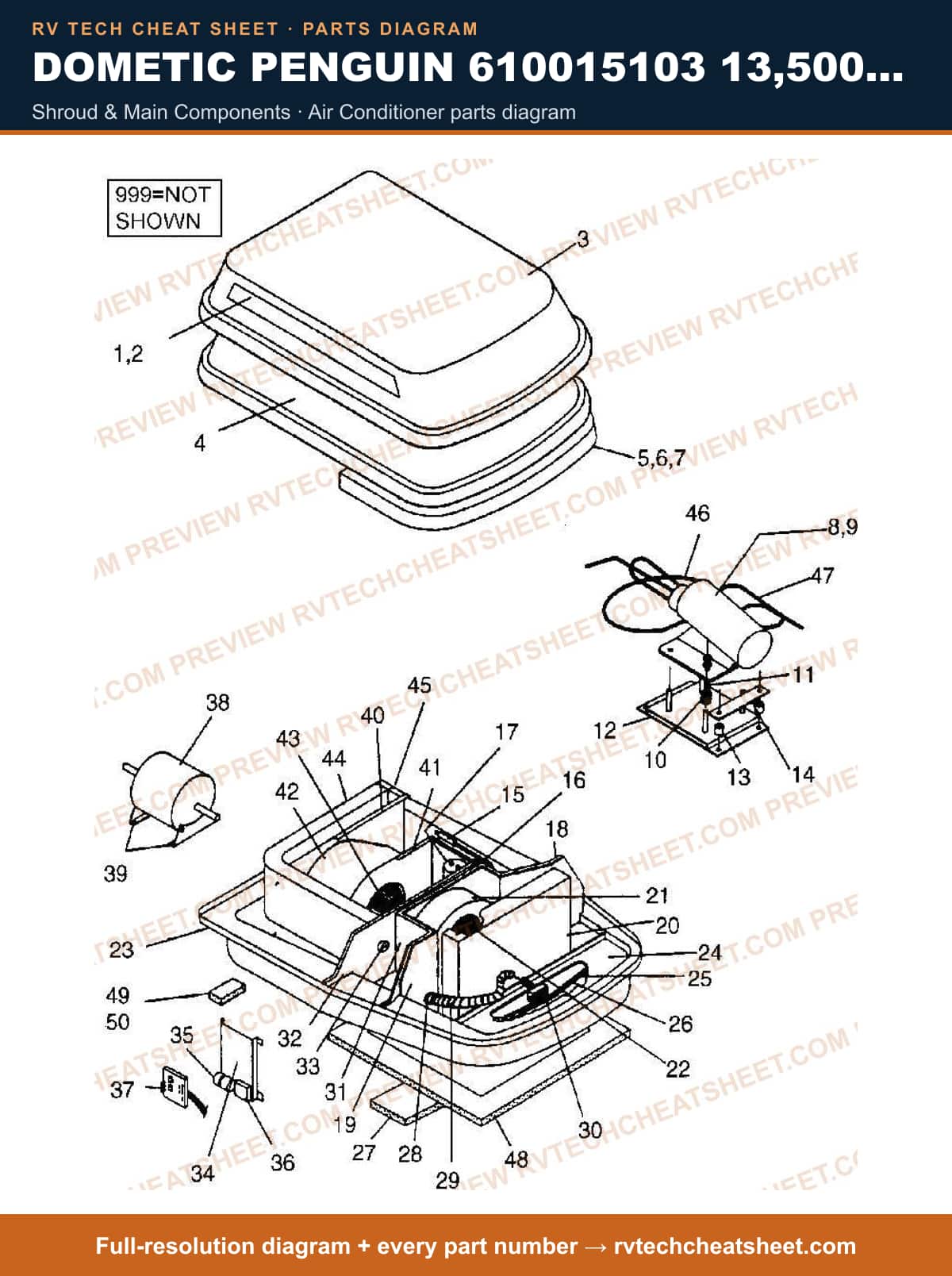

Shroud & Main Components

Components

77 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Decal Shroud Rh MFR # 3101396020
3. #DECAL USE 3102888009 DECAL LH SHROUD 5/89 RVA MFR # 318503001 Superseded: see description
4. #SHROUD SHELL WHITE <S MFR # 3308046006
5. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
7. #SHROUD USE 3102515008 MFR # 3100252000 Superseded: see description
8. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Shroud Inner Rva 60 All MFR # 3101886004
10. #SHROUD,INNER USE 3101886004 MFR # 3100251010 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Cover Evaporator Rva MFR # 3100268006
12. #APPLIANCE COMPONENTS RV; Insulation Housing Top MFR # 3100373004
13. #INSUL, BLWR HSNG (FIBERGLASS NOT SHOWN) MFR # 3100287014
14. #COMPRESSOR - NLA FITS 600/601 DUOTHERM AC MFR # 1318670
15. #COMPRESSOR ROTORX MFR # 318670001
16. #PROTECTOR,OVERLOAD MFR # 3100250020
17. #PROTECTOR USE 3100250020 OVERLOAD MFR # 317001002 Superseded: see description
18. #GROMMET MFR # 3100238132
19. #SLEEVE,COMP.USE 3100239122 MOUNTING MFR # 3100239056 Superseded: see description
20. #PLATE USE 3100296007 COMPRESSOR MOUNTING MFR # 318577 Superseded: see description
21. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
22. #PLATE,COMPRESSOR MOUNTING MFR # 3100296007
23. #SERVICE KIT F/MOTOR MFR # 3310725001
24. #RETAINER STRAP MFR # 310295009
25. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
26. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
27. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
28. #TUBE, CAP .049X44 IN 599,599,560 MFR # 3100245020
29. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3100255011
30. #COIL, EVAPORATOR RVA60/61 11M MFR # 318667
31. #APPLIANCE COMPONENTS RV; Block Hd Insulation MFR # 3100266
32. #N/A HOUSING,BLOWER MFR # 318321
33. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
34. #PAN,BASE MFR # 318299002
35. #APPLIANCE COMPONENTS RV; Pan Drain MFR # 3100267008
36. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
37. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
38. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
40. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
41. #CONDUIT,FLEX 579 MFR # 3100838006
42. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
43. #BULKHEAD,ELECTRICAL BOX MFR # 3100253008
44. #BULKHEAD, EVAPORATOR MFR # 3100254006
45. #STRAIN RELIEF MFR # 32994014
46. #APPLIANCE COMPONENTS RV; Panel Electric MFR # 3100282015
47. #APPLIANCE COMPONENTS RV; Relay Start MFR # 3100235245
48. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
49. #CAPACITOR, START MFR # 47C
50. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
51. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
52. #MODULE,CONTROL MFR # 318594
53. #APPLIANCE COMPONENTS RV; Board Module MFR # 3101597007
54. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
55. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
56. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
57. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
58. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
59. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
60. #BLOWER, SIDE/REAR MFR # 3100261001
61. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
62. #BLOWER,SCROLL MFR # 3100260003
63. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
64. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3101467003
66. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
67. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3101468001
68. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3101469009
69. #A/C SEAL, 14 X 14 WHITE MFR # A101414
70. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
71. #ROOF A/C GASKET KIT MFR # 3310718006
72. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
73. #GASKET, GREY, 14 X 14 MFR # 6759A3281
74. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
75. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
76. #GASKET,ROOF USE 3100286032 MFR # 3100286024 Superseded: see description
77. #DECAL SHROUD LH MFR # 3101396012

Conversion Kit No. 3102956004

Components

12 items

1. #BOARD, CIRCUIT USE 3307713010 MFR # 3104233006 Superseded: see description
2. #WIRE, WHITE MFR # 304750228
3. #MOUNTING PLATE MFR # 3102955006
4. #APPLIANCE COMPONENTS RV; Post For Pc Board 589 MFR # 3101322000
5. #BOARD,PC MAIN USE 3104233006 MFR # 3104232008 Superseded: see description
6. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
7. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
8. #WIRE, GREEN MFR # 306761169
9. #INSTALLATION & OPERATING INSTRUCTIONS MFR # 3102865007
10. #SHELL, AIRBOX USE 3101390064 SHELL WHITE MFR # 3101390031 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390064
12. #SCREW 4-24 X .38 HCR MFR # 310296016

Installation Parts

Components

51 items

1. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
2. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
3. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
4. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
5. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
6. #INSULATION,CEILING TEMPLATE MFR # 3107133005
7. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
8. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
10. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
11. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
12. #BOX FRONT, RH MFR # 3100277015
13. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
14. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390064
15. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390023
18. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
19. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
20. #DECAL, LEFT SIDE SWITCH MFR # 3101395006
21. #DECAL, RIGHT SIDE SWITCH MFR # 3101394009
22. #PAD,TOUCH USE 3100390008 MFR # 318595 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Conversion Kit Use 330771 MFR # 3102957002 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
25. #PAD,TOUCH CTRL USE 3102957002 MFR # 3100390008 Superseded: see description
26. #TSTAT W/RIBBON CABLE MFR # 20251D
27. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
28. #BOLT,MOUNTING USE 3106756012 6.25&quot; LONG MFR # 3100375025 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
30. #5/16 INCH BUTTON HEAD SCREW - 18 X 1 1/2 INCH MFR # 318721
31. #BASE,T-STAT MFR # 318751
32. #CABLE,30&#x27; MFR # 318811003
33. #CABLE FOR A/C 25&#x27; MFR # 318811002
34. #WIRE CONNECTOR 15 FT. (MUST HAVE 11 PINS) MFR # 318811001
35. #WIRING DECAL MFR # 3101968
36. #AIRBOX MDL# 610115.103 MFR # 318542009
37. #AIRBOX ASM USE 318542009 MFR # 318542013 Superseded: see description
38. #TEMPLATE USE 3105023000 MFR # 318681800 Superseded: see description
39. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
40. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description
41. #PLATE MFR # 3101611006
42. #AIRBOX ASM MFR # 318542012
43. #APPLIANCE COMPONENTS RV; Parts Bag Asm MFR # 3101582009
44. #AIRBOX,COMPLETE USE 318542012 MFR # 318542010 Superseded: see description
45. #SHELL, AIRBOX USE 3101390049 SHELL WHITE MFR # 3101390007 Superseded: see description
46. #AIRBOX,COMPLETE USE 318542011 MFR # 318542007 Superseded: see description
47. #APPLIANCE COMPONENTS RV; Shell Airbox Shell White MFR # 3101390049
48. #WIRING DECAL MFR # 3100997018
49. #WIRING DECAL 610- MFR # 3100998016
50. #610-* MFR # 318681003
51. #APPLIANCE COMPONENTS RV; Airbox MFR # 318542011
