Dometic Penguin 610015203 13,500 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 4 assemblies · 4 diagram sheets · 61 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 610015203 13,500 BTU rooftop air conditioner: 4 assemblies (Shroud & Main Components, Installation Parts, 3101121014 Optional Heat Kit, Conversion Kit No. 3102956004) and 61 manufacturer part numbers. 22 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

40 items

1. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
2. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
3. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
5. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
6. #INSULATION,CEILING TEMPLATE MFR # 3107133005
7. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
8. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
9. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
10. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
11. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
12. #BOX FRONT, RH MFR # 3100277015
13. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
14. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390064
15. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
17. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
18. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390023
19. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
20. #DECAL, LEFT SIDE SWITCH MFR # 3101395006
21. #DECAL, RIGHT SIDE SWITCH MFR # 3101394009
22. #PAD,TOUCH USE 3100390008 MFR # 318595 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Conversion Kit Use 330771 MFR # 3102957002 Superseded: see description
24. #PAD,TOUCH CTRL USE 3102957002 MFR # 3100390008 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
26. #TSTAT W/RIBBON CABLE MFR # 20251D
27. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
28. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
30. #5/16 INCH BUTTON HEAD SCREW - 18 X 1 1/2 INCH MFR # 318721
31. #BASE,T-STAT MFR # 318751
32. #CABLE FOR A/C 25' MFR # 318811002
33. #CABLE,30' MFR # 318811003
34. #WIRING DECAL MFR # 3101968
35. #WIRE CONNECTOR 15 FT. (MUST HAVE 11 PINS) MFR # 318811001
36. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description
37. #AIRBOX ASM USE 318542009 MFR # 318542013 Superseded: see description
38. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
39. #TEMPLATE USE 3105023000 MFR # 318681800 Superseded: see description
40. #AIRBOX MDL# 610115.103 MFR # 318542009

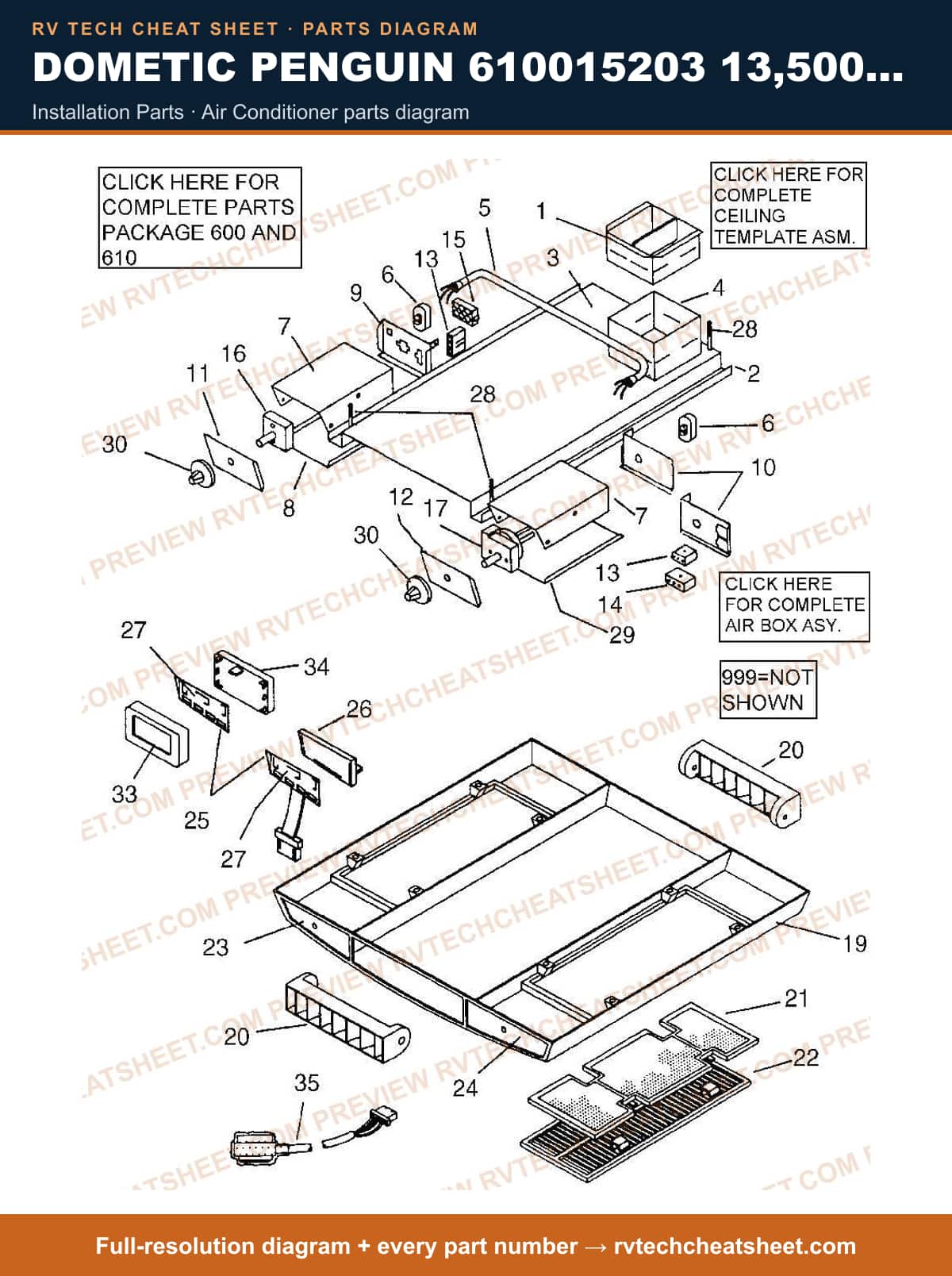

Installation Parts

Components

40 items

1. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
2. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
3. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
5. #INSULATION,CEILING TEMPLATE MFR # 3107133005
6. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
7. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
8. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
9. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
10. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
11. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
12. #BOX FRONT, RH MFR # 3100277015
13. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
14. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390064
15. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
16. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
17. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390023
19. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
20. #DECAL, LEFT SIDE SWITCH MFR # 3101395006
21. #DECAL, RIGHT SIDE SWITCH MFR # 3101394009
22. #PAD,TOUCH USE 3100390008 MFR # 318595 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Conversion Kit Use 330771 MFR # 3102957002 Superseded: see description
24. #PAD,TOUCH CTRL USE 3102957002 MFR # 3100390008 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
26. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
27. #TSTAT W/RIBBON CABLE MFR # 20251D
28. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
30. #5/16 INCH BUTTON HEAD SCREW - 18 X 1 1/2 INCH MFR # 318721
31. #BASE,T-STAT MFR # 318751
32. #CABLE FOR A/C 25' MFR # 318811002
33. #WIRE CONNECTOR 15 FT. (MUST HAVE 11 PINS) MFR # 318811001
34. #CABLE,30' MFR # 318811003
35. #WIRING DECAL MFR # 3101968
36. #TEMPLATE USE 3105023000 MFR # 318681800 Superseded: see description
37. #AIRBOX ASM USE 318542009 MFR # 318542013 Superseded: see description
38. #AIRBOX MDL# 610115.103 MFR # 318542009
39. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
40. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description

3101121014 Optional Heat Kit

Components

11 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
8. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
9. #GUARD, HEAT MFR # 3101143
10. #ELECTRIC BOX MFR # 3101125007
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

Conversion Kit No. 3102956004

Components

12 items

1. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390064
2. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
3. #BOARD, CIRCUIT USE 3307713010 MFR # 3104233006 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Post For Pc Board 589 MFR # 3101322000
5. #SCREW 4-24 X .38 HCR MFR # 310296016
6. #WIRE, WHITE MFR # 304750228
7. #INSTALLATION & OPERATING INSTRUCTIONS MFR # 3102865007
8. #WIRE, GREEN MFR # 306761169
9. #MOUNTING PLATE MFR # 3102955006
10. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
11. #SHELL, AIRBOX USE 3101390064 SHELL WHITE MFR # 3101390031 Superseded: see description
12. #BOARD,PC MAIN USE 3104233006 MFR # 3104232008 Superseded: see description
