Dometic Penguin 610015203B 13,500 BTU Parts Diagram · Opt. El. Ht Kt 3-101121-01

Air Conditioner · 3 assemblies · 3 diagram sheets · 117 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 610015203B 13,500 BTU rooftop air conditioner: 3 assemblies (Opt. El. Ht Kt 3-101121-01, Shroud & Main Components, Installation Parts) and 117 manufacturer part numbers. 35 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

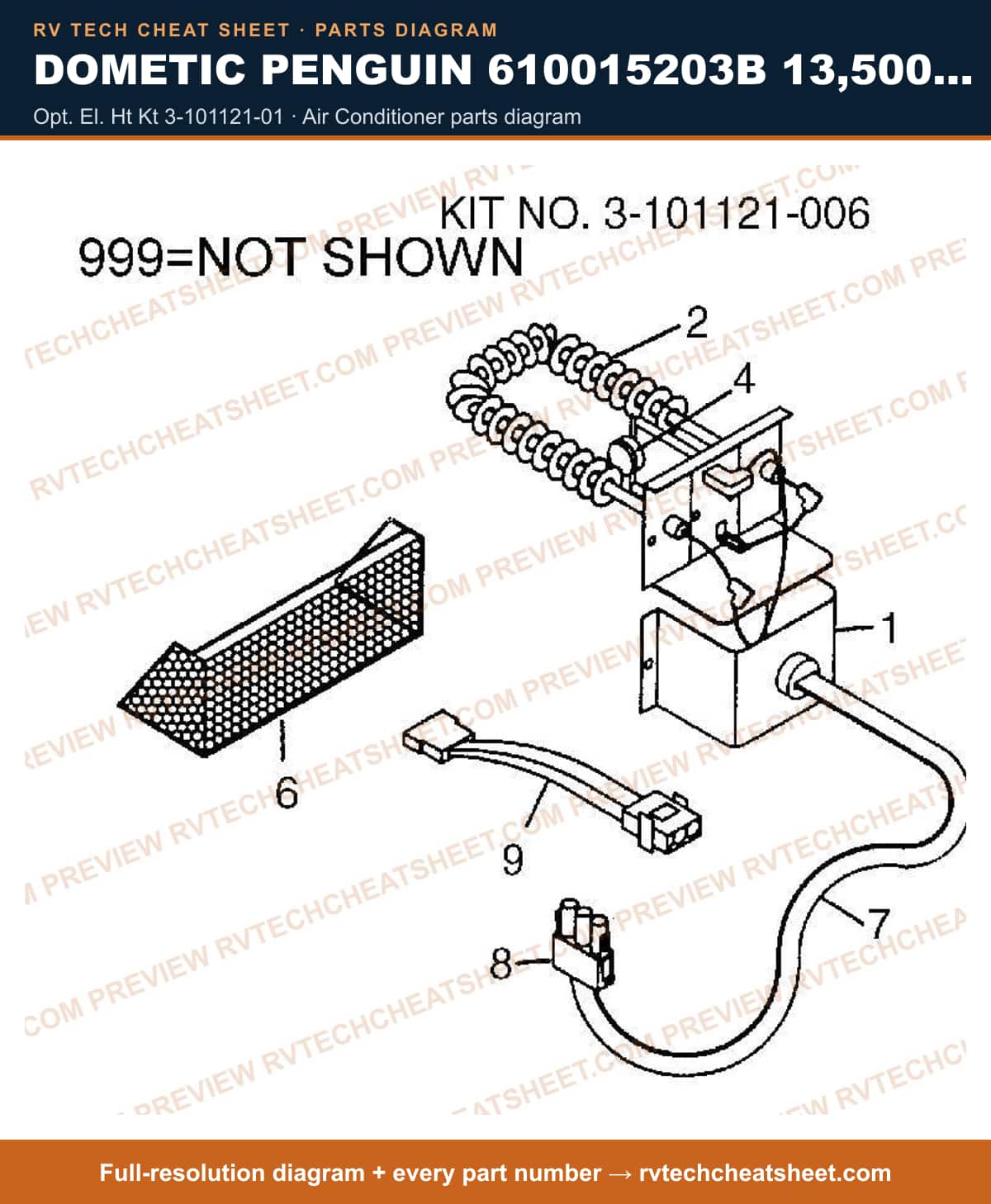

Opt. El. Ht Kt 3-101121-01

Components

11 items

1. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
8. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
9. #GUARD, HEAT MFR # 3101143
10. #ELECTRIC BOX MFR # 3101125007
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

Shroud & Main Components

Components

67 items

1. #SHROUD USE 3107746012 POLAR WHITE MFR # 3102515024 Superseded: see description
2. #SHROUD ASM USE 3308046014 POLAR WHITE MFR # 3107746012 Superseded: see description
3. #SHROUD POLAR WHITE <S MFR # 3308046014
4. #COVER,EVAPORATOR MFR # 3102514803
5. #DECAL MFR # 316655
6. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102564014
7. #APPLIANCE COMPONENTS RV; Compressor Asm 600315 MFR # 3102864
8. #COMPRESSOR USE 3102864 MFR # 3102678012 Superseded: see description
9. #SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description
10. #SWITCH,OVERLOAD MFR # 3100250244
11. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3102511007
12. #TUBE,CAPILLARY .600 X 610 MFR # 3100245400
13. #USHING, SNAP-IN MFR # 31028037
14. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3101863003
15. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
16. #APPLIANCE COMPONENTS RV; Tube Copper MFR # 3102563016
17. #PLATE, COMPRESSOR, MTG. MFR # 3102593005
18. #GROMMET 3REQUIRED MFR # 3102324005
19. #Air Conditioner Compressor Mounting Hardware; For Duo-Therm Air Conditioner Penguin Model 620525421; Compressor Mounting Sleeve MFR # 3100239098
20. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590019
21. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
22. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
23. #INSULATION,EVAP.USE 3102516022 MFR # 3102516006 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
25. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3102512005
26. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
27. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
28. #PAN,DRAIN FOAM MFR # 3102513003
29. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
30. #COIL,EVAPORATOR MFR # 3102677006
31. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
32. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
33. #SERVICE KIT F/MOTOR MFR # 3310725001
34. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
35. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
36. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
37. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
38. #PAN,BASE USE 3103179002 MFR # 310188503 Superseded: see description
39. #GASKET, GREY, 14 X 14 MFR # 6759A3281
40. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
42. #PAN,BASE USE 3103179002 MFR # 3101885014 Superseded: see description
43. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
44. #PAN,BASE USE 3103179002 MFR # 3101885030 Superseded: see description
45. #BULKHEAD, EVAPORATOR MFR # 3100254030
46. #NO PART # GIVEN BY VENDOR MFR # NPG
47. #APPLIANCE COMPONENTS RV; Decal Field Wiring MFR # 3102899006
48. #DECAL, WIRING MFR # 3101894016
49. #DECAL, WIRING MFR # 3102900002
50. #DECAL, WIRING MFR # 3102719006
51. #WIRING DECAL MFR # 3101968
52. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
53. #DECAL FOR AIR BOX CONTROL 39015.601/.602 MFR # 3100384001
54. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
55. #CLAMP MFR # 318723
56. #APPLIANCE COMPONENTS RV; Bulkhead Electrical Box MFR # 3102532029
57. #ANTI SHORT DEVICE MFR # 37760002
58. #PLUG 4 POLE MFR # 314470005
59. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
60. #ROOF A/C GASKET KIT MFR # 3310718006
61. #A/C SEAL, 14 X 14 WHITE MFR # A101414
62. #GASKET,INSULATION EVAP MFR # 3102527011
63. #PLATE EVAP CLOSE- MFR # 3102512013
64. #PAN,DRAIN MFR # 3102967001
65. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
66. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
67. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016

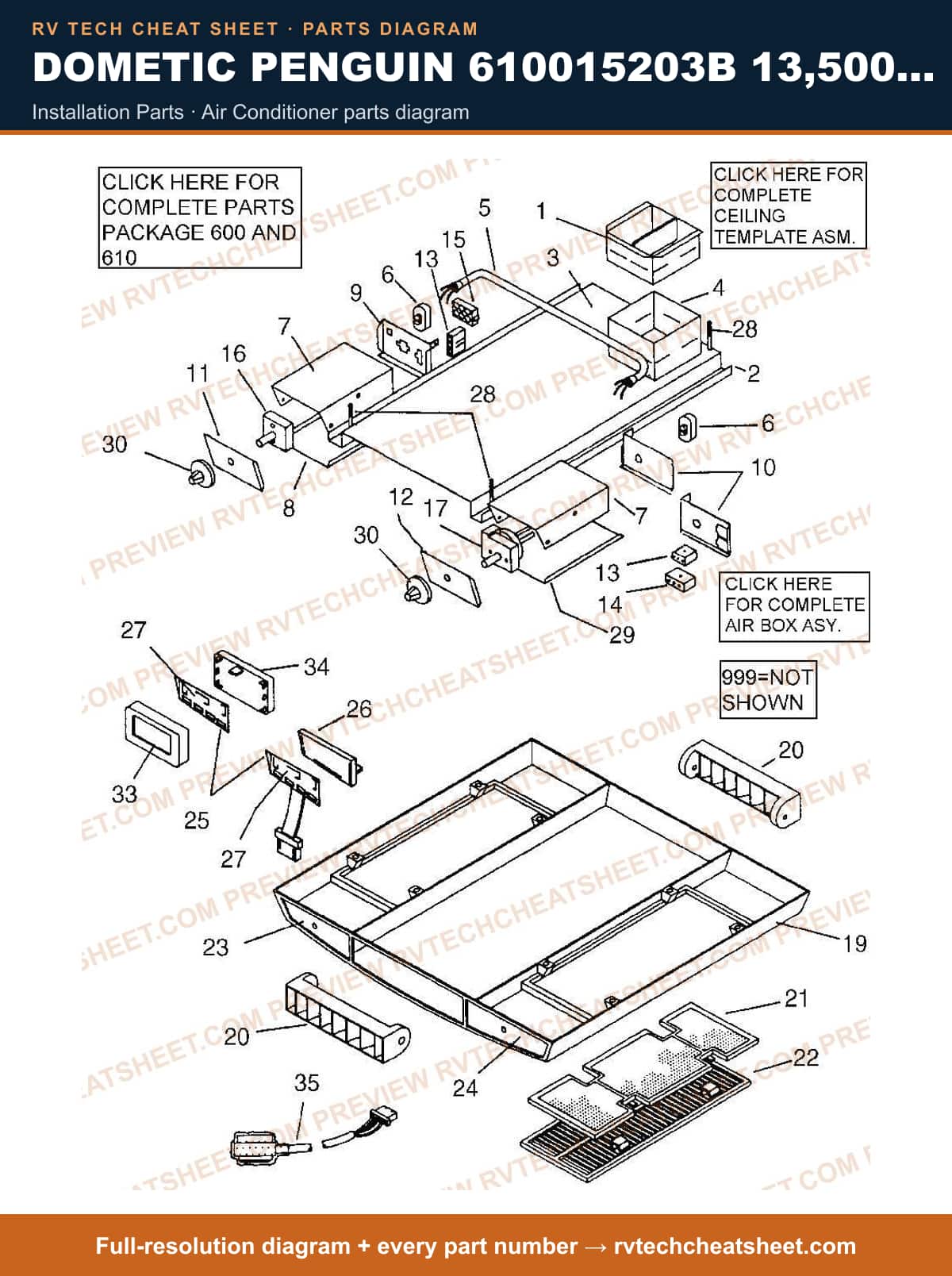

Installation Parts

Components

40 items

1. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
2. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
4. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
5. #INSULATION,CEILING TEMPLATE MFR # 3107133005
6. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
7. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
8. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
10. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
11. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
12. #BOX FRONT, RH MFR # 3100277015
13. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
14. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390064
15. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390023
16. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
17. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
19. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
20. #DECAL, RIGHT SIDE SWITCH MFR # 3101394009
21. #DECAL, LEFT SIDE SWITCH MFR # 3101395006
22. #PAD,TOUCH USE 3100390008 MFR # 318595 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Conversion Kit Use 330771 MFR # 3102957002 Superseded: see description
24. #PAD,TOUCH CTRL USE 3102957002 MFR # 3100390008 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
26. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
27. #TSTAT W/RIBBON CABLE MFR # 20251D
28. #BOLT,MOUNTING USE 3106756012 6.25&quot; LONG MFR # 3100375025 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
30. #5/16 INCH BUTTON HEAD SCREW - 18 X 1 1/2 INCH MFR # 318721
31. #BASE,T-STAT MFR # 318751
32. #CABLE FOR A/C 25&#x27; MFR # 318811002
33. #CABLE,30&#x27; MFR # 318811003
34. #WIRE CONNECTOR 15 FT. (MUST HAVE 11 PINS) MFR # 318811001
35. #WIRING DECAL MFR # 3101968
36. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
37. #AIRBOX ASM USE 318542009 MFR # 318542013 Superseded: see description
38. #AIRBOX MDL# 610115.103 MFR # 318542009
39. #TEMPLATE USE 3105023000 MFR # 318681800 Superseded: see description
40. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description
