Dometic Penguin 610015305D 13,500 BTU Parts Diagram · Opt. Elec. Heat Kit Assy

Air Conditioner · 3 assemblies · 3 diagram sheets · 106 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 610015305D 13,500 BTU rooftop air conditioner: 3 assemblies (Opt. Elec. Heat Kit Assy, Installation Parts, Shroud & Main Components) and 106 manufacturer part numbers. 33 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Opt. Elec. Heat Kit Assy

Components

10 items

1. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
8. #GUARD, HEAT MFR # 3101143
9. #ELECTRIC BOX MFR # 3101125007
10. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

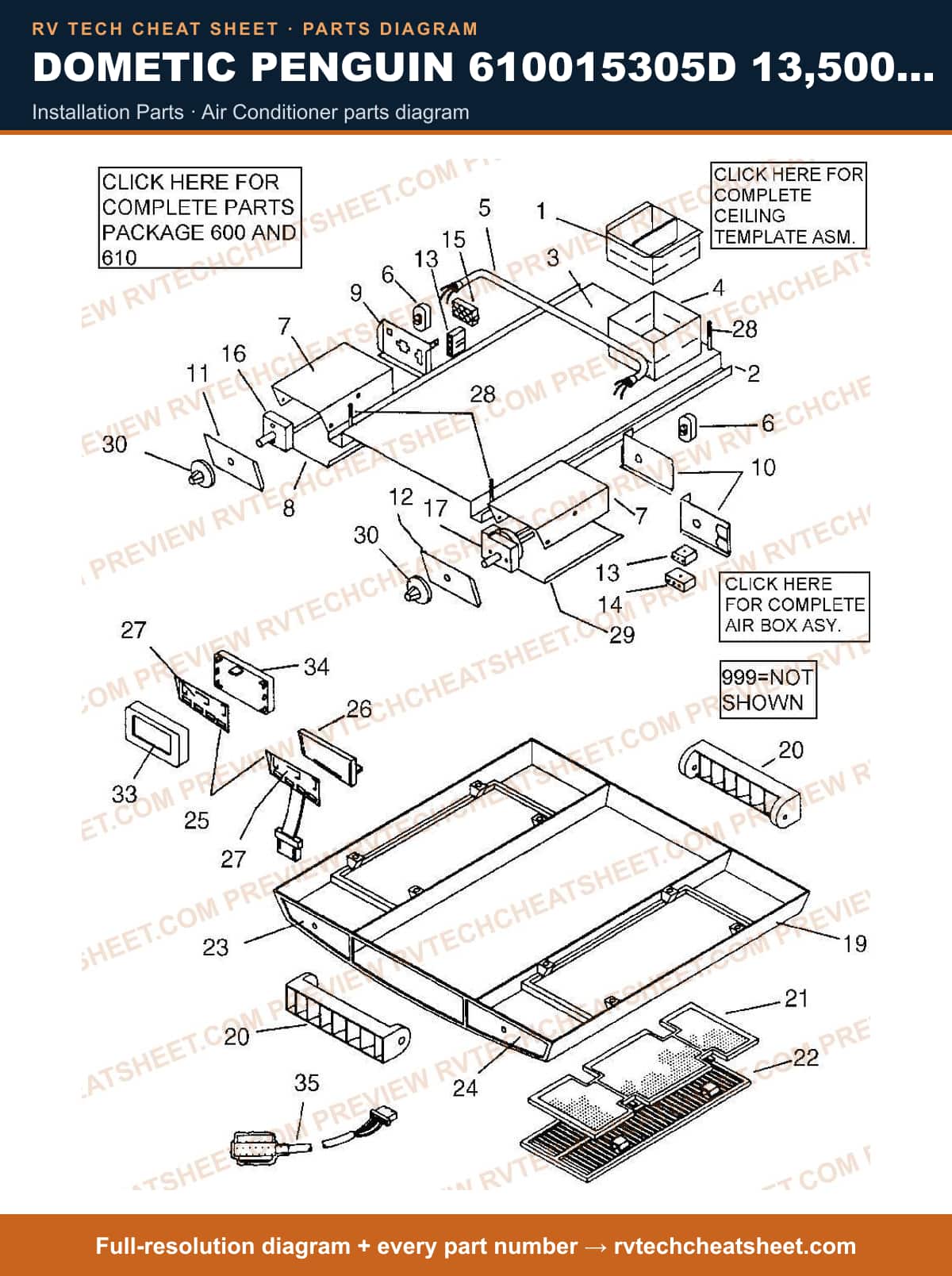

Installation Parts

Components

28 items

1. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
2. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
3. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
4. #INSULATION,CEILING TEMPLATE MFR # 3107133005
5. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
6. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
7. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
8. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
9. #BOX FRONT, RH MFR # 3100277015
10. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
11. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
12. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
13. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
14. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
15. #DECAL,LEFT SIDE 6003 61 MFR # 3102334004
16. #DECAL MFR # 3101393001
17. #HOLDER,CONTROL PANEL 6001 5-305 MFR # 3102331000
18. #BOARD,CONTROL USE 3101625014 MFR # 3101625006 Superseded: see description
19. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
20. #BOARD, CONTROL USE 3307713010 MFR # 3101625014 Superseded: see description
21. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
22. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
24. #1)3100278013 JUNCTION BOX COVER 1)3100290000 BLACK KNOB 1)3100232002 JUNCTION BOX COVER 3)3100375025 MOUNTING BOLTS THIS BAG HAS (3) 3100375025 MOUNTI... MFR # APPLIANCE COMPONENTS RV; Parts Bag Asm
25. #DECAL, WIRING MFR # 3102900002
26. #APPLIANCE COMPONENTS RV; Template MFR # 318681801
27. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390064
28. #SHELL, AIRBOX USE 3101390064 SHELL WHITE MFR # 3101390031 Superseded: see description

Shroud & Main Components

Components

68 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #BLOCKS, FOAM MFR # 3100587009
3. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
4. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
6. #SHROUD SHELL WHITE <S MFR # 3308046006
7. #COVER,EVAPORATOR MFR # 3102514803
8. #STRAIN RELIEF MFR # 31028025
9. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102985003
10. #APPLIANCE COMPONENTS RV; Compressor MFR # 3103426007
11. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
12. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
13. #BULKHEAD, COMPRESSOR MFR # 3102511015
14. #ADAPTER KIT,COMPRESSOR MFR # 3104306
15. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245418
16. #BUSHING, SNAP-IN MFR # 31028041
17. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
18. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
19. #PANEL, CAPACITOR (*,**) MFR # 3101627028
20. #LINE,SUCTION MFR # 3102986001
21. #GROMMET 3REQUIRED MFR # 3102324005
22. #SLEEVE,COMPT MOUNTING MFR # 3100239080
23. #Air Conditioner Compressor Mounting Hardware; Replacement For Duo-Therm 57915731/ 39335641/ 630515326C1 Air Conditioners; With Compressor Grommets/ Metal Sleeves/ Nuts MFR # 3311596000
24. #GROMMET, COMP.USE 3311596000 STAG# 49-9126 MFR # 3100238181 Superseded: see description
25. #SLEEVE,COMPRESSOR MFR # 3100239072
26. #SLEEVE,CMPRSR USE 3100239072 MFR # 3100239114 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590035
28. #WELDMENT,COMP. USE 3102590035 PLATE MDL600315.304 MFR # 3102987009 Superseded: see description
29. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
30. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
31. #INSULATION,EVAP.USE 3102516022 MFR # 3102516006 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
33. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3102512005
34. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
35. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
36. #PAN,DRAIN FOAM MFR # 3102513003
37. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 3104573005
38. #COIL,EVAP.USE 3104573005 620015.308 MFR # 3102533001 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
40. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
42. #GASKET, GREY, 14 X 14 MFR # 6759A3281
43. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
44. #A/C SEAL, 14 X 14 WHITE MFR # A101414
45. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
46. #ROOF A/C GASKET KIT MFR # 3310718006
47. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
48. #PLUG 4 POLE MFR # 314470005
49. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
50. #ANTI SHORT DEVICE MFR # 37760002
51. #CONDUIT,FLEX 579 MFR # 3100838006
52. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
53. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
54. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
55. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
56. #PTCR KIT MFR # 3310731009
57. #RELAY,START USE 3100876006 MFR # 3100878002 Superseded: see description
58. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248073
59. #CAPACITOR,RUN/FAN USE 46-2329 MFR # F8044 Superseded: see description
60. #GASKET,INSULATION EVAP MFR # 3102527011
61. #PLATE EVAP CLOSE- MFR # 3102512013
62. #PAN,DRAIN MFR # 3102967001
63. #COIL,EVAPORATOR MFR # 3102677006
64. #SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Compressor Asm 600315 MFR # 3102864
66. #SWITCH,OVERLOAD MFR # 3100250244
67. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102564014
68. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
