Dometic Penguin 610015405 13,500 BTU Parts Diagram · Inst.pts W-elec Mech Ct

Air Conditioner · 3 assemblies · 3 diagram sheets · 118 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 610015405 13,500 BTU rooftop air conditioner: 3 assemblies (Inst.pts W-elec Mech Ct, Opt. El. Ht Kt 3-101121-01, Shroud W-elec Mech Led Air Box) and 118 manufacturer part numbers. 36 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

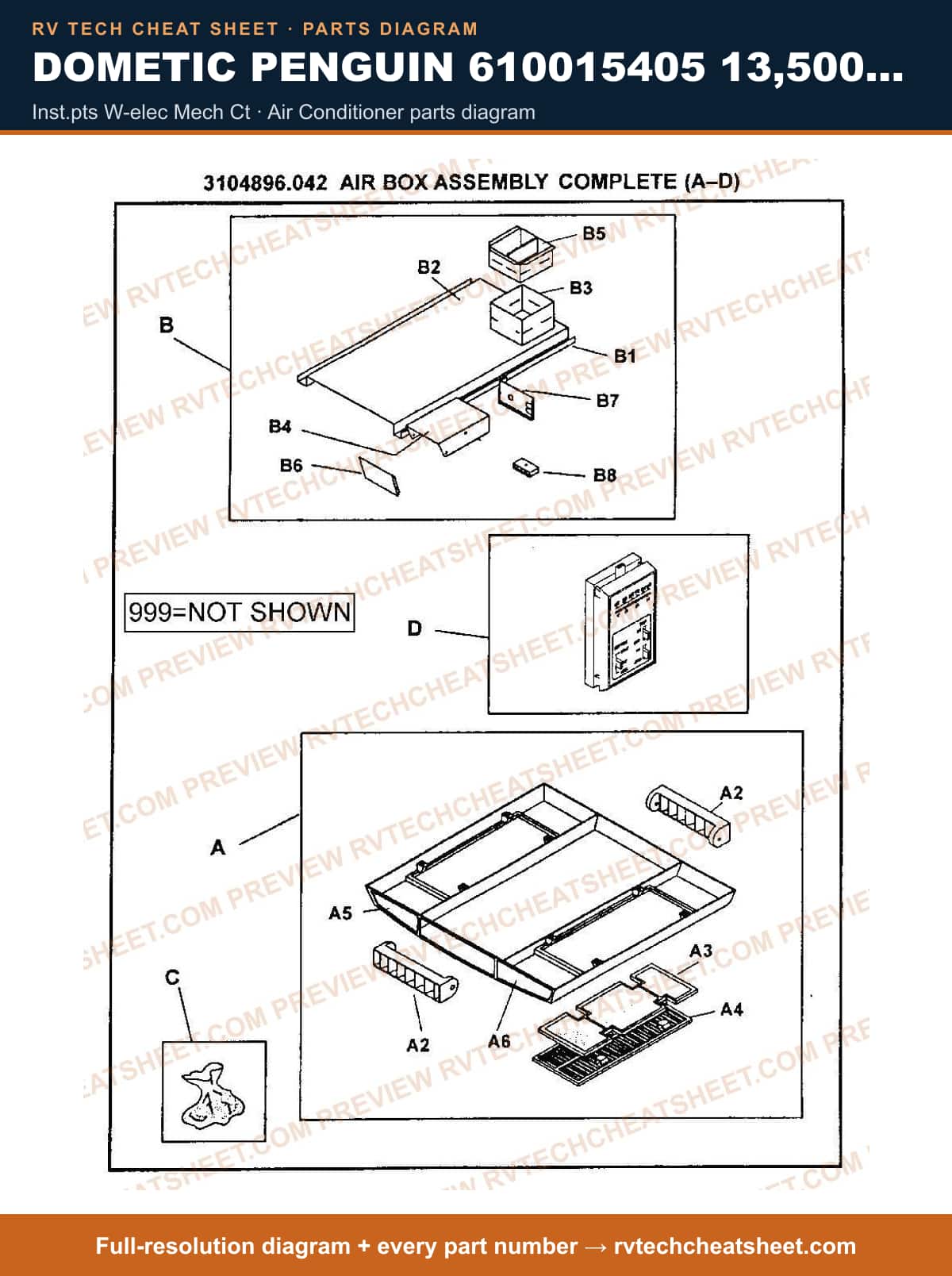

Inst.pts W-elec Mech Ct

Components

40 items

1. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
2. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
3. #INSULATION,CEILING TEMPLATE MFR # 3107133005
4. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
5. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
6. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
8. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
9. #BOX FRONT, RH MFR # 3100277015
10. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
11. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
12. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
13. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
14. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
15. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
16. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
17. #DECAL,LEFT SIDE 6003 61 MFR # 3102334004
18. #DECAL MFR # 3101393001
19. #HOLDER,CONTROL PANEL 6001 5-305 MFR # 3102331000
20. #BOARD,CONTROL USE 3101625014 MFR # 3101625006 Superseded: see description
21. #BOARD, CONTROL USE 3307713010 MFR # 3101625014 Superseded: see description
22. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
23. #DECAL,T-STAT HEAT/COOL MFR # 3101838039
24. #DECAL,T-STAT USE 3101838039 MFR # 3101838013 Superseded: see description
25. #DECAL,T-STAT NO HEAT 5891 5.602/603 MFR # 3101838021
26. #DECAL,T-STAT MFR # 3101838005
27. #COVER,T-STAT MFR # 3103809004
28. #APPLIANCE COMPONENTS RV; Base T-Stat 610 62001 MFR # 3103808006
29. #COVER USE 3103809004 AND 3103808006 THERMOSTAT 610 MFR # 3101620007 Superseded: see description
30. #BASE USE 3103809004 AND 3103808006 THERMOSTAT 610 MFR # 3101621005 Superseded: see description
31. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
32. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Parts Bag Asm MFR # 3101582009
35. #SHELL, AIRBOX USE 3101390064 SHELL WHITE MFR # 3101390031 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390064
37. #DECAL, WIRING MFR # 3102719006
38. #APPLIANCE COMPONENTS RV; Template MFR # 318681801
39. #T-STAT USE 3103187005 MFR # 3101633802 Superseded: see description
40. #FOR MODELS 58915-301/302/601/602 59016503 610115305 NOT NORMALLY REQUIRED. ORDER INDIVIDUAL PARTS. T-STAT COMPLETE 3103187005. THE 6" ADAPTER CABL... MFR # 3103187005

Opt. El. Ht Kt 3-101121-01

Components

9 items

1. #ELECTRIC BOX MFR # 3101125007
2. #HEAT STRIP,NON-DUCTED MFR # 3101121030
3. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
4. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
6. #CONDUIT MFR # 3100394075
7. #GUARD, HEAT MFR # 3101143
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
9. #SLEEVING MFR # 3100394083

Shroud W-elec Mech Led Air Box

Components

70 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #SHROUD,OUTER USE 3102515032 610015-405 MFR # 3102515016 Superseded: see description
3. #SHROUD,GRAY USE 3107746020 610015-405D MFR # 3102515032 Superseded: see description
4. #Air Conditioner Shroud; Replacement Shroud For Dometic Air Conditioners; Penguin Style; Grey MFR # 3308046022
5. #SHROUD ASM USE 3308046022 GRAY MFR # 3107746020 Superseded: see description
6. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
7. #PTCR KIT MFR # 3310731009
8. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
9. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
10. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
11. #USHING, SNAP-IN MFR # 31028037
12. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3101863003
13. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
14. #COVER,EVAPORATOR MFR # 3102514803
15. #APPLIANCE COMPONENTS RV; Tube Copper MFR # 3102563016
16. #PLATE, COMPRESSOR, MTG. MFR # 3102593005
17. #GROMMET 3REQUIRED MFR # 3102324005
18. #Air Conditioner Compressor Mounting Hardware; For Duo-Therm Air Conditioner Penguin Model 620525421; Compressor Mounting Sleeve MFR # 3100239098
19. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590019
20. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
21. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
23. #INSULATION,EVAP.USE 3102516022 MFR # 3102516006 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3102512005
25. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
26. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
27. #PAN,DRAIN FOAM MFR # 3102513003
28. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
29. #COIL,EVAPORATOR MFR # 3102677006
30. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
31. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
32. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
34. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
35. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
36. #SERVICE KIT F/MOTOR MFR # 3310725001
37. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
38. #PAN,BASE USE 3103179002 MFR # 310188503 Superseded: see description
39. #GASKET, GREY, 14 X 14 MFR # 6759A3281
40. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
41. #PAN,BASE USE 3103179002 MFR # 3101885014 Superseded: see description
42. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
43. #PAN,BASE USE 3103179002 MFR # 3101885030 Superseded: see description
44. #BULKHEAD, EVAPORATOR MFR # 3100254030
45. #NO PART # GIVEN BY VENDOR MFR # NPG
46. #DECAL, WIRING MFR # 3101894016
47. #DECAL, WIRING MFR # 3102900002
48. #APPLIANCE COMPONENTS RV; Decal Field Wiring MFR # 3102899006
49. #DECAL, WIRING MFR # 3102719006
50. #WIRING DECAL MFR # 3101968
51. #DECAL FOR AIR BOX CONTROL 39015.601/.602 MFR # 3100384001
52. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
53. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
54. #CLAMP MFR # 318723
55. #APPLIANCE COMPONENTS RV; Bulkhead Electrical Box MFR # 3102532029
56. #ANTI SHORT DEVICE MFR # 37760002
57. #PLUG 4 POLE MFR # 314470005
58. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
59. #ROOF A/C GASKET KIT MFR # 3310718006
60. #A/C SEAL, 14 X 14 WHITE MFR # A101414
61. #GASKET,INSULATION EVAP MFR # 3102527011
62. #PLATE EVAP CLOSE- MFR # 3102512013
63. #PAN,DRAIN MFR # 3102967001
64. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
65. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
66. #APPLIANCE COMPONENTS RV; Compressor Asm 600315 MFR # 3102864
67. #SWITCH,OVERLOAD MFR # 3100250244
68. #SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description
69. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102564014
70. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
