Dometic Penguin 610115103 13,500 BTU Parts Diagram · Optional Heat Strip 3101121006

Air Conditioner · 4 assemblies · 4 diagram sheets · 134 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 610115103 13,500 BTU rooftop air conditioner: 4 assemblies (Optional Heat Strip 3101121006, Shroud & Main Components, Ceiling Asm, Optional Heat Kit 318706) and 134 manufacturer part numbers. 42 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

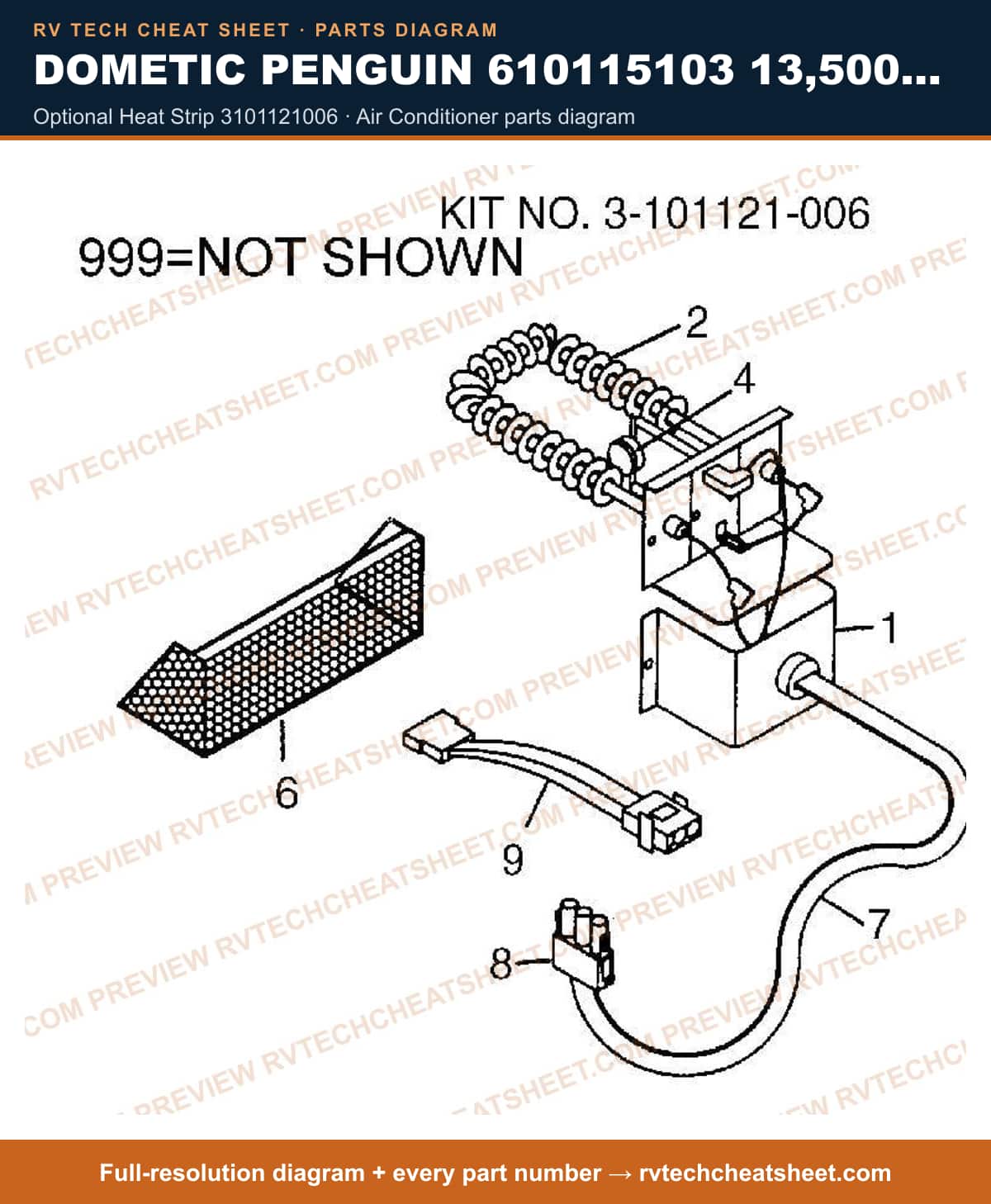

Optional Heat Strip 3101121006

Components

8 items

1. #ELECTRIC BOX MFR # 3101125007
2. #HEAT STRIP,NON-DUCTED MFR # 3101121030
3. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
4. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
6. #GUARD, HEAT MFR # 3101143
7. #CONDUIT MFR # 3100394075
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470

Shroud & Main Components

Components

77 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #DECAL RH SHROUD USE 3102888009 MFR # 318503002 Superseded: see description
3. #DECAL SHROUD LH MFR # 3101396012
4. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
6. #SHROUD USE 3102515008 MFR # 3100252000 Superseded: see description
7. #SHROUD SHELL WHITE <S MFR # 3308046006
8. #SHROUD,OUTER USE 3100252000 CAE11O 135 MFR # 3100252 Superseded: see description
9. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
10. #SHROUD,INNER USE 3101886004 MFR # 3100251010 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Shroud Inner Rva 60 All MFR # 3101886004
12. #APPLIANCE COMPONENTS RV; Cover Evaporator Rva MFR # 3100268006
13. #APPLIANCE COMPONENTS RV; Insulation Housing Top MFR # 3100373004
14. #INSUL, BLWR HSNG (FIBERGLASS NOT SHOWN) MFR # 3100287014
15. #COMPRESSOR - NLA FITS 600/601 DUOTHERM AC MFR # 1318670
16. #PROTECTOR USE 3100250020 OVERLOAD MFR # 317001002 Superseded: see description
17. #PROTECTOR,OVERLOAD MFR # 3100250020
18. #GROMMET MFR # 3100238132
19. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
20. #PLATE,COMPRESSOR MOUNTING MFR # 3100296007
21. #SLEEVE,COMP.USE 3100239122 MOUNTING MFR # 3100239056 Superseded: see description
22. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
23. #PLATE USE 3100296007 COMPRESSOR MOUNTING MFR # 318577 Superseded: see description
24. #SERVICE KIT F/MOTOR MFR # 3310725001
25. #RETAINER STRAP MFR # 310295009
26. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
27. #CAPACITOR,RUN USE 3100248339 MFR # 3100248370 Superseded: see description
28. #TUBE, CAP .049X44 IN 599,599,560 MFR # 3100245020
29. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
30. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
31. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3100255011
32. #APPLIANCE COMPONENTS RV; Block Hd Insulation MFR # 3100266
33. #COIL, EVAPORATOR RVA60/61 11M MFR # 318667
34. #N/A HOUSING,BLOWER MFR # 318321
35. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
36. #PAN,BASE MFR # 318299002
37. #APPLIANCE COMPONENTS RV; Pan Drain MFR # 3100267008
38. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
39. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
40. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
42. #APPLIANCE COMPONENTS RV; Conduit Con. MFR # 3100837008
43. #CONDUIT,FLEX 579 MFR # 3100838006
44. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
45. #BULKHEAD,ELECTRICAL BOX MFR # 3100253008
46. #BULKHEAD, EVAPORATOR MFR # 3100254006
47. #STRAIN RELIEF MFR # 32994014
48. #APPLIANCE COMPONENTS RV; Panel Electric MFR # 3100282015
49. #CAPACITOR, START MFR # 47C
50. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Relay Start MFR # 3100235245
52. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
53. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Board Module MFR # 3101597007
55. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
56. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
57. #MODULE,CONTROL MFR # 318594
58. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
59. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
60. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
61. #BLOWER, SIDE/REAR MFR # 3100261001
62. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
63. #BLOWER,SCROLL MFR # 3100260003
64. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
65. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
66. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3101467003
67. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
68. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3101468001
69. #ROOF A/C GASKET KIT MFR # 3310718006
70. #GASKET, GREY, 14 X 14 MFR # 6759A3281
71. #A/C SEAL, 14 X 14 WHITE MFR # A101414
72. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
73. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3101469009
74. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
75. #GASKET,ROOF USE 3100286032 MFR # 3100286024 Superseded: see description
76. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
77. #DECAL USE 3102888009 DECAL LH SHROUD 5/89 RVA MFR # 318503001 Superseded: see description

Ceiling Asm

Components

42 items

1. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
2. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
3. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
5. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
6. #INSULATION,CEILING TEMPLATE MFR # 3107133005
7. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
8. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
9. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
10. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
11. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
12. #BOX FRONT, RH MFR # 3100277015
13. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
14. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390023
15. #N/A AIRBOX ASM MFR # 3101390032
16. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390064
17. #SHELL, AIRBOX USE 3101390064 SHELL WHITE MFR # 3101390031 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
19. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
20. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
21. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
22. #DECAL, LEFT SIDE SWITCH MFR # 3101395006
23. #DECAL, RIGHT SIDE SWITCH MFR # 3101394009
24. #APPLIANCE COMPONENTS RV; Conversion Kit Use 330771 MFR # 3102957002 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
26. #PAD,TOUCH USE 3100390008 MFR # 318595 Superseded: see description
27. #PAD,TOUCH CTRL USE 3102957002 MFR # 3100390008 Superseded: see description
28. #TSTAT W/RIBBON CABLE MFR # 20251D
29. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
30. #BOLT,MOUNTING USE 3106756012 6.25&quot; LONG MFR # 3100375025 Superseded: see description
31. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
32. #5/16 INCH BUTTON HEAD SCREW - 18 X 1 1/2 INCH MFR # 318721
33. #BASE,T-STAT MFR # 318751
34. #WIRE CONNECTOR 15 FT. (MUST HAVE 11 PINS) MFR # 318811001
35. #CABLE FOR A/C 25&#x27; MFR # 318811002
36. #CABLE,30&#x27; MFR # 318811003
37. #AIRBOX ASM USE 318542009 MFR # 318542013 Superseded: see description
38. #WIRING DECAL MFR # 3101968
39. #AIRBOX MDL# 610115.103 MFR # 318542009
40. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
41. #TEMPLATE USE 3105023000 MFR # 318681800 Superseded: see description
42. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description

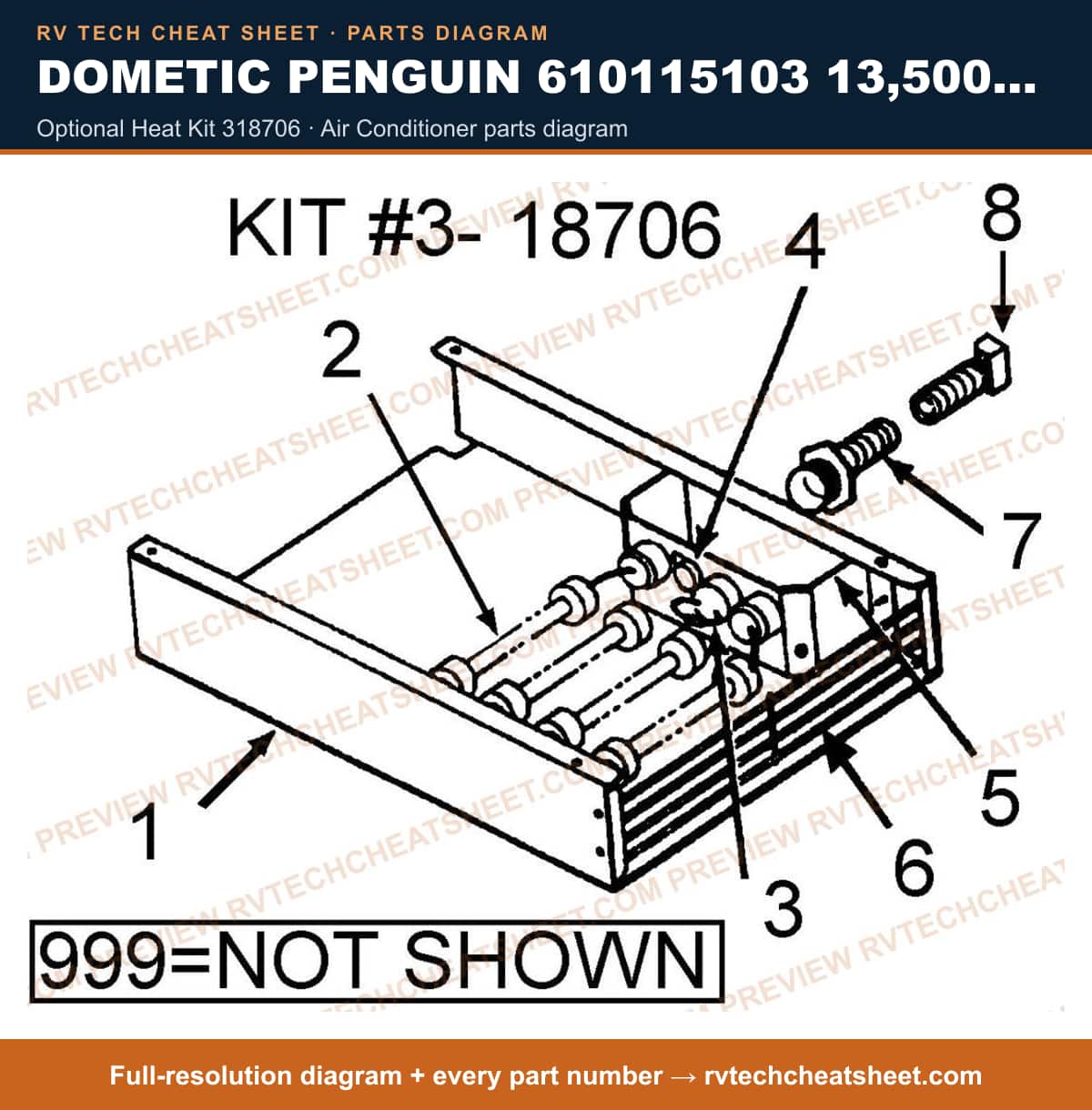

Optional Heat Kit 318706

Components

10 items

1. #APPLIANCE COMPONENTS RV; Heatshield/60 61 Heat Kit MFR # 3100264005
2. #HEAT STRIP,NON-DUCTED MFR # 3101121030
3. #ELEMENT,HEATING USE 3101121030 MFR # 318467 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
5. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
6. #APPLIANCE COMPONENTS RV; Bracket Element Mounting MFR # 3100263007
7. #GRILLE,HEATING ELEMENT CAE1 35001 RVA 60/E1 MFR # 3100269004
8. #CONDUIT MFR # 3100293012
9. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
10. #WIRE SET, WITH PLUG MFR # 3100220148
