Dometic Penguin 610115311C 13,500 BTU Parts Diagram · Opt. Electric Heat Kit

Air Conditioner · 4 assemblies · 4 diagram sheets · 112 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 610115311C 13,500 BTU rooftop air conditioner: 4 assemblies (Opt. Electric Heat Kit, Shroud & Main Components, Control Cable, Air Box Assembly And Component) and 112 manufacturer part numbers. 31 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Opt. Electric Heat Kit

Components

8 items

1. #ELECTRIC BOX MFR # 3101125007
2. #HEAT STRIP,NON-DUCTED MFR # 3101121030
3. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
4. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
6. #GUARD, HEAT MFR # 3101143
7. #CONDUIT MFR # 3100394075
8. #PLUG,MALE 3 POLE RVA 60 MFR # 314470

Shroud & Main Components

Components

68 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #BLOCKS, FOAM MFR # 3100587009
3. #SHROUD SHELL WHITE <S MFR # 3308046006
4. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
5. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
6. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
7. #COVER,EVAPORATOR MFR # 3102514803
8. #STRAIN RELIEF MFR # 31028025
9. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102985003
10. #APPLIANCE COMPONENTS RV; Compressor MFR # 3103426007
11. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
12. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
13. #BULKHEAD, COMPRESSOR MFR # 3102511015
14. #ADAPTER KIT,COMPRESSOR MFR # 3104306
15. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245418
16. #BUSHING, SNAP-IN MFR # 31028041
17. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
18. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
19. #PANEL, CAPACITOR (*,**) MFR # 3101627028
20. #LINE,SUCTION MFR # 3102986001
21. #GROMMET 3REQUIRED MFR # 3102324005
22. #SLEEVE,COMPT MOUNTING MFR # 3100239080
23. #Air Conditioner Compressor Mounting Hardware; Replacement For Duo-Therm 57915731/ 39335641/ 630515326C1 Air Conditioners; With Compressor Grommets/ Metal Sleeves/ Nuts MFR # 3311596000
24. #GROMMET, COMP.USE 3311596000 STAG# 49-9126 MFR # 3100238181 Superseded: see description
25. #SLEEVE,COMPRESSOR MFR # 3100239072
26. #SLEEVE,CMPRSR USE 3100239072 MFR # 3100239114 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590035
28. #WELDMENT,COMP. USE 3102590035 PLATE MDL600315.304 MFR # 3102987009 Superseded: see description
29. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
30. #INSULATION,EVAP.USE 3102516022 MFR # 3102516006 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
32. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3102512005
34. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
35. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
36. #PAN,DRAIN FOAM MFR # 3102513003
37. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 3104573005
38. #COIL,EVAP.USE 3104573005 620015.308 MFR # 3102533001 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
40. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
42. #ROOF A/C GASKET KIT MFR # 3310718006
43. #GASKET, GREY, 14 X 14 MFR # 6759A3281
44. #A/C SEAL, 14 X 14 WHITE MFR # A101414
45. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
46. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
47. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
48. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
49. #PLUG 4 POLE MFR # 314470005
50. #ANTI SHORT DEVICE MFR # 37760002
51. #CONDUIT,FLEX 579 MFR # 3100838006
52. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
53. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
54. #PTCR KIT MFR # 3310731009
55. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
56. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
57. #RELAY,START USE 3100876006 MFR # 3100878002 Superseded: see description
58. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248073
59. #CAPACITOR,RUN/FAN USE 46-2329 MFR # F8044 Superseded: see description
60. #GASKET,INSULATION EVAP MFR # 3102527011
61. #PLATE EVAP CLOSE- MFR # 3102512013
62. #PAN,DRAIN MFR # 3102967001
63. #COIL,EVAPORATOR MFR # 3102677006
64. #APPLIANCE COMPONENTS RV; Compressor Asm 600315 MFR # 3102864
65. #SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description
66. #SWITCH,OVERLOAD MFR # 3100250244
67. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102564014
68. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016

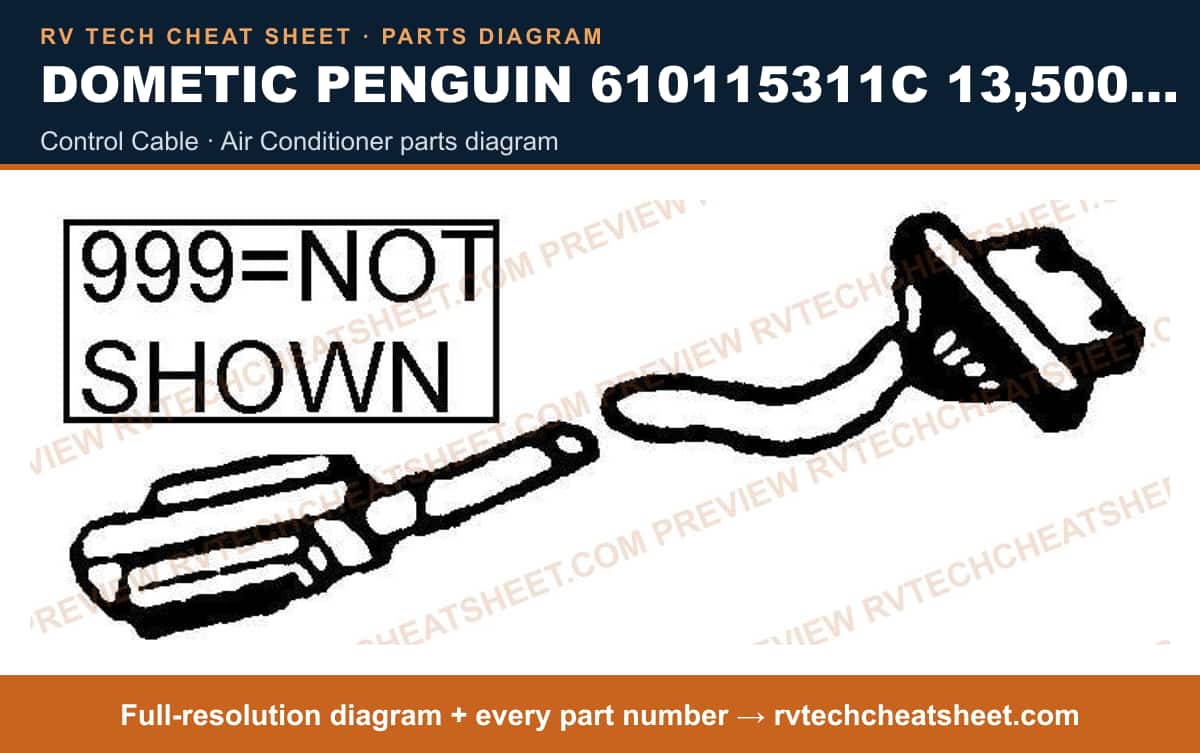

Control Cable

Components

3 items

1. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
2. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
3. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036

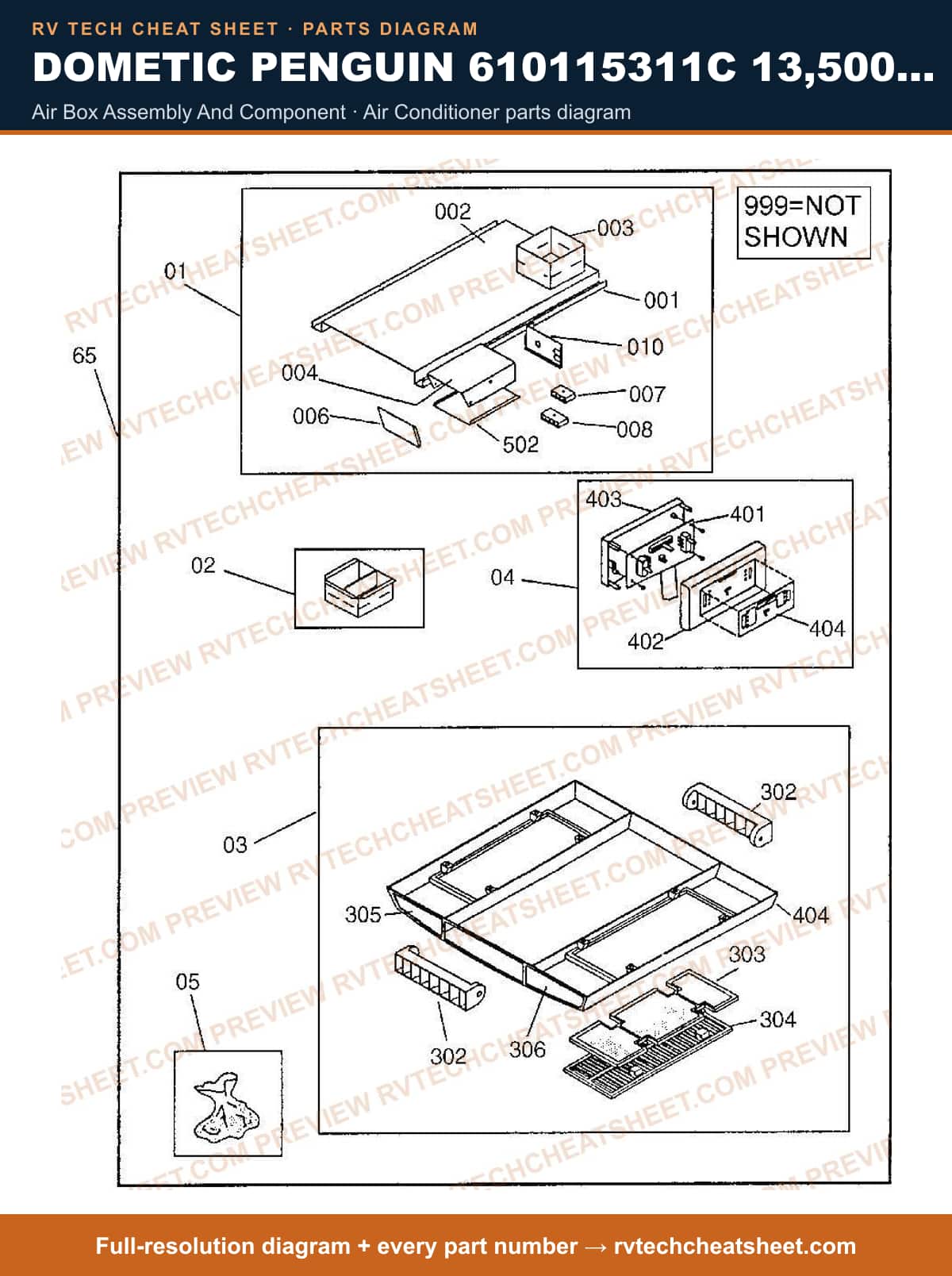

Air Box Assembly And Component

Components

33 items

1. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
3. #INSULATION,CEILING TEMPLATE MFR # 3107133005
4. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
5. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
6. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
7. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
8. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
9. #FOR MODELS 58915-301/302/601/602 59016503 610115305 NOT NORMALLY REQUIRED. ORDER INDIVIDUAL PARTS. T-STAT COMPLETE 3103187005. THE 6" ADAPTER CABL... MFR # 3103187005
10. #APPLIANCE COMPONENTS RV; Parts Bag Asm MFR # 3101582009
11. #BOX, FRONT MFR # 310027015
12. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
13. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
14. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
15. #APPLIANCE COMPONENTS RV; Airbox MFR # 318542016
16. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
17. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
18. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
19. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
20. #DECAL, LEFT SIDE SWITCH MFR # 3101395006
21. #DECAL, RIGHT SIDE MFR # 3101394006
22. #BOARD, CONTROL USE 3307713010 MFR # 3101625014 Superseded: see description
23. #COVER,T-STAT MFR # 3103809004
24. #APPLIANCE COMPONENTS RV; Base T-Stat 610 62001 MFR # 3103808006
25. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390023
26. #DECAL,T-STAT HEAT/COOL MFR # 3101838039
27. #DECAL,T-STAT USE 3101838039 MFR # 3101838013 Superseded: see description
28. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
29. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
30. #DECAL FIELD WIRING MFR # 3104417005
31. #BOLT,MOUNTING USE 3106756012 6.25&quot; LONG MFR # 3100375025 Superseded: see description
32. #DECAL FIELD WIRING MFR # 3103733006
33. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
