Dometic Penguin 610115311D 13,500 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 4 assemblies · 4 diagram sheets · 120 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 610115311D 13,500 BTU rooftop air conditioner: 4 assemblies (Shroud & Main Components, Opt. Electric Heat Kit, Air Box Assembly And Component, Control Cable) and 120 manufacturer part numbers. 34 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

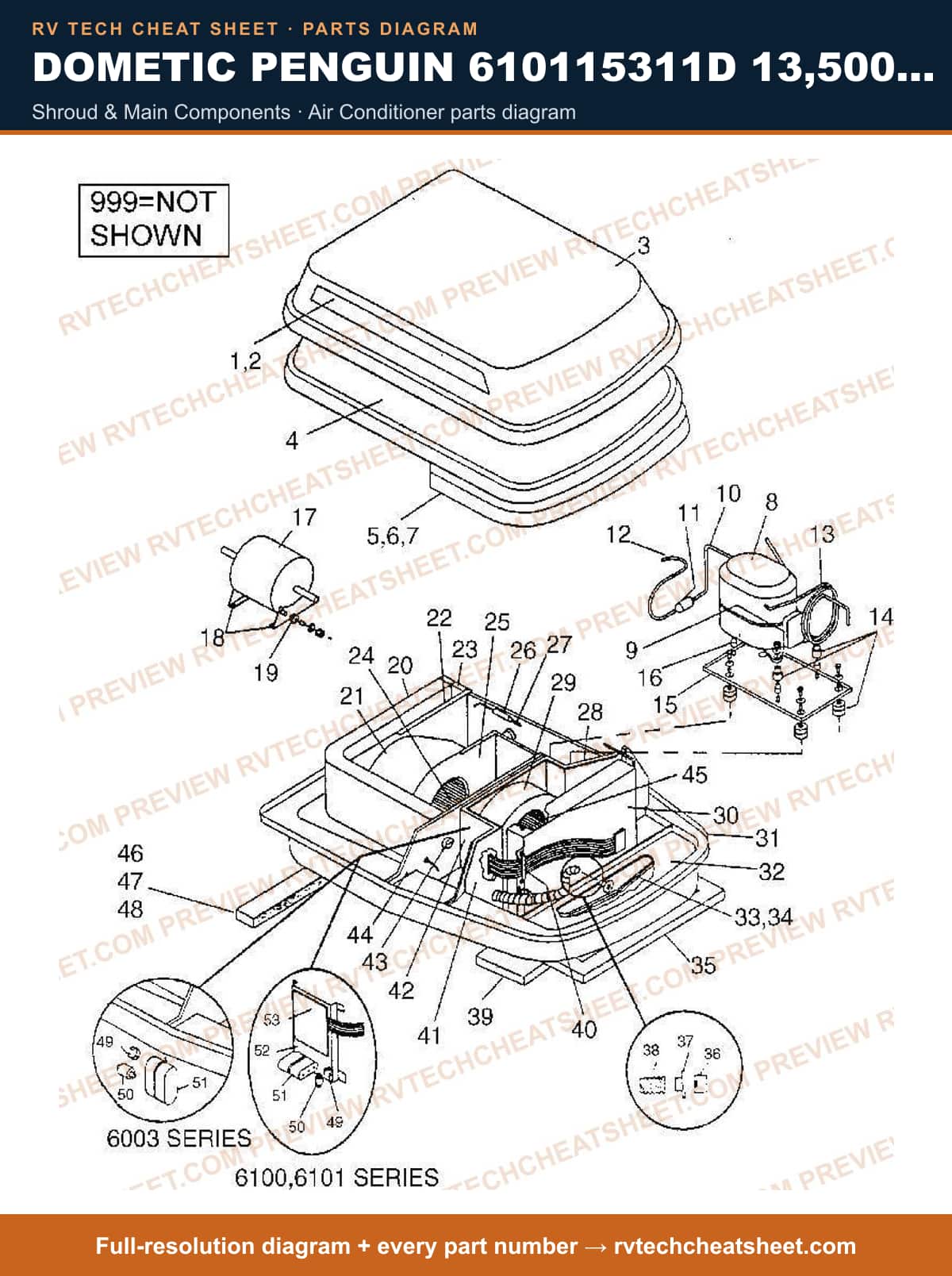

Shroud & Main Components

Components

77 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #SHROUD LESS DECALS(LIGHT GRAY) MFR # 302515032
3. #COVER,EVAPORATOR MFR # 3102514803
4. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102985003
5. #APPLIANCE COMPONENTS RV; Compressor MFR # 3101897019
6. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3102321001
7. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
8. #APPLIANCE COMPONENTS RV; Gasket Terminal MFR # 3102320003
9. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102618
10. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
11. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
12. #NUT,FLANGE MFR # 306342005
13. #NUT USE 306342005 MFR # 318295 Superseded: see description
14. #TUBE,CAPILLARY MFR # 3100245392
15. #BUSHING, SNAP-IN MFR # 31028041
16. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
17. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
18. #PANEL, CAPACITOR (*,**) MFR # 3101627028
19. #LINE,SUCTION MFR # 3102986001
20. #BULKHEAD, COMPRESSOR MFR # 3102511015
21. #SLEEVE,COMPT MOUNTING MFR # 3100239080
22. #GROMMET, COMPRESSOR, 4 REQUIRED MFR # 31W238181
23. #SLEEVE,COMPRESSOR MFR # 3100239072
24. #SLEEVE,CMPRSR USE 3100239072 MFR # 3100239114 Superseded: see description
25. #WELDMENT,COMP. USE 3102590035 PLATE MDL600315.304 MFR # 3102987009 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590035
27. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
28. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
30. #PLATE, EVAPORATOR, CLOSE OFF (SPLIT) MFR # 310251005
31. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
32. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
33. #PAN,DRAIN FOAM MFR # 3102513003
34. #COIL,EVAPORATOR MFR # 3102677006
35. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
36. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
37. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
38. #A/C SEAL, 14 X 14 WHITE MFR # A101414
39. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
40. #ROOF A/C GASKET KIT MFR # 3310718006
41. #GASKET, GREY, 14 X 14 MFR # 6759A3281
42. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
44. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
45. #ANTI SHORT DEVICE MFR # 37760002
46. #CONDUIT,FLEX 579 MFR # 3100838006
47. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
48. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
49. #PTCR KIT MFR # 3310731009
50. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
51. #RELAY,START USE 3100876006 MFR # 3100878002 Superseded: see description
52. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
53. #APPLIANCE COMPONENTS RV; Bulkhead Electrical Box MFR # 3102532029
54. #APPLIANCE COMPONENTS RV; Decal Field Wiring MFR # 3102899006
55. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
56. #STRAIN RELIEF MFR # 32994014
57. #BULKHEAD, EVAP. MFR # 3100254022
58. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
59. #GASKET, 16" X 1.5" MFR # 316462000
60. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
61. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
62. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
63. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
64. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3101467003
65. #BLOWER,SCROLL MFR # 3100260003
66. #BLOWER, SIDE/REAR MFR # 3100261001
67. #TAPE USE 3102669029 MFR # 3102669011 Superseded: see description
68. #TAPE, FOAM SOLD IN 63" PIECE MFR # 3102669052
69. #TAPE, FOAM USE 3102669052 SOLD IN 63" PIECE MFR # 3102669029 Superseded: see description
70. #TAPE,FOAM USE 3102669045 SOLD BY THE INCH MFR # 3102669003 Superseded: see description
71. #SERVICE KIT F/MOTOR MFR # 3310725001
72. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
73. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
74. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
75. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
76. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
77. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219

Opt. Electric Heat Kit

Components

11 items

1. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
2. #HEAT STRIP,NON-DUCTED MFR # 3101121030
3. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
8. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
9. #GUARD, HEAT MFR # 3101143
10. #ELECTRIC BOX MFR # 3101125007
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

Air Box Assembly And Component

Components

29 items

1. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
2. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
3. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
4. #INSULATION,CEILING TEMPLATE MFR # 3107133005
5. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
6. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
7. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
8. #FOR MODELS 58915-301/302/601/602 59016503 610115305 NOT NORMALLY REQUIRED. ORDER INDIVIDUAL PARTS. T-STAT COMPLETE 3103187005. THE 6" ADAPTER CABL... MFR # 3103187005
9. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
10. #APPLIANCE COMPONENTS RV; Parts Bag Asm MFR # 3101582009
11. #BOX, FRONT MFR # 310027015
12. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
13. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
14. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
15. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
16. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
17. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
18. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
19. #DECAL, LEFT SIDE SWITCH MFR # 3101395006
20. #DECAL, RIGHT SIDE MFR # 3101394006
21. #BOARD, CONTROL USE 3307713010 MFR # 3101625014 Superseded: see description
22. #COVER,T-STAT MFR # 3103809004
23. #APPLIANCE COMPONENTS RV; Base T-Stat 610 62001 MFR # 3103808006
24. #DECAL,T-STAT HEAT/COOL MFR # 3101838039
25. #DECAL,T-STAT USE 3101838039 MFR # 3101838013 Superseded: see description
26. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
27. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
28. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description

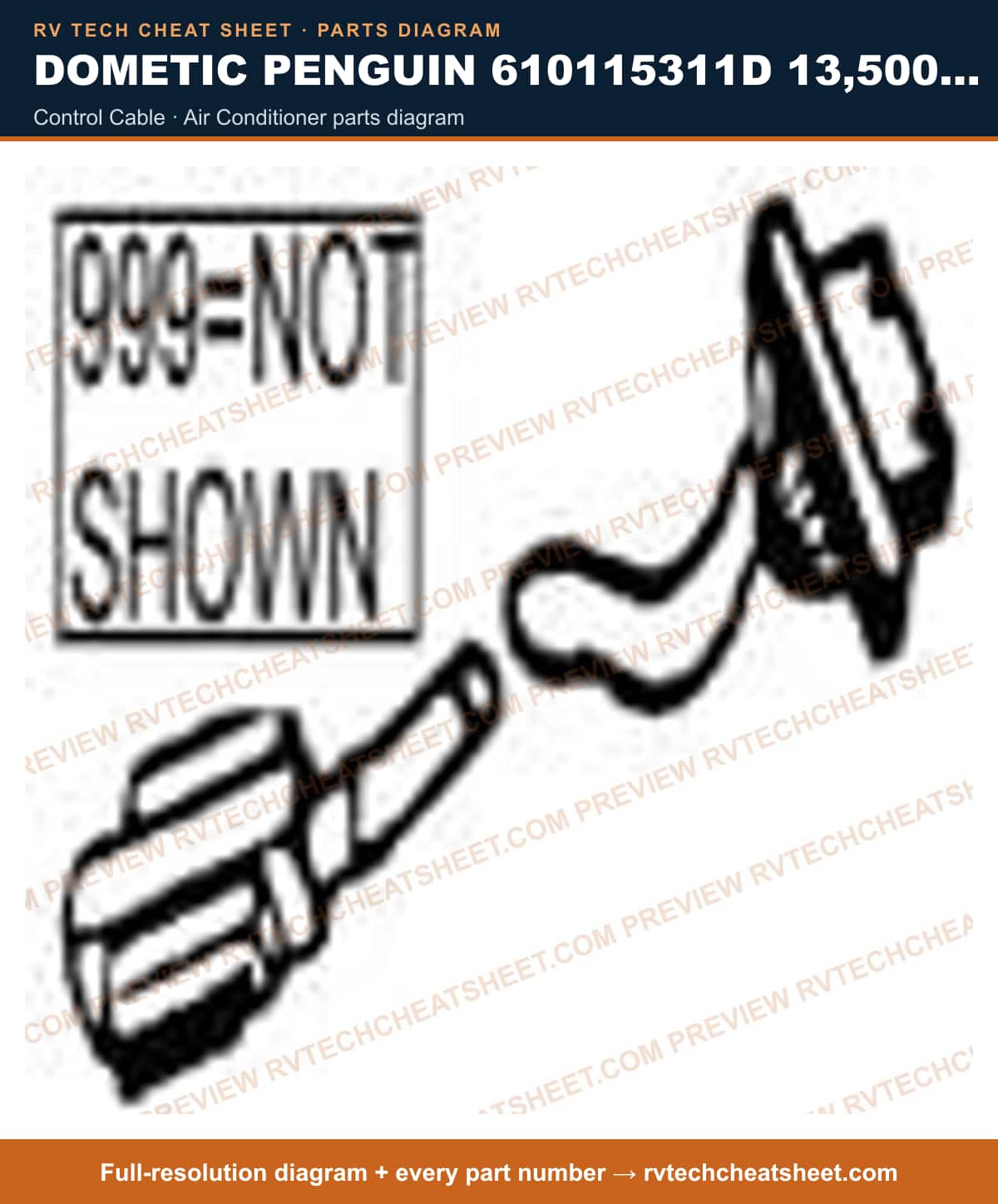

Control Cable

Components

3 items

1. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
2. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
3. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
