Dometic Penguin 610115312D 13,500 BTU Parts Diagram · Heater Accessory

Air Conditioner · 4 assemblies · 4 diagram sheets · 132 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 610115312D 13,500 BTU rooftop air conditioner: 4 assemblies (Heater Accessory, Shroud & Main Components, Cable Assembly, Air Box & Components Assembly) and 132 manufacturer part numbers. 38 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Heater Accessory

Components

9 items

1. #APPLIANCE COMPONENTS RV; Element Heating MFR # 3104615004
2. #APPLIANCE COMPONENTS RV; Switch Limit MFR # 3104613009
3. #SLEEVING MFR # 3100394083
4. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
5. #GUARD, HEAT MFR # 3101143
6. #ELECTRIC BOX MFR # 3101125007
7. #APPLIANCE COMPONENTS RV; Strain Relief MFR # 302994012
8. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
9. #HEAT STRIP,NON-DUCTED MFR # 3101121030

Shroud & Main Components

Components

89 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #BLOCKS, FOAM MFR # 3100587009
3. #SHROUD ASM USE 3308046022 GRAY MFR # 3107746020 Superseded: see description
4. #Air Conditioner Shroud; Replacement Shroud For Dometic Air Conditioners; Penguin Style; Grey MFR # 3308046022
5. #SHROUD,GRAY USE 3107746020 610015-405D MFR # 3102515032 Superseded: see description
6. #COVER,EVAPORATOR MFR # 3102514803
7. #STRAIN RELIEF MFR # 32994011
8. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102985003
9. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102984006
10. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
11. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
12. #BULKHEAD, COMPRESSOR MFR # 3102511023
13. #ADAPTER KIT,COMPRESSOR MFR # 3104306
14. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245418
15. #USHING, SNAP-IN MFR # 31028037
16. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
17. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
18. #PANEL,CAPACITOR MFR # 3104412006
19. #LINE,SUCTION MFR # 3102986001
20. #GROMMET 3REQUIRED MFR # 3102324005
21. #SLEEVE,COMPT MOUNTING MFR # 3100239080
22. #Air Conditioner Compressor Mounting Hardware; Replacement For Duo-Therm 57915731/ 39335641/ 630515326C1 Air Conditioners; With Compressor Grommets/ Metal Sleeves/ Nuts MFR # 3311596000
23. #GROMMET, COMP.USE 3311596000 STAG# 49-9126 MFR # 3100238181 Superseded: see description
24. #SLEEVE,COMPRESSOR MFR # 3100239072
25. #SLEEVE,CMPRSR USE 3100239072 MFR # 3100239114 Superseded: see description
26. #WELDMENT,COMP. USE 3102590035 PLATE MDL600315.304 MFR # 3102987009 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590035
28. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
29. #INSULATION, EVAP. BULKHEAD MFR # 3102516014
30. #PLATE EVAP CLOSE- MFR # 3102512013
31. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
32. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
33. #PAN,DRAIN MFR # 3102967001
34. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001
35. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 3104573005
36. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
37. #BRACKET, MTG. (LESS NUT) MFR # 3100297V
38. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
39. #GASKET, GREY, 14 X 14 MFR # 6759A3281
40. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
41. #ROOF A/C GASKET KIT MFR # 3310718006
42. #A/C SEAL, 14 X 14 WHITE MFR # A101414
43. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
44. #PLUG 4 POLE MFR # 314470005
45. #NUT,FLANGE USE 306342005 THREE ARE REQUIRED MFR # 36342002 Superseded: see description
46. #NUT,FLANGE MFR # 306342005
47. #CONDUIT MFR # 318087002
48. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
49. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
50. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
51. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
52. #PTCR KIT MFR # 3310731009
53. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248073
54. #CAPACITOR,RUN/FAN USE 46-2329 MFR # F8044 Superseded: see description
55. #APPLIANCE COMPONENTS RV; Bulkhead Electrical Box MFR # 3102532029
56. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
57. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
58. #APPLIANCE COMPONENTS RV; Board Cycle MFR # 3104855006
59. #DECAL, FIELD WIRING MFR # 3104876002
60. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
61. #STRAIN RELIEF (2 REQUIRED) MFR # 32994017
62. #BULKHEAD,EVAP. USE 3100254055 MFR # 3100254048 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3100254055
64. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
65. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
66. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
67. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
68. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
69. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3101467003
70. #BLOWER,SCROLL MFR # 3100260003
71. #BLOWER, SIDE/REAR MFR # 3100261001
72. #TAPE USE 3102669029 MFR # 3102669011 Superseded: see description
73. #TAPE, FOAM USE 3102669052 SOLD IN 63" PIECE MFR # 3102669029 Superseded: see description
74. #TAPE, FOAM SOLD IN 63" PIECE MFR # 3102669052
75. #TAPE,FOAM USE 3102669045 SOLD BY THE INCH MFR # 3102669003 Superseded: see description
76. #TAPE FOR SEAL USE 3102669052 69 INCHES MFR # 3102669045 Superseded: see description
77. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
78. #SERVICE KIT F/MOTOR MFR # 3310725001
79. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
80. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
81. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
82. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
83. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
84. #NUT, FLANGE MOTOR (4 REQ.) MFR # 36342003
85. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
86. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
87. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
88. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
89. #SPACER USE 308046002 MFR # 38046 Superseded: see description

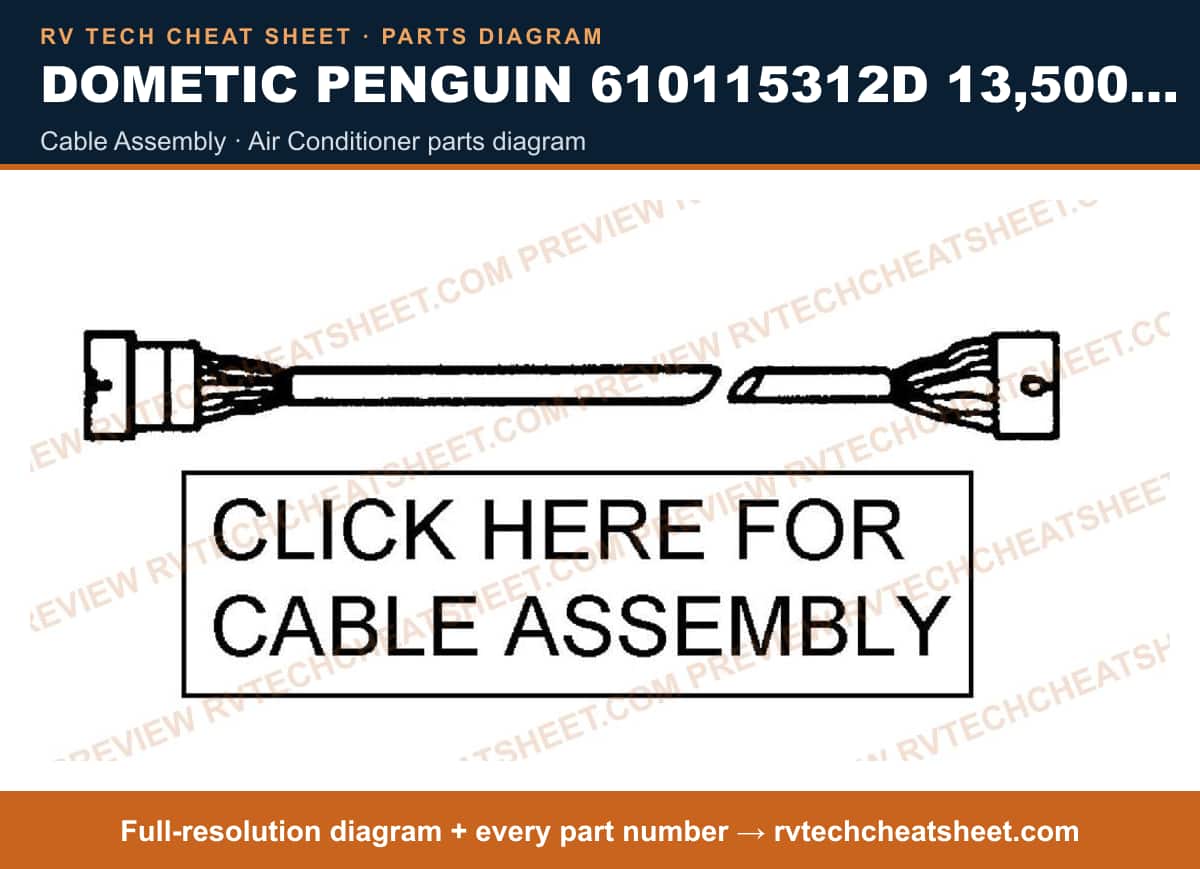

Cable Assembly

Components

3 items

1. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
2. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
3. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036

Air Box & Components Assembly

Components

32 items

1. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
2. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
3. #T-STAT,WALL USE 3105325009 MFR # 3104890003 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Shell Airbox Shell White MFR # 3101390056
5. #BOARD KIT MFR # 3108701339
6. #T-STAT USE 3108701339 WHITE MFR # 3105325009 Superseded: see description
7. #COVER,THERMOSTAT WHITE MFR # 3103809020
8. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
9. #INSULATION,CEILING TEMPLATE MFR # 3107133005
10. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
11. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
12. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
13. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
14. #BASE,T-STAT MFR # 3103808014
15. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
16. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
17. #DECAL, SELECTOR SWITCH ELECTRONIC COOLING GAS HEAT MFR # 3105317006
18. #DECAL, AIRBOX (LEFT SIDE) MFR # 3103816009
19. #BOX FRONT, RH MFR # 3100277015
20. #DECAL, PENGUIN (RIGHT SIDE) MFR # 3103815001
21. #PLUG, FEMALE MFR # 314471000
22. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
23. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704000
24. #TEMPLATE ASM, CEILING MFR # 318681007
25. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
26. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
28. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
29. #BOLT,A/C USE 3106756012 MFR # 3100375058 Superseded: see description
30. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
31. #BOX ASM., COMPLETE MFR # 3104896000
32. #DECAL, FIELD WIRING MFR # 3104876002
