Dometic Penguin 610115404 13,500 BTU Parts Diagram · Inst.pts W-tchpd Ctl Wall T-st

Air Conditioner · 4 assemblies · 4 diagram sheets · 151 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 610115404 13,500 BTU rooftop air conditioner: 4 assemblies (Inst.pts W-tchpd Ctl Wall T-st, Installation Parts, Opt. El. Ht Kt 3-101121-014, Shroud & Main Components) and 151 manufacturer part numbers. 49 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Inst.pts W-tchpd Ctl Wall T-st

Components

41 items

1. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
2. #3100262017 MFR # 3100262017
3. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
4. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
6. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
7. #INSULATION,CEILING TEMPLATE MFR # 3107133005
8. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
9. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
10. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
11. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
12. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
13. #BOX FRONT, RH MFR # 3100277015
14. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
15. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
16. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
17. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
18. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
19. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
20. #DECAL, LEFT SIDE SWITCH MFR # 3100999006
21. #DECAL,AIRBOX MFR # 318526
22. #PAD,TOUCH CTRL USE 3102957002 MFR # 3100390008 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Conversion Kit Use 330771 MFR # 3102957002 Superseded: see description
24. #PAD,TOUCH USE 3100390008 MFR # 318595 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
26. #BOX,TOUCH PAD MTG RVA 6100 MFR # 318675
27. #TSTAT W/RIBBON CABLE MFR # 20251D
28. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
29. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
31. #5/16 INCH BUTTON HEAD SCREW - 18 X 1 1/2 INCH MFR # 318721
32. #BASE,T-STAT MFR # 318751
33. #WIRE CONNECTOR 15 FT. (MUST HAVE 11 PINS) MFR # 318811001
34. #CABLE FOR A/C 25' MFR # 318811002
35. #CABLE,30' MFR # 318811003
36. #WIRING DECAL MFR # 3100997
37. #COMPLETE CEILING TEMPLATE ASM. MFR # 3101520009
38. #CEILING ASM USE 3101390049 MFR # 318523005 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Shell Airbox Shell White MFR # 3101390049
40. #COMPLETE PARTS PACKAGE 600- MFR # 318542006
41. #WIRING DECAL 610- MFR # 3100998008

Installation Parts

Components

43 items

1. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
2. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
3. #TEMPLATE USE 318542015 MFR # 3100265010 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Ceiling Asm MFR # 318542015
5. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
6. #INSULATION,CEILING TEMPLATE MFR # 3107133005
7. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
8. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
10. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
11. #APPLIANCE COMPONENTS RV; Back Box 600312/3115 MFR # 318704
12. #BOX FRONT, RH MFR # 3100277015
13. #Air Conditioner Power Supply Connector; For Dometic Ceiling Assembly Control Box MFR # 314471
14. #PLUG,FEMALE 4 POLE RVA 61 MFR # 314471004
15. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390023
16. #APPLIANCE COMPONENTS RV; Shell Airbox Shell Whit MFR # 3101390064
17. #N/A AIRBOX ASM MFR # 3101390032
18. #SHELL, AIRBOX USE 3101390064 SHELL WHITE MFR # 3101390031 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
20. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
21. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
22. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
23. #DECAL, LEFT SIDE SWITCH MFR # 3100999006
24. #DECAL,AIRBOX MFR # 318526
25. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
26. #PAD,TOUCH CTRL USE 3102957002 MFR # 3100390008 Superseded: see description
27. #PAD,TOUCH USE 3100390008 MFR # 318595 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Conversion Kit Use 330771 MFR # 3102957002 Superseded: see description
29. #TSTAT W/RIBBON CABLE MFR # 20251D
30. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
31. #BOLT,MOUNTING USE 3106756012 6.25" LONG MFR # 3100375025 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
33. #5/16 INCH BUTTON HEAD SCREW - 18 X 1 1/2 INCH MFR # 318721
34. #CABLE,30' MFR # 318811003
35. #CABLE FOR A/C 25' MFR # 318811002
36. #WIRE CONNECTOR 15 FT. (MUST HAVE 11 PINS) MFR # 318811001
37. #AIRBOX MDL# 610115.103 MFR # 318542009
38. #AIRBOX ASM USE 318542009 MFR # 318542013 Superseded: see description
39. #TEMPLATE USE 3105023000 MFR # 318681800 Superseded: see description
40. #WIRING DECAL MFR # 3101968
41. #WIRING DECAL 610- MFR # 3100998008
42. #AIRBOX,COMPLETE SHELL WHITE MFR # 3107206009
43. #AIRBOX,COMPLETE USE 3107206009 SHELL WHITE MFR # 3105023000 Superseded: see description

Opt. El. Ht Kt 3-101121-014

Components

11 items

1. #HEAT STRIP,NON-DUCTED MFR # 3101121030
2. #HEAT KIT USE 3101121030 MFR # 3101121022 Superseded: see description
3. #ELEMENT,HEAT USE 3101121022 MFR # 3101124 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Switch Auto Limit 130F MFR # 3101123002
5. #SLEEVING MFR # 3100394083
6. #PLUG,MALE 3 POLE RVA 60 MFR # 314470
7. #APPLIANCE COMPONENTS RV; Harness Wire Use 6223 MFR # 3101829004 Superseded: see description
8. #HARNESS,WIRE (250) SERVICE HEAT KIT MFR # 6223
9. #GUARD, HEAT MFR # 3101143
10. #ELECTRIC BOX MFR # 3101125007
11. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description

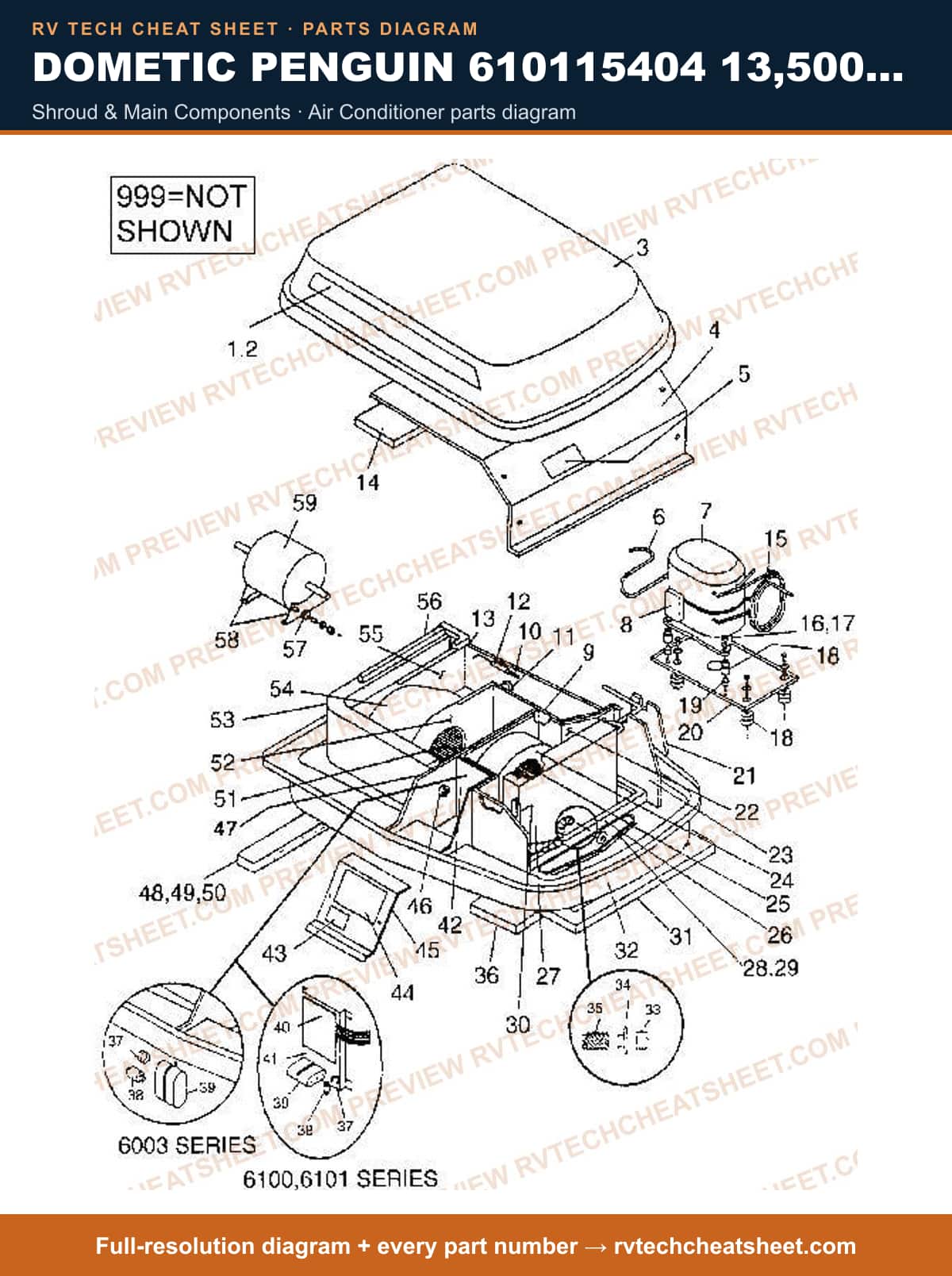

Shroud & Main Components

Components

89 items

1. #SHROUD SHELL WHITE <S MFR # 3308046006
2. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
4. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
5. #SHROUD ASM USE 3308046014 POLAR WHITE MFR # 3107746012 Superseded: see description
6. #SHROUD POLAR WHITE <S MFR # 3308046014
7. #SHROUD USE 3107746012 POLAR WHITE MFR # 3102515024 Superseded: see description
8. #COVER,EVAPORATOR MFR # 3102514803
9. #DECAL MFR # 316655
10. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102564014
11. #COMPRESSOR MFR # 3106430006
12. #COMPRESSOR USE 3106430006 MFR # 3102863002 Superseded: see description
13. #COMPRESSOR USE 3106430006 MFR # 3102592015 Superseded: see description
14. #COMPRESSOR *N* MFR # 31064630006
15. #SWITCH,OVERLOAD MFR # 3100250244
16. #SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3102511007
18. #TUBE,CAPILLARY .600 X 610 MFR # 3100245400
19. #USHING, SNAP-IN MFR # 31028037
20. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3101863003
21. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
22. #APPLIANCE COMPONENTS RV; Tube Copper MFR # 3102563016
23. #PLATE, COMPRESSOR, MTG. MFR # 3102593005
24. #SPRING MFR # 3102594003
25. #GROMMET 3REQUIRED MFR # 3102324005
26. #Air Conditioner Compressor Mounting Hardware; For Duo-Therm Air Conditioner Penguin Model 620525421; Compressor Mounting Sleeve MFR # 3100239098
27. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590019
28. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
29. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
30. #INSULATION,EVAP.USE 3102516022 MFR # 3102516006 Superseded: see description
31. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3102512005
33. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
34. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
35. #PAN,DRAIN FOAM MFR # 3102513003
36. #COIL,EVAP.USE 3104573005 620015.308 MFR # 3102533001 Superseded: see description
37. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 3104573005
38. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
39. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
40. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
41. #CABLE CLAMP MFR # 318273
42. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
43. #A/C SEAL, 14 X 14 WHITE MFR # A101414
44. #ROOF A/C GASKET KIT MFR # 3310718006
45. #GASKET, GREY, 14 X 14 MFR # 6759A3281
46. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
47. #PAN,BASE USE 3103179002 MFR # 3101885030 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
49. #PAN,BASE USE 3103179002 MFR # 3101885014 Superseded: see description
50. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
51. #ANTI SHORT DEVICE MFR # 37760002
52. #CONDUIT,FLEX 579 MFR # 3100838006
53. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
54. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
55. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
56. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
57. #PTCR KIT MFR # 3310731009
58. #RELAY USE 3100876022 PTCR DEVICE MFR # 3100878010 Superseded: see description
59. #APPLIANCE COMPONENTS RV; Relay MFR # 3100876022
60. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
61. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
62. #APPLIANCE COMPONENTS RV; Board Module MFR # 3101597007
63. #PANEL, ELECTRIC MFR # 3100282023
64. #BULKHEAD, ELECTRIC BOX MFR # 3102532003
65. #DECAL FOR AIR BOX CONTROL 39015.601/.602 MFR # 3100384001
66. #DECAL, FIELD WIRING MFR # 3101894008
67. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
68. #STRAIN RELIEF MFR # 32994014
69. #BULKHEAD, EVAP. MFR # 3100254022
70. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
71. #GASKET USE 3100286016 MFR # 316462 Superseded: see description
72. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
73. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
74. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
75. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3102449000 Superseded: see description
76. #BLOWER,SCROLL MFR # 3100260003
77. #BLOWER, SIDE/REAR MFR # 3100261001
78. #TAPE FOR SEAL USE 3102669052 69 INCHES MFR # 3102669045 Superseded: see description
79. #TAPE, FOAM SOLD IN 63&quot; PIECE MFR # 3102669052
80. #TAPE,FOAM USE 3102669045 SOLD BY THE INCH MFR # 3102669003 Superseded: see description
81. #SERVICE KIT F/MOTOR MFR # 3310725001
82. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
83. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
84. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
85. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
86. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
87. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
88. #APPLIANCE COMPONENTS RV; Quick Start Kit MFR # 3102903006
89. #QUICK START USE 3102903006 MFR # 3102903014 Superseded: see description
