Dometic Penguin 620012301D 11,000 BTU Parts Diagram · Cable Assembly

Air Conditioner · 4 assemblies · 4 diagram sheets · 117 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 620012301D 11,000 BTU rooftop air conditioner: 4 assemblies (Cable Assembly, Optional Cover Assembly, Optional Bracket Kit, Shroud & Main Components) and 117 manufacturer part numbers. 32 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

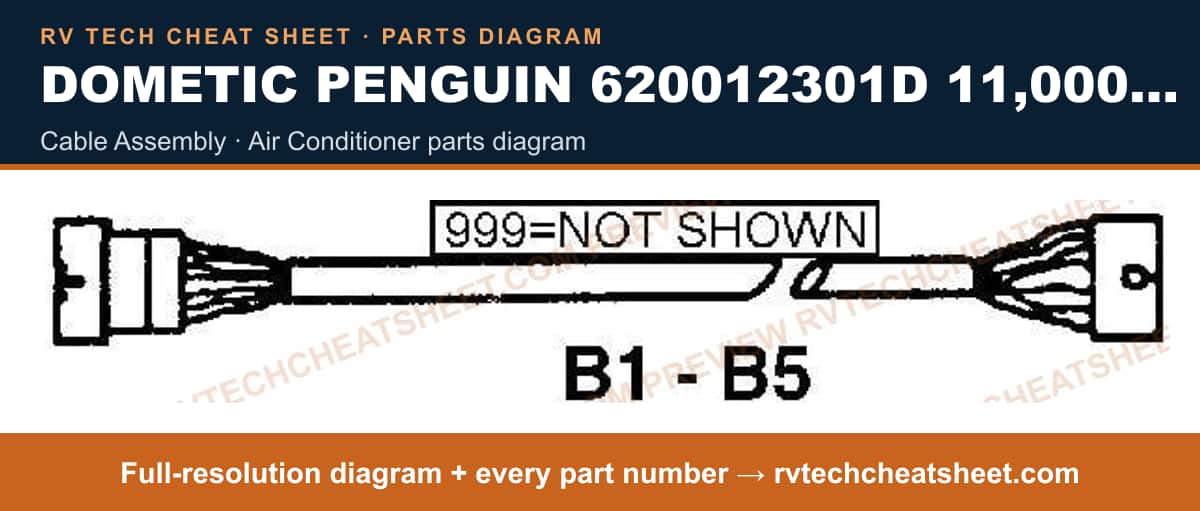

Cable Assembly

Components

7 items

1. #Air Conditioner Wiring Harness; Replacement For Dometic 589/ 590/ 620012/ 620015/ 620115/ 620215 Series Air Conditioners; 6 Inch Length; With Female Adapter MFR # 3102756024
2. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
3. #CABLE, ADAPTER 6" W/ MALE PLUGS MFR # 3102756040
4. #CABLE MFR # 3102757006
5. #CABLE 25' CARRIAGE 6200 12.301/620015.308 MFR # 3102757014
6. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
7. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036

Optional Cover Assembly

Components

18 items

1. #GRILLE ASM PACKAGE POLAR WHITE MFR # 3103791012
2. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
3. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
4. #FILTER RETURN AIR(UNIVER MFR # 3108015003
5. #ATTACHMENT TAPE GREY-EACH MFR # 06384
6. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
7. #KIT SVC AIR FILTER MFR # 3313107103
8. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
9. #TEMPLATE,CEILING MFR # 3103772004
10. #INSULATION, FOAM 7 X 18 X 1/4"THICK MFR # DMT3105014.009
11. #INSULATION,FOAM USE 3105014009 5 X 16 X 1/4"THICK MFR # 3103581009 Superseded: see description
12. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
13. #GRILLE ASM USE 3105007011 MFR # 3103636019 Superseded: see description
14. #GRILLE ASM,GREY MFR # 3103791038
15. #GRILLE USE 3105007011 SHELL WHITE MFR # 3103636027 Superseded: see description
16. #GRILLE ASM,GRAY MFR # 3103636035
17. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
18. #GRILLE ASM USE 3105007003 SHELL WHITE MFR # 3103791020 Superseded: see description

Optional Bracket Kit

Components

6 items

1. #BRACKET TIE-DOWN MFR # 3103680009
2. #ROD, ALL THREAD (2 REQUIRED) MFR # 3100628035
3. #SCREW, .25-14X1 (8 REQUIRED) MFR # 37879024
4. #WASHER (4 REQUIRED) MFR # 39513019
5. #NUT & LOCKWASHER (2 REQUIRED) MFR # 311260004
6. #BRACKET KIT, TIE-DOWN MFR # 3103682005

Shroud & Main Components

Components

86 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
3. #SHROUD SHELL WHITE <S MFR # 3308046006
4. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
6. #COVER,EVAPORATOR MFR # 3102514803
7. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102985003
8. #APPLIANCE COMPONENTS RV; Compressor MFR # 3103402024
9. #APPLIANCE COMPONENTS RV; Cover Terminal MFR # 3102321001
10. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102618
11. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008
12. #APPLIANCE COMPONENTS RV; Gasket Terminal MFR # 3102320003
13. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250210
14. #NUT,FLANGE MFR # 306342005
15. #LINE,SUCTION MFR # 3102986001
16. #GROMMET 3REQUIRED MFR # 3102324005
17. #SLEEVE,COMPT MOUNTING MFR # 3100239080
18. #Air Conditioner Compressor Mounting Hardware; Replacement For Duo-Therm 57915731/ 39335641/ 630515326C1 Air Conditioners; With Compressor Grommets/ Metal Sleeves/ Nuts MFR # 3311596000
19. #GROMMET, COMP.USE 3311596000 STAG# 49-9126 MFR # 3100238181 Superseded: see description
20. #SLEEVE,CMPRSR USE 3100239072 MFR # 3100239114 Superseded: see description
21. #SLEEVE,COMPRESSOR MFR # 3100239072
22. #PLATE, COMPRESSOR MTG. MFR # 3102591017
23. #BULKHEAD, COMPRESSOR MFR # 3102511023
24. #TUBE,CAPILLARY MFR # 3100245392
25. #USHING, SNAP-IN MFR # 31028037
26. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
27. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
28. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
29. #SCREW,SHROUD USE 313685001 MFR # 313685002 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001
31. #INSULATION, EVAP. BULKHEAD MFR # 3102516014
32. #PLATE EVAP CLOSE- MFR # 3102512013
33. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
34. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
35. #PAN,DRAIN MFR # 3102967001
36. #COIL,EVAPORATOR MFR # 3102677006
37. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
38. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
39. #ROOF A/C GASKET KIT MFR # 3310718006
40. #GASKET, GREY, 14 X 14 MFR # 6759A3281
41. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
42. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
43. #A/C SEAL, 14 X 14 WHITE MFR # A101414
44. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
45. #NUT, FLANGE MOTOR (4 REQ.) MFR # 36342003
46. #RELIEF,STRAIN USE 302994012 MFR # 32994012 Superseded: see description
47. #CONDUIT MFR # 318087002
48. #BLOCKS, FOAM MFR # 3100587009
49. #APPLIANCE COMPONENTS RV; Bulkhead Electrical Box MFR # 3102532029
50. #STRAIN RELIEF (2 REQUIRED) MFR # 32994017
51. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
52. #DECAL, FIELD WRING MFR # 3104878008
53. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
54. #APPLIANCE COMPONENTS RV; Board Cycle MFR # 3104855006
55. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
56. #NUT,FLANGE USE 306342005 THREE ARE REQUIRED MFR # 36342002 Superseded: see description
57. #PANEL,CAPACITOR MFR # 3104412006
58. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248362
59. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
60. #PTCR KIT MFR # 3310731009
61. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
62. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
63. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
64. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
65. #BULKHEAD,EVAP. USE 3100254055 MFR # 3100254048 Superseded: see description
66. #APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3100254055
67. #BLOWER,SCROLL MFR # 3100260003
68. #BLOWER, SIDE/REAR MFR # 3100261001
69. #TAPE, FOAM SOLD IN 63&quot; PIECE MFR # 3102669052
70. #TAPE,FOAM USE 3102669045 SOLD BY THE INCH MFR # 3102669003 Superseded: see description
71. #TAPE FOR SEAL USE 3102669052 69 INCHES MFR # 3102669045 Superseded: see description
72. #TAPE USE 3102669029 MFR # 3102669011 Superseded: see description
73. #TAPE, FOAM USE 3102669052 SOLD IN 63&quot; PIECE MFR # 3102669029 Superseded: see description
74. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
75. #SERVICE KIT F/MOTOR MFR # 3310725001
76. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
77. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
78. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
79. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
80. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3101467003
81. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
82. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
83. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
84. #SWITCH,LOW TEMP MFR # 3104411008
85. #SPACER,MOTOR USE3310725001 OR STAG# 49-8471 MFR # 308046002
86. #SPACER USE 308046002 MFR # 38046 Superseded: see description
