Dometic Penguin 620015306C 13,500 BTU Parts Diagram · Shroud & Main Components

Air Conditioner · 2 assemblies · 2 diagram sheets · 34 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 620015306C 13,500 BTU rooftop air conditioner: 2 assemblies (Shroud & Main Components, Mounting Parts & Accessories) and 34 manufacturer part numbers. 11 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

34 items

1. #LOWER DUCT CONNECTOR MFR # 3101026007
2. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
3. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
4. #COVER, JUNCTION BOX MFR # 3101024002
5. #BRACKET TIE DOWN (4 REQUIRED) MFR # 3101025009
6. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
7. #BOARD, CONTROL USE 3307713010 MFR # 3101625014 Superseded: see description
8. #BOARD,CONTROL USE 3101625014 MFR # 3101625006 Superseded: see description
9. #COVER,T-STAT MFR # 3103809004
10. #APPLIANCE COMPONENTS RV; Base T-Stat 610 62001 MFR # 3103808006
11. #DECAL,T-STAT NO HEAT 5891 5.602/603 MFR # 3101838021
12. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
13. #MOUNTING BOLTS (4 REQUIRED) MFR # 3100628027
14. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
15. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
16. #CABLE MFR # 3102757006
17. #CABLE 25' CARRIAGE 6200 12.301/620015.308 MFR # 3102757014
18. #CABLE, ADAPTER 6" W/ MALE PLUGS MFR # 3102756040
19. #Air Conditioner Wiring Harness; Replacement For Dometic 589/ 590/ 620012/ 620015/ 620115/ 620215 Series Air Conditioners; 6 Inch Length; With Female Adapter MFR # 3102756024
20. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
21. #BOX,JUNCTION MFR # 3101023004
22. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
23. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
24. #GRILLE,RETURN USE 3105007003 MFR # 3101639007 Superseded: see description
25. #FILTER,AIR USE 3103573006 MFR # 3101639015 Superseded: see description
26. #ATTACHMENT TAPE GREY-EACH MFR # 06384
27. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
28. #FILTER RETURN AIR(UNIVER MFR # 3108015003
29. #KIT SVC AIR FILTER MFR # 3313107103
30. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
31. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
32. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
33. #PACKAGE PARTS ASM 6200 15-405 MFR # 3102711011
34. #FOR MODELS 58915-301/302/601/602 59016503 610115305 NOT NORMALLY REQUIRED. ORDER INDIVIDUAL PARTS. T-STAT COMPLETE 3103187005. THE 6" ADAPTER CABL... MFR # 3103187005

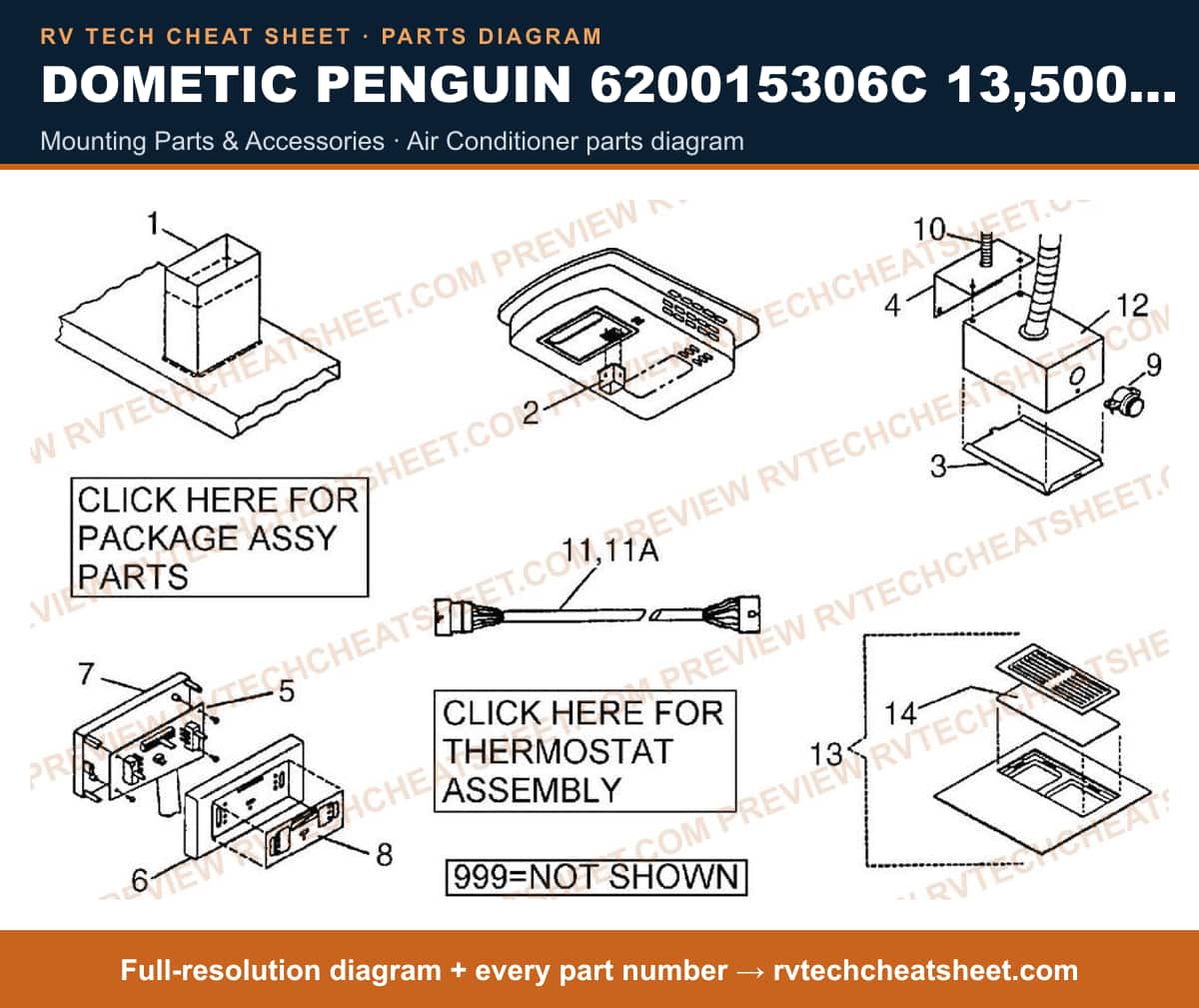

Mounting Parts & Accessories

Components

34 items

1. #LOWER DUCT CONNECTOR MFR # 3101026007
2. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
3. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
4. #COVER, JUNCTION BOX MFR # 3101024002
5. #BRACKET TIE DOWN (4 REQUIRED) MFR # 3101025009
6. #BOARD, CONTROL USE 3307713010 MFR # 3101625014 Superseded: see description
7. #BOARD,CONTROL USE 3101625014 MFR # 3101625006 Superseded: see description
8. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
9. #COVER,T-STAT MFR # 3103809004
10. #APPLIANCE COMPONENTS RV; Base T-Stat 610 62001 MFR # 3103808006
11. #DECAL,T-STAT NO HEAT 5891 5.602/603 MFR # 3101838021
12. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
13. #MOUNTING BOLTS (4 REQUIRED) MFR # 3100628027
14. #CABLE 25' CARRIAGE 6200 12.301/620015.308 MFR # 3102757014
15. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
16. #Air Conditioner Wiring Harness; Replacement For Dometic 589/ 590/ 620012/ 620015/ 620115/ 620215 Series Air Conditioners; 6 Inch Length; With Female Adapter MFR # 3102756024
17. #CABLE, ADAPTER 6" W/ MALE PLUGS MFR # 3102756040
18. #CABLE MFR # 3102757006
19. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
20. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
21. #BOX,JUNCTION MFR # 3101023004
22. #GRILLE,RETURN USE 3105007003 MFR # 3101639007 Superseded: see description
23. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
24. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
25. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
26. #FILTER RETURN AIR(UNIVER MFR # 3108015003
27. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
28. #ATTACHMENT TAPE GREY-EACH MFR # 06384
29. #FILTER,AIR USE 3103573006 MFR # 3101639015 Superseded: see description
30. #KIT SVC AIR FILTER MFR # 3313107103
31. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
32. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
33. #PACKAGE PARTS ASM 6200 15-405 MFR # 3102711011
34. #FOR MODELS 58915-301/302/601/602 59016503 610115305 NOT NORMALLY REQUIRED. ORDER INDIVIDUAL PARTS. T-STAT COMPLETE 3103187005. THE 6" ADAPTER CABL... MFR # 3103187005
