Dometic Penguin 620015406C 13,500 BTU Parts Diagram · Mounting Parts & Accessories

Air Conditioner · 2 assemblies · 2 diagram sheets · 117 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 620015406C 13,500 BTU rooftop air conditioner: 2 assemblies (Mounting Parts & Accessories, Shroud And Main Components) and 117 manufacturer part numbers. 38 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Mounting Parts & Accessories

Components

32 items

1. #LOWER DUCT CONNECTOR MFR # 3101026007
2. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
3. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
4. #COVER, JUNCTION BOX MFR # 3101024002
5. #BRACKET TIE DOWN (4 REQUIRED) MFR # 3101025009
6. #BOARD, CONTROL USE 3307713010 MFR # 3101625014 Superseded: see description
7. #BOARD,CONTROL USE 3101625014 MFR # 3101625006 Superseded: see description
8. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
9. #COVER,T-STAT MFR # 3103809004
10. #APPLIANCE COMPONENTS RV; Base T-Stat 610 62001 MFR # 3103808006
11. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
12. #MOUNTING BOLTS (4 REQUIRED) MFR # 3100628027
13. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
14. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
15. #BOX,JUNCTION MFR # 3101023004
16. #CABLE 25' CARRIAGE 6200 12.301/620015.308 MFR # 3102757014
17. #CABLE, ADAPTER 6" W/ MALE PLUGS MFR # 3102756040
18. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
19. #Air Conditioner Wiring Harness; Replacement For Dometic 589/ 590/ 620012/ 620015/ 620115/ 620215 Series Air Conditioners; 6 Inch Length; With Female Adapter MFR # 3102756024
20. #CABLE MFR # 3102757006
21. #GRILLE,RETURN USE 3105007003 MFR # 3101639007 Superseded: see description
22. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
23. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
24. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
25. #FILTER RETURN AIR(UNIVER MFR # 3108015003
26. #FILTER,AIR USE 3103573006 MFR # 3101639015 Superseded: see description
27. #KIT SVC AIR FILTER MFR # 3313107103
28. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
29. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
30. #ATTACHMENT TAPE GREY-EACH MFR # 06384
31. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
32. #PACKAGE PARTS ASM 6200 15-405 MFR # 3102711011

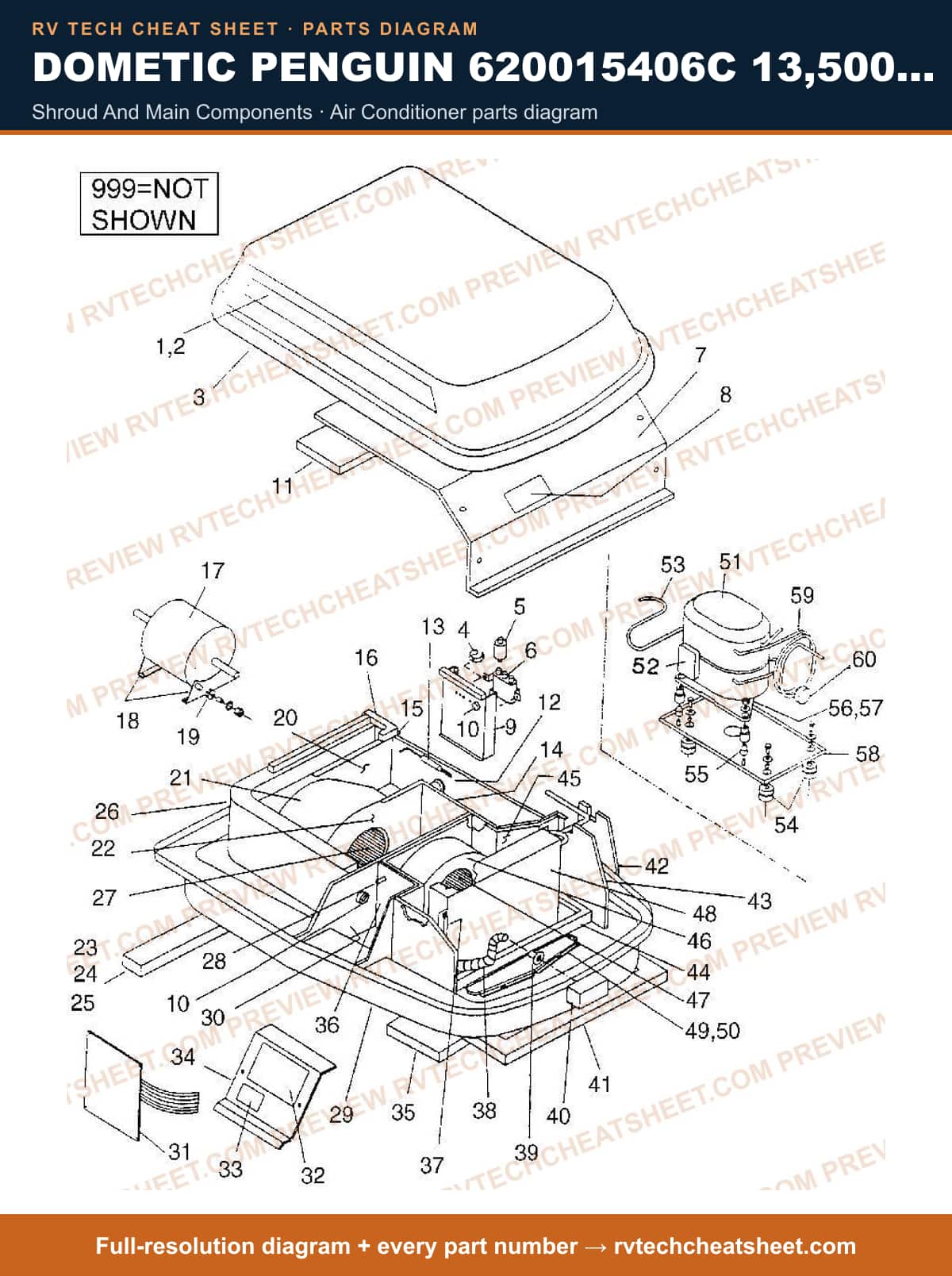

Shroud And Main Components

Components

87 items

1. #Air Conditioner Shroud; Replacement Shroud For Dometic Air Conditioners; Penguin Style; Grey MFR # 3308046022
2. #SHROUD,GRAY USE 3107746020 610015-405D MFR # 3102515032 Superseded: see description
3. #SHROUD,OUTER USE 3102515032 610015-405 MFR # 3102515016 Superseded: see description
4. #SHROUD ASM USE 3308046022 GRAY MFR # 3107746020 Superseded: see description
5. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
6. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
7. #PTCR KIT MFR # 3310731009
8. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
9. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248339
10. #CAPACITOR,RUN/FAN DUO 579.7/58915.305/55908.00 MFR # F8046
11. #COVER,EVAPORATOR MFR # 3102514803
12. #DECAL MFR # 316655
13. #PANEL, CAPACITOR (*,**) MFR # 3101627028
14. #STRAIN RELIEF MFR # 31028025
15. #TUBE,CAPILLARY .600 X 610 MFR # 3100245400
16. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3101863003
17. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3102511007
18. #TAPE,FOAM USE 3102669045 SOLD BY THE INCH MFR # 3102669003 Superseded: see description
19. #TAPE, FOAM SOLD IN 63" PIECE MFR # 3102669052
20. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
21. #MOTOR,FAN USE 3108702372 MFR # 3104413004 Superseded: see description
22. #MOTOR KIT W/CAP&BRKT MFR # 3108706924
23. #TAPE FOR SEAL USE 3102669052 69 INCHES MFR # 3102669045 Superseded: see description
24. #MOTOR KIT USE 3108706924 W/ CAP AND BRACKETS MFR # 3108702372 Superseded: see description
25. #MOTOR,FAN USE 3108702372 MFR # 3100991003 Superseded: see description
26. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
28. #SERVICE KIT F/MOTOR MFR # 3310725001
29. #BLOWER, SIDE/REAR MFR # 3100261001
30. #BLOWER,SCROLL MFR # 3100260003
31. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
32. #GASKET USE 3100286016 MFR # 316462 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
34. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3102449000 Superseded: see description
35. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
36. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33101800 MFR # 3100386006 Superseded: see description
37. #SUPPORT, PC BOARD (3 REQ.) MFR # 3101623001
38. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
39. #PAN,BASE USE 3103179002 MFR # 3101885030 Superseded: see description
40. #BULKHEAD, EVAPORATOR MFR # 3100254030
41. #BOARD,PC MAIN USE 3104233006 MFR # 3104232008 Superseded: see description
42. #BOARD,MODULE USE 3104233006 MFR # 3101626004 Superseded: see description
43. #BOARD, CIRCUIT USE 3307713010 MFR # 3104233006 Superseded: see description
44. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
45. #DECAL, WIRING MFR # 3103130005
46. #DECAL, WIRING MFR # 3103732008
47. #DECAL FOR AIR BOX CONTROL 39015.601/.602 MFR # 3100384001
48. #APPLIANCE COMPONENTS RV; Cover Electrical MFR # 3102510009
49. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
50. #APPLIANCE COMPONENTS RV; Bulkhead Electrical Box MFR # 3102532029
51. #CLAMP MFR # 318723
52. #CONDUIT 6100* MFR # 3100838022
53. #ANTI SHORT DEVICE MFR # 37760002
54. #BOX,JUNCTION MFR # 3101023004
55. #ROOF A/C GASKET KIT MFR # 3310718006
56. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
57. #GASKET, GREY, 14 X 14 MFR # 6759A3281
58. #A/C SEAL, 14 X 14 WHITE MFR # A101414
59. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
60. #GASKET,INSULATION EVAP MFR # 3102527011
61. #PLATE EVAP CLOSE- MFR # 3102512013
62. #PAN,DRAIN MFR # 3102967001
63. #INSULATION,EVAP.USE 3102516022 MFR # 3102516006 Superseded: see description
64. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
65. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
66. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
67. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
68. #COIL,EVAP.USE 3104573005 620015.308 MFR # 3102533001 Superseded: see description
69. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 3104573005
70. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
71. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
72. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
73. #COMPRESSOR MFR # 3106430006
74. #COMPRESSOR *N* MFR # 31064630006
75. #COMPRESSOR USE 3106430006 MFR # 3102863002 Superseded: see description
76. #SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description
77. #SWITCH,OVERLOAD MFR # 3100250244
78. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102564014
79. #GROMMET 3REQUIRED MFR # 3102324005
80. #Air Conditioner Compressor Mounting Hardware; For Duo-Therm Air Conditioner Penguin Model 620525421; Compressor Mounting Sleeve MFR # 3100239098
81. #PLATE, COMPRESSOR, MTG. MFR # 3102593005
82. #SPRING MFR # 3102594003
83. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590019
84. #APPLIANCE COMPONENTS RV; Tube Copper MFR # 3102563016
85. #FREEZE UP KIT MFR # 3104322007
86. #CONTROL,CLIMATE USE 3104322007 MFR # 3103770008 Superseded: see description
87. #Air Conditioner Capacitor; Start Capacitor; 88 To 106 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 4-3/8 Inch Height; Black MFR # 3100236219
