Dometic Penguin 620115301B 13,500 BTU Parts Diagram · Opt. Grille Assembly

Air Conditioner · 6 assemblies · 6 diagram sheets · 118 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 620115301B 13,500 BTU rooftop air conditioner: 6 assemblies (Opt. Grille Assembly, Opt. T-stat Cable Assy, Opt. Bracket Kit, Shroud & Main Components, Opt. Cover Assembly and more) and 118 manufacturer part numbers. 40 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Opt. Grille Assembly

Components

11 items

1. #APPLIANCE COMPONENTS RV; GRILLE, RETURN AIR SHELL MFR # 3105007037
2. #GRILLE,RETURN USE 3105007003 MFR # 3101639007 Superseded: see description
3. #GRILLE,RTRN AIR USE 3105007037 SHELL WHITE MFR # 3105007003 Superseded: see description
4. #KIT SVC AIR FILTER MFR # 3313107103
5. #FILTER RETURN AIR(UNIVER MFR # 3108015003
6. #FILTER,AIR USE 3103573006 MFR # 3101639015 Superseded: see description
7. #ATTACHMENT TAPE GREY-EACH MFR # 06384
8. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
9. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
10. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
11. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description

Opt. T-stat Cable Assy

Components

7 items

1. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 30 Foot Length MFR # 3101632036
2. #APPLIANCE COMPONENTS RV; Cable 25' Use 3101632036 MFR # 3101632028 Superseded: see description
3. #CABLE MFR # 3102757006
4. #Air Conditioner Wiring Harness; For Penguin Roof Mount Air Conditioner; 15 Foot Length MFR # 3101632010
5. #Air Conditioner Wiring Harness; Replacement For Dometic 589/ 590/ 620012/ 620015/ 620115/ 620215 Series Air Conditioners; 6 Inch Length; With Female Adapter MFR # 3102756024
6. #CABLE, ADAPTER 6" W/ MALE PLUGS MFR # 3102756040
7. #CABLE 25' CARRIAGE 6200 12.301/620015.308 MFR # 3102757014

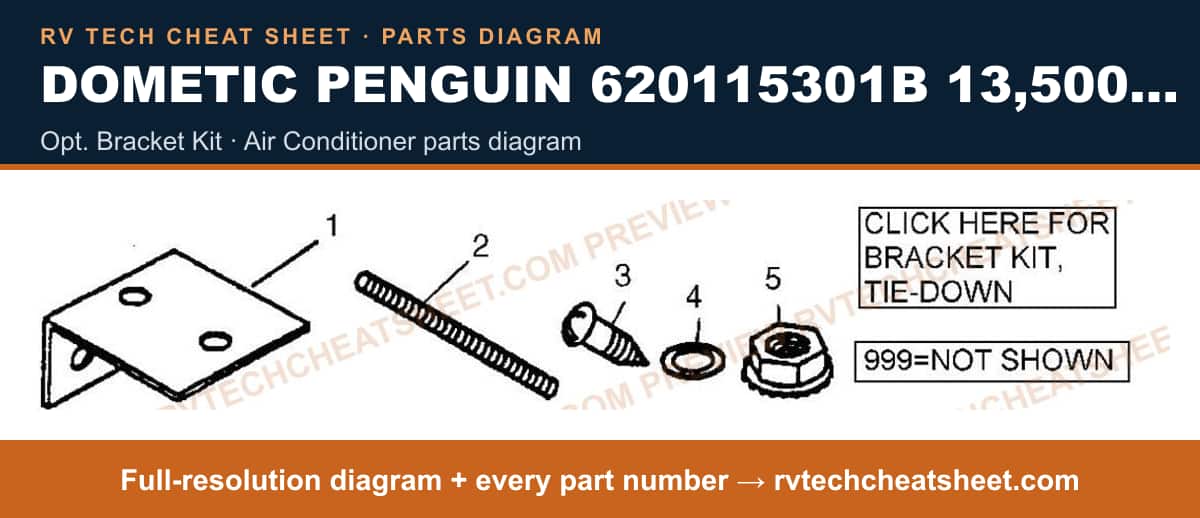

Opt. Bracket Kit

Components

6 items

1. #BRACKET TIE-DOWN MFR # 3103680009
2. #ROD, ALL THREAD (2 REQUIRED) MFR # 3100628035
3. #SCREW, .25-14X1 (8 REQUIRED) MFR # 37879024
4. #WASHER (4 REQUIRED) MFR # 39513019
5. #NUT & LOCKWASHER (2 REQUIRED) MFR # 311260004
6. #BRACKET KIT, TIE-DOWN MFR # 3103682005

Shroud & Main Components

Components

68 items

1. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
2. #BLOCKS, FOAM MFR # 3100587009
3. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
4. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
6. #SHROUD SHELL WHITE <S MFR # 3308046006
7. #COVER,EVAPORATOR MFR # 3102514803
8. #STRAIN RELIEF MFR # 31028025
9. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102985003
10. #APPLIANCE COMPONENTS RV; Compressor MFR # 3103426007
11. #OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description
12. #PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description
13. #BULKHEAD, COMPRESSOR MFR # 3102511015
14. #APPLIANCE COMPONENTS RV; Tube Cap MFR # 3100245418
15. #ADAPTER KIT,COMPRESSOR MFR # 3104306
16. #BUSHING, SNAP-IN MFR # 31028041
17. #APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006
18. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
19. #PANEL, CAPACITOR (*,**) MFR # 3101627028
20. #LINE,SUCTION MFR # 3102986001
21. #GROMMET 3REQUIRED MFR # 3102324005
22. #SLEEVE,COMPT MOUNTING MFR # 3100239080
23. #Air Conditioner Compressor Mounting Hardware; Replacement For Duo-Therm 57915731/ 39335641/ 630515326C1 Air Conditioners; With Compressor Grommets/ Metal Sleeves/ Nuts MFR # 3311596000
24. #GROMMET, COMP.USE 3311596000 STAG# 49-9126 MFR # 3100238181 Superseded: see description
25. #SLEEVE,CMPRSR USE 3100239072 MFR # 3100239114 Superseded: see description
26. #SLEEVE,COMPRESSOR MFR # 3100239072
27. #WELDMENT,COMP. USE 3102590035 PLATE MDL600315.304 MFR # 3102987009 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Plate Compressor MFR # 3102590035
29. #INSULATION, EVAP CLOSE-OFF SPLIT & MFR # 3102527003
30. #APPLIANCE COMPONENTS RV; Insulation Set MFR # 3108903000
31. #INSULATION USE 3108903000 EVAP.BULKHEAD MFR # 3102516022 Superseded: see description
32. #INSULATION,EVAP.USE 3102516022 MFR # 3102516006 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3102512005
34. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
35. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
36. #PAN,DRAIN FOAM MFR # 3102513003
37. #COIL,EVAP.USE 3104573005 620015.308 MFR # 3102533001 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 3104573005
39. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
40. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
42. #GASKET, GREY, 14 X 14 MFR # 6759A3281
43. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
44. #ROOF A/C GASKET KIT MFR # 3310718006
45. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
46. #A/C SEAL, 14 X 14 WHITE MFR # A101414
47. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
48. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
49. #PLUG 4 POLE MFR # 314470005
50. #ANTI SHORT DEVICE MFR # 37760002
51. #CONDUIT,FLEX 579 MFR # 3100838006
52. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
53. #RELAY, PTCR USE3310731009 (START) OR STAG# 49-8609 MFR # 3100876006D
54. #BRACKET USE 3100876006 MFR # 3100877004 Superseded: see description
55. #RELAY, START USE 3310731009 PTCR MFR # 3100876006 Superseded: see description
56. #PTCR KIT MFR # 3310731009
57. #RELAY,START USE 3100876006 MFR # 3100878002 Superseded: see description
58. #CAPACITOR,RUN/FAN USE 46-2329 MFR # F8044 Superseded: see description
59. #Air Conditioner Capacitor; Run/ Fan Capacitor MFR # 3100248073
60. #GASKET,INSULATION EVAP MFR # 3102527011
61. #PLATE EVAP CLOSE- MFR # 3102512013
62. #PAN,DRAIN MFR # 3102967001
63. #COIL,EVAPORATOR MFR # 3102677006
64. #APPLIANCE COMPONENTS RV; Compressor Asm 600315 MFR # 3102864
65. #SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description
66. #SWITCH,OVERLOAD MFR # 3100250244
67. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3102564014
68. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016

Opt. Cover Assembly

Components

20 items

1. #GRILL ASSEMBLY (GRAY MFR # 3103771022
2. #GRILLE ASM USE 3103791020 MFR # 3103771014 Superseded: see description
3. #GRILLE ASM USE 3103791012 POLAR WHITE MFR # 3103771006 Superseded: see description
4. #GRILLE ASM PACKAGE POLAR WHITE MFR # 3103791012
5. #GRILLE ASM USE 3105007003 SHELL WHITE MFR # 3103791020 Superseded: see description
6. #KIT SVC AIR FILTER MFR # 3313107103
7. #FILTER RETURN AIR(UNIVER MFR # 3108015003
8. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
9. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
10. #ATTACHMENT TAPE GREY-EACH MFR # 06384
11. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
12. #FILTER,RETURN USE 3108015003 59016.503, 58915.602 MFR # 3103573006 Superseded: see description
13. #TEMPLATE,CEILING MFR # 3103772004
14. #Air Conditioner Installation Kit; Use With Dometic Air Conditioners; Foam; Adhesive Back; 18 Inch x 7 Inch x 1/8 Inch MFR # 3105014009 Superseded: see description
15. #INSULATION,FOAM USE 3105014009 5 X 16 X 1/4&quot;THICK MFR # 3103581009 Superseded: see description
16. #GRILLE USE 3105007011 SHELL WHITE MFR # 3103636027 Superseded: see description
17. #GRILLE,RET.AIR USE 3105007045 POLAR WHITE MFR # 3105007011 Superseded: see description
18. #A/C COMPONENTS RV; GRILLE, RETURN AIR MFR # 3105007045
19. #GRILLE ASM,GRAY MFR # 3103636035
20. #GRILLE ASM USE 3105007011 MFR # 3103636019 Superseded: see description

Mounting Parts & Accessories

Components

13 items

1. #Air Conditioner Control Box Assembly; For Dometic DuoTherm Air Conditioners; With Power Module Board/ DC Power Supply Board/ Cable Adapter/ Fiberglass Sleeve/ In-Line Coupler/ Control Cable/ Freeze Control Sensor/ Comfort Control Center Wall Thermostat/ Operating Instructions MFR # 3307713010
2. #BOARD, CONTROL USE 3307713010 MFR # 3101625014 Superseded: see description
3. #BOARD,CONTROL USE 3101625014 MFR # 3101625006 Superseded: see description
4. #COVER,T-STAT MFR # 3103809004
5. #APPLIANCE COMPONENTS RV; Base T-Stat 610 62001 MFR # 3103808006
6. #DECAL,T-STAT NO HEAT 5891 5.602/603 MFR # 3101838021
7. #COVER, JUNCTION BOX MFR # 3101361028
8. #BOLT,MOUNTING USE 3106756012 MFR # 3100375041 Superseded: see description
9. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
12. #FOR MODELS 58915-301/302/601/602 59016503 610115305 NOT NORMALLY REQUIRED. ORDER INDIVIDUAL PARTS. T-STAT COMPLETE 3103187005. THE 6" ADAPTER CABL... MFR # 3103187005
13. #PACKAGE ASSEMBLY PARTS MFR # 3103651
