Dometic Penguin 640312C351 11,000 BTU Parts Diagram

Air Conditioner · 1 diagram sheet · 18 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic Penguin 640312C351 11,000 BTU rooftop air conditioner: 18 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

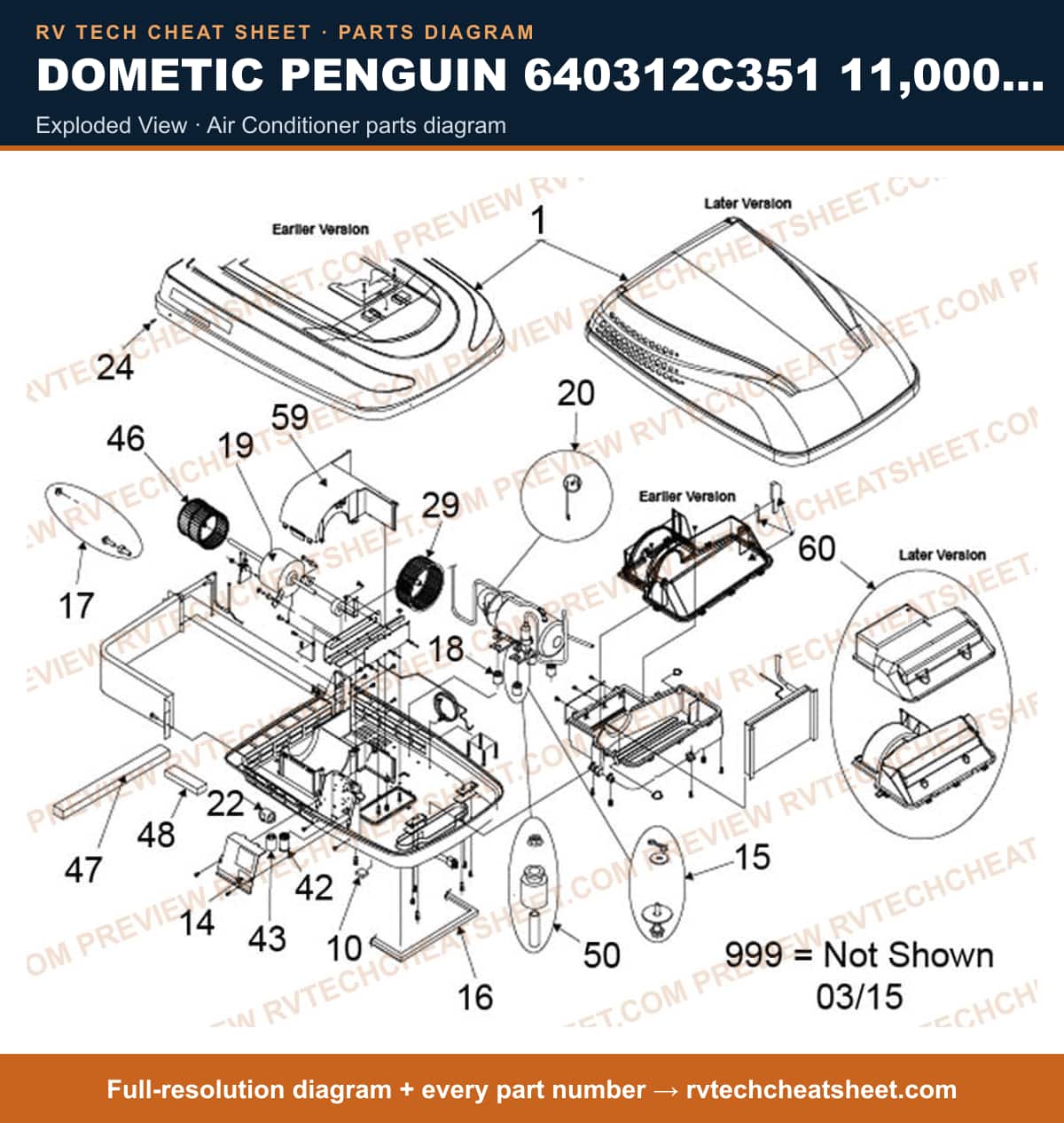

Exploded View

Components

18 items

1. #KIT SVC SHROUD PENGUIN II BLK MFR # 3314471003
2. #Air Conditioner Shroud; Replacement Shroud For Dometic Penguin II Model Air Conditioners; Polar white MFR # 3314471001
3. #Air Conditioner Foam Block Kit; Use With Dometic 640310C451/ 640312.831/ 459516.711/ 641716.301 Model Air Conditioners MFR # 3310726009 Superseded: see description
4. #APPLIANCE COMPONENTS RV; KIT,SVC DECAL,WARNING MFR # 3310735000
5. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Air Conditioners MFR # 3310733005
6. #ROOF A/C GASKET KIT MFR # 3310718006
7. #MOTOR SVC PARTS KIT MFR # 3311599000
8. #APPLIANCE COMPONENTS RV; KIT,SVC GROMMET-COMPRESSOR MFR # 3310717008
9. #APPLIANCE COMPONENTS RV; KIT,SVC FAN MOTOR MFR # 3314471004
10. #OVERLOAD PORTECTOR SVC KIT MFR # 3313107002
11. #PTCR KIT MFR # 3310731009
12. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
13. #A/C COMPONENTS RV; KIT,SVC WHEEL EVAP BLWR MFR # 3314471005
14. #APPLIANCE COMPONENTS RV; KIT,SVC CAPACITOR 35/17.5 MFD MFR # 3314471006
15. #HARD START KIT MFR # 3311883000
16. #Air Conditioner Blower Wheel; Replacement For Dometic Penguin II Series MFR # 3314471007
17. #APPLIANCE COMPONENTS RV; KIT,SVC CONDENSER HOUSING MFR # 3314471008
18. #APPLIANCE COMPONENTS RV; KIT,SVC UPR EVAP HOUSING MFR # 3314471009
