Dometic Penguin 641435.301 13,500 BTU Parts Diagram

Air Conditioner · 1 diagram sheet · 24 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic Penguin 641435.301 13,500 BTU rooftop air conditioner: 24 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

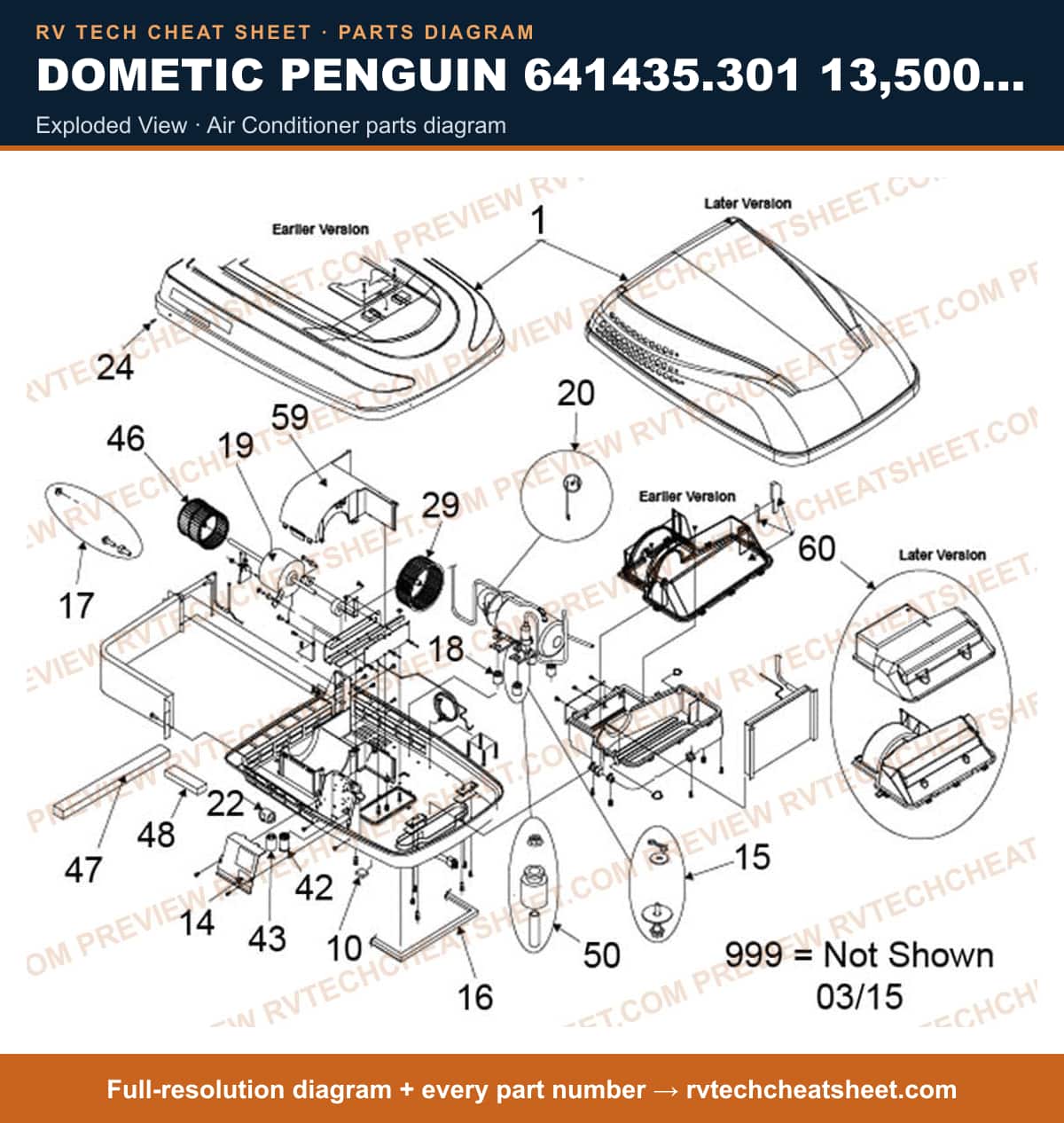

Exploded View

Components

24 items

1. #SHROUD POLAR WHITE <S MFR # 3308046014
2. #SHROUD SHELL WHITE <S MFR # 3308046006
3. #Air Conditioner Shroud; Replacement Shroud For Dometic Air Conditioners; Penguin Style; Grey MFR # 3308046022
4. #SHROUD BLACK MFR # 3308046030
5. #Air Conditioner Foam Block Kit; Use With Dometic 640310C451/ 640312.831/ 459516.711/ 641716.301 Model Air Conditioners MFR # 3310726009 Superseded: see description
6. #APPLIANCE COMPONENTS RV; KIT,SVC DECAL,WARNING MFR # 3310735000
7. #Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Air Conditioners MFR # 3310733005
8. #ROOF A/C GASKET KIT MFR # 3310718006
9. #MOTOR SVC PARTS KIT MFR # 3311599000
10. #APPLIANCE COMPONENTS RV; KIT,SVC GROMMET-COMPRESSOR MFR # 3310717008
11. #FAN MOTOR KIT MFR # 3309333007
12. #Air Conditioner Compressor Overload Protector; For Penguin Air Conditioner MFR # 3312301009
13. #PTCR KIT MFR # 3310731009
14. #Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description
15. #Air Conditioner Blower Wheel; Replacement For Dometic 630516331/ 651516301/ 630516341/ 600015001/ CAW135001/ 620426331 Series Air Conditioner Heat Pump; 7-1/8 Inch Diameter x 3-1/16 Inch Thickness; Metal MFR # 3310378000
16. #APPLIANCE COMPONENTS RV; KIT, SVC CAPACITOR 45/10 MFD MFR # 3313182000
17. #HARD START KIT MFR # 3311883000
18. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
19. #APPLIANCE COMPONENTS RV; Housing Condenser Upper MFR # 3310304000
20. #APPLIANCE COMPONENTS RV; Kit Upper Evaporator Hsg MFR # 3309332009
21. #SENSOR KIT FREEZE CONTROL MFR # 3309191009
22. #APPLIANCE COMPONENTS RV; Board Relay Kit MFR # 3311564000
23. #Air Conditioner Heating Element; Use With Penguin Air Conditioners; 11000 BTU MFR # 3310328000 Superseded: see description
24. #APPLIANCE COMPONENTS RV; KIT,SVC AUTO LIMIT SWITCH MFR # 3313107012
