Dometic Penguin 600015001 Parts Diagram · Shroud & Main Components

Air Conditioner · 4 assemblies · 8 diagram sheets · 148 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Penguin 600015001 rooftop air conditioner: 4 assemblies (Shroud & Main Components, Installation Parts, Optional Electric Heat Kit, Replacement) and 148 manufacturer part numbers. 45 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

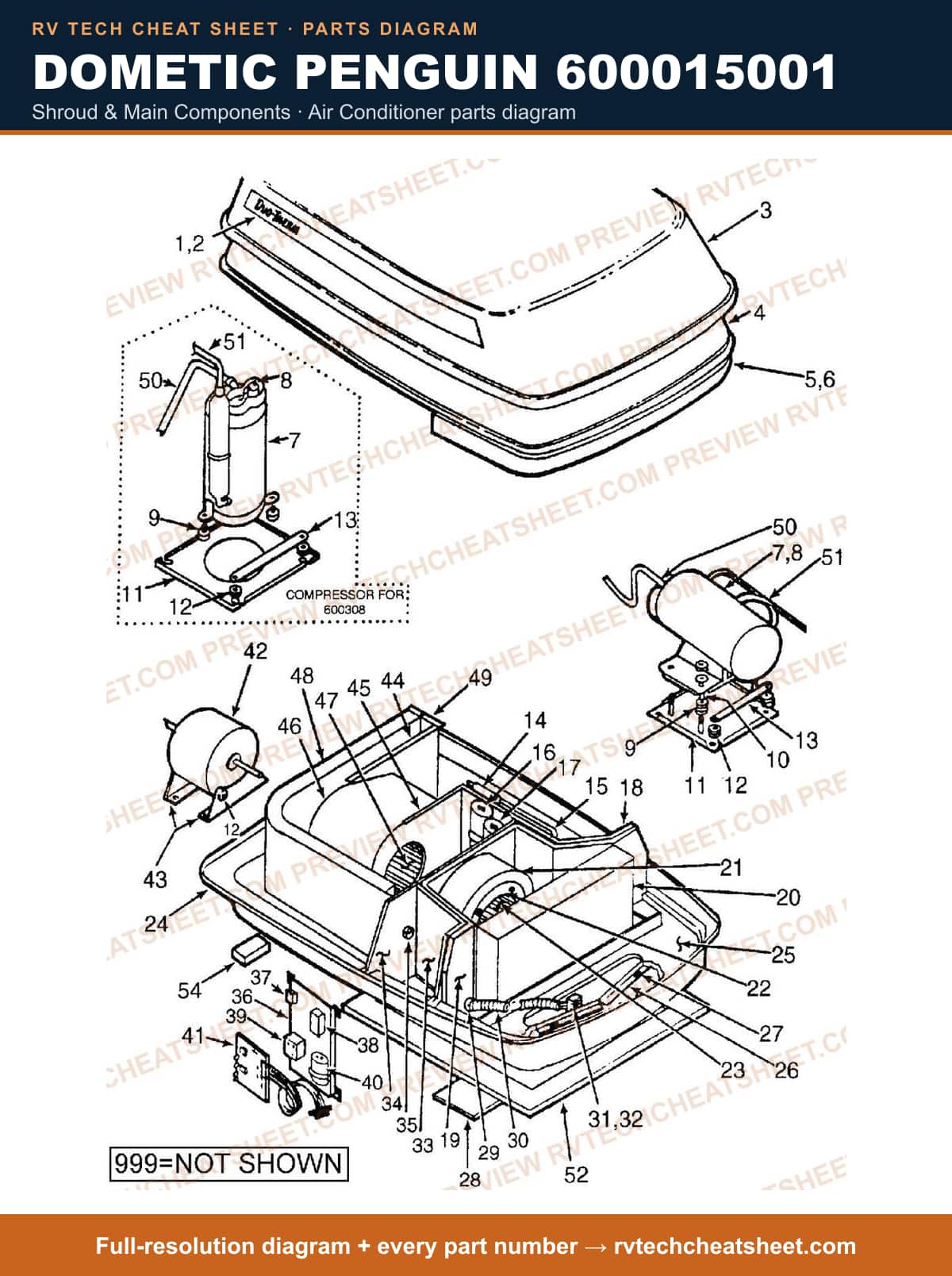

Shroud & Main Components

Components

95 items

1. #DECAL RH SHROUD USE 3102888009 MFR # 318503002 Superseded: see description
2. #DECAL,SHROUD USE 3109274005 MFR # 3102888009 Superseded: see description
3. #DECAL USE 3102888009 DECAL LH SHROUD 5/89 RVA MFR # 318503001 Superseded: see description
4. #SHROUD SHELL WHITE <S MFR # 3308046006
5. #APPLIANCE COMPONENTS RV; Foam Kit MFR # 3312081000
6. #SHROUD,OUTER USE 3100252000 CAE11O 135 MFR # 3100252 Superseded: see description
7. #SHROUD USE 3102515008 MFR # 3100252000 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Shroud Use 3308046006 MFR # 3107746004 Superseded: see description
9. #SHROUD USE 3107746004 SHELL WHITE MFR # 3102515008 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Shroud Inner Rva 60 All MFR # 3101886004
11. #SHROUD,INNER USE 3101886004 MFR # 3100251010 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Cover Evaporator Rva MFR # 3100268006
13. #ADAPTER KIT,COMPRESSOR MFR # 3104306
14. #COMPRESSOR MFR # 1318435
15. #APPLIANCE COMPONENTS RV; Compressor MFR # 3102984006
16. #APPLIANCE COMPONENTS RV; Protector Overload MFR # 3100250038
17. #PROTECTOR USE 3100250038 OVERLOAD MFR # 317001003 Superseded: see description
18. #GROMMET MFR # 3100238132
19. #SLEEVE,COMP.USE 3100239122 MOUNTING MFR # 3100239056 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Sleeve Compressor MFR # 3100239122
21. #PLATE,COMPRESSOR MOUNTING MFR # 3100296007
22. #SERVICE KIT F/MOTOR MFR # 3310725001
23. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
24. #RETAINER STRAP MFR # 3100295009
25. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
26. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343
28. #CAPACITOR GRD MFR # 3100248230
29. #APPLIANCE COMPONENTS RV; Capacitor Fan 7.5M 330V MFR # 3100248222
30. #CAPACITOR, USE 46-2332 FAN 7.5M 330V MFR # F7902 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Bulkhead Compressor MFR # 3100255011
32. #APPLIANCE COMPONENTS RV; Block Hd Insulation MFR # 3100266
33. #APPLIANCE COMPONENTS RV; Coil Evaporator MFR # 3100272008
34. #HOUSING,EVAPORATOR BLOWER MFR # 3100300007
35. #INLET RING MFR # 3100257009
36. #WHEEL,EVAPORATR USE 3310378000 MFR # 3100273006 Superseded: see description
37. #Air Conditioner Blower Wheel; Replacement For Dometic 630516331/ 651516301/ 630516341/ 600015001/ CAW135001/ 620426331 Series Air Conditioner Heat Pump; 7-1/8 Inch Diameter x 3-1/16 Inch Thickness; Metal MFR # 3310378000
38. #APPLIANCE COMPONENTS RV; Wheel Blower Use 33103780 MFR # 3100385008 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Pan Drain MFR # 3100267008
40. #APPLIANCE COMPONENTS RV; Pan Base Use 3100267008 MFR # 3100222011 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Pan Base MFR # 3103179002
42. #APPLIANCE COMPONENTS RV; Bracket Mounting MFR # 3100297005
43. #APPLIANCE COMPONENTS RV; Nut W/Clip Requires 3 MFR # 3100280027
44. #NUT W/MTG CLIP USE 3100280027 MFR # 3100280019 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Insulation Housing Bottom MFR # 3100294002
46. #CONDUIT CLAMP MFR # 318682001
47. #APPLIANCE COMPONENTS RV; Connector Straight MFR # 3100249014
48. #CONDUIT,FLEX MFR # 3100293020
49. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
50. #WIRE SET W/PLUG PENQUIN 6100 MFR # 3100220130
51. #HARNESS,WIRE MFR # 3100220122
52. #PLUG,MALE 9 POLE RVA 60 MFR # 314470003
53. #PLUG 4 POLE MFR # 314470005
54. #BULKHEAD,ELECTRICAL BOX MFR # 3100253008
55. #BULKHEAD, EVAPORATOR MFR # 3100254006
56. #STRAIN RELIEF MFR # 32994014
57. #APPLIANCE COMPONENTS RV; Panel Electrical MFR # 3100282007
58. #APPLIANCE COMPONENTS RV; Relay Time Delay MFR # 318566
59. #APPLIANCE COMPONENTS RV; Relay Compressor MFR # 318569
60. #RELAY,START USE 46-2266 MFR # F7872 Superseded: see description
61. #APPLIANCE COMPONENTS RV; Relay Start MFR # 3100235245
62. #RELAY,START USE 46-2266 OR 3100235245 MFR # 3100235237 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
64. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
65. #CAPACITOR, START MFR # 47C
66. #APPLIANCE COMPONENTS RV; Board Module MFR # 3101597007
67. #APPLIANCE COMPONENTS RV; Upgrade Kit T-Stat MFR # 3307713028
68. #MODULE,CONTROL MFR # 318594
69. #MOTOR,BLOWER USE 3100392004 MFR # 318492 Superseded: see description
70. #APPLIANCE COMPONENTS RV; Motor Blower MFR # 3100392004
71. #MOTOR,FAN USE 3100392004 MFR # 3100393002 Superseded: see description
72. #MOTOR,BLOWER USE 3100393002 MFR # 318679 Superseded: see description
73. #APPLIANCE COMPONENTS RV; Bracket Motor Mount MFR # 3100258007
74. #BLOWER, SIDE/REAR MFR # 3100261001
75. #BLOWER,SIDE & FRONT 60-61 MFR # 3100259005
76. #BLOWER,SCROLL MFR # 3100260003
77. #Air Conditioner Blower Wheel; Replacement For Dometic CAL136207/ CAL136302/ CAL61005/ CAL61001/ CAM135001 Series Air Conditioners; Plastic MFR # 3310180000
78. #WHEEL,BLOWER, USE 3310180.000 OR 46-6755 MFR # 3100274004 Superseded: see description
79. #APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3101467003
80. #COIL,CONDENSER USE 3101467003 RVA 60-61 MFR # 3100271919 Superseded: see description
81. #APPLIANCE COMPONENTS RV; Plate Close Off MFR # 3100256001
82. #LINE,DISCHARGE USE 3101468001 MFR # 3100285901 Superseded: see description
83. #APPLIANCE COMPONENTS RV; Line Discharge MFR # 3101468001
84. #APPLIANCE COMPONENTS RV; Line Suction MFR # 3100284904
85. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
86. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
87. #A/C SEAL, 14 X 14 WHITE MFR # A101414
88. #GASKET, GREY, 14 X 14 MFR # 6759A3281
89. #ROOF A/C GASKET KIT MFR # 3310718006
90. #APPLIANCE COMPONENTS RV; Gasket Roof For A/C MFR # 3100286032
91. #GASKET,ROOF USE 3100286032 MFR # 3100286024 Superseded: see description
92. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
93. #Air Conditioner Compressor Overload Protector; For Use With Dometic 57915.603/ 57915.613 Model Air Conditioner MFR # 3100250277 Superseded: see description
94. #PROTECTOR USE 3100250277 OVERLOAD MFR # 3100250012 Superseded: see description
95. #APPLIANCE COMPONENTS RV; Insulation Housing Top MFR # 317001001

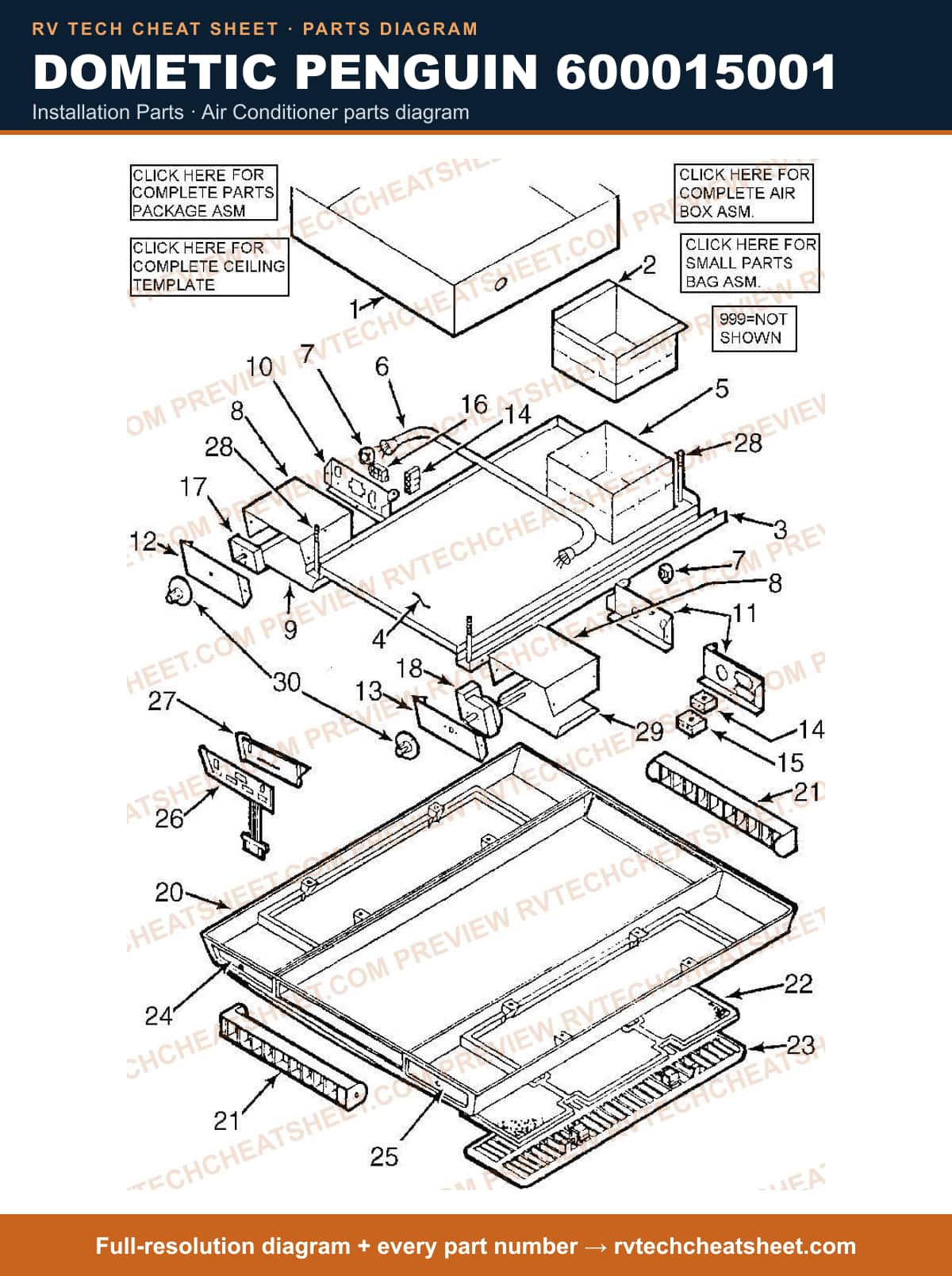

Installation Parts

Components

39 items

1. #DUCT,RETURN AIR RVA ALL MFR # 318938
2. #EXTENSION,DUCT USE 3100262025 MFR # 3100262009 Superseded: see description
3. #Air Conditioner Duct Collar; For Dometic Duo-Therm Penguin Model Air Conditioner MFR # 3100262025
4. #CEILING TEMPLATE MFR # 3100265002
5. #INSULATION,CEILING TEMPLATE MFR # 3107133005
6. #INSULATION USE 3107133005 MFR # 3100287006 Superseded: see description
7. #Air Conditioner Duct Collar; For Dometic Duo-Therm CAL 61.205/ CAL 136.205 Model Air Conditioner MFR # 3100342017
8. #DUCT USE 3100342017 MFR # 3100342009 Superseded: see description
9. #CONDUIT W/WIRES RVA 60 MFR # 3100302003
10. #STRAIN RELIEF MFR # 32994001
11. #APPLIANCE COMPONENTS RV; Box Junction MFR # 3100275001
12. #COVER,JUNCTION USE 3100278013 BOX MFR # 3100278005 Superseded: see description
13. #Water Heater Junction Box Cover; For Roof Top Heat Pump Model 630025.321C/ 630025.321D MFR # 3100278013
14. #APPLIANCE COMPONENTS RV; Box Back Rh MFR # 3100279003
15. #BOX FRONT MFR # 3100276009
16. #BOX FRONT RH MFR # 3100277007
17. #PLUG, FEMALE, 9-POLE MFR # 318518
18. #Air Conditioner Ceiling Assembly Rotary Switch; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner; 10 Position MFR # 3100291016
19. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
20. #NO GENERIC NAME;;T-Stat Heat &amp; Cool ***Us MFR # A22115435
21. #T-STAT USE 313620001 MFR # 3100240039 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Louver Asm 2 Req. MFR # 3100289002
23. #APPLIANCE COMPONENTS RV; Filter Air Use 3100281P00 MFR # 3100281009 Superseded: see description
24. #APPLIANCE COMPONENTS RV; FILTER,AIR 2 PACK MFR # 3100281P009
25. #Air Conditioner Ceiling Assembly Grille; Use With Duo-Therm 610012404/ 610012405/ 620525321 Model Air Conditioners; Return Air; Shell White MFR # 3100270002 Superseded: see description
26. #DECAL, LH AIR BOX MFR # 318525000
27. #DECAL,AIRBOX MFR # 318526
28. #APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description
29. #Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description
30. #BOLT,MOUNTING USE 3106756012 6.25&quot; LONG MFR # 3100375025 Superseded: see description
31. #KNOB,BLACK USE 3106121001 RVA 60 MFR # 3100290 Superseded: see description
32. #KNOB, 3/4&quot; BLACK MFR # 3106121001
33. #TEMPLATE USE 318735002 AND OLD PLUG MFR # 318735001 Superseded: see description
34. #PARTS BAG USE 3101582009 MFR # 3100221013 Superseded: see description
35. #AIRBOX 6000 15-001 MFR # 318542002
36. #NUT, WIRE LARGE MFR # 20009002
37. #APPLIANCE COMPONENTS RV; Shroud Ceiling MFR # 318523002
38. #APPLIANCE COMPONENTS RV; Parts Bag Asm MFR # 3101582009
39. #TEMPLATE,COMPLETE CEILING 6002 ,3 NEW PLUG MFR # 318735002

Optional Electric Heat Kit

Components

10 items

1. #APPLIANCE COMPONENTS RV; Heatshield/60 61 Heat Kit MFR # 3100264005
2. #ELEMENT,HEATING USE 3101121030 MFR # 318467 Superseded: see description
3. #HEAT STRIP,NON-DUCTED MFR # 3101121030
4. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
5. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
6. #APPLIANCE COMPONENTS RV; Bracket Element Mounting MFR # 3100263007
7. #GRILLE,HEATING ELEMENT CAE1 35001 RVA 60/E1 MFR # 3100269004
8. #CONDUIT MFR # 3100293012
9. #PLUG, MALE, 3 POLE MFR # 313801
10. #HEAT STRIP MFR # 318484

Replacement

Components

4 items

1. #AIRBOX,COMPLETE SHELL WHITE HEAT/COOL MFR # 3105457000
2. #AIRBOX,COMPLETE POLAR WHITE MFR # 3105457018
3. #AIR CONDITIONER 13,500 BTU POLAR WHITE PENGUIN MFR # 600315CN
4. #AIR CONDITIONER 13.5BTU UPPER UNIT SHELL WHITE MFR # 600315N
